Transporto priemonė: U 1700; VIN numerio dalis: 435110

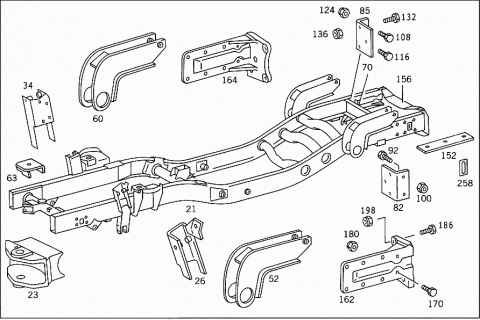

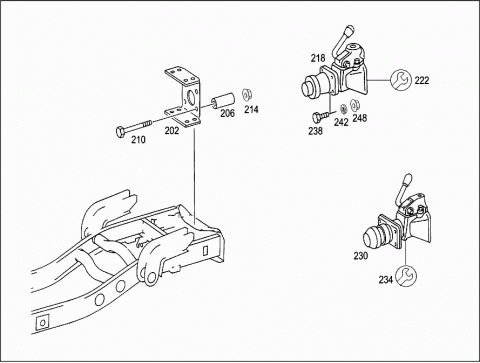

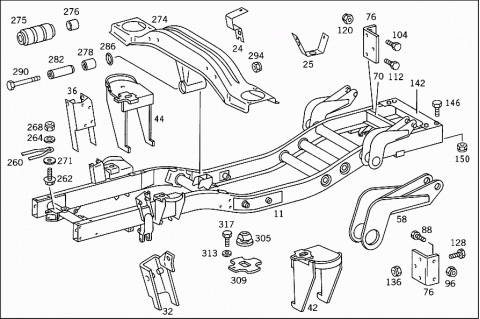

Grupė: 31 FRAME
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| SEE ALSO SA: | ||
| 36 200/01 | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| SEE ALSO SA: | ||
| 36 200/02 | ||
| 011 | A 4353100001 | FRAME |
| 011 | A 4353100301 | FRAME |
| Repalced by: A 4353101801 | ||
| 011 | A 4353101801 | FRAME |
| Repalced by: A 4373101401 | ||
| 011 | A 4373101401 | FRAME |
| Repalced by: A 4373109301 | ||
| 011 | A 4373109301 | FRAME |
| 021 | A 4353101001 | FRAME |
| Repalced by: A 4353102101 | ||
| 021 | A 4353102101 | FRAME |
| Repalced by: A 4373101901 | ||
| 021 | A 4373101901 | FRAME |
| Repalced by: A 4373109701 | ||
| 021 | A 4373109701 | FRAME |
| 021 | A 4253100101 | FRAME |
| Repalced by: A 4253101101 | ||
| 021 | A 4253101101 | FRAME |
| 021 | A 4353101901 | FRAME |
| 021 | A 4353101201 | FRAME |
| Repalced by: A 4353101401 | ||
| 021 | A 4353101401 | FRAME |
| Repalced by: A 4353102301 | ||
| 021 | A 4353102301 | FRAME |
| 023 | A 4255250030 | COUPLING MOUTH |
| Repalced by: A 4273150405 | ||
| 023 | A 4273150405 | COUPLING MOUTH |
| Repalced by: A 4255250030 | ||
| 023 | A 4255250030 | COUPLING MOUTH |
| 024 | A 4373110140 | BRACKET |
| HYDRAULIC LINE | ||
| 025 | A 4254760636 | BRACKET |
| HYDRAULIC LINE | ||
| 026 | A 4253200343 | BRACKET |
| SHOCK ABSORBER,LEFT FRONT | ||
| 032 | A 4253200543 | BRACKET |
| SHOCK ABSORBER,LEFT FRONT | ||
| 034 | A 4253200743 | BRACKET |
| SHOCK ABSORBER,RIGHT FRONT | ||
| 036 | A 4253200643 | BRACKET |
| SHOCK ABSORBER,RIGHT FRONT | ||
| 042 | A 4373200170 | REAR SUBFRAME |
| Repalced by: A 4253200670 | ||
| 042 | A 4253200670 | REAR SUBFRAME |
| LEFT FRONT | ||
| 044 | A 4373200070 | REAR SUBFRAME |
| Repalced by: A 4253200570 | ||
| 044 | A 4253200570 | REAR SUBFRAME |
| RIGHT FRONT | ||
| 052 | A 4253201275 | SPRING BRACKET |
| LEFT REAR | ||
| 058 | A 4353200075 | SPRING BRACKET |
| LEFT REAR | ||
| 058 | A 4353200175 | SPRING BRACKET |
| RIGHT REAR | ||
| 060 | A 4253201375 | SPRING BRACKET |
| RIGHT REAR | ||
| 063 | A 4253100326 | ENGINE CROSS MEMBER |
| FRONT | ||
| A 4353110074 | PIN | |
| CAB IN TILTED POSITION | ||
| A 4353110074 | PIN | |
| CAB IN TILTED POSITION | ||
| 070 | A 4253120225 | CROSS MEMBER |
| 076 | A 4253130042 | ANGLE |
| 082 | A 4253130142 | ANGLE |
| LEFT | ||
| 085 | A 4253130242 | ANGLE |
| RIGHT | ||
| 088 | N 000961014088 | SCREW |
| Repalced by: N 308676014008 | ||
| 088 | N 308676014008 | SCREW |
| ANGLE TO FRAME | ||
| 092 | N 000961016108 | SCREW |
| ANGLE TO FRAME | ||
| 092 | N 000961016100 | SCREW |
| Repalced by: N 308676016020 | ||
| 092 | N 308676016020 | SCREW |
| ANGLE TO FRAME | ||
| 096 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 096 | N 910113014000 | NUT |
| ANGLE TO FRAME | ||
| 100 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 100 | N 910113016001 | NUT |
| ANGLE TO FRAME | ||
| 104 | N 000960014190 | SCREW |
| Repalced by: N 910105014019 | ||
| 104 | N 910105014019 | SCREW |
| ANGLE AND BRACKET TO FRAME | ||
| 108 | N 000960016237 | SCREW |
| Repalced by: N 910105016005 | ||
| 108 | N 910105016005 | SCREW |
| ANGLE AND BRACKET TO FRAME | ||
| 108 | N 000960016212 | SCREW |
| Repalced by: N 910105016015 | ||
| 108 | N 910105016015 | SCREW |
| Repalced by: N 000960016261 | ||
| 108 | N 000960016261 | SCREW |
| Repalced by: N 308676016014 | ||
| 108 | N 308676016014 | SCREW |
| ANGLE AND BRACKET TO FRAME | ||
| 112 | N 000960014143 | SCREW |
| ANGLE AND BRACKET TO FRAME | ||
| 116 | N 000960016269 | SCREW |
| Repalced by: N 910105016009 | ||
| 116 | N 910105016009 | SCREW |
| ANGLE AND BRACKET TO FRAME | ||
| 116 | N 000960016068 | SCREW |
| Repalced by: N 000960016308 | ||
| 116 | N 000960016308 | SCREW |
| ANGLE AND BRACKET TO FRAME | ||
| 120 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 120 | N 910113014000 | NUT |
| ANGLE AND BRACKET TO FRAME | ||
| 124 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 124 | N 910113016001 | NUT |
| ANGLE AND BRACKET TO FRAME | ||
| 128 | N 000961012106 | SCREW |
| Repalced by: N 308676012014 | ||
| 128 | N 308676012014 | HEXAGON HEAD BOLT |
| Repalced by: N 910105012020 | ||
| 128 | N 910105012020 | SCREW |
| ANGLE TO CROSS MEMBER | ||
| 132 | N 000961012190 | SCREW |
| Repalced by: N 910105012013 | ||
| 132 | N 910105012013 | SCREW |
| ANGLE TO CROSS MEMBER | ||
| 132 | N 000961012094 | SCREW |
| Repalced by: N 910105012007 | ||
| 132 | N 910105012007 | SCREW |
| ANGLE TO CROSS MEMBER | ||
| 136 | N 913004012009 | NUT |
| Repalced by: N 910113012005 | ||
| 136 | N 910113012005 | NUT |
| ANGLE TO CROSS MEMBER | ||
| 142 | A 4253120035 | CROSS MEMBER |
| 146 | N 308676012010 | HEXAGON HEAD BOLT |
| REAR CROSS MEMBER TO FRAME | ||
| 150 | N 913004012009 | NUT |
| Repalced by: N 910113012005 | ||
| 150 | N 910113012005 | NUT |
| REAR CROSS MEMBER TO FRAME | ||
| 152 | A 4353110284 | SHIM |
| 156 | A 4253120135 | CROSS MEMBER |
| 162 | A 4253120045 | FLANGE |
| LEFT | ||
| 164 | A 4253120145 | FLANGE |
| RIGHT | ||
| 170 | N 000961014028 | SCREW |
| Repalced by: N 910105014005 | ||
| 170 | N 910105014005 | SCREW |
| FLANGE TO SIDE MEMBER | ||
| 170 | N 910105014005 | SCREW |
| FRAME FLANGE AND CONTROL ARM BRACKET TO SIDE MEMBER | ||
| 170 | N 308676016022 | SCREW |
| Repalced by: N 910105016004 | ||
| 170 | N 910105016004 | SCREW |
| FLANGE TO SIDE MEMBER | ||
| 170 | N 000960016140 | SCREW |
| Repalced by: N 910105016014 | ||
| 170 | N 910105016014 | SCREW |
| Repalced by: N 000960016206 | ||
| 170 | N 000960016206 | SCREW |
| FLANGE TO SIDE MEMBER | ||
| 170 | N 000960016274 | SCREW |
| FLANGE TO SIDE MEMBER | ||
| 180 | N 913004014002 | NUT |
| Repalced by: N 913023014004 | ||
| 180 | N 913023014004 | NUT |
| FLANGE TO SIDE MEMBER | ||
| 180 | N 913004016004 | NUT |
| Repalced by: N 913023016001 | ||
| 180 | N 913023016001 | NUT |
| FLANGE TO SIDE MEMBER | ||
| Repalced by: N 000000005738 | ||
| 180 | N 000000005738 | NUT |
| FLANGE TO SIDE MEMBER | ||
| 186 | N 000961012069 | SCREW |
| Repalced by: N 910105012015 | ||
| 186 | N 910105012015 | SCREW |
| REAR CROSS MEMBER TO FLANGE | ||
| 186 | N 000961016075 | SCREW |
| Repalced by: N 308676016021 | ||
| 186 | N 308676016021 | SCREW |
| Repalced by: N 308676016020 | ||
| 186 | N 308676016020 | SCREW |
| REAR CROSS MEMBER TO FLANGE | ||
| 186 | N 000961016040 | SCREW |
| Repalced by: N 910105016007 | ||
| 186 | N 910105016007 | SCREW |
| REAR CROSS MEMBER TO FLANGE | ||
| 198 | N 913004012008 | NUT |
| Repalced by: N 913023012003 | ||
| 198 | N 913023012003 | NUT |
| REAR CROSS MEMBER TO FLANGE | ||
| 198 | N 913004016004 | NUT |
| Repalced by: N 913023016001 | ||
| 198 | N 913023016001 | NUT |
| Repalced by: N 910113016002 | ||
| 198 | N 910113016002 | NUT |
| REAR CROSS MEMBER TO FLANGE | ||
| 202 | A 4253120460 | REINFORCEMENT |
| 206 | A 4253120053 | SPACER TUBE |
| 210 | N 000960014069 | SCREW |
| Repalced by: N 000960014143 | ||
| 210 | N 000960014143 | SCREW |
| 214 | N 913004014002 | NUT |
| Repalced by: N 913023014004 | ||
| 214 | N 913023014004 | NUT |
| 218 | A 0013155999 | TRAILER COUPLING |
| ROCKINGER | ||
| Repalced by: A 0033157899 | ||
| 218 | A 0033157899 | TRAILER COUPLING |
| ROCKINGER 225G 110 | ||
| 222 | A 0005860331 | REPAIR KIT |
| Repalced by: A 0003100104 | ||
| 222 | A 0003100104 | REPAIR KIT |
| Repalced by: A 0003100207 | ||
| 222 | A 0003100207 | COUPLING PIN |
| A 0005861731 | REPAIR KIT | |
| 230 | A 0013156199 | TRAILER COUPLING |
| Repalced by: A 0023150299 | ||
| 230 | A 0023150299 | TRAILER COUPLING |
| RINGFEDER | ||
| Repalced by: A 0033157899 | ||
| 230 | A 0033157899 | TRAILER COUPLING |
| ROCKINGER 225G 110 | ||
| 234 | A 0005861931 | REPAIR KIT |
| 238 | N 000960014236 | SCREW |
| Repalced by: N 308676014011 | ||
| 238 | N 308676014011 | SCREW |
| 242 | N 912004014100 | LOCK WASHER |
| 248 | N 000934014019 | NUT |
| Repalced by: N 910112014000 | ||
| 248 | N 910112014000 | NUT |
| Repalced by: N 913023014003 | ||
| 248 | N 913023014003 | NUT |
| M14X1.5 | ||
| 258 | A 4065510086 | STOP |
| 260 | A 4259940060 | LOCK |
| 262 | N 914126008017 | SCREW |
| 264 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 264 | N 009021008213 | WASHER |
| FOR SPRING | ||
| Repalced by: N 000000003250 | ||
| 264 | N 000000003250 | WASHER |
| FOR SPRING | ||
| 268 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 268 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 268 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 268 | N 913023008002 | NUT |
| FOR SPRING | ||
| 271 | N 001440008002 | WASHER |
| FOR SPRING | ||
| 274 | A 4253100107 | BODY SUPPORT |
| Repalced by: A 4253100167 | ||
| 274 | A 4253100167 | BODY SUPPORT |
| Repalced by: A 4253100267 | ||
| 274 | A 4253100267 | BODY SUPPORT |
| Repalced by: A 4253100367 | ||
| 274 | A 4253100367 | BODY SUPPORT |
| 275 | A 0019880410 | RUBBER MOUNTING |
| TO 425 310 02 67,425 310 03 67 | ||
| 276 | A 4253111250 | BUSHING |
| TO 425 310 02 67 | ||
| 278 | A 4253120250 | BUSHING |
| TO 425 310 01 07 | ||
| 282 | A 4253120150 | BUSHING |
| TO 425 310 01 07 | ||
| 286 | N 003770045001 | ROUND SECTION SEAL RING |
| TO 425 310 01 07 | ||
| 290 | A 4253170071 | SCREW |
| Repalced by: N 000960020188 | ||
| 290 | N 000960020188 | SCREW |
| CAB TO BODY SUPPORT | ||
| 294 | N 913004020004 | NUT |
| Repalced by: N 913023020000 | ||
| 294 | N 913023020000 | NUT |
| Repalced by: N 913023020001 | ||
| 294 | N 913023020001 | NUT |
| Repalced by: N 910113020003 | ||
| 294 | N 910113020003 | NUT |
| BODY SUPPORT TO FRAME | ||
| 305 | A 4258910001 | RUBBER MOUNTING |
| Repalced by: A 4258917001 | ||
| 305 | A 4258917001 | INTERMEDIATE BEARING |
| CAB TO BODY SUPPORT | ||
| 309 | A 4255240084 | SHIM |
| Repalced by: A 4255240384 | ||
| 309 | A 4255240384 | SHIM |
| CAB TO BODY SUPPORT | ||
| TO 425 310 01 07/ 425 310 02 67 | ||
| 313 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 313 | N 009021008213 | WASHER |
| Repalced by: N 000000003250 | ||
| 313 | N 000000003250 | WASHER |
| 317 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 317 | N 304017008016 | SCREW |
| CAB TO BODY SUPPORT | ||
