Transporto priemonė: U 1700; VIN numerio dalis: 435110

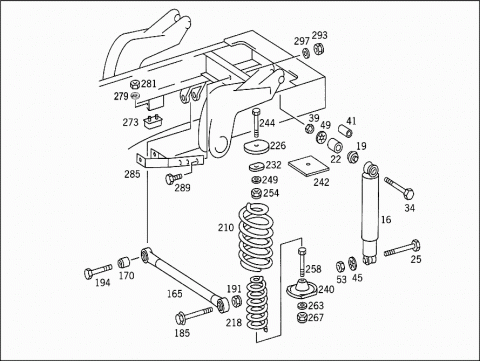

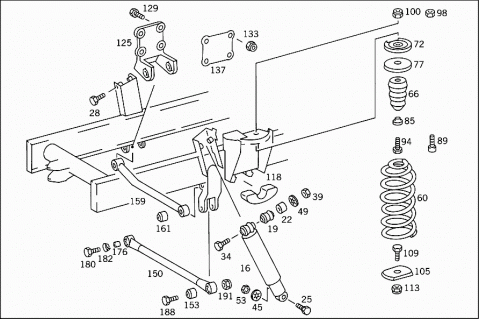

Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| SEE ALSO SA: | ||
| 36 200/01 | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| SEE ALSO SA: | ||
| 36 200/02 | ||
| 016 | A 0023239300 | SHOCK ABSORBER |
| Repalced by: A 0063232500 | ||
| 016 | A 0033231500 | SHOCK ABSORBER |
| Repalced by: A 0063232500 | ||
| 016 | A 0063232500 | SHOCK ABSORBER |
| FICHTEL & SACHS | ||
| 016 | A 0033237000 | SHOCK ABSORBER |
| FICHTEL&SACHS | ||
| 016 | A 0033239300 | SHOCK ABSORBER |
| BOGE | ||
| 016 | A 0043232600 | SHOCK ABSORBER |
| Repalced by: A 0043232700 | ||
| 016 | A 0043232700 | SHOCK ABSORBER |
| BOGE | ||
| 019 | A 0003235285 | RUBBER MOUNTING |
| TO 003 323 70 00,004 323 26 00 | ||
| 019 | A 0003235285 | RUBBER MOUNTING |
| TO 003 323 15 00,006 323 25 00 | ||
| 019 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 019 | A 0003233144 | RUBBER BUFFER |
| TO 003 323 93 00,002 323 93 00 | ||
| Repalced by: A 0003238085 | ||
| 019 | A 0003238085 | RUBBER MOUNTING |
| TO 003 323 93 00,002 323 93 00 | ||
| 019 | A 0009889110 | RUBBER MOUNTING |
| TO 003 323 93 00,002 323 93 00 | ||
| 022 | A 0003231550 | BUSHING |
| TO 003 323 93 00,002 323 93 00 | ||
| 025 | N 000960020138 | SCREW |
| Repalced by: N 000960020078 | ||
| 025 | N 000960020078 | SCREW |
| SHOCK ABSORBER TO AXLE | ||
| M 20X1.5X85 | ||
| 028 | N 000960020201 | SCREW |
| SHOCK ABSORBER TO FRAME | ||
| M 20X1.5X115 | ||
| 034 | N 000960020140 | SCREW |
| Repalced by: N 910105020009 | ||
| 034 | N 910105020009 | SCREW |
| Repalced by: N 000960020123 | ||
| 034 | N 000960020123 | SCREW |
| SHOCK ABSORBER TO FRAME | ||
| M 20X1.5X140 | ||
| 034 | N 000960020141 | SCREW |
| SHOCK ABSORBER TO FRAME | ||
| M 20X1.5X165 | ||
| 039 | N 000936020010 | NUT |
| SHOCK ABSORBER TO FRAME | ||
| 041 | A 4253230150 | BUSHING |
| SHOCK ABSORBER TO FRAME | ||
| 045 | N 900050021001 | LOCK PLATE |
| SHOCK ABSORBER TO AXLE | ||
| 049 | N 900050021001 | LOCK PLATE |
| SHOCK ABSORBER TO FRAME | ||
| 053 | N 000936020010 | NUT |
| SHOCK ABSORBER TO AXLE | ||
| 053 | N 308675020003 | NUT |
| SHOCK ABSORBER TO AXLE | ||
| 060 | A 4353210104 | FRONT SPRING |
| 060 | A 4353210204 | FRONT SPRING |
| 060 | A 4353210204 | FRONT SPRING |
| 060 | A 4253210704 | FRONT SPRING |
| 066 | A 0003210006 | HELPER SPRING |
| 066 | A 0003210006 | HELPER SPRING |
| 072 | A 4253250026 | PLATE |
| Repalced by: A 4353250126 | ||
| 072 | A 4253250526 | PLATE |
| Repalced by: A 4353250126 | ||
| 072 | A 4353250126 | PLATE |
| TOP | ||
| 077 | A 4353210136 | SPACER |
| 077 | A 4253210036 | SPACER |
| FRONT SPRING TO FRAME | ||
| 085 | A 4253210008 | SPRING SLEEVE |
| FRONT SPRING TO FRAME | ||
| 085 | A 4253210008 | SPRING SLEEVE |
| FRONT SPRING TO FRAME | ||
| 089 | N 000912018016 | SCREW |
| M 18X1.5X95 | ||
| 094 | N 000960018131 | SCREW |
| Repalced by: N 910105018013 | ||
| 094 | N 910105018013 | SCREW |
| Repalced by: N 910105018026 | ||
| 094 | N 910105018026 | HEXAGON HEAD BOLT |
| FRONT SPRING TO FRAME | ||
| M18X1.5X70 | ||
| 094 | N 000960018040 | SCREW |
| FRONT SPRING TO FRAME | ||
| M 18X1.5X65 | ||
| 094 | N 000912018024 | SCREW |
| FRONT SPRING TO FRAME | ||
| M 18X1.5X125X60 | ||
| 098 | N 000439018204 | NUT |
| FRONT SPRING TO FRAME | ||
| 100 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 100 | N 910113018004 | NUT |
| FRONT SPRING TO FRAME | ||
| 105 | A 4253251015 | SPRING CASE |
| FRONT SPRING TO SPRING BRACKET | ||
| 105 | A 4253251015 | SPRING CASE |
| FRONT SPRING TO SPRING BRACKET | ||
| 109 | N 000961018009 | SCREW |
| FRONT SPRING TO SPRING BRACKET | ||
| M 18X1.5X45 | ||
| 109 | N 000961018009 | SCREW |
| FRONT SPRING TO SPRING BRACKET | ||
| M 18X1.5X45 | ||
| 113 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 113 | N 910113018004 | NUT |
| FRONT SPRING TO SPRING BRACKET | ||
| 113 | N 910113018004 | NUT |
| FRONT SPRING TO SPRING BRACKET | ||
| 118 | A 4063220044 | RUBBER BUFFER |
| 125 | A 4353330103 | BEARING BRACKET |
| 129 | N 000960012224 | SCREW |
| Repalced by: A 0119901304 | ||
| 129 | A 0119901304 | CAPSCREW W HEXAL. DRIVE |
| 133 | N 913004012008 | NUT |
| Repalced by: N 913023012003 | ||
| 133 | N 913023012003 | NUT |
| BEARING BRACKET TO FRAME | ||
| 137 | A 4353330184 | SHIM |
| 150 | A 4253300507 | TRANSVERSE CONTROL ARM |
| Repalced by: A 4253300607 | ||
| 150 | A 4253300607 | TRANSVERSE CONTROL ARM |
| FRONT | ||
| A 4253330114 | BEARING | |
| Repalced by: A 0019880610 | ||
| 153 | A 0019880610 | RUBBER MOUNTING |
| 159 | A 4353300030 | GUIDE ROD |
| Repalced by: A 4353300230 | ||
| 159 | A 4353300230 | GUIDE ROD |
| CONTROL ARMS | ||
| 161 | A 0019880610 | RUBBER MOUNTING |
| 165 | A 4253300107 | TRANSVERSE CONTROL ARM |
| Repalced by: A 4253300707 | ||
| 165 | A 4253300707 | TRANSVERSE CONTROL ARM |
| REAR | ||
| 170 | A 0019880610 | RUBBER MOUNTING |
| 176 | A 4253330112 | BUSHING |
| CONTROL ARMS TO FRONT AND REAR AXLES | ||
| 176 | A 4253330112 | BUSHING |
| CONTROL ARMS TO FRONT AND REAR AXLES | ||
| 176 | A 4253330112 | BUSHING |
| CONTROL ARM TO FRAME | ||
| 176 | A 4253330112 | BUSHING |
| STRUT AND CONTROL ARM TO FRAME | ||
| 176 | A 4253330112 | BUSHING |
| ROD TO BEARING BRACKET | ||
| 180 | A 4259905101 | SCREW |
| CONTROL ARMS TO FRONT AND REAR AXLES | ||
| 180 | A 4259905101 | SCREW |
| CONTROL ARMS TO FRONT AND REAR AXLES | ||
| 182 | A 4419900047 | LOCK WASHER |
| CONTROL ARMS TO FRONT AND REAR AXLES | ||
| 182 | A 4419900047 | LOCK WASHER |
| CONTROL ARMS TO FRONT AND REAR AXLES | ||
| 185 | N 914125016209 | SCREW |
| CONTROL ARMS TO FRONT AND REAR AXLES | ||
| M 16X1.5X85 | ||
| 185 | N 914125016209 | SCREW |
| CONTROL ARMS TO FRONT AND REAR AXLES | ||
| M 16X1.5X85 | ||
| 188 | A 4259905501 | SCREW |
| CONTROL ARM TO FRAME | ||
| 188 | A 4259905501 | SCREW |
| ROD TO BEARING BRACKET | ||
| 191 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 191 | N 910113016001 | NUT |
| CONTROL ARM TO FRAME | ||
| 191 | N 910113016001 | NUT |
| ROD TO BEARING BRACKET | ||
| 191 | N 910113016001 | NUT |
| STRUT AND CONTROL ARM TO FRAME | ||
| 194 | A 4259905301 | SCREW |
| STRUT AND CONTROL ARM TO FRAME | ||
| 210 | A 4353240104 | REAR SPRING |
| 210 | A 4353240204 | REAR SPRING |
| 210 | A 4353240204 | REAR SPRING |
| 210 | A 4353240504 | REAR SPRING |
| 210 | A 4253240304 | REAR SPRING |
| Repalced by: A 4253240404 | ||
| 210 | A 4253240404 | REAR SPRING |
| 210 | A 4353240604 | REAR SPRING |
| 210 | A 4353240604 | REAR SPRING |
| 218 | A 4353240307 | HELPER SPRING |
| 218 | A 4253240206 | HELPER SPRING |
| Repalced by: A 4253240306 | ||
| 218 | A 4253240306 | HELPER SPRING |
| 218 | A 4353240006 | HELPER SPRING |
| 218 | A 4353240006 | HELPER SPRING |
| 226 | A 4253250026 | PLATE |
| Repalced by: A 4353250126 | ||
| 226 | A 4253250526 | PLATE |
| Repalced by: A 4353250126 | ||
| 226 | A 4353250126 | PLATE |
| TOP | ||
| 232 | A 4353250026 | PLATE |
| HELPER SPRING | ||
| 232 | A 4253250226 | PLATE |
| HELPER SPRING | ||
| 240 | A 4253250915 | SPRING CASE |
| REAR | ||
| 240 | A 4253250915 | SPRING CASE |
| REAR | ||
| 242 | A 4353240035 | SPACER |
| Repalced by: A 4373240035 | ||
| 242 | A 4373240035 | SPACER |
| 244 | N 000960018111 | SCREW |
| Repalced by: N 308676018010 | ||
| 244 | N 308676018010 | SCREW |
| REAR SPRING TO SPRING BRACKET | ||
| M 18X1.5X70 | ||
| 244 | N 000960018145 | SCREW |
| Repalced by: A 0039909304 | ||
| 244 | A 0039909304 | SCREW |
| REAR SPRING TO SPRING BRACKET | ||
| M 18X1.5X80 | ||
| 244 | N 000960018151 | SCREW |
| REAR SPRING TO SPRING BRACKET | ||
| M 18X1.5X95 | ||
| 244 | N 000960018151 | SCREW |
| REAR SPRING TO SPRING BRACKET | ||
| M 18X1.5X95 | ||
| 249 | N 000125019009 | WASHER |
| REAR SPRING TO SPRING BRACKET | ||
| 254 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 254 | N 910113018004 | NUT |
| REAR SPRING TO SPRING BRACKET | ||
| 258 | N 000960018132 | SCREW |
| Repalced by: N 910105018014 | ||
| 258 | N 910105018014 | SCREW |
| Repalced by: N 910105018028 | ||
| 258 | N 910105018028 | SCREW |
| REAR SPRING TO REAR AXLE | ||
| M 18X1.5X90 | ||
| Repalced by: N 000000005725 | ||
| 258 | N 000000005725 | SCREW |
| REAR SPRING TO REAR AXLE | ||
| M 18X1.5X90 | ||
| 263 | N 000125019009 | WASHER |
| REAR SPRING TO REAR AXLE | ||
| 263 | N 000125019009 | WASHER |
| REAR SPRING TO REAR AXLE | ||
| 267 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 267 | N 910113018004 | NUT |
| REAR SPRING TO REAR AXLE | ||
| 267 | N 910113018004 | NUT |
| REAR SPRING TO REAR AXLE | ||
| 273 | A 3353250044 | RUBBER BUFFER |
| STOP BUFFER TO FRAME | ||
| 279 | N 912004010102 | LOCK WASHER |
| STOP BUFFER TO FRAME | ||
| 281 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 281 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 281 | N 913023010002 | NUT |
| STOP BUFFER TO FRAME | ||
| 285 | A 4253100053 | STRUT |
| TRANSVERSE CONTROL ARM | ||
| 289 | N 914140012000 | SCREW |
| Repalced by: N 914140012024 | ||
| 289 | N 914140012024 | SCREW |
| STRUT AND CONTROL ARM TO FRAME | ||
| 293 | N 913019012000 | NUT |
| STRUT AND CONTROL ARM TO FRAME | ||
| 297 | N 006916013000 | WASHER |
