Transporto priemonė: U 1700 L/38; VIN numerio dalis: 436341

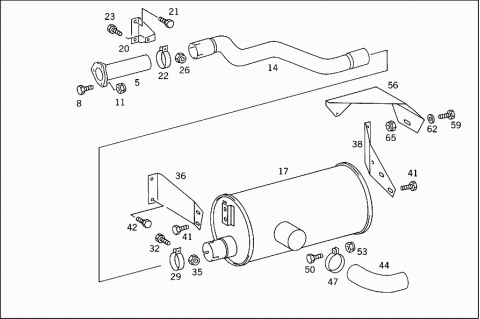

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 4364900019 | EXHAUST PIPE |
| Repalced by: A 4364900119 | ||
| 005 | A 4364900119 | EXHAUST PIPE |
| FRONT | ||
| 008 | N 000931012133 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 011 | N 999901012002 | NUT |
| EXHAUST MUFFLER TO EXHAUST MANIFOLD | ||
| 014 | A 4374920701 | FRONT EXHAUST PIPE |
| CENTRAL | ||
| 017 | A 4374900101 | EXHAUST MUFFLER |
| 020 | A 4364920041 | BRACKET |
| CENTRAL EXHAUST PIPE | ||
| 021 | N 910105010009 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X25 | ||
| 022 | A 3034930343 | CLAMP |
| Repalced by: A 4374930043 | ||
| 022 | A 4374930043 | CLAMP |
| CENTRAL EXHAUST PIPE TO BRACKET | ||
| 023 | N 910105010009 | SCREW |
| CENTRAL EXHAUST PIPE TO BRACKET | ||
| M 10X25 | ||
| 026 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 026 | N 913023010003 | NUT |
| CENTRAL EXHAUST PIPE TO BRACKET | ||
| 029 | A 3034930643 | CLAMP |
| Repalced by: A 4374930143 | ||
| 029 | A 4374930143 | CLAMP |
| CENTRAL EXHAUST PIPE TO EXHAUST MUFFLER | ||
| 032 | N 910105010009 | SCREW |
| CENTRAL EXHAUST PIPE TO EXHAUST MUFFLER | ||
| M 10X25 | ||
| 035 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 035 | N 913023010003 | NUT |
| CENTRAL EXHAUST PIPE TO EXHAUST MUFFLER | ||
| 036 | A 4374920941 | BRACKET |
| EXHAUST MUFFLER,FRONT | ||
| 038 | A 4374920441 | BRACKET |
| EXHAUST MUFFLER,REAR | ||
| 041 | N 910105010006 | SCREW |
| EXHAUST MUFFLER TO BRACKET | ||
| M 10X20 | ||
| 042 | N 910105010009 | SCREW |
| FRONT BRACKET TO SIDE MEMBER | ||
| M 10X25 | ||
| 044 | A 4374920706 | REAR EXHAUST PIPE |
| TAIL PIPE | ||
| 047 | N 071555090502 | CLAMP |
| TAIL PIPE TO EXHAUST MUFFLER | ||
| 050 | N 910105010009 | SCREW |
| TAIL PIPE TO EXHAUST MUFFLER | ||
| M 10X25 | ||
| 053 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 053 | N 913023010003 | NUT |
| TAIL PIPE TO EXHAUST MUFFLER | ||
| 056 | A 4374910130 | PROTECTIVE PLATE |
| 059 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 059 | N 304017008021 | SCREW |
| PROTECTIVE PLATE TO BRACKET | ||
| 062 | N 000125008418 | WASHER |
| PROTECTIVE PLATE TO BRACKET | ||
| 065 | N 913004008004 | NUT |
| Repalced by: N 913023008003 | ||
| 065 | N 913023008003 | NUT |
| PROTECTIVE PLATE TO BRACKET | ||
