Transporto priemonė: U 1700 L/38; VIN numerio dalis: 436341

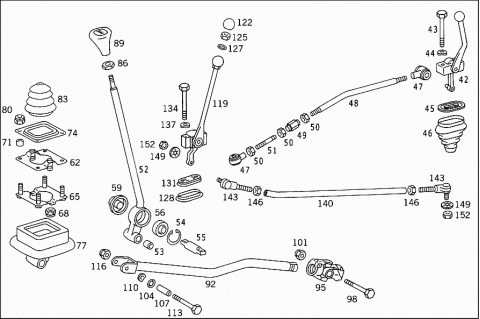

Grupė: 26 TRANSMISSION - 100 SHIFT LEVER
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 4352670642 | PLATE |
| 008 | A 4252670183 | SEAL |
| Repalced by: A 4362677083 | ||
| 008 | A 4362677083 | SEAL |
| 011 | A 4352670083 | SEAL |
| P.T.O. SHAFT DRIVE,TRANSMISSION | ||
| 011 | A 4279970086 | PLUG |
| P.T.O. SHAFT DRIVE,TRANSMISSION | ||
| 014 | A 4359877044 | EXPANSION PLUG |
| MANUAL CONTROL | ||
| 017 | A 4259970586 | PLUG |
| TO PLUG SHIFTING PLATE BORE | ||
| 020 | A 4252601960 | SUPPORT |
| FRONT LEFT | ||
| 023 | A 4252601860 | SUPPORT |
| FRONT RIGHT | ||
| 026 | A 4252602060 | SUPPORT |
| REAR LEFT | ||
| 029 | A 4252602160 | SUPPORT |
| REAR RIGHT | ||
| 032 | A 4252650375 | THREADED PIN |
| SHIFTING PLATE | ||
| 035 | A 4252650276 | WASHER |
| SHIFTING PLATE | ||
| 038 | N 000934008010 | NUT |
| SHIFTING PLATE | ||
| 041 | N 910105010009 | SCREW |
| M 10X25 | ||
| 042 | A 4252602295 | SHIFT LEVER |
| FRONT P.T.O. SHAFT | ||
| 043 | N 000931008244 | SCREW |
| SHIFT LEVER BEARING ON SHIFTING PLATE | ||
| 044 | N 000137008204 | SPRING WASHER |
| SHIFT LEVER BEARING ON SHIFTING PLATE | ||
| 045 | A 4252600662 | BRACKET |
| COVERING TO SHIFTING PLATE | ||
| 046 | A 4252670297 | BOOT |
| SHIFT LEVER | ||
| 046 | A 4252670397 | BOOT |
| SHIFT LEVER | ||
| 047 | A 0009914422 | BALL SOCKET |
| 048 | A 4252651705 | SHIFTING ROD |
| 049 | N 001479008003 | TURNBUCKLE |
| 050 | N 000934008035 | NUT |
| 050 | N 000934008010 | NUT |
| 051 | A 4252651605 | SHIFTING ROD |
| 052 | A 4252603239 | SHIFT LEVER |
| MAIN SHIFT LEVER | ||
| 053 | A 3359920203 | BUSHING |
| 054 | N 000472042001 | LOCK RING |
| 055 | A 4252680474 | PIN |
| 056 | A 0019813931 | JOINT BEARING |
| 059 | A 6202680196 | BOOT |
| 062 | A 4252600862 | BRACKET |
| 065 | A 4252600762 | BRACKET |
| 068 | N 913023008003 | NUT |
| 071 | A 4252670053 | SPACER TUBE |
| 074 | A 4252610205 | TRANSMISSION CASE COVER |
| 077 | A 4252670097 | BOOT |
| 077 | A 4252670497 | BOOT |
| 080 | N 913023008003 | NUT |
| 083 | A 4252670197 | BOOT |
| 083 | A 4252670597 | BOOT |
| 086 | N 308675010001 | NUT |
| 089 | A 4252680142 | KNOB |
| 092 | A 4252601631 | SHIFTING ROD |
| Repalced by: A 4362607031 | ||
| 092 | A 4362607031 | SHIFTING ROD |
| 095 | A 4252600134 | ROD END |
| 095 | A 4252600434 | ROD END |
| 098 | N 000931008314 | SCREW |
| TO A 425 260 01 34 | ||
| 098 | N 070613010049 | SCREW |
| TO A 425 260 04 34 | ||
| 101 | N 913023008002 | NUT |
| TO A 425 260 01 34 | ||
| 101 | N 913004010015 | NUT |
| TO A 425 260 04 34 | ||
| 104 | A 0009978648 | SEAL RING |
| SHIFTING ROD TO SHIFT LEVER | ||
| 107 | A 3852680153 | SPACER TUBE |
| SHIFTING ROD TO SHIFT LEVER | ||
| 110 | N 900055018001 | SPRING WASHER |
| SHIFTING ROD TO SHIFT LEVER | ||
| 113 | N 000931010283 | SCREW |
| SHIFTING ROD TO SHIFT LEVER | ||
| 116 | N 913023010003 | NUT |
| SHIFTING ROD TO SHIFT LEVER | ||
| 119 | A 4252604939 | SHIFT LEVER |
| FORWARD/REVERSE SHIFT LEVER | ||
| 122 | A 4259970077 | HANDLE |
| BLACK | ||
| 125 | N 304035010000 | NUT |
| 127 | A 0069971248 | SEAL RING |
| 128 | A 4252670797 | BOOT |
| 131 | A 4252600662 | BRACKET |
| 134 | N 000931008244 | SCREW |
| SHIFT LEVER BEARING ON SHIFTING PLATE | ||
| 137 | N 000137008204 | SPRING WASHER |
| SHIFT LEVER BEARING ON SHIFTING PLATE | ||
| 140 | A 4252670603 | SHIFTING SHAFT |
| Repalced by: A 4272670003 | ||
| 140 | A 4272670003 | SHIFTING SHAFT |
| 143 | A 0009916622 | BALL SOCKET |
| Repalced by: A 0019910822 | ||
| 143 | A 0019910822 | BALL SOCKET |
| 146 | N 308673012002 | HEXAGON NUT |
| 146 | N 308675012000 | NUT |
| 149 | N 900050010001 | LOCK PLATE |
| SHIFTING ROD TO SHIFT LEVER | ||
| 152 | N 910112010001 | NUT |
| SHIFTING ROD TO SHIFT LEVER | ||
| 155 | A 4352600060 | SUPPORT |
| LEFT | ||
| 158 | A 4352660103 | MOUNTING |
| RIGHT | ||
| 161 | A 0009888910 | RUBBER MOUNTING |
| LEFT | ||
| 161 | A 0009888910 | RUBBER MOUNTING |
| RIGHT | ||
| 164 | A 4352410286 | PLATE WITH THREADED HOLES |
| LEFT TRANSMISSION MOUNTING TO FRAME | ||
| 167 | A 4252660062 | THRUST WASHER |
| LEFT TRANSMISSION MOUNTING TO FRAME | ||
| 167 | A 4252660062 | THRUST WASHER |
| RIGHT TRANSMISSION MOUNTING TO FRAME | ||
| 170 | A 4259905201 | SCREW |
| LEFT TRANSMISSION MOUNTING TO FRAME | ||
| 170 | A 4259905201 | SCREW |
| RIGHT TRANSMISSION MOUNTING TO FRAME | ||
| 173 | A 4252660284 | SHIM |
| TRANSMISSION MOUNTING TO TRANSMISSION, LEFT | ||
| 176 | A 4252410226 | INTERMEDIATE PIECE |
| TRANSMISSION MOUNTING TO TRANSMISSION, LEFT | ||
| 179 | N 914140016000 | SCREW |
| TRANSMISSION MOUNTING TO TRANSMISSION, LEFT | ||
| 182 | A 4252660495 | WEB |
| TRANSMISSION MOUNTING TO TRANSMISSION, RIGHT | ||
| 185 | N 914140012003 | SCREW |
| TRANSMISSION MOUNTING TO TRANSMISSION, RIGHT | ||
| 188 | A 4439970072 | FITTING |
| BREATHER | ||
| 191 | A 0109975982 | HOSE |
| Repalced by: A 0009872827 | ||
| 191 | A 0009872827 | PLASTIC PIPE |
| BREATHER | ||
| 194 | A 3054760026 | HOSE |
| Repalced by: A 3054760126 | ||
| 194 | A 3054760126 | HOSE |
| BREATHER | ||
| 197 | A 0029978790 | CLIP |
| BREATHER | ||
| 200 | N 916002017100 | CLAMP |
| PIPING TO GEAR CLUSTER SHIFT VALVE | ||
