Transporto priemonė: U 1700 L/38; VIN numerio dalis: 436341

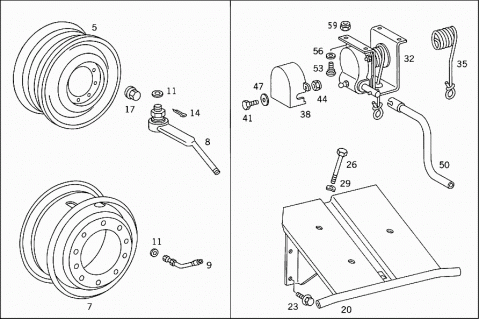

Grupė: 40 WHEELS - 050 DISC WHEELS AND SPARE WHEEL CARRIER
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 4254011801 | DISC WHEEL |
| "8,5-20" | ||
| 007 | A 4254013001 | DISC WHEEL |
| "10.0 V-20" | ||
| 008 | A 0004014713 | VALVE |
| (OFFSET VALVE) | ||
| 009 | A 0004016613 | VALVE |
| Repalced by: A 0014012613 | ||
| 009 | A 0014012613 | VALVE |
| (OFFSET VALVE) | ||
| 011 | A 0004010076 | WASHER |
| 014 | N 000094005044 | COTTER PIN |
| 017 | N 074361022100 | NUT |
| 020 | A 4254001039 | BRACKET |
| SPARE WHEEL | ||
| 023 | N 914140016002 | SCREW |
| SPARE WHEEL CARRIER TO FRAME | ||
| 026 | N 000961020035 | SCREW |
| Repalced by: N 308676020011 | ||
| 026 | N 308676020011 | SCREW |
| DISC WHEEL TO BRACKET | ||
| 029 | N 000137020204 | SPRING WASHER |
| DISC WHEEL TO BRACKET | ||
| 032 | A 4354000018 | SPARE WHEEL HOIST |
| 035 | N 083331008500 | WIRE CABLE |
| Repalced by: N 083334008000 | ||
| 035 | N 083334008000 | WIRE CABLE |
| 038 | A 3854000020 | COVERING |
| 041 | N 000933006121 | SCREW |
| 044 | N 913004006003 | NUT |
| 047 | N 009021006205 | WASHER |
| 050 | A 4354030145 | CRANK |
| SPARE WHEEL HOIST | ||
| 053 | N 000603010052 | SCREW |
| SPARE WHEEL HOIST TO CROSS MEMBER | ||
| 056 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 056 | N 000125010532 | WASHER |
| SPARE WHEEL HOIST TO CROSS MEMBER | ||
| 059 | N 913004010004 | NUT |
| Repalced by: N 910113010000 | ||
| 059 | N 910113010000 | NUT |
| SPARE WHEEL HOIST TO CROSS MEMBER | ||
