Transporto priemonė: U 1850; VIN numerio dalis: 437114

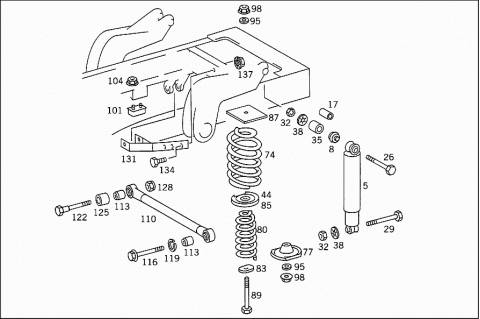

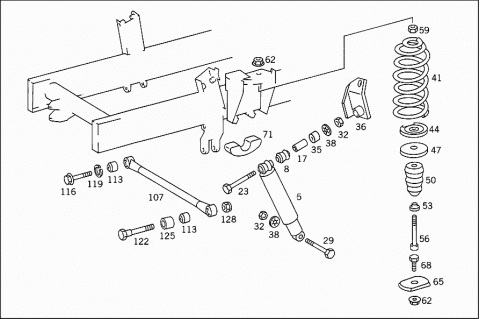

Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0023239300 | SHOCK ABSORBER |
| Repalced by: A 0063232500 | ||
| 005 | A 0033231500 | SHOCK ABSORBER |
| Repalced by: A 0063232500 | ||
| 005 | A 0063232500 | SHOCK ABSORBER |
| FRONT AXLE | ||
| FICHTEL & SACHS | ||
| 005 | A 0063232500 | SHOCK ABSORBER |
| FRONT AXLE | ||
| FICHTEL & SACHS | ||
| 005 | A 0033237000 | SHOCK ABSORBER |
| FRONT AXLE | ||
| FICHTEL & SACHS | ||
| 005 | A 0033239300 | SHOCK ABSORBER |
| FRONT AXLE | ||
| BOGE | ||
| 005 | A 0063232600 | SHOCK ABSORBER |
| FRONT AXLE | ||
| FICHTEL & SACHS | ||
| 005 | A 0063230000 | SHOCK ABSORBER |
| Repalced by: A 0063232000 | ||
| 005 | A 0063232000 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 005 | A 0063232000 | SHOCK ABSORBER |
| REAR AXLE | ||
| 005 | A 0053234400 | SHOCK ABSORBER |
| REAR AXLE | ||
| 005 | A 0033233600 | SHOCK ABSORBER |
| REAR AXLE | ||
| BOGE | ||
| Repalced by: A 0073232100 | ||
| 005 | A 0073232100 | SHOCK ABSORBER |
| REAR AXLE | ||
| BOGE | ||
| 008 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 008 | A 0003233144 | RUBBER BUFFER |
| TO 003 323 93 00,93 00,36 00 | ||
| Repalced by: A 0003238085 | ||
| 008 | A 0003238085 | RUBBER MOUNTING |
| TO 003 323 93 00,93 00,36 00 | ||
| 008 | A 0009889110 | RUBBER MOUNTING |
| TO 002 323 93 00 | ||
| 008 | A 0003235285 | RUBBER MOUNTING |
| TO 003 323 70 00;006 323 20 00 | ||
| 008 | A 0003235285 | RUBBER MOUNTING |
| TO 003 323 15 00 | ||
| 008 | A 0003235285 | RUBBER MOUNTING |
| TO 006 323 25 00,26 00 | ||
| 017 | A 0003231550 | BUSHING |
| TO 003 323 93 00,002 323 93 00 | ||
| 017 | A 0003231550 | BUSHING |
| TO 003 323 36 00 | ||
| 023 | N 910105020009 | SCREW |
| FRONT SHOCK ABSORBERS TO FRAME | ||
| M 20X1.5X140 | ||
| 023 | N 000960020201 | SCREW |
| FRONT SHOCK ABSORBERS TO FRAME | ||
| M20X1.5X115 | ||
| 026 | N 000960020141 | SCREW |
| REAR SHOCK ABSORBER TO FRAME | ||
| M20X1.5X165 | ||
| 029 | N 000960020078 | SCREW |
| SHOCK ABSORBER TO AXLE | ||
| M20X1.5X85 | ||
| 032 | N 308675020002 | NUT |
| SHOCK ABSORBER TO FRAME | ||
| 032 | N 308675020002 | NUT |
| SHOCK ABSORBER TO AXLE | ||
| 035 | A 4253230150 | BUSHING |
| SHOCK ABSORBER TO FRAME | ||
| 036 | A 4375200341 | BRACKET |
| SHOCK ABSORBER TO FRAME,LEFT | ||
| 036 | A 4375000445 | RADIATOR STRUT |
| SHOCK ABSORBER TO FRAME,LEFT | ||
| 038 | N 900050021001 | LOCK PLATE |
| SHOCK ABSORBER MOUNTING | ||
| 041 | A 4253210704 | FRONT SPRING |
| 041 | A 4253210804 | FRONT SPRING |
| 041 | A 4373210404 | FRONT SPRING |
| 041 | A 4373210304 | FRONT SPRING |
| 044 | A 4353250126 | PLATE |
| FRONT SPRING TO FRAME | ||
| 044 | A 4353250126 | PLATE |
| REAR SPRING TO SPRING BRACKET ON FRAME | ||
| 047 | A 4253210036 | SPACER |
| FRONT SPRING | ||
| 050 | A 0003210006 | HELPER SPRING |
| FRONT | ||
| 053 | A 4253210008 | SPRING SLEEVE |
| HELPER SPRING | ||
| 056 | N 000912018024 | SCREW |
| PLATE TO FRAME | ||
| M18X1.5X125X60 | ||
| 056 | N 910105018025 | SCREW |
| FRONT SPRING TO FRAME | ||
| M18X1.5X65 | ||
| Repalced by: N 000000005693 | ||
| 056 | N 000000005693 | HEXAGON HEAD BOLT |
| FRONT SPRING TO FRAME | ||
| M18X1.5X65 | ||
| 056 | N 910105018025 | SCREW |
| FRONT SPRING TO FRAME | ||
| M 18X1.5X65 | ||
| Repalced by: N 000000005693 | ||
| 056 | N 000000005693 | HEXAGON HEAD BOLT |
| FRONT SPRING TO FRAME | ||
| M 18X1.5X65 | ||
| 059 | N 000439018204 | NUT |
| PLATE TO FRAME | ||
| 062 | N 913023018002 | NUT |
| FRONT SPRING TO FRAME | ||
| 062 | N 910113018003 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 065 | A 4253251015 | SPRING CASE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 068 | N 308676018020 | SCREW |
| Repalced by: A 3859902314 | ||
| 068 | A 3859902314 | SCREW |
| FRONT SPRINGS TO FRONT AXLE | ||
| M 18X1.5X45 | ||
| 071 | A 4063220044 | RUBBER BUFFER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 074 | A 4353240604 | REAR SPRING |
| 074 | A 4373240004 | REAR SPRING |
| 077 | A 4253250915 | SPRING CASE |
| REAR SPRING TO SPRING BRACKET ON AXLE | ||
| 080 | A 4353240006 | HELPER SPRING |
| REAR | ||
| 080 | A 4353240006 | HELPER SPRING |
| REAR | ||
| 083 | A 4253250226 | PLATE |
| HELPER SPRING | ||
| 085 | A 4353250126 | PLATE |
| REAR SPRING TO SPRING BRACKET ON FRAME | ||
| 087 | A 4353240035 | SPACER |
| Repalced by: A 4373240035 | ||
| 087 | A 4373240035 | SPACER |
| REAR SPRING TO SPRING BRACKET ON FRAME | ||
| 089 | N 000960018151 | SCREW |
| REAR SPRING TO SPRING BRACKET ON AXLE | ||
| M18X1.5X95 | ||
| 089 | N 000960018151 | SCREW |
| REAR SPRING TO SPRING BRACKET ON FRAME | ||
| M 18X1.5X95 | ||
| 089 | N 000960018145 | SCREW |
| Repalced by: A 0039909304 | ||
| 089 | A 0039909304 | SCREW |
| REAR SPRING TO SPRING BRACKET ON FRAME | ||
| M18X1.5X80 | ||
| 089 | A 0039909304 | SCREW |
| REAR SPRING TO SPRING BRACKET ON AXLE | ||
| 095 | N 000125019009 | WASHER |
| REAR SPRING TO SPRING BRACKET ON AXLE | ||
| 095 | N 000125019009 | WASHER |
| HELPER SPRING | ||
| 095 | N 000125019009 | WASHER |
| REAR SPRING TO SPRING BRACKET ON FRAME | ||
| 098 | N 913023016001 | NUT |
| REAR SPRING TO SPRING BRACKET ON AXLE | ||
| Repalced by: N 000000005738 | ||
| 098 | N 000000005738 | NUT |
| REAR SPRING TO SPRING BRACKET ON AXLE | ||
| 098 | N 913023016001 | NUT |
| HELPER SPRING | ||
| Repalced by: N 000000005738 | ||
| 098 | N 000000005738 | NUT |
| HELPER SPRING | ||
| 098 | N 913023016001 | NUT |
| REAR SPRING TO SPRING BRACKET ON FRAME | ||
| Repalced by: N 000000005738 | ||
| 098 | N 000000005738 | NUT |
| REAR SPRING TO SPRING BRACKET ON FRAME | ||
| 101 | A 3353250044 | RUBBER BUFFER |
| REAR SPRING TO SPRING BRACKET ON AXLE | ||
| 104 | N 913023010002 | NUT |
| RUBBER BUFFER TO SPRING SEAT | ||
| 107 | A 4253300607 | TRANSVERSE CONTROL ARM |
| FRONT AXLE | ||
| 110 | A 4253300707 | TRANSVERSE CONTROL ARM |
| REAR AXLE | ||
| 113 | A 0019880610 | RUBBER MOUNTING |
| FRONT AND REAR AXLES | ||
| 116 | N 914125016209 | SCREW |
| CONTROL ARMS TO FRONT AND REAR AXLES | ||
| M 16X1.5X85 | ||
| 119 | A 4419900047 | LOCK WASHER |
| CONTROL ARMS TO FRONT AND REAR AXLES | ||
| 122 | A 4259905501 | SCREW |
| CONTROL ARM TO FRAME,FRONT | ||
| 122 | A 4259905501 | SCREW |
| CONTROL ARM TO FRAME,REAR | ||
| 122 | A 4259905301 | SCREW |
| STRUT AND CONTROL ARM TO FRAME | ||
| 125 | A 4253330112 | BUSHING |
| CONTROL ARM TO FRAME,FRONT | ||
| 125 | A 4253330112 | BUSHING |
| CONTROL ARM TO FRAME,REAR | ||
| 128 | N 910113016001 | NUT |
| CONTROL ARM TO FRAME,FRONT | ||
| 128 | N 910113016001 | NUT |
| CONTROL ARM TO FRAME,REAR | ||
| 128 | N 913023016001 | NUT |
| STRUT AND CONTROL ARM TO FRAME | ||
| Repalced by: N 000000005738 | ||
| 128 | N 000000005738 | NUT |
| STRUT AND CONTROL ARM TO FRAME | ||
| 131 | A 4253100053 | STRUT |
| REAR AXLE | ||
| 134 | N 914140012024 | SCREW |
| STRUT TO CROSS MEMBER | ||
| M12X1.5X35 | ||
| 137 | N 913019012000 | NUT |
| STRUT TO CROSS MEMBER | ||

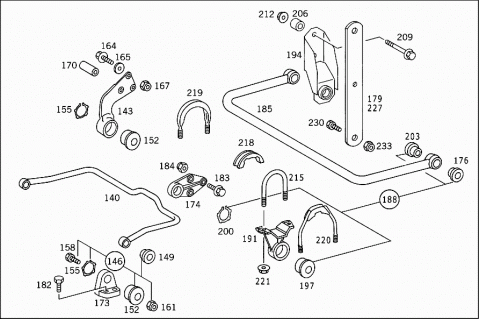

| 140 | A 4373231565 | TORSION BAR |
| FRONT | ||
| 140 | A 4373230165 | TORSION BAR |
| Repalced by: A 4373230265 | ||
| 140 | A 4373230265 | TORSION BAR |
| FRONT | ||
| 143 | A 4253231063 | BEARING BRACKET |
| LEFT | ||
| 143 | A 4253231063 | BEARING BRACKET |
| LEFT | ||
| 143 | A 4253231163 | BEARING BRACKET |
| RIGHT | ||
| 143 | A 4253231163 | BEARING BRACKET |
| RIGHT | ||
| 146 | A 4373200847 | SILENT BLOCK |
| PARTS KIT | ||
| TO 437 323 15 65 | ||
| 146 | A 4373200847 | SILENT BLOCK |
| TO 437 323 01 65 | ||
| 149 | A 3183200073 | BEARING |
| (RUBBER MOUNTING) | ||
| 149 | A 3183200073 | BEARING |
| (RUBBER MOUNTING) | ||
| 152 | A 3873230385 | RUBBER MOUNTING |
| 152 | A 3873230385 | RUBBER MOUNTING |
| 155 | N 000983068000 | LOCK RING |
| 155 | N 000983068000 | LOCK RING |
| 158 | N 000960016241 | SCREW |
| SHACKLE TO TORSION BAR | ||
| M 16X1.5X75 | ||
| 158 | N 000960016241 | SCREW |
| SHACKLE TO TORSION BAR | ||
| M 16X1.5X75 | ||
| 158 | N 000960016241 | SCREW |
| SHACKLE TO BEARING BRACKET | ||
| M 16X1.5X75 | ||
| 158 | N 000960016241 | SCREW |
| 161 | N 910113016001 | NUT |
| SHACKLE TO TORSION BAR | ||
| 161 | N 910113016001 | NUT |
| SHACKLE TO TORSION BAR | ||
| 161 | N 910113016001 | NUT |
| SHACKLE TO BEARING BRACKET | ||
| 161 | N 910113016001 | NUT |
| 164 | N 910105012017 | SCREW |
| TORSION BAR TO FRAME | ||
| M 12X1.5X70 | ||
| Repalced by: A 0159909201 | ||
| 164 | A 0159909201 | BOLT AND WASHER ASSY. |
| TORSION BAR TO FRAME | ||
| M 12X1.5X70 | ||
| 164 | A 0049908804 | SCREW |
| TORSION BAR TO FRAME | ||
| M 12X1.5X75 | ||
| 165 | N 009021013203 | WASHER |
| TORSION BAR TO FRAME | ||
| 167 | N 910113012005 | NUT |
| TORSION BAR TO FRAME | ||
| 170 | A 4375510250 | BUSHING |
| TORSION BAR TO FRAME | ||
| 170 | A 6312420353 | SPACER TUBE |
| TORSION BAR TO FRAME | ||
| 173 | A 4373230463 | BEARING BRACKET |
| LEFT | ||
| 173 | A 4373230563 | BEARING BRACKET |
| RIGHT | ||
| 174 | A 4373230263 | BEARING BRACKET |
| FRONT | ||
| 176 | A 3183200073 | BEARING |
| 176 | A 3183200073 | BEARING |
| 179 | A 4373260447 | SHACKLE |
| Repalced by: A 4373260347 | ||
| 179 | A 4373260347 | SHACKLE |
| TORSION BAR TO BEARING BRACKET | ||
| 179 | A 4373260847 | SHACKLE |
| Repalced by: A 4373260347 | ||
| 179 | A 4373260347 | SHACKLE |
| TORSION BAR TO BEARING BRACKET | ||
| 182 | N 308676018001 | SCREW |
| BEARING BRACKET TO FRONT AXLE | ||
| M 18X1.5X45 | ||
| 183 | N 910105012020 | SCREW |
| BEARING BRACKET TO FRONT AXLE | ||
| M 12X1.5X35 | ||
| 184 | N 910113012005 | NUT |
| BEARING BRACKET TO FRONT AXLE | ||
| 185 | A 4373260365 | TORSION BAR |
| REAR | ||
| 185 | A 4373260265 | TORSION BAR |
| REAR | ||
| 188 | A 4373200447 | SILENT BLOCK |
| PARTS KIT | ||
| TO 437 326 03 65 | ||
| 188 | A 4373200147 | SILENT BLOCK |
| PARTS KIT | ||
| TO 437 326 02 65 | ||
| 191 | A 4253230963 | BEARING BRACKET |
| TORSION BAR TO REAR AXLE | ||
| 191 | A 4373230063 | BEARING BRACKET |
| TORSION BAR TO REAR AXLE | ||
| 191 | A 4353231463 | BEARING BRACKET |
| TORSION BAR TO REAR AXLE | ||
| 194 | A 4373200178 | CONSOLE |
| TORSION BAR TO FRAME | ||
| 194 | A 4373200178 | CONSOLE |
| TORSION BAR TO FRAME | ||
| 197 | A 3873230385 | RUBBER MOUNTING |
| 197 | A 3873230285 | RUBBER MOUNTING |
| 200 | N 000983068000 | LOCK RING |
| 200 | N 000983068000 | LOCK RING |
| 203 | A 3183200073 | BEARING |
| (RUBBER MOUNTING) | ||
| 203 | A 3183200073 | BEARING |
| (RUBBER MOUNTING) | ||
| 206 | A 4064640253 | SPACER TUBE |
| BEARING BRACKET TO FRAME | ||
| 206 | A 4185660049 | BUSHING |
| BEARING BRACKET TO FRAME | ||
| 209 | N 914126014025 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 14X1.5X80 | ||
| 209 | N 914126014025 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 14X1.5X80 | ||
| 212 | N 913023014003 | NUT |
| BEARING BRACKET TO FRAME | ||
| 212 | N 913023014003 | NUT |
| BEARING BRACKET TO FRAME | ||
| 215 | A 4355520226 | CLAMP |
| RIGHT BEARING BRACKET TO REAR AXLE | ||
| 215 | A 4379900138 | SCREW |
| RIGHT BEARING BRACKET TO REAR AXLE | ||
| 218 | A 4355520326 | CLAMP |
| RIGHT BEARING BRACKET TO REAR AXLE | ||
| 218 | A 4373260064 | STEP BEARING |
| RIGHT BEARING BRACKET TO REAR AXLE | ||
| 219 | A 4355520026 | CLAMP |
| RIGHT BEARING BRACKET TO REAR AXLE | ||
| 220 | A 4255500240 | BRACKET |
| RIGHT BEARING BRACKET TO REAR AXLE | ||
| 221 | N 913023016001 | NUT |
| RIGHT BEARING BRACKET TO REAR AXLE | ||
| Repalced by: N 000000005738 | ||
| 221 | N 000000005738 | NUT |
| RIGHT BEARING BRACKET TO REAR AXLE | ||
| 221 | N 913023014004 | NUT |
| RIGHT BEARING BRACKET TO REAR AXLE | ||
| 221 | N 913023014004 | NUT |
| RIGHT BEARING BRACKET TO REAR AXLE | ||
| N 000960014207 | SCREW | |
| LEFT BEARING BRACKET TO REAR AXLE | ||
| M 14X1.5X70 | ||
| 227 | A 4373260347 | SHACKLE |
| TORSION BAR TO BEARING BRACKET | ||
| 227 | A 4373260247 | SHACKLE |
| Repalced by: A 4373260347 | ||
| 227 | A 4373260347 | SHACKLE |
| TORSION BAR TO BEARING BRACKET | ||
| 230 | N 000960016241 | SCREW |
| SHACKLE TO TORSION BAR | ||
| M 16X1.5X75 | ||
| 230 | N 000960016241 | SCREW |
| SHACKLE TO TORSION BAR | ||
| M 16X1.5X75 | ||
| 230 | N 000960016241 | SCREW |
| SHACKLE TO BEARING BRACKET | ||
| M 16X1.5X75 | ||
| 230 | N 000960016241 | SCREW |
| SHACKLE TO BEARING BRACKET | ||
| M 16X1.5X75 | ||
| 233 | N 910113016001 | NUT |
| SHACKLE TO TORSION BAR | ||
| 233 | N 910113016001 | NUT |
| SHACKLE TO TORSION BAR | ||
| 233 | N 910113016001 | NUT |
| SHACKLE TO BEARING BRACKET | ||
| 233 | N 910113016001 | NUT |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
