Transporto priemonė: U 2150 L; VIN numerio dalis: 437118

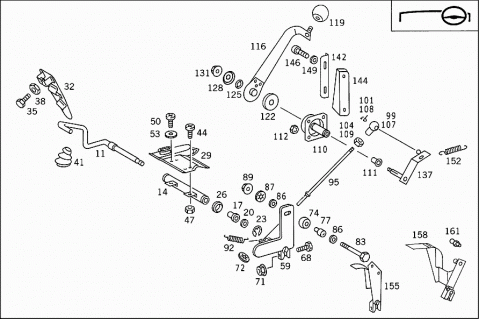

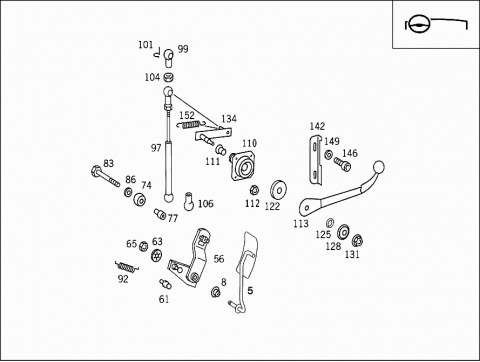

Grupė: 30 CONTROL - 025 MANUAL/ACCELERATOR-PEDAL CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 4253000925 | LEVER |
| Repalced by: A 4373000325 | ||
| 005 | A 4373000325 | LEVER |
| ACCELERATOR PEDAL CONTROL | ||
| 005 | A 4373000325 | LEVER |
| ACCELERATOR PEDAL CONTROL | ||
| 008 | A 4063010350 | BUSHING |
| 008 | A 4063010350 | BUSHING |
| 011 | A 4253000104 | ACCELERATOR PEDAL |
| ACCELERATOR PEDAL CONTROL | ||
| 014 | A 4253000221 | BEARING TUBE |
| 017 | A 4253010050 | BUSHING |
| BEARING TUBE TO FIRE WALL | ||
| 020 | N 000125013008 | WASHER |
| BEARING TUBE TO FIRE WALL | ||
| 023 | N 006799009002 | LOCK PLATE |
| BEARING TUBE TO FIRE WALL | ||
| 026 | A 1169970181 | GROMMET |
| BEARING TUBE TO FIRE WALL | ||
| 029 | A 4256840018 | COVERING |
| BEARING TUBE TO FIRE WALL | ||
| 032 | A 4253000102 | PLATE |
| ACCELERATOR PEDAL | ||
| 035 | N 000000000428 | HEXAGON HEAD BOLT |
| STOP | ||
| M10X35 | ||
| 038 | N 304035010000 | NUT |
| STOP | ||
| Repalced by: N 304035010001 | ||
| 038 | N 304035010001 | HEXAGON NUT |
| STOP | ||
| 041 | A 4252670697 | BOOT |
| 044 | N 007985006580 | SCREW |
| BEARING TUBE TO COVERING | ||
| M 6X10 | ||
| 047 | N 304035006001 | NUT |
| BEARING TUBE TO COVERING | ||
| 050 | N 007985006546 | SCREW |
| ACCELERATOR PEDAL TO CAB | ||
| M 6X14 | ||
| 053 | N 009021006208 | WASHER |
| ACCELERATOR PEDAL TO CAB | ||
| 056 | A 4373000025 | LEVER |
| Repalced by: A 4373000625 | ||
| 056 | A 4373000625 | LEVER |
| 056 | A 4363000025 | LEVER |
| Repalced by: A 4373000225 | ||
| 056 | A 4373000225 | LEVER |
| Repalced by: A 4273000125 | ||
| 056 | A 4273000125 | LEVER |
| 059 | A 4253000325 | LEVER |
| 061 | N 071803010202 | BALL PIVOT |
| TO 427 300 01 25;437 300 06 25 | ||
| 063 | N 900050008001 | LOCK PLATE |
| Repalced by: A 0000710473 | ||
| 063 | A 0000710473 | LOCK |
| LEVER TO ACCELERATOR PEDAL | ||
| 065 | N 304032008006 | NUT |
| LEVER TO ACCELERATOR PEDAL | ||
| 068 | N 000931006114 | SCREW |
| Repalced by: N 304017006012 | ||
| 068 | N 304017006012 | SCREW |
| LEVER TO ACCELERATOR PEDAL | ||
| M 6X30 | ||
| 071 | A 0009902150 | NUT |
| LEVER TO ACCELERATOR PEDAL | ||
| 071 | A 0009902150 | NUT |
| SHIFTING ROD | ||
| 072 | A 0009940648 | LOCK |
| LEVER TO ACCELERATOR PEDAL | ||
| Repalced by: N 912010006000 | ||
| 072 | N 912010006000 | LOCK PLATE |
| LEVER TO ACCELERATOR PEDAL | ||
| 074 | A 4273010011 | ROLLER |
| 074 | A 4273010011 | ROLLER |
| 077 | A 4273020053 | SPACER TUBE |
| 077 | A 4273020053 | SPACER TUBE |
| 077 | A 4273020153 | SPACER TUBE |
| 083 | N 000931008244 | SCREW |
| ROLLER TO LEVER | ||
| M 8X45 | ||
| 083 | N 910105008017 | HEXAGON HEAD BOLT |
| ROLLER TO LEVER | ||
| M 8X45 | ||
| 086 | N 000125008443 | WASHER |
| ROLLER TO LEVER | ||
| 086 | N 000125008443 | WASHER |
| ROLLER TO LEVER | ||
| 086 | N 000125008443 | WASHER |
| ROLLER TO LEVER | ||
| 087 | N 900050008001 | LOCK PLATE |
| LEVER TO LEVER | ||
| 089 | N 913023008002 | NUT |
| ROLLER TO LEVER | ||
| 089 | N 913023008002 | NUT |
| LEVER TO LEVER | ||
| 092 | A 4259930010 | SPRING |
| (RELEASE SPRING) | ||
| 095 | A 4253000015 | ROD |
| 095 | A 4253000015 | ROD |
| SHIFTING ROD | ||
| 095 | A 4253000215 | ROD |
| 095 | A 4253000215 | ROD |
| SHIFTING ROD | ||
| 095 | A 4253000215 | ROD |
| SHIFTING ROD | ||
| 097 | A 4373020004 | ROD |
| Repalced by: A 4373000015 | ||
| 097 | A 4373000015 | ROD |
| 099 | A 0009912422 | BALL SOCKET |
| SHIFTING ROD | ||
| 101 | N 071805010403 | CIRCLIP |
| SHIFTING ROD | ||
| 104 | A 0009902150 | NUT |
| SHIFTING ROD | ||
| A 4373000053 | SLEEVE | |
| SHIFTING ROD | ||
| 106 | N 071805010204 | BALL SOCKET |
| SHIFTING ROD | ||
| 107 | A 0009912422 | BALL SOCKET |
| SHIFTING ROD | ||
| 108 | N 071805010403 | CIRCLIP |
| SHIFTING ROD | ||
| 109 | N 913023006001 | NUT |
| SHIFTING ROD | ||
| 110 | A 4253000137 | BEARING SHELL |
| 110 | A 4253000137 | BEARING SHELL |
| 111 | A 4253010050 | BUSHING |
| 111 | A 4253010050 | BUSHING |
| 112 | A 0009902150 | NUT |
| Repalced by: | ||
| 112 | N 913023006001 | NUT |
| BEARING SHELL TO CAB | ||
| 112 | N 913023006001 | NUT |
| BEARING SHELL TO CAB | ||
| 113 | A 4253000017 | LEVER |
| MANUAL CONTROL | ||
| 113 | A 4253000017 | LEVER |
| MANUAL CONTROL | ||
| 116 | A 4253000617 | LEVER |
| MANUAL CONTROL | ||
| 119 | N 000319032500 | BALL KNOB |
| 122 | A 4253020054 | GUARD PLATE |
| 122 | A 4253020054 | GUARD PLATE |
| 125 | A 4253010085 | RUBBER BUFFER |
| 125 | A 4253010085 | RUBBER BUFFER |
| 128 | A 4253020162 | THRUST WASHER |
| 128 | A 4253020162 | THRUST WASHER |
| 131 | N 913023008002 | NUT |
| 131 | N 913023008003 | NUT |
| 134 | A 4253000225 | LEVER |
| 134 | A 4253000225 | LEVER |
| 137 | A 4253000525 | LEVER |
| 142 | A 4253000087 | PAWL |
| Repalced by: A 4373010108 | ||
| 142 | A 4373000087 | PAWL |
| Repalced by: A 4373010108 | ||
| 142 | A 4373010108 | CLAMP |
| 142 | A 4373010108 | CLAMP |
| 144 | A 4253020240 | BRACKET |
| PAWL | ||
| 146 | N 007984006036 | SCREW |
| PAWL TO CAB | ||
| M 6X20 | ||
| 146 | N 007984006036 | SCREW |
| PAWL TO CAB | ||
| M 6X20 | ||
| 146 | N 007984006036 | SCREW |
| PAWL TO CAB | ||
| M 6X20 | ||
| 146 | N 007984006017 | SCREW |
| PAWL TO CAB | ||
| M 6X35 | ||
| 149 | N 000125006421 | WASHER |
| PAWL TO CAB | ||
| Repalced by: N 000125006449 | ||
| 149 | N 000125006449 | WASHER |
| PAWL TO CAB | ||
| 149 | N 000433006405 | WASHER |
| PAWL TO CAB | ||
| 152 | A 4259930110 | SPRING |
| (TENSION SPRING) | ||
| 152 | A 3529931810 | SPRING |
| (RELEASE SPRING) | ||
| 155 | A 4253000625 | LEVER |
| (CONTROL LEVER) | ||
| 158 | A 3660707221 | LEVER |
| (CONTROL LEVER) | ||
| 161 | A 3129910120 | BALL PIVOT |
