Transporto priemonė: U 2400 TG; VIN numerio dalis: 437182

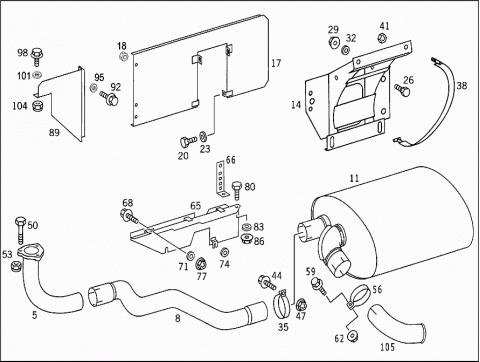

Grupė: 49 EXHAUST SYSTEM

#	Kodas	Pavadinimas
005	A 4374900319	EXHAUST PIPE
		FRONT
008	A 4374921301	FRONT EXHAUST PIPE
	Repalced by: A 4374921801
008	A 4374921801	FRONT EXHAUST PIPE
		CENTRAL
011	A 4374900601	EXHAUST MUFFLER
014	A 4374900840	BRACKET
		EXHAUST MUFFLER TO FRAME
014	A 4374903040	BRACKET
		EXHAUST MUFFLER TO FRAME
017	A 4374900530	PROTECTIVE PLATE
		SCREENING PLATE
018	N 900073006100	NUT
020	N 910105008008	SCREW
		SCREENING PLATE TO BRACKET
		M 8X16
023	N 000125008443	WASHER
		SCREENING PLATE TO BRACKET
026	N 910105014005	SCREW
		BRACKET TO FRAME
		M 14X1,5X40
026	N 910105014012	SCREW
		BRACKET TO FRAME
		M 14X1,5X30
029	N 913023014003	NUT
		BRACKET TO FRAME
032	N 000125015019	WASHER
		BRACKET TO FRAME
035	N 071555094501	CLAMP
	Repalced by: N 071555094502
035	N 071555094502	CLAMP
		BRACKET TO FRAME
038	A 4374900542	STRAP
		EXHAUST MUFFLER TO BRACKET
041	N 308673012001	NUT
		STRAP TO BRACKET
044	N 910105010009	HEXAGON HEAD BOLT
047	N 913023010003	NUT
		CENTRAL EXHAUST PIPE TO EXHAUST MUFFLER
050	N 304017012015	SCREW
		EXHAUST PIPE TO EXHAUST MANIFOLD
		M 12X80
053	N 999901012000	NUT
		EXHAUST PIPE TO EXHAUST MANIFOLD
056	N 071555100501	CLAMP
		CENTRAL EXHAUST PIPE TO EXHAUST MUFFLER
059	N 910105010009	HEXAGON HEAD BOLT
062	N 913023010003	NUT
		CENTRAL EXHAUST PIPE TO EXHAUST MUFFLER
065	A 4374900430	PROTECTIVE PLATE
		PLASTIC PIPING
066	A 4374910541	BRACKET
		HEAT SHIELD
068	N 304017008016	SCREW
		PROTECTIVE PLATE TO SIDE MEMBER
		M 8X16
068	N 914007008084	COMBINATION BOLT
		PROTECTIVE PLATE TO SIDE MEMBER
		M8X16
068	N 910105008004	SCREW
		PROTECTIVE PLATE TO SIDE MEMBER
		M 8X20
071	N 000125008443	WASHER
		PROTECTIVE PLATE TO SIDE MEMBER
074	N 007349008007	WASHER
		PROTECTIVE PLATE TO SIDE MEMBER
077	N 913023008003	NUT
	Repalced by: N 913023008002
077	N 913023008002	NUT
		PROTECTIVE PLATE TO SIDE MEMBER
080	N 304017006016	SCREW
		PROTECTIVE PLATE TO SIDE MEMBER
		M 6X16
083	N 000125006421	WASHER
		PROTECTIVE PLATE TO SIDE MEMBER
	Repalced by: N 000125006449
083	N 000125006449	WASHER
		PROTECTIVE PLATE TO SIDE MEMBER
086	N 913023006001	NUT
	Repalced by: A 0009902150
086	A 0009902150	NUT
		PROTECTIVE PLATE TO SIDE MEMBER
089	A 4374920830	PROTECTIVE PLATE
092	N 910105006002	HEXAGON HEAD BOLT
		HEAT SHIELD
		M6X12
095	N 000125006421	WASHER
		HEAT SHIELD
	Repalced by: N 000125006449
095	N 000125006449	WASHER
		HEAT SHIELD
098	N 910105008004	SCREW
		HEAT SHIELD
		M 8X20
101	N 000125008418	WASHER
	Repalced by: N 000125008443
101	N 000125008443	WASHER
		HEAT SHIELD
104	N 913023008002	NUT
		PROTECTIVE PLATE TO BRACKET
105	A 4374920614	END PIECE
107	A 4374900421	EXHAUST PIPE
	Repalced by: A 4374901121
107	A 4374901121	EXHAUST PIPE
110	N 000125008418	WASHER
	Repalced by: N 000125008443
110	N 000125008443	WASHER
113	A 4354920641	BRACKET
		REAR EXHAUST PIPE TO CAB
116	A 4354920741	BRACKET
		REAR EXHAUST PIPE TO CAB
119	N 000933008145	SCREW
		EXHAUST PIPE BRACKET TO CAB,BOTTOM AND TOP
		M 8X18
122	N 000125008418	WASHER
	Repalced by: N 000125008443
122	N 000125008443	WASHER
		EXHAUST PIPE BRACKET TO CAB,BOTTOM AND TOP
125	N 913023008003	NUT
	Repalced by: N 913023008002
125	N 913023008002	NUT
		EXHAUST PIPE BRACKET TO CAB,BOTTOM AND TOP
128	A 6455240940	BRACKET
		REAR EXHAUST PIPE
131	A 4374900041	CLAMP
	Repalced by: A 4374900141
131	A 4374900141	CLAMP
	Repalced by: A 4374900341
131	A 4374900341	CLAMP
		REAR EXHAUST PIPE
134	N 913023008003	NUT
	Repalced by: N 913023008002
134	N 913023008002	NUT
		CLAMP TO SUPPORT
137	N 007349008002	WASHER
		CLAMP TO SUPPORT
140	A 4374921330	PROTECTIVE PLATE
	Repalced by: A 4374922830
140	A 4374922830	PROTECTIVE PLATE
143	A 4374900027	END PIECE
	Repalced by: A 4374900427
143	A 4374900427	END PIECE
		(TAIL PIPE)
	A 4374923741	BRACKET
		247X470
