Transporto priemonė: U 2400 TG; VIN numerio dalis: 437182

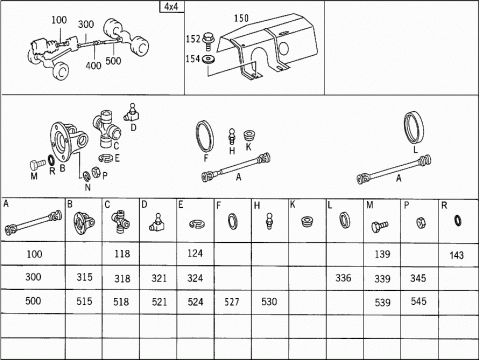

Grupė: 41 PROPELLER SHAFT

#	Kodas	Pavadinimas
100	A 4254102106	PROPELLER SHAFT
118	A 0004100831	UNIVERSAL JOINT CROSS
		REPAIR KIT
124	A 0004112073	LOCK
		1.4 MM
124	A 0004112173	LOCK
		1.5 MM
124	A 0004112273	LOCK
		1.6 MM
124	A 0004112373	LOCK
		1.7 MM
124	A 0004112473	LOCK
		1.8 MM
124	A 0004112573	LOCK
		1.9 MM
139	N 070614010024	SCREW
	Repalced by: N 308676010020
139	N 308676010020	HEXAGON HEAD BOLT
		PROPELLER SHAFT TO TRANSMISSION COUPLING FLANGE
		M 10X1X20
143	A 0009940851	LOCK
		PROPELLER SHAFT TO TRANSMISSION COUPLING FLANGE
150	A 4274130061	PROTECTIVE CAP
152	N 910105010001	HEXAGON HEAD BOLT
		PROTECTIVE PLATE TO HOUSING
		M10X30
154	N 007989011201	WASHER
		PROTECTIVE PLATE TO HOUSING
300	A 6504101804	PROPELLER SHAFT
	Repalced by: A 9734102704
300	A 9734102704	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING
		803MM
315	A 6504110111	DRIVE FLANGE
	Repalced by: A 6504110411
315	A 6504110411	DRIVE FLANGE
318	A 3814100231	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
		TO A 650 410 18 04
318	A 9734100031	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
		TO A 973 410 27 04
321	N 071412008302	GREASE NIPPLE
324	A 0069940641	LOCK
		AS REQUIRED
		1.65MM
324	N 000472048000	RETAINING RING
		AS REQUIRED
		1.75MM
324	A 0069940841	LOCK
		1.70MM
324	A 0069941041	LOCK
	Repalced by: N 000472048000
324	N 000472048000	RETAINING RING
		AS REQUIRED
		1.75MM
324	A 0069941241	LOCK
		AS REQUIRED
		1.80MM
324	A 0069941441	LOCK
		AS REQUIRED
		1.85MM
324	A 0069941641	LOCK
		1.90MM
336	A 3854130461	PROTECTIVE CAP
339	A 3609903101	SCREW
		PROPELLER SHAFT TO TRANSMISSION
		M12X1.25X42
345	N 308673012003	HEXAGON NUT
		PROPELLER SHAFT TO TRANSMISSION
		M12X1.25

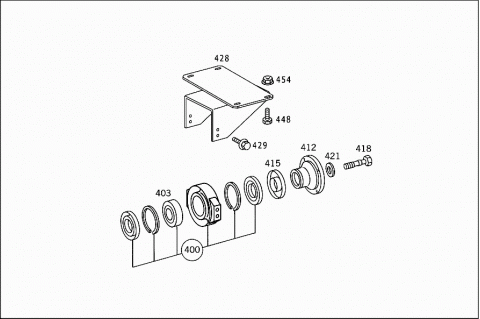

400	A 3854101722	INTERMEDIATE BEARING
	Repalced by: A 9734100022
400	A 9734100022	INTERMEDIATE BEARING
		PROPELLER SHAFT
403	A 9734110052	SPACER WASHER
		PROPELLER SHAFT BEARING
412	A 6504110046	FLANGE
		PROPELLER SHAFT BEARING
415	A 3854130461	PROTECTIVE CAP
		FOLLOWER FLANGE TO PROPELLER SHAFT
418	N 000961016027	SCREW
	Repalced by: N 308676016004
418	N 308676016004	HEXAGON HEAD BOLT
		FOLLOWER FLANGE TO PROPELLER SHAFT
		M16X1,5X55
	Repalced by: N 000000005744
418	N 000000005744	HEXAGON HEAD BOLT
		FOLLOWER FLANGE TO PROPELLER SHAFT
		M16X1,5X55
421	A 3894110162	THRUST WASHER
		FOLLOWER FLANGE TO PROPELLER SHAFT
428	A 4375203341	BRACKET
		PROPELLER SHAFT BEARING TO CROSS MEMBER
429	N 910105010006	HEXAGON HEAD BOLT
		BRACKET TO PROPELLER SHAFT BEARING HOUSING
		M10X20
448	N 304017010040	HEXAGON HEAD BOLT
		BRACKET TO CROSS MEMBER
		M10X25
454	N 913023010002	NUT
		BRACKET TO CROSS MEMBER
500	A 6504101002	PROPELLER SHAFT
	Repalced by: A 9734102902
500	A 9734102902	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING TO REAR AXLE
		1550MM
515	A 6504110111	DRIVE FLANGE
	Repalced by: A 6504110411
515	A 6504110411	DRIVE FLANGE
518	A 3814100231	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
		TO A 650 410 10 02
518	A 9734100031	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
		TO A 973 410 29 02
521	N 071412008302	GREASE NIPPLE
524	A 0069940641	LOCK
		AS REQUIRED
		1.65MM
524	A 0069940841	LOCK
		AS REQUIRED
		1.70MM
524	A 0069941041	LOCK
		AS REQUIRED
		1.75MM
524	A 0069941241	LOCK
		AS REQUIRED
		1.80MM
524	A 0069941441	LOCK
		AS REQUIRED
		1.85MM
524	A 0069941641	LOCK
		AS REQUIRED
		1.90MM
527	A 3854110059	SEAL RING
530	N 071412008302	GREASE NIPPLE
539	A 3609903101	SCREW
		PROPELLER SHAFT TO PROPELLER SHAFT BEARING AND TO REAR AXLE
		M12X1.25X42
545	N 308673012003	HEXAGON NUT
		PROPELLER SHAFT TO PROPELLER SHAFT BEARING AND TO REAR AXLE
		M12X1.25
