Transporto priemonė: U 2450 L/6X6; VIN numerio dalis: 437156

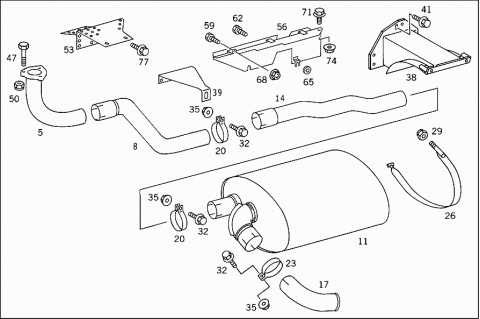

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 4374900319 | EXHAUST PIPE |
| FRONT | ||
| 008 | A 4374921301 | FRONT EXHAUST PIPE |
| CENTRAL | ||
| 011 | A 4374900601 | EXHAUST MUFFLER |
| 014 | A 4374920704 | REAR EXHAUST PIPE |
| 017 | A 4374920714 | END PIECE |
| 020 | N 071555090501 | CLAMP |
| Repalced by: N 071555090502 | ||
| 020 | N 071555090502 | CLAMP |
| CENTRAL REAR EXHAUST PIPE TO REAR EXHAUST PIPE | ||
| 020 | N 071555090501 | CLAMP |
| CENTRAL EXHAUST PIPE TO EXHAUST MUFFLER | ||
| 023 | N 071555100501 | CLAMP |
| TAIL PIPE TO EXHAUST MUFFLER | ||
| 026 | A 4374900542 | STRAP |
| EXHAUST MUFFLER TO BRACKET | ||
| 029 | N 308673012001 | NUT |
| CHECK NUT | ||
| 032 | N 914126010074 | SCREW |
| Repalced by: A 0019908204 | ||
| 032 | A 0019908204 | SCREW |
| Repalced by: N 910105010009 | ||
| 032 | N 910105010009 | SCREW |
| CENTRAL REAR EXHAUST PIPE TO REAR EXHAUST PIPE | ||
| M 10X25 | ||
| 032 | A 0019908204 | SCREW |
| Repalced by: N 910105010009 | ||
| 032 | N 910105010009 | SCREW |
| CENTRAL EXHAUST PIPE TO EXHAUST MUFFLER | ||
| 032 | A 0019908204 | SCREW |
| Repalced by: N 910105010009 | ||
| 032 | N 910105010009 | SCREW |
| TAIL PIPE TO EXHAUST MUFFLER | ||
| 035 | N 913023010002 | NUT |
| CENTRAL REAR EXHAUST PIPE TO REAR EXHAUST PIPE | ||
| 035 | N 913023010002 | NUT |
| CENTRAL EXHAUST PIPE TO EXHAUST MUFFLER | ||
| 035 | N 913023010002 | NUT |
| TAIL PIPE TO EXHAUST MUFFLER | ||
| 038 | A 4274900540 | BRACKET |
| EXHAUST MUFFLER TO FRAME | ||
| 039 | A 4374911441 | BRACKET |
| REAR EXHAUST PIPE TO SIDE MEMBER | ||
| 039 | A 4374911441 | BRACKET |
| CENTRAL EXHAUST PIPE | ||
| 041 | N 910105010007 | SCREW |
| Repalced by: N 000000000428 | ||
| 041 | N 000000000428 | HEXAGON HEAD BOLT |
| BRACKET TO FRAME | ||
| M10X35 | ||
| 041 | N 910105012020 | SCREW |
| BRACKET TO FRAME | ||
| M 12X1.5X35 | ||
| 047 | N 304017012015 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X1.5X80 | ||
| 050 | N 999901012000 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 053 | A 4374900830 | PROTECTIVE PLATE |
| (HEAT SHIELD) | ||
| 056 | A 4374900430 | PROTECTIVE PLATE |
| PLASTIC PIPING | ||
| 059 | N 304017008016 | SCREW |
| HEAT SHIELD MOUNTING | ||
| M 8X16 | ||
| 059 | N 910105008004 | SCREW |
| PROTECTIVE PLATE TO SIDE MEMBER | ||
| M 8X20 | ||
| 062 | N 914007008084 | SCREW-AND-WASHER ASSEMBLY |
| M8X16 | ||
| Repalced by: N 304017008016 | ||
| 062 | N 304017008016 | SCREW |
| PROTECTIVE PLATE TO SIDE MEMBER | ||
| M 8X16 | ||
| 065 | N 000125008443 | WASHER |
| PROTECTIVE PLATE TO SIDE MEMBER | ||
| 065 | N 000125008443 | WASHER |
| HEAT SHIELD MOUNTING | ||
| 065 | N 007349008003 | WASHER |
| PROTECTIVE PLATE TO SIDE MEMBER | ||
| 068 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 068 | N 913023008002 | NUT |
| PROTECTIVE PLATE TO SIDE MEMBER | ||
| 071 | N 910105006023 | SCREW |
| PROTECTIVE PLATE TO SIDE MEMBER | ||
| M 6X16 | ||
| 074 | A 0009902150 | NUT |
| PROTECTIVE PLATE TO SIDE MEMBER | ||
| 077 | N 910105010006 | SCREW |
| PROTECTIVE PLATE TO EXHAUST MUFFLER | ||
| M 10X20 | ||
