Transporto priemonė: U 2450 L/6X6; VIN numerio dalis: 437156

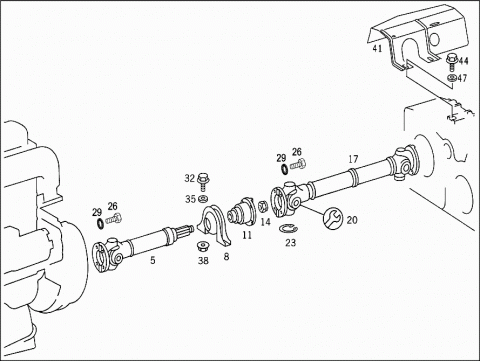

Grupė: 41 PROPELLER SHAFT

#	Kodas	Pavadinimas
005	A 4374110122	INTERMEDIATE PIECE
		FRONT
008	A 4185520022	SELF-ALGN.ROLLER BEARING
		FRONT PROPELLER SHAFT
011	A 4372620145	FLANGE
		FRONT PROPELLER SHAFT
014	N 913012020000	NUT
		FOLLOWER FLANGE TO PROPELLER SHAFT
017	A 4254102206	PROPELLER SHAFT
		REAR
		786 MM
020	A 0004100831	UNIVERSAL JOINT CROSS
		REPAIR KIT
023	A 0004112073	LOCK
		1.4 MM
023	A 0004112173	LOCK
		1.5 MM
023	A 0004112273	LOCK
		1.6 MM
023	A 0004112373	LOCK
		1.7 MM
023	A 0004112473	LOCK
		1.8 MM
023	A 0004112573	LOCK
		1.9 MM
026	N 070614010024	SCREW
	Repalced by: N 308676010020
026	N 308676010020	SCREW
		PROPELLER SHAFT TO COUPLING FLANGE
		M 10X1X20
026	N 070614010024	SCREW
	Repalced by: N 308676010020
026	N 308676010020	SCREW
		REAR PROPELLER SHAFT TO FRONT PROPELLER SHAFT
026	N 070614010024	SCREW
	Repalced by: N 308676010020
026	N 308676010020	SCREW
		PROPELLER SHAFT TO TRANSMISSION
029	A 0009940851	LOCK
		PROPELLER SHAFT TO COUPLING FLANGE
029	A 0009940851	LOCK
		REAR PROPELLER SHAFT TO FRONT PROPELLER SHAFT
029	A 0009940851	LOCK
		PROPELLER SHAFT TO TRANSMISSION
032	N 910105012013	SCREW
		INTERMEDIATE BEARING TO FRAME
		M 12X1.5X25
035	N 000125013008	WASHER
038	N 913023012002	NUT
		INTERMEDIATE BEARING TO FRAME
041	A 4274130061	PROTECTIVE CAP
044	N 910105010001	HEXAGON HEAD BOLT
		PROTECTIVE PLATE TO HOUSING
		M10X30
047	N 007989011201	WASHER
		PROTECTIVE PLATE TO HOUSING
