Transporto priemonė: U 2450 L/6X6; VIN numerio dalis: 437156
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|

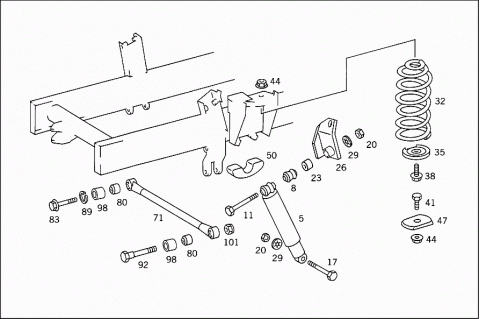

| 005 | A 0063232500 | SHOCK ABSORBER |
| FRONT AXLE | ||
| FICHTEL & SACHS | ||
| 005 | A 0053264000 | SHOCK ABSORBER |
| REAR AXLE I | ||
| FICHTEL & SACHS | ||
| 005 | A 0053264100 | SHOCK ABSORBER |
| REAR AXLE II | ||
| FICHTEL & SACHS | ||
| 008 | A 0003235285 | RUBBER MOUNTING |
| 011 | N 910105020029 | SCREW |
| FRONT SHOCK ABSORBERS TO FRAME | ||
| M 20X1.5X140 | ||
| 011 | N 000960020201 | SCREW |
| FRONT SHOCK ABSORBERS TO FRAME | ||
| M 20X1.5X115 | ||
| 014 | N 000960020141 | SCREW |
| REAR SHOCK ABSORBER TO FRAME | ||
| M 20X1.5X165 | ||
| 017 | N 000960020078 | SCREW |
| SHOCK ABSORBER TO AXLE | ||
| M 20X1.5X85 | ||
| 020 | N 308675020003 | NUT |
| SHOCK ABSORBER TO FRAME | ||
| 020 | N 308675020003 | NUT |
| SHOCK ABSORBER TO AXLE | ||
| 023 | A 4253230150 | BUSHING |
| SHOCK ABSORBER TO FRAME | ||
| 026 | A 4375200341 | BRACKET |
| SHOCK ABSORBER TO FRAME,LEFT | ||
| 029 | N 900050021001 | LOCK PLATE |
| SHOCK ABSORBER TO FRAME | ||
| 029 | N 900050021001 | LOCK PLATE |
| SHOCK ABSORBER TO AXLE | ||
| 032 | A 4373210404 | FRONT SPRING |
| 035 | A 4353250126 | PLATE |
| FRONT SPRING TO FRAME | ||
| 035 | A 4353250126 | PLATE |
| REAR SPRING TO FRAME | ||
| 038 | N 910105018025 | SCREW |
| FRONT SPRING TO FRAME | ||
| M 18X1.5X65 | ||
| Repalced by: N 000000005693 | ||
| 038 | N 000000005693 | HEXAGON HEAD BOLT |
| FRONT SPRING TO FRAME | ||
| M 18X1.5X65 | ||
| 041 | N 308676018020 | SCREW |
| Repalced by: A 3859902314 | ||
| 041 | A 3859902314 | SCREW |
| FRONT SPRINGS TO FRONT AXLE | ||
| M 18X1.5X45 | ||
| 044 | N 913016018001 | NUT |
| FRONT SPRING TO FRAME | ||
| 044 | N 910113018003 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 047 | A 4253251015 | SPRING CASE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 050 | A 4063220044 | RUBBER BUFFER |
| FRONT SPRINGS TO FRONT AXLE | ||

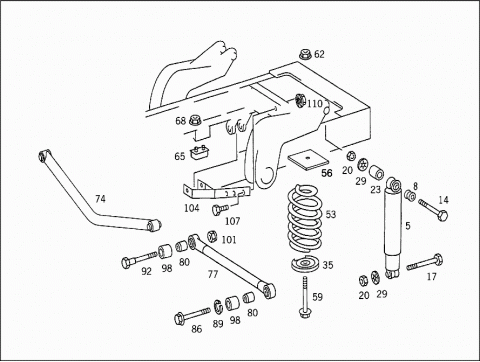

| 053 | A 4373240204 | REAR SPRING |
| 056 | A 4373240035 | SPACER |
| REAR SPRING TO FRAME | ||
| 059 | N 910105018026 | HEXAGON HEAD BOLT |
| REAR SPRING TO FRAME | ||
| M18X1.5X70 | ||
| 062 | N 913023018002 | NUT |
| REAR SPRING TO FRAME | ||
| 065 | A 4373250044 | RUBBER BUFFER |
| REAR SPRING TO FRAME | ||
| 068 | N 913023010002 | NUT |
| RUBBER BUFFER TO SPRING SEAT | ||
| 071 | A 4253300607 | TRANSVERSE CONTROL ARM |
| FRONT AXLE | ||
| 074 | A 4373300907 | TRANSVERSE CONTROL ARM |
| REAR AXLE I | ||
| 077 | A 4253300707 | TRANSVERSE CONTROL ARM |
| REAR AXLE II | ||
| 080 | A 0019880610 | RUBBER MOUNTING |
| FRONT AND REAR AXLES | ||
| 083 | N 914125016209 | SCREW |
| CONTROL ARMS TO FRONT AND REAR AXLES | ||
| M 16X1.5X85 | ||
| 086 | A 4259905101 | SCREW |
| TRANSVERSE CONTROL ARM TO REAR AXLE | ||
| 089 | A 4419900047 | LOCK WASHER |
| CONTROL ARMS TO FRONT AND REAR AXLES | ||
| 092 | A 4259905501 | SCREW |
| CONTROL ARM TO FRAME,FRONT | ||
| 092 | A 4259905501 | SCREW |
| CONTROL ARM TO FRAME,REAR | ||
| 092 | A 4259905301 | SCREW |
| STRUT AND CONTROL ARM TO FRAME | ||
| 098 | A 4253330112 | BUSHING |
| CONTROL ARM TO FRAME,FRONT | ||
| 098 | A 4253330112 | BUSHING |
| CONTROL ARM TO FRAME,REAR | ||
| 098 | A 4253330112 | BUSHING |
| TRANSVERSE CONTROL ARM TO REAR AXLE | ||
| 098 | A 4253330112 | BUSHING |
| STRUT AND CONTROL ARM TO FRAME | ||
| 101 | N 910113016001 | NUT |
| CONTROL ARM TO FRAME,FRONT | ||
| 101 | N 910113016001 | NUT |
| CONTROL ARM TO FRAME,REAR | ||
| 101 | N 913023016001 | NUT |
| STRUT AND CONTROL ARM TO FRAME | ||
| Repalced by: N 000000005738 | ||
| 101 | N 000000005738 | NUT |
| STRUT AND CONTROL ARM TO FRAME | ||
| 101 | N 913023016001 | NUT |
| TRANSVERSE CONTROL ARM TO REAR AXLE | ||
| Repalced by: N 000000005738 | ||
| 101 | N 000000005738 | NUT |
| TRANSVERSE CONTROL ARM TO REAR AXLE | ||
| 101 | N 913023016001 | NUT |
| STRUT AND CONTROL ARM TO FRAME | ||
| Repalced by: N 000000005738 | ||
| 101 | N 000000005738 | NUT |
| STRUT AND CONTROL ARM TO FRAME | ||
| 104 | A 4253100053 | STRUT |
| REAR AXLE | ||
| 107 | N 914140012024 | SCREW |
| STRUT TO CROSS MEMBER | ||
| M 12X1.5X35 | ||
| 110 | N 913019012000 | NUT |
| STRUT TO CROSS MEMBER | ||

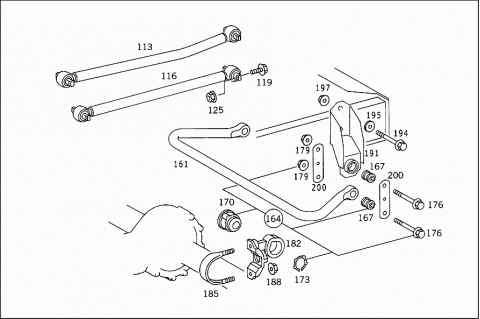

| 113 | A 4373520005 | LONGITUDINAL CONTROL ARM |
| TOP | ||
| 116 | A 4373520105 | LONGITUDINAL CONTROL ARM |
| BOTTOM | ||
| 119 | N 910105014018 | SCREW |
| UPPER CONTROL ARM TO REAR AXLE | ||
| M 14X1.5X100 | ||
| 119 | N 910105014018 | SCREW |
| LOWER CONTROL ARM TO REAR AXLE | ||
| M 14X1.5X100 | ||
| 119 | N 910105014024 | SCREW |
| LOWER CONTROL ARM TO REAR AXLE | ||
| M 14X1.5X150 | ||
| 125 | N 913023014003 | NUT |
| UPPER CONTROL ARM TO REAR AXLE | ||
| 125 | N 913023014003 | NUT |
| LOWER CONTROL ARM TO REAR AXLE | ||

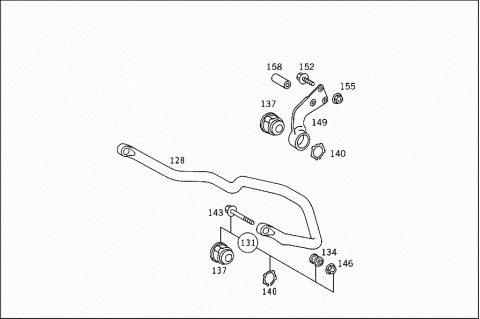

| 128 | A 4373230265 | TORSION BAR |
| FRONT | ||
| 131 | A 4373200847 | SILENT BLOCK |
| PARTS KIT | ||
| 134 | A 3183200073 | BEARING |
| (RUBBER MOUNTING) | ||
| 137 | A 3873230385 | RUBBER MOUNTING |
| 140 | N 000983068000 | LOCK RING |
| 143 | N 910105016006 | SCREW |
| SHACKLE TO TORSION BAR | ||
| M 16X1.5X80 | ||
| 146 | N 913023016001 | NUT |
| SHACKLE TO TORSION BAR | ||
| Repalced by: N 000000005738 | ||
| 146 | N 000000005738 | NUT |
| SHACKLE TO TORSION BAR | ||
| 149 | A 4253231063 | BEARING BRACKET |
| LEFT | ||
| 149 | A 4253231163 | BEARING BRACKET |
| RIGHT | ||
| 152 | N 910105012017 | SCREW |
| TORSION BAR TO FRAME | ||
| M 12X1.5X70 | ||
| Repalced by: A 0159909201 | ||
| 152 | A 0159909201 | BOLT AND WASHER ASSY. |
| TORSION BAR TO FRAME | ||
| M 12X1.5X70 | ||
| 155 | N 913023012002 | NUT |
| TORSION BAR TO FRAME | ||
| 158 | A 4375510250 | BUSHING |
| TORSION BAR TO FRAME | ||
| 161 | A 4373231065 | TORSION BAR |
| REAR | ||
| 164 | A 4373200847 | SILENT BLOCK |
| PARTS KIT | ||
| 167 | A 3183200073 | BEARING |
| (RUBBER MOUNTING) | ||
| 170 | A 3873230385 | RUBBER MOUNTING |
| 173 | N 000983068000 | LOCK RING |
| 176 | N 910105016006 | SCREW |
| SHACKLE TO TORSION BAR | ||
| M 16X1.5X80 | ||
| 176 | N 910105016006 | SCREW |
| SHACKLE TO BEARING BRACKET | ||
| M 16X1.5X80 | ||
| 179 | N 913023016001 | NUT |
| SHACKLE TO TORSION BAR | ||
| Repalced by: N 000000005738 | ||
| 179 | N 000000005738 | NUT |
| SHACKLE TO TORSION BAR | ||
| 179 | N 913023016001 | NUT |
| SHACKLE TO BEARING BRACKET | ||
| Repalced by: N 000000005738 | ||
| 179 | N 000000005738 | NUT |
| SHACKLE TO BEARING BRACKET | ||
| 182 | A 4253230963 | BEARING BRACKET |
| TORSION BAR TO REAR AXLE | ||
| 185 | A 4379900438 | SCREW |
| BEARING BRACKET TO REAR AXLE | ||
| 188 | N 913023014003 | NUT |
| BEARING BRACKET TO REAR AXLE | ||
| 191 | A 4373200978 | CONSOLE |
| TORSION BAR TO FRAME | ||
| 194 | N 910105014018 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 14X1.5X100 | ||
| 195 | N 007349015006 | WASHER |
| BEARING BRACKET TO FRAME | ||
| 197 | N 913023014003 | NUT |
| BEARING BRACKET TO FRAME | ||
| 200 | A 4373260347 | SHACKLE |
| TORSION BAR TO BEARING BRACKET | ||
