Transporto priemonė: U 300; VIN numerio dalis: 405121

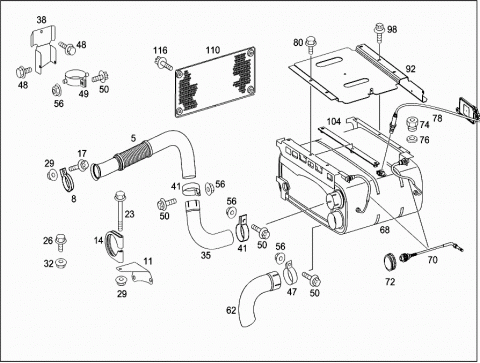

Grupė: 49 EXHAUST SYSTEM

#	Kodas	Pavadinimas
005	A 4054901519	EXHAUST PIPE
		WITH FLEXIBLE PIPE
005	A 4054901619	EXHAUST PIPE
		WITH FLEXIBLE PIPE
	Repalced by: A 4054901819
005	A 4054901619	EXHAUST PIPE
		WITH FLEXIBLE PIPE
	Repalced by: A 4054901819
005	A 4054901819	EXHAUST PIPE
		WITH FLEXIBLE PIPE
	Repalced by: A 4054902319
005	A 4054901819	EXHAUST PIPE
		WITH FLEXIBLE PIPE
	Repalced by: A 4054902319
005	A 4054902319	EXHAUST PIPE
		WITH FLEXIBLE PIPE
005	A 4054902319	EXHAUST PIPE
		WITH FLEXIBLE PIPE
008	A 6209970490	CLAMP
		EXHAUST PIPE TO TURBOCHARGER
008	A 6209970590	CLAMP
		EXHAUST PIPE TO TURBOCHARGER
008	A 6209970590	CLAMP
		EXHAUST PIPE TO TURBOCHARGER
011	A 4054930240	BRACKET
		FRONT EXHAUST PIPE TO CLUTCH BELL
	Repalced by: A 4054930640
011	A 4054930640	BRACKET
		FRONT EXHAUST PIPE TO CLUTCH BELL
011	A 4054930140	BRACKET
		FRONT EXHAUST PIPE TO CLUTCH BELL
	Repalced by: A 4054930740
011	A 4054930740	BRACKET
		FRONT EXHAUST PIPE TO CLUTCH BELL
	Repalced by: A 4054930840
011	A 4054930840	BRACKET
		FRONT EXHAUST PIPE TO CLUTCH BELL
014	A 6734920140	CLAMP
		BRACKET TO EXHAUST PIPE
017	N 910105008014	SCREW
		CLAMP TO EXHAUST PIPE
		M 8X35
017	N 910105008014	SCREW
		CLAMP TO EXHAUST PIPE
		M 8X35
017	N 910143008003	SCREW
		CLAMP TO EXHAUST PIPE
		M 8X30
023	N 910105008024	SCREW
		CLAMP TO EXHAUST PIPE
		M 8X110
026	N 910105010011	HEXAGON HEAD BOLT
		CLAMP TO EXHAUST PIPE
		M 10X40
029	N 910113008003	NUT
		CLAMP TO EXHAUST PIPE
029	N 910113008003	NUT
		CLAMP TO EXHAUST PIPE
032	N 913023010002	NUT
		CLAMP TO EXHAUST PIPE
035	A 4054924101	FRONT EXHAUST PIPE
		IN FRONT OF MUFFLER
035	A 4054924101	FRONT EXHAUST PIPE
		IN FRONT OF MUFFLER
035	A 4054924301	FRONT EXHAUST PIPE
		IN FRONT OF MUFFLER
035	A 4054924301	FRONT EXHAUST PIPE
		IN FRONT OF MUFFLER
035	A 4054924301	FRONT EXHAUST PIPE
		IN FRONT OF MUFFLER
038	A 4054921430	PROTECTIVE PLATE
		(HEAT SHIELD)
	Repalced by: A 4054921630
038	A 4054921630	PROTECTIVE PLATE
		(HEAT SHIELD)
038	A 4054921630	PROTECTIVE PLATE
		(HEAT SHIELD)
041	N 071555094502	CLAMP
		CONNECTION OF EXHAUST PIPES WITH EACH OTHER
		94.5 MM
041	N 071555090502	CLAMP
		EXHAUST PIPE TO MUFFLER
		90.5 MM
047	N 000000001647	CLAMP
		EXHAUST PIPE TO MUFFLER
		104.5 MM
048	N 910143008020	SCREW
		FASTENER, HEAT SHIELD
		M 8X12
048	N 910143008020	SCREW
		FASTENER, HEAT SHIELD
		M 8X12
049	A 9304920040	CLAMP
	Repalced by: A 9709950002
049	A 9709950002	CLAMP
		CONNECTION OF EXHAUST PIPES WITH EACH OTHER
		94.5 MM
	Repalced by: A 0009959102
049	A 0009959102	CLAMP
		CONNECTION OF EXHAUST PIPES WITH EACH OTHER
049	A 9704900041	CLAMP
		HEAT PROTECTION PLATE ON EXHAUST PIPE
049	A 9704900041	CLAMP
		HEAT PROTECTION PLATE ON EXHAUST PIPE
049	A 4054900641	CLAMP
		HEAT PROTECTION PLATE ON EXHAUST PIPE
049	A 4054900641	CLAMP
		HEAT PROTECTION PLATE ON EXHAUST PIPE
050	N 910143010012	SCREW
		CLAMP TO EXHAUST PIPE
		M 10X30
050	N 910143010012	SCREW
		CLAMP TO EXHAUST PIPE
		M 10X30
056	N 913023010002	NUT
		CLAMP TO EXHAUST PIPE
056	N 913023010002	NUT
		CLAMP TO EXHAUST PIPE
062	A 4054923301	FRONT EXHAUST PIPE
		REAR EXHAUST PIPE,MUFFLER OUTLET
068	A 0004904914	CATALYST
	Repalced by: A 0014904114
068	A 0014904114	CATALYST
	Repalced by: A 0014906014
068	A 0014906014	PARTICULATE CONVERTER
070	A 0061530628	SENDER UNIT
072	A 0005460522	CLAMPING RING
074	A 0019900217	SCREW
076	N 007603020101	SEAL RING
078	A 0061537328	SENDER UNIT
		NOX SENSOR
078	A 0091533628	NOX SENSOR
		NOX SENSOR
080	N 000000000428	HEXAGON HEAD BOLT
		CATALYST TO BRACKET
		M10X35
080	N 304017010038	HEXAGON HEAD BOLT
		CATALYST TO BRACKET
		M10X30
092	A 4054920318	BASE PLATE
	Repalced by: A 4054290747
092	A 4054290047	COVERING
	Repalced by: A 4054290747
092	A 4054290747	HEAT SHIELD
098	N 000000000276	SCREW
		HEAT SHIELD TO MUFFLER
		M8X20
104	A 4054900540	BRACKET
		TWC FASTENING
110	A 4054921330	PROTECTIVE PLATE
		(HEAT SHIELD)
116	N 000000005234	BOLT
		HEAT SHIELD TO MUFFLER
		M 8X16
125	A 4054923401	FRONT EXHAUST PIPE
131	A 4054923501	FRONT EXHAUST PIPE
	Repalced by: A 4054925101
131	A 4054925101	EXHAUST GAS LINE FRONT
137	A 4054921501	FRONT EXHAUST PIPE
143	A 4054921401	FRONT EXHAUST PIPE
		VERTICAL TAIL PIPE BEHIND CAB
149	N 000000001647	CLAMP
		EXHAUST PIPE TO EXHAUST PIPE
155	N 910143010012	SCREW
		CLAMP TO EXHAUST PIPE
		M 10X30
155	N 000000000428	HEXAGON HEAD BOLT
		CLAMP TO EXHAUST PIPE
		M10X35
167	N 913023010002	NUT
		CLAMP TO EXHAUST PIPE
173	A 4054920020	STRUT
		TAIL PIPE BRACING
179	A 4054921230	PROTECTIVE PLATE
		(HEAT SHIELD) EXHAUST TAIL PIPE
185	A 4054900341	CLAMP
		HEAT SHIELD TO TAILPIPE
191	N 000000000436	HEXAGON HEAD BOLT
		HEAT SHIELD TO TAILPIPE
		M8X12
197	N 009021008213	WASHER
		HEAT SHIELD TO TAILPIPE
	Repalced by: N 000000003250
197	N 000000003250	WASHER
		HEAT SHIELD TO TAILPIPE
203	A 0009887211	BUFFER
		ON PIPE CLAMP, TOP
209	N 304032008006	NUT
		BUFFER ON PIPE CLAMP
215	A 0029899471	FAST-CURE ADHESIVE
		BUFFER ON PIPE CLAMP
