Transporto priemonė: U 40,U 45; VIN numerio dalis: 421122
Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |

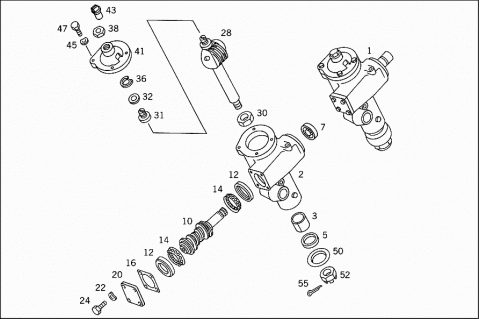

| ZF-GEMMER STEERING | ||
| 001 | A 4214600001 | STEERING BOX ASSEMBLY |
| 002 | A 0004601202 | STEERING BOX |
| 003 | A 0004612750 | BUSHING |
| 005 | A 0029972446 | SEAL RING |
| 007 | A 0059974846 | SEAL RING |
| Repalced by: A 0029977446 | ||
| 007 | A 0029977446 | SEAL RING |
| 010 | A 0004603808 | STEERING WORM |
| 012 | A 0004622427 | BALL RACE |
| 014 | A 0009812284 | CAGE |
| A 0004620228 | BEARING RING | |
| Repalced by: A 0004610807 | ||
| 016 | A 0004617152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 016 | A 0004617252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.12 MM | ||
| 016 | A 0004617352 | SPACER WASHER |
| AS REQUIRED | ||
| 0.15 MM | ||
| 016 | A 0004617452 | SPACER WASHER |
| AS REQUIRED | ||
| 0.30 MM | ||
| 016 | A 0004610607 | COVER |
| Repalced by: A 0004610807 | ||
| 020 | A 0004610807 | COVER |
| 020 | A 0004610807 | COVER |
| 022 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 022 | N 000137008212 | SPRING WASHER |
| 024 | N 000933008145 | SCREW |
| 024 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 024 | N 304017008021 | SCREW |
| 024 | N 304017008021 | SCREW |
| 024 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 024 | N 304017008021 | SCREW |
| 024 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 024 | N 304017008027 | SCREW |
| 024 | N 304017008027 | SCREW |
| 028 | A 0004601011 | STEERG. WORM SECTOR SHAFT |
| Repalced by: A 0004602111 | ||
| 028 | A 0004602111 | STEERG. WORM SECTOR SHAFT |
| A 0079947641 | LOCK | |
| 030 | N 000936030001 | NUT |
| 031 | A 0004621171 | SCREW |
| 032 | A 0004617552 | SPACER WASHER |
| AS REQUIRED | ||
| 2.10 MM | ||
| 032 | A 0004617652 | SPACER WASHER |
| AS REQUIRED | ||
| 2.15 MM | ||
| 032 | A 0004617752 | SPACER WASHER |
| AS REQUIRED | ||
| 2.20 MM | ||
| 032 | A 0004617852 | SPACER WASHER |
| AS REQUIRED | ||
| 2.25 MM | ||
| 032 | A 0004617952 | SPACER WASHER |
| AS REQUIRED | ||
| 2.30 MM | ||
| 032 | A 0004618052 | SPACER WASHER |
| AS REQUIRED | ||
| 2.35 MM | ||
| 032 | A 0004618152 | SPACER WASHER |
| AS REQUIRED | ||
| 2.40 MM | ||
| 032 | A 0004618252 | SPACER WASHER |
| AS REQUIRED | ||
| 2.45 MM | ||
| 032 | A 0004618352 | SPACER WASHER |
| AS REQUIRED | ||
| 2.50 MM | ||
| 036 | A 0019934141 | PART NAME MISSING |
| Repalced by: A 0009946941 | ||
| 036 | A 0009946941 | LOCK |
| Repalced by: A 0039948941 | ||
| 036 | A 0039948941 | LOCK |
| 038 | N 000936014008 | NUT |
| 041 | A 0004612105 | COVER |
| 043 | A 0009979630 | SCREW PLUG |
| 045 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 045 | N 000137008212 | SPRING WASHER |
| 047 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 047 | N 304017008034 | SCREW |
| 050 | A 0004620396 | BOOT |
| 052 | N 000937030000 | NUT |
| 055 | N 000094006013 | COTTER PIN |
| 055 | N 000094006013 | COTTER PIN |

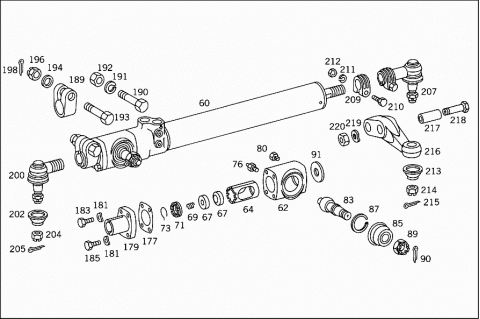

| ZF HYDRAULIC POWER STEERING | ||
| 060 | A 0004660192 | CYLINDER |
| Repalced by: A 0004660292 | ||
| 060 | A 0004660292 | CYLINDER |
| ZF-ROSS | ||
| 062 | A 0004660003 | HOUSING |
| 064 | A 0004660450 | BUSHING |
| 067 | A 0004660026 | BALL SOCKET |
| 069 | A 0029930701 | SPRING |
| 071 | A 0004660034 | SCREW COLLAR |
| 073 | A 0009941337 | SNAP RING |
| 076 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 076 | N 071412008102 | GREASE NIPPLE |
| 080 | A 0009978630 | SCREW PLUG |
| 083 | A 0009910015 | BALL PIVOT |
| Repalced by: A 0009910315 | ||
| 083 | A 0009910315 | BALL PIVOT |
| 085 | A 0004660096 | BOOT |
| Repalced by: A 0004660196 | ||
| 085 | A 0004660196 | BOOT |
| 087 | A 0009947435 | SNAP RING |
| 089 | N 000937018003 | NUT |
| 090 | N 000094004065 | COTTER PIN |
| 091 | A 0004660252 | SPACER WASHER |
| 094 | A 0004600516 | STEER. COLUMN JACKET TUBE |
| 096 | A 0004660375 | WASHER |
| 098 | A 0004660253 | SPACER TUBE |
| 100 | A 0004660352 | SPACER WASHER |
| AS REQUIRED | ||
| 2.450 MM | ||
| 100 | A 0004660452 | SPACER WASHER |
| AS REQUIRED | ||
| 2.475 MM | ||
| 100 | A 0004660552 | SPACER WASHER |
| AS REQUIRED | ||
| 2.500 MM | ||
| 100 | A 0004660652 | SPACER WASHER |
| AS REQUIRED | ||
| 2.525 MM | ||
| 100 | A 0004660752 | SPACER WASHER |
| AS REQUIRED | ||
| 2.550 MM | ||
| 100 | A 0004660852 | SPACER WASHER |
| AS REQUIRED | ||
| 2.575 MM | ||
| 100 | A 0004660952 | SPACER WASHER |
| AS REQUIRED | ||
| 2.600 MM | ||
| 100 | A 0004661052 | SPACER WASHER |
| AS REQUIRED | ||
| 2.626 MM | ||
| 100 | A 0004661152 | SPACER WASHER |
| AS REQUIRED | ||
| 2.650 MM | ||
| 100 | A 0004661252 | SPACER WASHER |
| AS REQUIRED | ||
| 2.675 MM | ||
| 100 | A 0004661352 | SPACER WASHER |
| AS REQUIRED | ||
| 2.700 MM | ||
| 106 | A 0004660051 | SPACER RING |
| 108 | A 0019873546 | SEALING CORD |
| 22.2X3 MM | ||
| 111 | A 0029930801 | SPRING |
| 113 | A 0004661452 | SPACER WASHER |
| 116 | A 0019977745 | SEAL RING |
| 15.3X2.4 MM | ||
| 118 | A 0019873746 | SEALING CORD |
| 20.3X2.4 MM | ||
| 120 | A 0009877646 | SEALING CORD |
| Repalced by: A 0039978245 | ||
| 120 | A 0039978245 | SEAL RING |
| 5X1.5 MM | ||
| 123 | A 0004660174 | PIN |
| 125 | A 0019873846 | SEALING CORD |
| 9X1.5 MM | ||
| 127 | N 009045012000 | SNAP RING |
| 129 | A 0019873946 | SEALING CORD |
| 25.3X2.4 MM | ||
| 133 | N 005401999007 | BALL |
| Repalced by: A 0005863746 | ||
| 133 | A 0029930901 | SPRING |
| Repalced by: A 0005863746 | ||
| 133 | A 0009972935 | PLUG |
| Repalced by: A 0005863746 | ||
| 133 | A 0005863746 | REPAIR KIT |
| 136 | A 0004660018 | PIPE |
| 138 | A 0005863546 | REPAIR KIT |
| Repalced by: A 0004603961 | ||
| 138 | A 0004603961 | GASKET KIT |
| N 024910045000 | PISTON RING | |
| A 0004660283 | PISTON | |
| Repalced by: A 0005863546 | ||
| 141 | A 0004660182 | RUBBER RING |
| 143 | A 0004661160 | SEAL RING |
| A 0004660383 | PISTON | |
| Repalced by: A 0005863546 | ||
| 146 | A 0004660085 | PLUNGER ROD |
| 148 | N 000979014001 | NUT |
| 150 | N 000094003226 | COTTER PIN |
| 152 | A 0019874046 | SEALING CORD |
| 46X2X3 MM | ||
| 156 | A 0005863646 | REPAIR KIT |
| A 0004660086 | GUIDE | |
| Repalced by: A 0005863646 | ||
| A 0004660186 | GUIDE | |
| Repalced by: A 0005863646 | ||
| 158 | A 0009944835 | SNAP RING |
| A 0019874146 | SEALING CORD | |
| 18.3X2.4 MM | ||
| A 0004661552 | SPACER WASHER | |
| A 0004661652 | SPACER WASHER | |
| A 0004661752 | SPACER WASHER | |
| A 0004660082 | RUBBER RING | |
| A 0019941641 | LOCK | |
| 161 | A 0059974946 | SEAL RING |
| 163 | A 0004660475 | WASHER |
| 165 | N 000472031000 | LOCK RING |
| 167 | A 0004660282 | RUBBER RING |
| A 0004661105 | COVER | |
| Repalced by: A 0005863646 | ||
| A 0004661205 | COVER | |
| Repalced by: A 0005863646 | ||
| 168 | N 000137006204 | SPRING WASHER |
| 169 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 169 | N 304017006018 | SCREW |
| 169 | N 000933006116 | SCREW |
| 170 | N 912004005103 | LOCK WASHER |
| 172 | N 000933005059 | SCREW |
| Repalced by: N 304017005007 | ||
| 172 | N 304017005007 | SCREW |
| Repalced by: N 000000002035 | ||
| 172 | N 000000002035 | SCREW |
| 174 | N 000933005069 | SCREW |
| 177 | A 0004660480 | GASKET |
| 179 | A 0004660845 | FLANGE |
| 181 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 181 | N 000137008212 | SPRING WASHER |
| 183 | N 000931008326 | SCREW |
| Repalced by: N 304014008009 | ||
| 183 | N 304014008009 | SCREW |
| 185 | N 000931008271 | SCREW |
| 189 | A 0004660177 | CLAMP |
| Repalced by: A 0004660277 | ||
| 189 | A 0004660277 | CLAMP |
| Repalced by: A 0004600564 | ||
| 189 | A 0004600564 | CLAMP |
| Repalced by: A 0004600764 | ||
| 189 | A 0004600764 | CLAMP |
| 190 | N 000960016212 | SCREW |
| Repalced by: N 910105016015 | ||
| 190 | N 910105016015 | SCREW |
| TO 000 466 01 77 | ||
| 191 | N 912004016101 | LOCK WASHER |
| TO 000 466 01 77 | ||
| 192 | N 000934016011 | NUT |
| Repalced by: N 913023016001 | ||
| 192 | N 913023016001 | NUT |
| TO 000 466 01 77 | ||
| Repalced by: N 000000005738 | ||
| 192 | N 000000005738 | NUT |
| TO 000 466 01 77 | ||
| 193 | N 000960014191 | SCREW |
| TO 000 466 02 77 | ||
| 194 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 194 | N 000125015019 | WASHER |
| TO 000 466 02 77 | ||
| 196 | N 000937014001 | NUT |
| TO 000 466 02 77 | ||
| 198 | N 000094003226 | COTTER PIN |
| TO 000 466 02 77 | ||
| 200 | A 0003381210 | BALL JOINT |
| 202 | A 0003380497 | BOOT |
| Repalced by: A 0003381697 | ||
| 202 | A 0003381697 | BOOT |
| Repalced by: A 0004631396 | ||
| 202 | A 0004631796 | BOOT |
| LEMFOERDER | ||
| 204 | N 000979016006 | NUT |
| Repalced by: N 000979016007 | ||
| 204 | N 000979016007 | NUT |
| 205 | N 000094004065 | COTTER PIN |
| 207 | A 0003381110 | BALL JOINT |
| 209 | A 0003380563 | CLAMP |
| 210 | N 000960010007 | SCREW |
| 211 | N 912004010102 | LOCK WASHER |
| 212 | N 000934010010 | NUT |
| A 0003380497 | BOOT | |
| Repalced by: A 0003381697 | ||
| A 0003381697 | BOOT | |
| Repalced by: A 0004631396 | ||
| 213 | A 0004631796 | BOOT |
| LEMFOERDER | ||
| 214 | N 000979016006 | NUT |
| Repalced by: N 000979016007 | ||
| 214 | N 000979016007 | NUT |
| 215 | N 000094004065 | COTTER PIN |
| 216 | A 4214660130 | LEVER |
| 217 | A 4214660053 | SPACER TUBE |
| Repalced by: A 4214660153 | ||
| 217 | A 4214660153 | SPACER TUBE |
| 218 | N 000960016277 | SCREW |
| Repalced by: N 910105016016 | ||
| 218 | N 910105016016 | SCREW |
| 219 | N 000137016202 | SPRING WASHER |
| 220 | N 000934016011 | NUT |
| Repalced by: N 913023016001 | ||
| 220 | N 913023016001 | NUT |
| Repalced by: N 000000005738 | ||
| 220 | N 000000005738 | NUT |
| 220 | N 913023016001 | NUT |

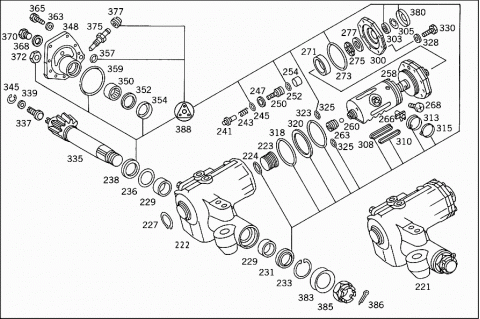

| ZF BALL-NUT-TYPE HYDRAULIC POWER STEERING | ||
| Repalced by: N 000000005738 | ||
| 220 | N 000000005738 | NUT |
| ZF BALL-NUT-TYPE HYDRAULIC POWER STEERING | ||
| 221 | A 4214600101 | STEERING BOX ASSEMBLY |
| 222 | A 0004601402 | STEERING BOX |
| A 0014627252 | SPACER WASHER | |
| Repalced by: A 0014627452 | ||
| A 0014627352 | SPACER WASHER | |
| Repalced by: A 0014627452 | ||
| A 0014627452 | SPACER WASHER | |
| 223 | A 0004612905 | COVER |
| 224 | A 0109979345 | SEAL RING |
| 227 | N 000471040002 | LOCK RING |
| 229 | A 0049812610 | NEEDLE BEARING |
| Repalced by: A 0059816210 | ||
| 229 | A 0059816210 | NEEDLE BEARING |
| 231 | A 0039976646 | SEAL RING |
| 233 | N 000472056000 | LOCK RING |
| 236 | A 0004622975 | WASHER |
| 238 | A 0004622765 | RING |
| 241 | A 0004610682 | VALVE |
| 243 | A 0029938801 | SPRING |
| 245 | A 0109979445 | SEAL RING |
| 247 | A 0014625252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 247 | A 0014625352 | SPACER WASHER |
| AS REQUIRED | ||
| 0.15 MM | ||
| 247 | A 0014625452 | SPACER WASHER |
| 0.30 MM | ||
| 250 | A 0004610782 | VALVE |
| 252 | A 0109977145 | SEAL RING |
| 254 | A 0014625852 | SPACER WASHER |
| 258 | A 0004606208 | STEERING WORM |
| Repalced by: A 0004606708 | ||
| 258 | A 0004606708 | STEERING WORM |
| 260 | N 005401309000 | BALL |
| 263 | A 0004620434 | SCREW COLLAR |
| 266 | A 0004621783 | PISTON |
| 268 | A 0004621771 | SCREW |
| 271 | A 0049812910 | NEEDLE BEARING |
| 273 | A 0109979545 | SEAL RING |
| 275 | A 0049812810 | NEEDLE BEARING |
| Repalced by: A 0099816210 | ||
| 275 | A 0099816210 | NEEDLE BEARING |
| 277 | A 0014626052 | SPACER WASHER |
| Repalced by: A 0014626452 | ||
| 277 | A 0014626452 | SPACER WASHER |
| AS REQUIRED | ||
| 1.91 MM | ||
| 277 | A 0014626152 | SPACER WASHER |
| Repalced by: A 0014626452 | ||
| 277 | A 0014626252 | SPACER WASHER |
| Repalced by: A 0014626452 | ||
| 277 | A 0014626352 | SPACER WASHER |
| Repalced by: A 0014626452 | ||
| 277 | A 0014626452 | SPACER WASHER |
| AS REQUIRED | ||
| 1.95 MM | ||
| 277 | A 0014626552 | SPACER WASHER |
| Repalced by: A 0014626952 | ||
| 277 | A 0014626652 | SPACER WASHER |
| Repalced by: A 0014626952 | ||
| 277 | A 0014626752 | SPACER WASHER |
| Repalced by: A 0014626952 | ||
| 277 | A 0014626852 | SPACER WASHER |
| Repalced by: A 0014626952 | ||
| 277 | A 0014626952 | SPACER WASHER |
| AS REQUIRED | ||
| 2.00 MM | ||
| 277 | A 0014627052 | SPACER WASHER |
| Repalced by: A 0014627452 | ||
| 277 | A 0014627152 | SPACER WASHER |
| Repalced by: A 0014627452 | ||
| 277 | A 0014627252 | SPACER WASHER |
| Repalced by: A 0014627452 | ||
| 277 | A 0014627352 | SPACER WASHER |
| Repalced by: A 0014627452 | ||
| 277 | A 0014627452 | SPACER WASHER |
| AS REQUIRED | ||
| 2.05 MM | ||
| 277 | A 0014627552 | SPACER WASHER |
| AS REQUIRED | ||
| 2.06 MM | ||
| 277 | A 0014627652 | SPACER WASHER |
| AS REQUIRED | ||
| 2.07 MM | ||
| 277 | A 0014627752 | SPACER WASHER |
| AS REQUIRED | ||
| 2.08 MM | ||
| 277 | A 0014627852 | SPACER WASHER |
| AS REQUIRED | ||
| 2.09 MM | ||
| 277 | A 0014627952 | SPACER WASHER |
| AS REQUIRED | ||
| 2.10 MM | ||
| 277 | A 0014628052 | SPACER WASHER |
| AS REQUIRED | ||
| 2.11 MM | ||
| 277 | A 0014628152 | SPACER WASHER |
| AS REQUIRED | ||
| 2.12 MM | ||
| 277 | A 0014628252 | SPACER WASHER |
| AS REQUIRED | ||
| 2.13 MM | ||
| 277 | A 0014628352 | SPACER WASHER |
| AS REQUIRED | ||
| 2.14 MM | ||
| 277 | A 0014628452 | SPACER WASHER |
| AS REQUIRED | ||
| 2.15 MM | ||
| 277 | A 0014628552 | SPACER WASHER |
| AS REQUIRED | ||
| 2.16 MM | ||
| 277 | A 0014628652 | SPACER WASHER |
| AS REQUIRED | ||
| 2.17 MM | ||
| 277 | A 0014628752 | SPACER WASHER |
| AS REQUIRED | ||
| 2.18 MM | ||
| 277 | A 0014628852 | SPACER WASHER |
| AS REQUIRED | ||
| 2.19 MM | ||
| 277 | A 0014628952 | SPACER WASHER |
| AS REQUIRED | ||
| 2.20 MM | ||
| 277 | A 0014629052 | SPACER WASHER |
| AS REQUIRED | ||
| 2.21 MM | ||
| 277 | A 0014629152 | SPACER WASHER |
| AS REQUIRED | ||
| 2.22 MM | ||
| 277 | A 0014629252 | SPACER WASHER |
| AS REQUIRED | ||
| 2.23 MM | ||
| 277 | A 0014629352 | SPACER WASHER |
| AS REQUIRED | ||
| 2.24 MM | ||
| 277 | A 0014629452 | SPACER WASHER |
| AS REQUIRED | ||
| 2.25 MM | ||
| 277 | A 0014629552 | SPACER WASHER |
| AS REQUIRED | ||
| 2.26 MM | ||
| 277 | A 0014629652 | SPACER WASHER |
| AS REQUIRED | ||
| 2.27 MM | ||
| 277 | A 0014629752 | SPACER WASHER |
| AS REQUIRED | ||
| 2.28 MM | ||
| 277 | A 0014629852 | SPACER WASHER |
| AS REQUIRED | ||
| 2.29 MM | ||
| 277 | A 0014629952 | SPACER WASHER |
| AS REQUIRED | ||
| 2.30 MM | ||
| 277 | A 0024620052 | SPACER WASHER |
| AS REQUIRED | ||
| 2.31 MM | ||
| 277 | A 0024620152 | SPACER WASHER |
| AS REQUIRED | ||
| 2.32 MM | ||
| 277 | A 0024620252 | SPACER WASHER |
| AS REQUIRED | ||
| 2.33 MM | ||
| 277 | A 0024620352 | SPACER WASHER |
| AS REQUIRED | ||
| 2.34 MM | ||
| 277 | A 0024620452 | SPACER WASHER |
| AS REQUIRED | ||
| 2.35 MM | ||
| 277 | A 0024620552 | SPACER WASHER |
| AS REQUIRED | ||
| 2.36 MM | ||
| 277 | A 0024620652 | SPACER WASHER |
| AS REQUIRED | ||
| 2.37 MM | ||
| 277 | A 0024620752 | SPACER WASHER |
| AS REQUIRED | ||
| 2.38 MM | ||
| 277 | A 0024620852 | SPACER WASHER |
| AS REQUIRED | ||
| 2.39 MM | ||
| 277 | A 0024620952 | SPACER WASHER |
| AS REQUIRED | ||
| 2.40 MM | ||
| 300 | A 0004610846 | COVER |
| 303 | A 0059976346 | SEAL RING |
| Repalced by: A 0099975247 | ||
| 303 | A 0099975247 | SEAL RING |
| Repalced by: A 0169975447 | ||
| 303 | A 0169975447 | SEAL RING |
| 305 | N 000472030000 | LOCK RING |
| 308 | A 0004624265 | RING |
| 310 | A 0004624365 | RING |
| 313 | A 0004624465 | RING |
| 315 | A 0004624565 | RING |
| 318 | A 0109979645 | SEAL RING |
| 320 | A 0004624665 | RING |
| 323 | A 0109979745 | SEAL RING |
| 325 | A 0099977645 | SEAL RING |
| Repalced by: A 0019870746 | ||
| 325 | A 0019870746 | SEALING CORD |
| 328 | A 0004629952 | SPACER WASHER |
| 330 | N 000931008049 | SCREW |
| 335 | A 0004601311 | STEERG. WORM SECTOR SHAFT |
| 337 | A 0004621671 | SCREW |
| Repalced by: A 0004621571 | ||
| 337 | A 0004621571 | SCREW |
| 339 | A 0004612952 | SPACER WASHER |
| Repalced by: A 0034620452 | ||
| 339 | A 0034620452 | SPACER WASHER |
| AS REQUIRED | ||
| 2.95 MM | ||
| 339 | A 0004613052 | SPACER WASHER |
| Repalced by: A 0034620552 | ||
| 339 | A 0034620552 | SPACER WASHER |
| AS REQUIRED | ||
| 3.00 MM | ||
| 339 | A 0004613152 | SPACER WASHER |
| Repalced by: A 0034620652 | ||
| 339 | A 0034620652 | SPACER WASHER |
| AS REQUIRED | ||
| 2.05 MM | ||
| 339 | A 0004613252 | SPACER WASHER |
| Repalced by: A 0034620752 | ||
| 339 | A 0034620752 | SPACER WASHER |
| AS REQUIRED | ||
| 3.10 MM | ||
| 339 | A 0004613352 | SPACER WASHER |
| Repalced by: A 0034624952 | ||
| 339 | A 0034624952 | SPACER WASHER |
| AS REQUIRED | ||
| 3.15 MM | ||
| 339 | A 0004613452 | SPACER WASHER |
| Repalced by: A 0034625052 | ||
| 339 | A 0034625052 | SPACER WASHER |
| AS REQUIRED | ||
| 3.20 MM | ||
| 339 | A 0004613552 | SPACER WASHER |
| Repalced by: A 0034625152 | ||
| 339 | A 0034625152 | SPACER WASHER |
| AS REQUIRED | ||
| 3.25 MM | ||
| 339 | A 0004613652 | SPACER WASHER |
| Repalced by: A 0034625252 | ||
| 339 | A 0034625252 | SPACER WASHER |
| AS REQUIRED | ||
| 3.30 MM | ||
| 339 | A 0004613752 | SPACER WASHER |
| Repalced by: A 0034625352 | ||
| 339 | A 0034625352 | SPACER WASHER |
| AS REQUIRED | ||
| 3.35 MM | ||
| 345 | N 900055025310 | LOCK RING |
| 348 | A 0004601014 | STEERING BOX COVER |
| 350 | A 0039816310 | NEEDLE BEARING |
| 352 | A 0004623675 | WASHER |
| 354 | A 0004623965 | RING |
| 357 | A 0099977645 | SEAL RING |
| Repalced by: A 0019870746 | ||
| 357 | A 0019870746 | SEALING CORD |
| 359 | A 0099977545 | SEAL RING |
| Repalced by: A 0079977348 | ||
| 359 | A 0079977348 | SEAL RING |
| 363 | A 0004629952 | SPACER WASHER |
| 365 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 365 | N 304017008034 | SCREW |
| 368 | N 007603012405 | SEAL RING |
| 370 | N 000908012003 | SCREW PLUG |
| Repalced by: N 000908012009 | ||
| 370 | N 000908012009 | SCREW PLUG |
| 372 | A 0004620372 | NUT |
| 375 | A 0009900315 | SCREW |
| 377 | A 0004620096 | BOOT |
| 380 | A 0004620496 | BOOT |
| Repalced by: A 0004621996 | ||
| 380 | A 0004621996 | BOOT |
| 383 | A 0004620796 | BOOT |
| 385 | N 000937035001 | NUT |
| 386 | N 000094006013 | COTTER PIN |
| 388 | A 0005862446 | REPAIR KIT |
| 388 | A 0005862446 | REPAIR KIT |

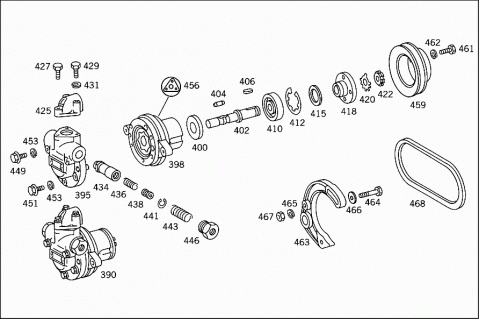

| POWER STEERING PUMP | ||
| 390 | A 0004665401 | HYDRAULIC PUMP |
| A 0004601582 | COVER | |
| 395 | A 0004601782 | COVER |
| Repalced by: A 0004601782 | ||
| 395 | A 0009912560 | DOWEL PIN |
| 398 | A 0004600881 | HOUSING |
| 400 | A 0004660905 | COVER |
| 402 | A 0004660120 | DRIVE SHAFT |
| 404 | A 0004660074 | PIN |
| 406 | A 0009910568 | KEY |
| 410 | N 000625900200 | GROOVED BALL BEARING |
| 412 | N 900055052000 | LOCK RING |
| 415 | A 0004660052 | SPACER WASHER |
| 418 | A 0004660945 | FLANGE |
| 420 | N 070952020101 | LOCK PLATE |
| 422 | N 070852020000 | NUT |
| 425 | A 0004660058 | CONNECTOR |
| 427 | N 000931006027 | SCREW |
| 429 | N 000931006041 | SCREW |
| 431 | N 912004006102 | LOCK WASHER |
| 434 | A 0004660084 | CARTRIDGE |
| 436 | A 0029931101 | SPRING |
| 438 | A 0004660083 | PISTON |
| 441 | A 0009942041 | LOCK |
| 443 | A 0009937001 | SPRING |
| 446 | A 0009972472 | FITTING |
| 449 | N 910105010002 | SCREW |
| 451 | N 000933010129 | SCREW |
| Repalced by: N 910105010001 | ||
| 451 | N 910105010001 | HEXAGON HEAD BOLT |
| 453 | N 912004010102 | LOCK WASHER |
| 456 | A 0005864346 | REPAIR KIT |
| 459 | A 4212050210 | PULLEY |
| 461 | N 000933008123 | SCREW |
| Repalced by: N 304017008008 | ||
| 461 | N 304017008008 | HEXAGON HEAD BOLT |
| 462 | N 912004008102 | LOCK WASHER |
| 463 | A 4215511240 | BRACKET |
| 464 | N 000931010306 | SCREW |
| Repalced by: N 910105010011 | ||
| 464 | N 910105010011 | HEXAGON HEAD BOLT |
| 464 | N 000931010069 | SCREW |
| Repalced by: N 304017010035 | ||
| 464 | N 304017010035 | HEXAGON HEAD BOLT |
| M10X45 | ||
| 465 | N 912004010102 | LOCK WASHER |
| 466 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 466 | N 009021010209 | WASHER |
| 467 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 467 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 467 | N 913023010002 | NUT |
| 468 | N 007753012500 | NARROW V-BELT |

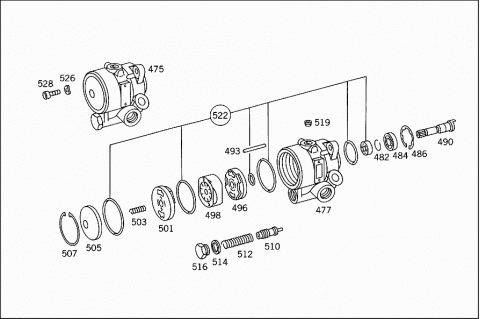

| 475 | A 0004667801 | HYDRAULIC PUMP |
| 477 | A 0004600981 | HOUSING |
| A 0009971432 | SCREW PLUG | |
| A 0089978445 | SEAL RING | |
| A 0069978946 | SEAL RING | |
| Repalced by: A 0005862846 | ||
| 482 | N 007993016200 | SNAP RING |
| 484 | N 000625900205 | GROOVED BALL BEARING |
| 486 | N 000984040000 | LOCK RING |
| 490 | A 0004660520 | DRIVE SHAFT |
| Repalced by: A 0004661720 | ||
| 490 | A 0004661720 | DRIVE SHAFT |
| 493 | A 0009910960 | DOWEL PIN |
| A 0089978545 | SEAL RING | |
| Repalced by: A 0005862846 | ||
| 496 | A 0004661805 | COVER |
| Repalced by: A 0004663605 | ||
| 496 | A 0004663605 | COVER |
| 498 | A 0004660322 | SET OF ROTORS |
| Repalced by: A 0004660221 | ||
| 498 | A 0004660221 | ROTOR SET |
| Repalced by: A 0004663421 | ||
| 498 | A 0004663421 | ROTOR SET |
| Repalced by: A 0004666521 | ||
| 498 | A 0004666521 | ROTOR SET |
| A 0089978745 | SEAL RING | |
| Repalced by: A 0005862846 | ||
| 501 | A 0004661905 | COVER |
| Repalced by: A 0004663705 | ||
| 501 | A 0004663705 | COVER |
| 503 | A 0029935101 | SPRING |
| Repalced by: A 0059934201 | ||
| 503 | A 0059934201 | SPRING |
| A 0089978845 | SEAL RING | |
| Repalced by: A 0005862846 | ||
| 505 | A 0004661605 | COVER |
| Repalced by: A 0004666505 | ||
| 505 | A 0004666505 | COVER |
| 507 | A 0009941637 | SNAP RING |
| 510 | A 0004661083 | PISTON |
| Repalced by: A 0004661183 | ||
| 510 | A 0004661183 | PISTON |
| THE TOLERANCE RANGE REQUIRED CAN BE READ FROM THE PUMP BODY | ||
| 510 | A 0004661183 | PISTON |
| TOLERANCE RANGE II;THE TOLERANCE RANGE REQUIRED CAN BE READ FROM THE BOX | ||
| 512 | A 0029935601 | SPRING |
| Repalced by: A 0029935201 | ||
| 512 | A 0029935201 | SPRING |
| 514 | N 007603022102 | SEAL RING |
| 516 | A 0019970130 | SCREW PLUG |
| 519 | A 0004660584 | CARTRIDGE |
| 522 | A 0005862846 | REPAIR KIT |
| (GASKET KIT),POWER STEERING PUMP | ||
| TO 000 466 78 01 | ||
| 526 | N 000137010205 | SPRING WASHER |
| 528 | N 000912010039 | SCREW |

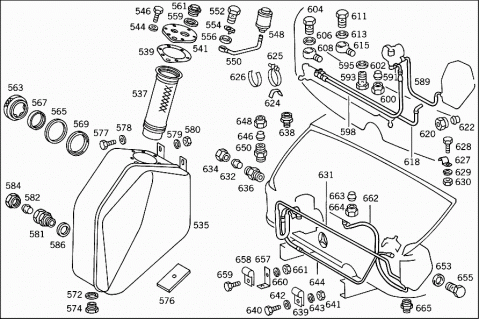

| 535 | A 4215500180 | OIL TANK |
| 537 | A 4115500281 | FILTER HOUSING |
| Repalced by: A 4215500181 | ||
| 537 | A 4215500181 | FILTER HOUSING |
| 539 | A 4119970040 | SEAL RING |
| 541 | A 4215500090 | COVER |
| 544 | N 007603005101 | SEAL RING |
| 546 | N 000933005057 | SCREW |
| 548 | A 4215500081 | FILTER HOUSING |
| Repalced by: A 0005530103 | ||
| 548 | A 0005530103 | FILTER |
| 550 | A 4215500057 | PIPE LINE |
| 552 | N 900117012400 | HOLLOW SCREW |
| 554 | N 900117012000 | LOCK |
| 556 | N 007603012405 | SEAL RING |
| 559 | N 007603030101 | SEAL RING |
| 561 | N 007604030201 | SCREW PLUG |
| Repalced by: N 007604030206 | ||
| 561 | N 007604030206 | SCREW PLUG |
| 563 | A 4069890063 | PART NAME MISSING |
| Repalced by: A 4069895063 | ||
| 563 | A 4069895063 | SIGHT GLASS |
| 565 | A 0029971340 | SEAL RING |
| FOR BRASS GLASS | ||
| 567 | A 0029971240 | SEAL RING |
| FOR BRASS GLASS | ||
| 569 | A 0029979540 | SEAL RING |
| FOR PLASTIC INSPECTION GLASS | ||
| 572 | N 007603026104 | SEAL RING |
| 574 | A 0009978730 | SCREW PLUG |
| Repalced by: A 4069975030 | ||
| 574 | A 4069975030 | SCREW PLUG |
| 576 | A 4219875060 | RUBBER PAD |
| 577 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 577 | N 304017008016 | SCREW |
| 578 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 578 | N 009021008213 | WASHER |
| Repalced by: N 000000003250 | ||
| 578 | N 000000003250 | WASHER |
| 579 | N 912004008102 | LOCK WASHER |
| 580 | N 304032008006 | NUT |
| 581 | A 0009903668 | FITTING |
| 582 | N 003861018003 | GLAND |
| Repalced by: A 0019901167 | ||
| 582 | A 0019901167 | SEAL CONE |
| 584 | N 915017018100 | UNION NUT |
| 586 | A 0004660460 | SEAL RING |
| 589 | A 4215502357 | PIPE LINE |
| 18 MM | ||
| 589 | A 4215502457 | PIPE LINE |
| 18 MM | ||
| 591 | A 4215503357 | PIPE LINE |
| 593 | N 915036012203 | HOLLOW SCREW |
| 595 | N 007603016105 | SEAL RING |
| 598 | A 4215503257 | PIPE LINE |
| 10 MM | ||
| 600 | N 915017010104 | UNION NUT |
| 602 | N 003861010009 | GLAND |
| 604 | A 0009902163 | HOLLOW SCREW |
| 606 | N 007603016401 | SEAL RING |
| 608 | A 0009902988 | BANJO UNION |
| 611 | A 0009902063 | HOLLOW SCREW |
| 613 | N 007603018100 | SEAL RING |
| 615 | A 0009903088 | BANJO UNION |
| 618 | A 4215503157 | PIPE LINE |
| 15 MM | ||
| 620 | N 915017015100 | UNION NUT |
| 622 | N 003861015004 | GLAND |
| 624 | A 4115511740 | BRACKET |
| 625 | N 900262009100 | LOOM TIE |
| 626 | N 900263009000 | STRAP |
| 600 MM | ||
| 627 | A 3049950220 | CLAMP |
| Repalced by: A 3129952420 | ||
| 627 | A 3129952420 | CLAMP |
| Repalced by: A 1109950401 | ||
| 627 | A 1109950401 | CLAMP |
| 628 | N 000933006130 | SCREW |
| Repalced by: N 304017006020 | ||
| 628 | N 304017006020 | SCREW |
| 629 | N 912004006102 | LOCK WASHER |
| 630 | N 000934006007 | NUT |
| 631 | A 4215508657 | PIPE LINE |
| Repalced by: A 4215501158 | ||
| 631 | A 4215501158 | PIPE LINE |
| 632 | N 003861022004 | GLAND |
| Repalced by: A 0019901267 | ||
| 632 | A 0019901267 | SEAL CONE |
| 634 | N 915017022100 | UNION NUT |
| Repalced by: N 000000006243 | ||
| 634 | N 000000006243 | NUT |
| 636 | N 003901022001 | SCREW-IN FITTING |
| 638 | A 4219975072 | FITTING |
| Repalced by: A 3529971171 | ||
| 638 | A 3529971171 | FITTING |
| 639 | A 3609950701 | CLAMP |
| Repalced by: N 916016018202 | ||
| 639 | N 916016018202 | CLAMP |
| 640 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 640 | N 304017006020 | SCREW |
| 641 | N 000934006007 | NUT |
| 642 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 642 | N 009021006208 | WASHER |
| 643 | N 912004006102 | LOCK WASHER |
| 644 | A 4215506857 | PIPE LINE |
| Repalced by: A 4215500258 | ||
| 644 | A 4215500258 | PIPE LINE |
| 646 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 646 | A 0019901967 | SEAL CONE |
| 648 | N 915017012100 | UNION NUT |
| Repalced by: N 000000006239 | ||
| 648 | N 000000006239 | UNION NUT |
| 650 | N 003901012003 | SCREW-IN FITTING |
| 653 | N 007603014103 | SEAL RING |
| 655 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 655 | N 915036010108 | HOLLOW SCREW |
| 657 | A 4213120141 | ANGLE |
| 658 | A 3609950301 | CLAMP |
| 659 | N 000933006130 | SCREW |
| Repalced by: N 304017006020 | ||
| 659 | N 304017006020 | SCREW |
| 660 | N 912004006102 | LOCK WASHER |
| 661 | N 000934006007 | NUT |
| 662 | A 4215507057 | PIPE LINE |
| Repalced by: A 4215500358 | ||
| 662 | A 4215500358 | PIPE LINE |
| Repalced by: A 4215502158 | ||
| 662 | A 4215502158 | PIPE LINE |
| 663 | N 003861015004 | GLAND |
| 664 | N 915017015100 | UNION NUT |
| 665 | A 0019976172 | FITTING |
| Repalced by: N 003901015005 | ||
| 665 | N 003901015005 | SCREW-IN FITTING |

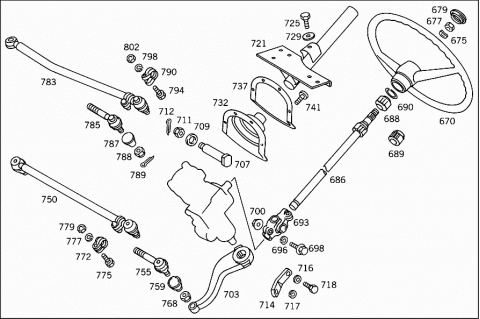

| 670 | A 4064600203 | STEERING WHEEL |
| 672 | A 4214600003 | STEERING WHEEL |
| 675 | N 000137018202 | SPRING WASHER |
| 677 | N 000439018204 | NUT |
| 679 | A 0004640531 | CAP |
| 681 | A 0004640131 | CAP |
| Repalced by: A 0004641231 | ||
| 681 | A 0004641231 | CAP |
| Repalced by: A 0004642631 | ||
| 681 | A 0004642631 | CAP |
| 684 | A 4214640053 | SPACER TUBE |
| 686 | A 4214600057 | STEERING COLUMN |
| Repalced by: A 4214620012 | ||
| 686 | A 4214620012 | STEERING SHAFT |
| 686 | A 4064600257 | STEERING COLUMN |
| 688 | A 0004620328 | BEARING RING |
| TO 421 460 00 57,406 460 02 57 | ||
| 689 | A 4064600857 | UNIVERSAL JOINT |
| Repalced by: A 4064600957 | ||
| 689 | A 4064600957 | SELF-ALIGNING BEARING |
| TO 421 462 00 12 | ||
| 690 | A 0019941941 | LOCK |
| 693 | A 4214600257 | UNIVERSAL JOINT |
| Repalced by: A 0004620744 | ||
| 693 | A 4214600357 | UNIVERSAL JOINT |
| Repalced by: A 0004620744 | ||
| 693 | A 0004620244 | UNIVERSAL JOINT |
| Repalced by: A 0004620744 | ||
| 693 | A 0004622950 | BUSHING |
| Repalced by: A 0004620744 | ||
| 693 | A 4214600457 | UNIVERSAL JOINT |
| Repalced by: A 0004620744 | ||
| 693 | A 0004620744 | UNIVERSAL JOINT |
| 695 | A 4064600457 | UNIVERSAL JOINT |
| Repalced by: A 0004620844 | ||
| 695 | A 4064600557 | UNIVERSAL JOINT |
| Repalced by: A 0004620844 | ||
| 695 | A 0004620844 | UNIVERSAL JOINT |
| 696 | N 912004008102 | LOCK WASHER |
| 698 | N 910105008012 | SCREW |
| M 8X28 | ||
| 698 | A 4069905014 | SCREW |
| Repalced by: A 3169900114 | ||
| 698 | A 3169900114 | SCREW |
| Repalced by: A 3819900114 | ||
| 698 | A 3819900114 | SCREW |
| M 8 | ||
| 698 | A 3819900114 | SCREW |
| M 8 | ||
| 698 | A 3819900114 | SCREW |
| M 8 | ||
| 698 | A 3819900114 | SCREW |
| M 8 | ||
| 700 | A 0019901651 | NUT |
| Repalced by: N 913004008001 | ||
| 700 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 700 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 700 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 700 | N 913023008002 | NUT |
| 700 | N 913023008002 | NUT |
| 700 | N 913023008002 | NUT |
| 700 | N 913023008002 | NUT |

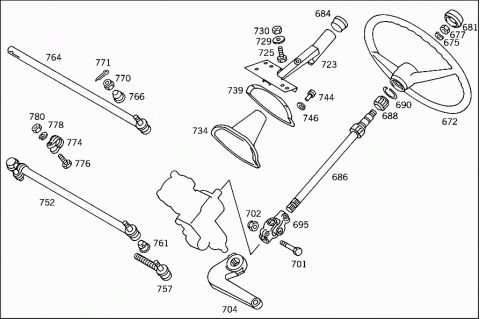

| 701 | N 000610010003 | FITTED SCREW |
| M 10X38 | ||
| 702 | A 0019901551 | NUT |
| 703 | A 4214630201 | PITMAN ARM |
| 704 | A 4214630301 | PITMAN ARM |
| 704 | A 4214630401 | PITMAN ARM |
| Repalced by: A 4214630501 | ||
| 704 | A 4214630501 | PITMAN ARM |
| 707 | A 4114610074 | PIN |
| Repalced by: A 4214610074 | ||
| 707 | A 4214610074 | PIN |
| 709 | A 4062640462 | THRUST WASHER |
| AS REQUIRED | ||
| 711 | N 000937024001 | NUT |
| 711 | N 913004024004 | NUT |
| 712 | N 000094005045 | COTTER PIN |
| 714 | A 4214660440 | BRACKET |
| 714 | A 4214660540 | BRACKET |
| 716 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 716 | N 000125015019 | WASHER |
| 717 | N 912004014100 | LOCK WASHER |
| 718 | N 000961014032 | SCREW |
| M 14X1.5X25 | ||
| 718 | N 000961014154 | SCREW |
| Repalced by: N 308676014018 | ||
| 718 | N 308676014018 | SCREW |
| Repalced by: N 308676014004 | ||
| 718 | N 308676014004 | SCREW |
| M 14X1.5X25 | ||
| 718 | N 000961014033 | SCREW |
| M 14X1.5X30 | ||
| 718 | N 000961014007 | SCREW |
| 721 | A 4214600131 | STEERING COLUMN BRACKET |
| 723 | A 4214600331 | STEERING COLUMN BRACKET |
| 725 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 725 | N 304017008016 | SCREW |
| M 8X16 | ||
| N 912004008102 | LOCK WASHER | |
| 729 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 729 | N 009021008213 | WASHER |
| Repalced by: N 000000003250 | ||
| 729 | N 000000003250 | WASHER |
| 730 | N 304032008006 | NUT |
| 732 | A 4214620097 | SEAL |
| 734 | A 4214620297 | SEAL |
| 737 | A 4216165006 | FRAME |
| 739 | A 4216105073 | FRAME |
| 741 | N 007985005157 | SCREW |
| 744 | A 0009840936 | GUIDE |
| 746 | A 0009844256 | WASHER |
| 750 | A 4214600505 | DRAG LINK |
| 750 | A 4214601205 | DRAG LINK |
| 752 | A 4214601005 | DRAG LINK |
| 755 | A 0004631029 | BALL JOINT |
| Repalced by: A 6013305335 | ||
| 755 | A 6013305335 | JOINT |
| Repalced by: A 6013300435 | ||
| 755 | A 6013300435 | JOINT |
| L.H. THREAD | ||
| LEMFOERDER | ||
| 757 | A 0004631829 | BALL JOINT |
| Repalced by: A 0003381810 | ||
| 757 | A 3103300635 | JOINT |
| Repalced by: A 0003381810 | ||
| 757 | A 0003381810 | BALL JOINT |
| Repalced by: A 0003305635 | ||
| 757 | A 0003305635 | JOINT |
| Repalced by: A 0004604348 | ||
| 757 | A 0004604348 | DRAG LINK END |
| 759 | A 0004630296 | BOOT |
| 761 | A 0004630696 | BOOT |
| Repalced by: A 0003300285 | ||
| 761 | A 0003300285 | BOOT |
| Repalced by: A 0003300885 | ||
| 761 | A 0003300885 | BOOT |
| 764 | A 0004635816 | DRAG LINK TUBE |
| 766 | A 0003381697 | BOOT |
| Repalced by: A 0004631396 | ||
| 766 | A 0004631796 | BOOT |
| LEMFOERDER | ||
| 766 | A 0004630296 | BOOT |
| 766 | A 0003381697 | BOOT |
| Repalced by: A 0004631396 | ||
| 766 | A 0004631796 | BOOT |
| LEMFOERDER | ||
| 768 | N 000937014001 | NUT |
| 770 | N 000979016006 | NUT |
| Repalced by: N 000979016007 | ||
| 770 | N 000979016007 | NUT |
| 771 | N 000094003226 | COTTER PIN |
| 771 | N 000094004065 | COTTER PIN |
| 772 | A 0003380463 | CLAMPING RING |
| 774 | A 0009950544 | CLAMP |
| Repalced by: A 0009957044 | ||
| 774 | A 0009957044 | CLAMP |
| 775 | N 000960008008 | SCREW |
| 776 | N 000960010021 | SCREW |
| 777 | N 912004008102 | LOCK WASHER |
| 778 | N 912004010102 | LOCK WASHER |
| 779 | N 000934008020 | NUT |
| 780 | N 000934010010 | NUT |
| 783 | A 4214600605 | DRAG LINK |
| 785 | A 0004631129 | BALL JOINT |
| Repalced by: A 0003305035 | ||
| 785 | A 0003305035 | JOINT |
| Repalced by: A 0004604148 | ||
| 785 | A 0004604148 | DRAG LINK END |
| Repalced by: A 0004608548 | ||
| 785 | A 0004608548 | DRAG LINK END |
| LEMFOERDER | ||
| 787 | A 0003380397 | BOOT |
| Repalced by: A 0003300185 | ||
| 787 | A 0003300185 | BOOT |
| Repalced by: A 0003300785 | ||
| 787 | A 0003300785 | BOOT |
| 788 | N 000937014001 | NUT |
| 789 | N 000094003226 | COTTER PIN |
| 790 | A 0003380563 | CLAMP |
| 794 | N 000960010020 | SCREW |
| 798 | N 912004010102 | LOCK WASHER |
| 802 | N 000934010010 | NUT |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
