Transporto priemonė: U 5000 (UHN II 3250); VIN numerio dalis: 437460

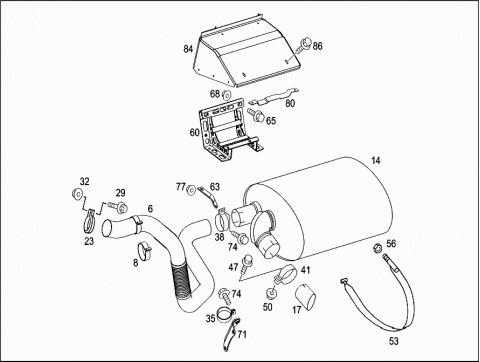

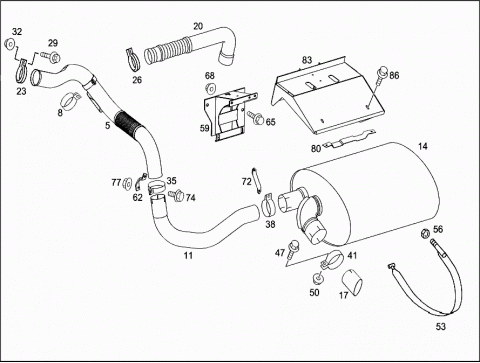

Grupė: 49 EXHAUST SYSTEM

#	Kodas	Pavadinimas
005	A 4374900016	EXHAUST PIPE
		FRONT
006	A 4374900410	EXHAUST PIPE
		FRONT
008	N 071555090502	CLAMP
011	A 4374924301	FRONT EXHAUST PIPE
		CENTRAL
014	A 4374900601	EXHAUST MUFFLER
017	A 4374922414	END PIECE
020	A 4054900419	EXHAUST PIPE
		WITH FLEXIBLE PIPE
023	A 6209970490	CLAMP
		EXHAUST PIPE TO TURBOCHARGER
026	A 6209970590	CLAMP
		EXHAUST PIPE
029	N 910143008003	HEXALOBULAR BOLT
		CLAMP TO EXHAUST PIPE
		M8X30
032	N 910113008003	NUT
		CLAMP TO EXHAUST PIPE
035	N 071555094502	CLAMP
		FRONT EXHAUST PIPE TO CENTRAL EXHAUST PIPE
035	N 071555094502	CLAMP
		AT BRACKET
038	N 071555094502	CLAMP
		CENTRAL EXHAUST PIPE TO EXHAUST MUFFLER
041	N 071555100501	CLAMP
		TAIL PIPE TO EXHAUST MUFFLER
047	N 910143010012	HEXALOBULAR BOLT
		CLAMP TO EXHAUST PIPE
		M10X30
050	N 913023010002	NUT
		CLAMP TO EXHAUST PIPE
053	A 4374900542	STRAP
		EXHAUST MUFFLER TO BRACKET
056	N 308673012001	NUT
		STRAP TO BRACKET
059	A 4374903240	BRACKET
		EXHAUST MUFFLER TO FRAME
060	A 4374903640	BRACKET
		EXHAUST MUFFLER TO FRAME
062	A 4374911541	BRACKET
		EXHAUST PIPE TO FRAME
063	A 4374913541	BRACKET
		EXHAUST PIPE TO FRAME
065	N 910105016007	HEXAGON HEAD BOLT
		MUFFLER BRACKET TO FRAME
		M16X1.5X45
068	N 913023016001	NUT
		MUFFLER BRACKET TO FRAME
		M16X1.5
	Repalced by: N 000000005738
068	N 000000005738	NUT
		MUFFLER BRACKET TO FRAME
		M16X1.5
071	A 4374903740	BRACKET
		EXHAUST PIPE TO BELL HOUSING
072	A 4374911741	BRACKET
		EXHAUST PIPE TO BELL HOUSING
074	N 000000000428	HEXAGON HEAD BOLT
		EXHAUST PIPE TO BELL HOUSING
		M10X35
074	N 000000000428	HEXAGON HEAD BOLT
		CLAMP TO EXHAUST PIPE
		M10X35
074	N 910143010012	HEXALOBULAR BOLT
		CENTRAL EXHAUST PIPE TO EXHAUST MUFFLER
		M10X30
077	N 913023010002	NUT
		M10
080	A 4374903340	BRACKET
		SCREENING PLATE
083	A 4374923530	PROTECTIVE PLATE
084	A 4374923630	PROTECTIVE PLATE
086	N 910105008008	HEXAGON HEAD BOLT
		SCREENING PLATE AT BRACKET
		M8X16

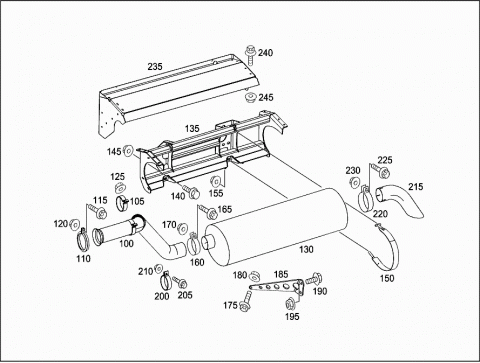

100	A 4374902410	EXHAUST GAS LINE
		FRONT
105	N 071555090502	CLAMP
110	A 6209970590	CLAMP
		EXHAUST PIPE
115	N 910105008014	HEXAGON HEAD BOLT
		CLAMP TO EXHAUST PIPE
		M8X35
120	N 000000003278	HEXAGON NUT
		CLAMP TO EXHAUST PIPE
		M8
125	N 913023012002	NUT
		EXHAUST PIPE
		M12X1.5
130	A 9734900401	EXHAUST MUFFLER
135	A 4374900734	BEAM
		EXHAUST MUFFLER TO FRAME
140	N 000000005519	HEXAGON HEAD BOLT
		MUFFLER BRACKET TO FRAME
		M14X1.5X35
140	N 910105014005	HEXAGON HEAD BOLT
		MUFFLER BRACKET TO FRAME
		M14X1.5X40
145	N 913023014003	NUT
		MUFFLER BRACKET TO FRAME
		M14X1.5
150	A 4374900642	RETAINING STRAP
		EXHAUST MUFFLER TO BRACKET
155	N 308673012001	HEXAGON NUT
		STRAP TO BRACKET
		M12X1.5
160	N 071555094502	CLAMP
		EXHAUST PIPE
165	N 910143010012	HEXALOBULAR BOLT
		CLAMP TO EXHAUST PIPE
		M10X30
170	N 913023010002	NUT
		CLAMP TO EXHAUST PIPE
		M10
175	N 000000000428	HEXAGON HEAD BOLT
		CLAMP, EXHAUST LINE TO BRACKET
		M10X35
180	N 913023010002	NUT
		CLAMP, EXHAUST LINE TO BRACKET
		M10
185	A 4374914941	BRACKET
		EXHAUST PIPE TO SUPPORT
190	N 910105010009	HEXAGON HEAD BOLT
		BRACKET MOUNTING
		M10X25
195	N 913023010002	NUT
		BRACKET MOUNTING
		M10
200	N 071555094502	CLAMP
		EXHAUST PIPE
205	N 000000000428	HEXAGON HEAD BOLT
		CLAMP, EXHAUST LINE TO BRACKET
		M10X35
210	N 913023010002	NUT
		CLAMP, EXHAUST LINE TO BRACKET
		M10
215	A 4374923514	TAILPIPE
220	N 071555090502	CLAMP
		TAIL PIPE TO EXHAUST MUFFLER
225	N 910143010012	HEXALOBULAR BOLT
		CLAMP TO EXHAUST PIPE
		M10X30
230	N 913023010002	NUT
		CLAMP TO EXHAUST PIPE
		M10
235	A 4374912530	SHIELDING
		EXHAUST MUFFLER
240	N 000000000276	SCREW
		SCREENING PLATE AT BRACKET
		M8X20
245	N 913023008002	NUT
		SCREENING PLATE AT BRACKET
		M8
