Transporto priemonė: U 5000 (UHN II 3250); VIN numerio dalis: 437460

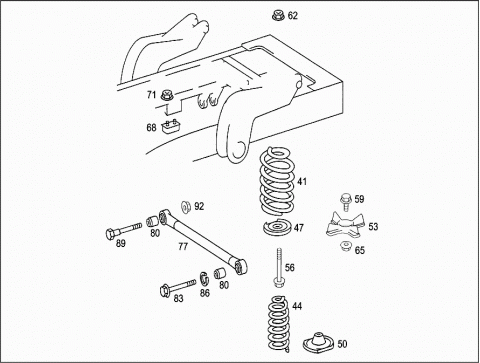

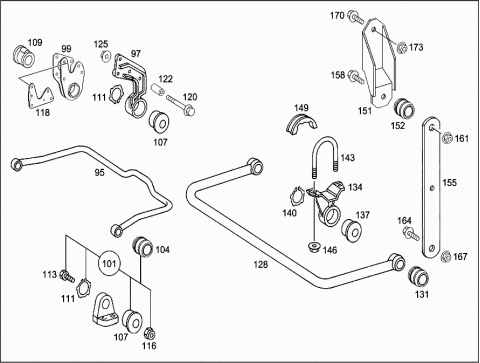

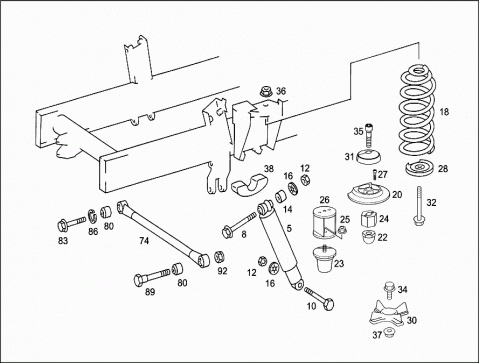

Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0073230300 | SHOCK ABSORBER |
| FRONT AXLE | ||
| SACHS | ||
| 005 | A 0073233100 | SHOCK ABSORBER |
| FRONT AXLE | ||
| SACHS | ||
| 005 | A 0063261800 | SHOCK ABSORBER |
| REAR AXLE | ||
| SACHS | ||
| 005 | A 0063262100 | SHOCK ABSORBER |
| REAR AXLE | ||
| SACHS | ||
| 005 | A 0073260500 | SHOCK ABSORBER |
| REAR AXLE | ||
| SACHS | ||
| 008 | N 000000000246 | HEXAGON HEAD BOLT |
| FRONT SHOCK ABSORBER TO FRAME,ON THE RIGHT | ||
| M20X1.5X160 | ||
| Repalced by: N 000000005398 | ||
| 008 | N 000000005398 | HEXAGON HEAD BOLT |
| FRONT SHOCK ABSORBER TO FRAME,ON THE RIGHT | ||
| M 20X1.5X160 | ||
| 008 | N 000000005398 | HEXAGON HEAD BOLT |
| FRONT DAMPER TO LEFT FRAME | ||
| M 20X1.5X160 | ||
| 008 | N 000000005730 | HEXAGON HEAD BOLT |
| FRONT DAMPER TO LEFT FRAME | ||
| M20X1.5X150 | ||
| 008 | N 000000005730 | HEXAGON HEAD BOLT |
| FRONT DAMPER TO LEFT FRAME | ||
| 008 | A 0049903904 | SCREW |
| REAR SHOCK ABSORBER TO FRAME | ||
| M 20X1.5X165 | ||
| 010 | N 000960020078 | SCREW |
| SHOCK ABSORBER TO AXLE | ||
| M 20X1.5X85 | ||
| 012 | N 308675020003 | HEXAGON NUT |
| SHOCK ABSORBER MOUNTING | ||
| Repalced by: A 4379900050 | ||
| 012 | A 9709900051 | NUT |
| SHOCK ABSORBER MOUNTING | ||
| 012 | N 000000005470 | HEXAGON NUT |
| SHOCK ABSORBER MOUNTING | ||
| 014 | A 4253230150 | BUSHING |
| SHOCK ABSORBER TO FRAME | ||
| 016 | N 900050021001 | LOCK PLATE |
| SHOCK ABSORBER MOUNTING | ||
| 018 | A 4373210804 | FRONT SPRING |
| Repalced by: A 4373211004 | ||
| 018 | A 4373211004 | FRONT SPRING |
| 018 | A 4373211204 | HELICAL SPRING |
| 020 | A 4373250126 | SPRING PLATE |
| AXLE STOP TO FRAME | ||
| 020 | A 4373250126 | SPRING PLATE |
| AXLE STOP TO FRAME | ||
| 022 | A 4373250144 | ELASTOMER BUFFER |
| AXLE STOP TO FRAME | ||
| 023 | A 4373250344 | ELASTOMER BUFFER |
| AXLE STOP TO FRAME | ||
| 024 | A 4373280135 | SPACER PLATE |
| AXLE STOP TO FRAME | ||
| 025 | N 913023012002 | NUT |
| AXLE STOP TO FRAME | ||
| 026 | A 4373200090 | SUPPORT |
| AXLE STOP TO FRAME | ||
| 027 | A 0019907212 | SCREW |
| AXLE STOP TO FRAME | ||
| M6X25 | ||
| 027 | A 0019907212 | SCREW |
| AXLE STOP TO FRAME | ||
| M6X25 | ||
| 028 | A 4353250126 | PLATE |
| FRONT SPRING TO FRAME | ||
| 030 | A 4373220087 | CENTERING DISC |
| FRONT SPRINGS TO FRONT AXLE | ||
| 031 | A 4373220387 | CENTERING DISK |
| FRONT SPRINGS TO FRONT AXLE | ||
| 031 | A 4373220387 | CENTERING DISK |
| FRONT SPRINGS TO FRONT AXLE | ||
| 032 | N 910105018026 | HEXAGON HEAD BOLT |
| FRONT SPRING TO FRAME | ||
| M18X1.5X70 | ||
| 032 | N 000000005568 | HEXAGON HEAD BOLT |
| FRONT SPRING TO FRAME | ||
| 034 | N 910105018018 | SCREW |
| FRONT SPRINGS TO FRONT AXLE | ||
| M 18X1.5X45 | ||
| Repalced by: N 000000005559 | ||
| 034 | N 000000005559 | HEXAGON HEAD BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| M 18X1.5X45 | ||
| 034 | N 000000003833 | SCREW |
| FRONT SPRINGS TO FRONT AXLE | ||
| M 18X1.5X100 | ||
| 035 | N 000912018023 | SCREW |
| FRONT SPRINGS TO FRONT AXLE | ||
| M18X1.5X65 | ||
| 036 | N 913023018002 | NUT |
| FRONT SPRING TO FRAME | ||
| 036 | N 000000005587 | HEXAGON NUT |
| FRONT SPRING TO FRAME | ||
| 037 | N 913023018002 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 038 | A 4063220044 | RUBBER BUFFER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 038 | A 4063220044 | RUBBER BUFFER |
| SPRING TO FRAME | ||
| 041 | A 4373240804 | REAR SPRING |
| 041 | A 4353240604 | REAR SPRING |
| 044 | A 4353240006 | HELPER SPRING |
| 047 | A 4353250126 | PLATE |
| TOP | ||
| 050 | A 4253250915 | SPRING CASE |
| 053 | A 4373220087 | CENTERING DISC |
| REAR SPRING TO REAR AXLE | ||
| 056 | N 910105018027 | SCREW |
| REAR SPRING TO SPRING BRACKET ON FRAME | ||
| M 18X1.5X80 | ||
| 056 | N 000000005724 | HEXAGON HEAD BOLT |
| REAR SPRING TO SPRING BRACKET ON FRAME | ||
| 059 | N 910105018018 | SCREW |
| REAR SPRING TO REAR AXLE | ||
| M 18X1.5X45 | ||
| Repalced by: N 000000005559 | ||
| 059 | N 000000005559 | HEXAGON HEAD BOLT |
| REAR SPRING TO REAR AXLE | ||
| M 18X1.5X45 | ||
| 062 | N 913023018002 | NUT |
| REAR SPRING TO SPRING BRACKET ON FRAME | ||
| 062 | N 000000005723 | HEXAGON HEAD BOLT |
| REAR SPRING TO SPRING BRACKET ON FRAME | ||
| 065 | N 913023018002 | NUT |
| REAR SPRING TO REAR AXLE | ||
| 065 | N 000000005739 | NUT |
| REAR SPRING TO REAR AXLE | ||
| 068 | A 4373250044 | RUBBER BUFFER |
| STOP TO BRACKET | ||
| 071 | N 913023010002 | NUT |
| RUBBER BUFFER TO STOP | ||
| 074 | A 4253300607 | TRANSVERSE CONTROL ARM |
| FRONT AXLE | ||
| 074 | A 4373301407 | CONTROL ARM |
| FRONT AXLE | ||
| 074 | A 4375202332 | STRUT |
| FRONT AXLE | ||
| 077 | A 4253300707 | TRANSVERSE CONTROL ARM |
| REAR AXLE | ||
| 077 | A 4373301507 | CONTROL ARM |
| REAR AXLE | ||
| 080 | A 0019880610 | RUBBER MOUNTING |
| FRONT AND REAR AXLES | ||
| Repalced by: A 0013330014 | ||
| 080 | A 0013330014 | BEARING |
| FRONT AND REAR AXLES | ||
| 080 | A 0013330014 | BEARING |
| FRONT AND REAR AXLES | ||
| 083 | N 910106016014 | SCREW |
| CONTROL ARMS TO FRONT AND REAR AXLES | ||
| M 16X1.5X90 | ||
| Repalced by: N 000000004781 | ||
| 083 | N 000000004781 | SCREW |
| CONTROL ARMS TO FRONT AND REAR AXLES | ||
| M 16X1.5X100 | ||
| 083 | N 000000005539 | HEXAGON HEAD BOLT |
| CONTROL ARMS TO FRONT AND REAR AXLES | ||
| M16X1.5X90 | ||
| 083 | N 000000006218 | HEXAGON HEAD BOLT |
| CONTROL ARMS TO FRONT AND REAR AXLES | ||
| M 16X1.5X100 | ||
| 086 | A 4419900047 | LOCK WASHER |
| CONTROL ARMS TO FRONT AND REAR AXLES | ||
| 089 | A 4259905301 | SCREW |
| STRUT AND CONTROL ARM TO FRAME | ||
| 092 | N 910113016001 | NUT |
| STRUT AND CONTROL ARM TO FRAME | ||
| 092 | N 000000005735 | HEXAGON NUT |
| STRUT AND CONTROL ARM TO FRAME | ||
| M16X1.5 | ||
| 095 | A 4373231565 | TORSION BAR |
| FRONT | ||
| 095 | A 4373231965 | STABILIZER |
| FRONT | ||
| 097 | A 4253231063 | BEARING BRACKET |
| LEFT | ||
| 097 | A 4253231163 | BEARING BRACKET |
| RIGHT | ||
| 099 | A 4373201970 | BEARING BRACKET |
| LEFT | ||
| 099 | A 4373202070 | BEARING BRACKET |
| RIGHT | ||
| 101 | A 4373200847 | SILENT BLOCK |
| PARTS KIT | ||
| TO 437 323 15 65 | ||
| 104 | A 3183200073 | RUBBER MOUNTING |
| 104 | A 3183200073 | RUBBER MOUNTING |
| 107 | A 3873230385 | RUBBER MOUNTING |
| 109 | A 6213230085 | RUBBER MOUNTING |
| 111 | N 000983068001 | RETAINING RING |
| 111 | N 000983068001 | RETAINING RING |
| 113 | N 000960016241 | SCREW |
| 116 | N 910113016001 | NUT |
| 118 | A 4373280035 | SPACER PLATE |
| BEARING BRACKET TO FRAME | ||
| 120 | N 000000002346 | HEXALOBULAR BOLT |
| BEARING BRACKET TO FRAME | ||
| M 12X1.5X70 | ||
| 120 | N 000000005720 | HEXAGON HEAD BOLT |
| BEARING BRACKET TO FRAME | ||
| M 14X1.5X100 | ||
| 120 | A 0049908804 | SCREW |
| COVERING TO BEARING BRACKET | ||
| M 12X1.5X75 | ||
| 122 | A 4375510250 | BUSHING |
| BEARING BRACKET TO FRAME | ||
| 125 | N 913023012002 | NUT |
| BEARING BRACKET TO FRAME | ||
| 125 | N 000000005733 | HEXAGON NUT |
| BEARING BRACKET TO FRAME | ||
| 128 | A 4373260365 | TORSION BAR |
| REAR | ||
| 131 | A 3183200073 | RUBBER MOUNTING |
| 134 | A 4373260063 | BEARING BRACKET |
| TORSION BAR TO REAR AXLE,RIGHT | ||
| 134 | A 4253231063 | BEARING BRACKET |
| TORSION BAR TO REAR AXLE,LEFT | ||
| 137 | A 3873230385 | RUBBER MOUNTING |
| 140 | N 000983068000 | RETAINING RING |
| 143 | A 4379900138 | U-BOLT |
| RIGHT BEARING BRACKET TO REAR AXLE | ||
| 146 | N 913023016001 | NUT |
| RIGHT BEARING BRACKET TO REAR AXLE | ||
| Repalced by: N 000000005738 | ||
| 146 | N 000000005738 | NUT |
| RIGHT BEARING BRACKET TO REAR AXLE | ||
| Repalced by: N 000000005735 | ||
| 146 | N 000000005735 | HEXAGON NUT |
| RIGHT BEARING BRACKET TO REAR AXLE | ||
| M16X1.5 | ||
| 149 | A 4373260064 | STEP BEARING |
| RIGHT BEARING BRACKET TO REAR AXLE | ||
| 149 | A 4373260064 | STEP BEARING |
| RIGHT BEARING BRACKET TO REAR AXLE | ||
| 151 | A 4373204378 | CONSOLE |
| TORSION BAR TO FRAME | ||
| 152 | A 3183200073 | RUBBER MOUNTING |
| 155 | A 4373260147 | SHACKLE |
| TORSION BAR TO CONSOLE | ||
| 158 | N 910105016006 | HEXAGON HEAD BOLT |
| SHACKLE TO CONSOLE | ||
| M16X1.5X80 | ||
| 158 | N 000000005537 | HEXAGON HEAD BOLT |
| SHACKLE TO CONSOLE | ||
| 161 | N 913023016001 | NUT |
| SHACKLE TO CONSOLE | ||
| Repalced by: N 000000005738 | ||
| 161 | N 000000005738 | NUT |
| SHACKLE TO CONSOLE | ||
| 164 | N 910105016006 | HEXAGON HEAD BOLT |
| SHACKLE TO TORSION BAR | ||
| M16X1.5X80 | ||
| 164 | N 000000005548 | HEXAGON HEAD BOLT |
| SHACKLE TO TORSION BAR | ||
| M16X1.5X55 | ||
| 167 | N 913023016001 | NUT |
| SHACKLE TO TORSION BAR | ||
| Repalced by: N 000000005738 | ||
| 167 | N 000000005738 | NUT |
| SHACKLE TO TORSION BAR | ||
| 170 | N 910105016018 | HEXAGON HEAD BOLT |
| CONSOLE TO FRAME | ||
| M16X1.5X55 | ||
| 170 | N 000000005548 | HEXAGON HEAD BOLT |
| CONSOLE TO FRAME | ||
| M16X1.5X55 | ||
| 173 | N 913023016001 | NUT |
| CONSOLE TO FRAME | ||
| Repalced by: N 000000005738 | ||
| 173 | N 000000005738 | NUT |
| CONSOLE TO FRAME | ||
