Transporto priemonė: U 5000 (UHN II 3250); VIN numerio dalis: 437470

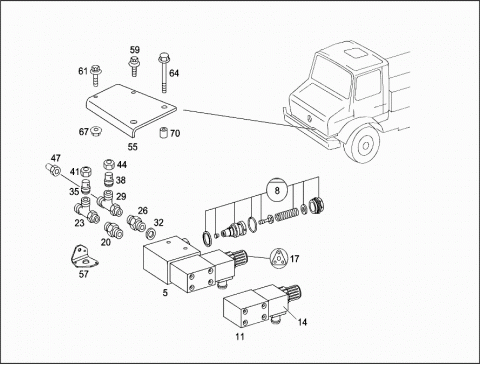

Grupė: 55 HYDRAULIC SYSTEM - 110 PUMPS,CONTROL VALVES,LINES
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0015500255 | VALVE |
| CONTROL UNIT | ||
| 005 | A 0015500255 | VALVE |
| CONTROL UNIT | ||
| 008 | A 0005508055 | VALVE |
| 008 | A 0005508055 | VALVE |
| 011 | A 0015500855 | VALVE |
| 011 | A 0015500855 | VALVE |
| 014 | A 0005461188 | SOLENOID COIL FORMER |
| 26V | ||
| 014 | A 0005461188 | SOLENOID COIL FORMER |
| 26V | ||
| 017 | A 0005508207 | GASKET KIT |
| 017 | A 0005508207 | GASKET KIT |
| 020 | A 0049976072 | FITTING |
| CONNECTION: | ||
| "P" | ||
| 020 | A 0049976072 | FITTING |
| CONNECTION: | ||
| "P" | ||
| 023 | A 0049902770 | T-FITTING |
| CONNECTION: | ||
| "P" | ||
| 023 | A 0049902770 | T-FITTING |
| CONNECTION: | ||
| "P" | ||
| 026 | A 3529970571 | FITTING |
| CONNECTION: | ||
| "T" | ||
| 026 | A 3529970571 | FITTING |
| CONNECTION: | ||
| "T" | ||
| 029 | A 0019907671 | ELBOW FITTING |
| CONNECTION: | ||
| "T" | ||
| 029 | A 0019907671 | ELBOW FITTING |
| CONNECTION: | ||
| "T" | ||
| 032 | N 007603018101 | SEALING RING |
| CONNECTION: | ||
| "T" | ||
| 032 | N 007603018101 | SEALING RING |
| CONNECTION: | ||
| "T" | ||
| 035 | A 0019906567 | SEAL CONE |
| TO PLUG FITTING | ||
| 035 | A 0019906567 | SEAL CONE |
| TO PLUG FITTING | ||
| 038 | A 0019907067 | SEAL CONE |
| TO PLUG FITTING | ||
| 038 | A 0019907067 | SEAL CONE |
| TO PLUG FITTING | ||
| 041 | N 000000006456 | NUT |
| TO PLUG FITTING | ||
| 041 | N 000000006456 | NUT |
| TO PLUG FITTING | ||
| 044 | N 000000006243 | NUT |
| TO PLUG FITTING | ||
| 044 | N 000000006243 | NUT |
| TO PLUG FITTING | ||
| 047 | A 4435500064 | PIPE SOCKET |
| 047 | A 4435500064 | PIPE SOCKET |
| 055 | A 4375516540 | BRACKET |
| CONTROL UNIT | ||
| 057 | A 4375517940 | BRACKET |
| CONTROL UNIT | ||
| 059 | N 000000003853 | HEXALOBULAR BOLT |
| CONTROL UNIT | ||
| M8X16 | ||
| 059 | N 000000003853 | HEXALOBULAR BOLT |
| CONTROL UNIT | ||
| M8X16 | ||
| 061 | N 910143008002 | HEXALOBULAR BOLT |
| CONTROL UNIT | ||
| M8X25 | ||
| 061 | N 910143008002 | HEXALOBULAR BOLT |
| CONTROL UNIT | ||
| M8X25 | ||
| 064 | N 910105016005 | HEXAGON HEAD BOLT |
| BRACKET CONTROL UNIT ON FRAME | ||
| M16X1.5X60 | ||
| 064 | N 000000005518 | HEXAGON HEAD BOLT |
| BRACKET CONTROL UNIT ON FRAME | ||
| M14X1.5X30 | ||
| 067 | N 000000003175 | NUT |
| CONTROL UNIT | ||
| M8 | ||
| 067 | N 000000003175 | NUT |
| CONTROL UNIT | ||
| 067 | N 000000005662 | NUT |
| CONTROL UNIT | ||
| M14X1.5 | ||
| 070 | A 4255510319 | PAD |
| BRACKET CONTROL UNIT ON FRAME | ||

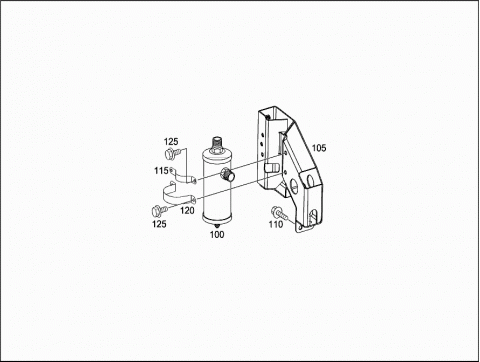

| 100 | A 4375500078 | OIL SEPARATOR |
| 105 | A 4375503240 | BRACKET |
| OIL SEPARATOR | ||
| 110 | N 910143010011 | HEXALOBULAR BOLT |
| BRACKET TO STRUT | ||
| M10X20 | ||
| 115 | A 4375520326 | MOUNTING BRACKET |
| OIL SEPARATOR | ||
| 120 | A 4375520226 | MOUNTING BRACKET |
| AIR DEHYDRATOR TO BRACKET | ||
| 125 | N 910105008008 | HEXAGON HEAD BOLT |
| CLAMP TO BRACKET | ||
| M8X16 |
