Transporto priemonė: U 52,U 600; VIN numerio dalis: 421125

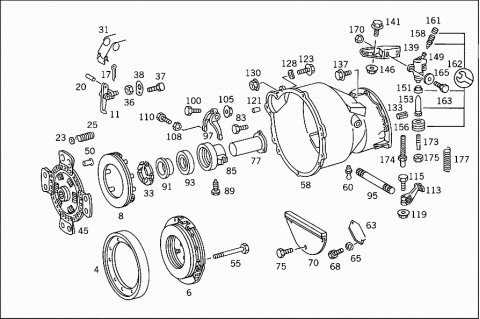

Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 4212520036 | COMPENSATING RING |
| 006 | A 0002508104 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0012508704 | ||
| 006 | A 0012508704 | CLUTCH PRESSURE PLATE |
| 006 | A 0012508704 | CLUTCH PRESSURE PLATE |
| 008 | A 0002522412 | PRESSURE PLATE |
| Repalced by: A 0002522712 | ||
| 008 | A 0002522712 | PRESSURE PLATE |
| 008 | A 0002522712 | PRESSURE PLATE |
| 011 | A 0002521013 | RELEASE LEVER |
| Repalced by: A 0002522113 | ||
| 011 | A 0002522113 | RELEASE LEVER |
| A 0002520018 | ROLLER | |
| A 0002521114 | BRACKET | |
| Repalced by: A 0002521914 | ||
| A 0002521914 | BRACKET | |
| A 0002521914 | BRACKET | |
| A 0002520316 | SPINDLE | |
| SHORT | ||
| 017 | N 000094002059 | COTTER PIN |
| Repalced by: N 000094002060 | ||
| 017 | N 000094002060 | COTTER PIN |
| 020 | A 0002520816 | SPINDLE |
| LONG | ||
| 023 | A 0002520024 | INSULATING WASHER |
| 025 | A 0002521020 | PRESSURE SPRING |
| Repalced by: A 0002521820 | ||
| 025 | A 0002521820 | PRESSURE SPRING |
| 031 | A 0002521727 | SPRING |
| Repalced by: A 0002524927 | ||
| 031 | A 0002520829 | CLAMP |
| Repalced by: A 0002524927 | ||
| 031 | A 0002524927 | SPRING |
| 033 | A 0002520245 | FLANGE |
| 036 | A 0002521572 | NUT |
| 037 | A 0002522971 | SCREW |
| TO 001 250 87 04 | ||
| 038 | A 0002520473 | LOCK |
| Repalced by: A 0002521173 | ||
| 038 | A 0002521173 | LOCK |
| N 912004005103 | LOCK WASHER | |
| N 000085005106 | SCREW | |
| 045 | A 0012504303 | CLUTCH DISC |
| Repalced by: A 0032503903 | ||
| 045 | A 0012506903 | CLUTCH DISC |
| Repalced by: A 0032503903 | ||
| 045 | A 0022504303 | CLUTCH DISC |
| Repalced by: A 0032503903 | ||
| 045 | A 0032502303 | CLUTCH DISC |
| Repalced by: A 0032503903 | ||
| 045 | A 0032503903 | CLUTCH DISC |
| Repalced by: A 0052508903 | ||
| 045 | A 0052508903 | CLUTCH DISC |
| Repalced by: A 0092505803 | ||
| 045 | A 0092505803 | CLUTCH DISC |
| F & S | ||
| 045 | A 0092505903 | CLUTCH DISC |
| F & S | ||
| 045 | A 0002525010 | CLUTCH LINING |
| Repalced by: A 0032503903 | ||
| 045 | A 0002526910 | CLUTCH LINING |
| Repalced by: A 0032503903 | ||
| 050 | A 0002521375 | RIVET |
| Repalced by: A 0002521175 | ||
| 050 | A 0002521875 | RIVET |
| Repalced by: A 0002521175 | ||
| 050 | A 0002521175 | RIVET |
| Repalced by: A 0002524075 | ||
| 050 | A 0002524075 | RIVET |
| TO 001 250 69 03,002 250 43 03 | ||
| 050 | A 0002524075 | RIVET |
| TO 001 250 43 03 | ||
| 050 | A 0002524375 | RIVET |
| TO 009 250 58 03,009 250 59 03 | ||
| 050 | A 0002522075 | RIVET |
| TO 009 250 58 03,009 250 59 03 | ||
| A 0002525319 | LEAF SPRING | |
| TO 009 250 58 03,009 250 59 03 | ||
| A 0012527510 | CLUTCH LINING | |
| ASBESTOS-FREE | ||
| TO 009 250 58 03,009 250 59 03 | ||
| N 912004008102 | LOCK WASHER | |
| 055 | N 000931008210 | SCREW |
| M 8X55 | ||
| 058 | A 4212500005 | HOUSING |
| Repalced by: A 4212500105 | ||
| 058 | A 4212500105 | HOUSING |
| Repalced by: A 4212510101 | ||
| 058 | A 4212510101 | BELL HOUSING |
| 058 | A 4212510101 | BELL HOUSING |
| 060 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 060 | N 071412008102 | GREASE NIPPLE |
| 063 | A 4212610033 | COVER |
| 065 | N 912004008102 | LOCK WASHER |
| COVER TO BELL HOUSING | ||
| 068 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 068 | N 304017008016 | SCREW |
| COVER TO BELL HOUSING | ||
| 070 | A 4212500055 | PROTECTIVE PLATE |
| N 912004008102 | LOCK WASHER | |
| COVER PLATE TO BELL HOUSING | ||
| 075 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 075 | N 304017008016 | SCREW |
| COVER PLATE TO BELL HOUSING | ||
| M 8X16 | ||
| 077 | A 4062501115 | RELEASE BEARING |
| Repalced by: A 4062540616 | ||
| 077 | A 4062540616 | GUIDE |
| 077 | A 4062541016 | GUIDE |
| N 912004008102 | LOCK WASHER | |
| 083 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 083 | N 304017008034 | SCREW |
| M 8X25 | ||
| 085 | A 4062540510 | RELEASE COLLAR |
| 085 | A 4062540810 | RELEASE COLLAR |
| N 912004008102 | LOCK WASHER | |
| Repalced by: A 0009940651 | ||
| A 0009940651 | LOCK | |
| 089 | A 4069900015 | SCREW |
| 091 | A 4062520152 | RING |
| 093 | A 0009816725 | BALL BEARING |
| 093 | A 0009817525 | BALL BEARING |
| 095 | A 4062530001 | CLUTCH SHAFT |
| 097 | A 4062540008 | RELEASE LEVER |
| Repalced by: A 4172540008 | ||
| 097 | A 4172540008 | RELEASE LEVER |
| 100 | N 000931008244 | SCREW |
| RELEASE LEVER TO CLUTCH SHAFT | ||
| N 912004008102 | LOCK WASHER | |
| RELEASE LEVER TO CLUTCH SHAFT | ||
| 105 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 105 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 105 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 105 | N 913023008002 | NUT |
| RELEASE LEVER TO CLUTCH SHAFT | ||
| 108 | N 304032008006 | NUT |
| RELEASE LEVER | ||
| 110 | A 4069900115 | SCREW |
| RELEASE LEVER | ||
| 110 | A 4069905015 | SCREW |
| RELEASE LEVER | ||
| 113 | A 4212540025 | LEVER |
| 115 | N 000931008244 | SCREW |
| LEVER ON CLUTCH SHAFT | ||
| N 912004008102 | LOCK WASHER | |
| LEVER ON CLUTCH SHAFT | ||
| 119 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 119 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 119 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 119 | N 913023008002 | NUT |
| LEVER ON CLUTCH SHAFT | ||
| 121 | N 000007012203 | CYLINDRICAL PIN |
| 123 | N 000933010129 | SCREW |
| Repalced by: N 910105010001 | ||
| 123 | N 910105010001 | HEXAGON HEAD BOLT |
| BELL HOUSING TO ENGINE | ||
| M10X30 | ||
| 123 | N 000931010258 | SCREW |
| Repalced by: N 910105010021 | ||
| 123 | N 910105010021 | HEXAGON HEAD BOLT |
| N 912004010102 | LOCK WASHER | |
| BELL HOUSING TO ENGINE | ||
| 128 | N 000137010201 | SPRING WASHER |
| BELL HOUSING TO ENGINE | ||
| 130 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 130 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 130 | N 913023010002 | NUT |
| BELL HOUSING TO ENGINE | ||
| 133 | N 001481013001 | CLAMPING SLEEVE |
| N 912004010102 | LOCK WASHER | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 137 | N 000933010145 | SCREW |
| Repalced by: N 910105010007 | ||
| 137 | N 910105010007 | SCREW |
| Repalced by: N 000000000428 | ||
| 137 | N 000000000428 | HEXAGON HEAD BOLT |
| BELL HOUSING TO TRANSMISSION CASE | ||
| M10X35 | ||
| 139 | A 4212540030 | BEARING BRACKET |
| 141 | N 000933010105 | SCREW |
| Repalced by: N 910105010009 | ||
| 141 | N 910105010009 | SCREW |
| N 000127010100 | LOCK WASHER | |
| BEARING BRACKET TO BELL HOUSING | ||
| 146 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 146 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 146 | N 913023010002 | NUT |
| BEARING BRACKET TO BELL HOUSING | ||
| 149 | A 0002950807 | SLAVE CYLINDER |
| Repalced by: A 0002953507 | ||
| 149 | A 0002953507 | SLAVE CYLINDER |
| Repalced by: A 0012957307 | ||
| 149 | A 0012957307 | SLAVE CYLINDER |
| Repalced by: A 0012959507 | ||
| 149 | A 0012959507 | SLAVE CYLINDER |
| 151 | A 0019975140 | SEAL RING |
| TO 000 295 35 07 | ||
| 153 | A 0002950374 | PIN |
| TO 000 295 35 07 | ||
| 156 | A 0002950583 | BOOT |
| 158 | A 0004201355 | BLEEDER VALVE |
| Repalced by: A 0004201055 | ||
| 158 | A 0004201055 | BLEEDER VALVE |
| 161 | A 0004212687 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 161 | A 3164210187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 161 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 161 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 161 | A 0004210887 | PROTECTIVE CAP |
| 162 | A 0005865829 | REPAIR KIT |
| TO 000 295 35 07 | ||
| 162 | A 0002903667 | SEAL RING |
| TO 001 295 73 07,001 295 95 07 | ||
| 163 | N 000933008116 | SCREW |
| Repalced by: N 000933008337 | ||
| 163 | N 000933008337 | SCREW |
| Repalced by: A 0099900101 | ||
| 163 | A 0099900101 | SCREW |
| SLAVE CYLINDER TO BEARING BRACKET | ||
| M 8X28 | ||
| 165 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 165 | N 009021008213 | WASHER |
| SLAVE CYLINDER TO BEARING BRACKET | ||
| Repalced by: N 000000003250 | ||
| 165 | N 000000003250 | WASHER |
| SLAVE CYLINDER TO BEARING BRACKET | ||
| N 912004008102 | LOCK WASHER | |
| SLAVE CYLINDER TO BEARING BRACKET | ||
| 170 | N 304032008006 | NUT |
| SLAVE CYLINDER TO BEARING BRACKET | ||
| 173 | A 1112950733 | ROD |
| 174 | A 4172540032 | ROD |
| 175 | N 304032008006 | NUT |
| PUSH ROD TO CLUTCH SLAVE CYLINDER | ||
| 177 | A 1119931010 | SPRING |
