Transporto priemonė: U 52,U 600; VIN numerio dalis: 421125

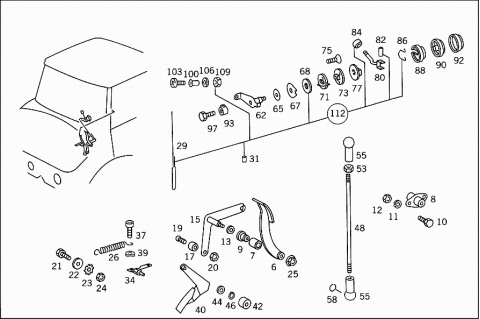

Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 006 | A 4213000004 | ACCELERATOR PEDAL |
| Repalced by: A 4063010020 | ||
| 006 | A 4063010020 | LEVER |
| 006 | A 4063010020 | LEVER |
| 007 | A 4213010253 | SPACER TUBE |
| 008 | A 4213010018 | BEARING |
| 009 | A 4063010350 | BUSHING |
| 009 | A 4063010350 | BUSHING |
| 010 | N 000933008145 | SCREW |
| 011 | N 912004008102 | LOCK WASHER |
| 012 | N 304032008006 | NUT |
| 013 | A 4213010053 | SPACER TUBE |
| 013 | A 4213010153 | SPACER TUBE |
| 015 | A 4213000128 | LEVER |
| Repalced by: A 4213000928 | ||
| 015 | A 4213000928 | LEVER |
| 015 | A 4213000928 | LEVER |
| 017 | A 4213010011 | ROLLER |
| 019 | A 4044270071 | SCREW |
| N 912004008102 | LOCK WASHER | |
| N 912004008102 | LOCK WASHER | |
| 020 | N 000439008211 | NUT |
| Repalced by: N 304035008000 | ||
| 020 | N 304035008000 | NUT |
| 020 | N 304035008000 | NUT |
| 021 | N 000931006041 | SCREW |
| 022 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 022 | N 009021006208 | WASHER |
| 023 | N 006797006242 | TOOTHED WASHER |
| 024 | N 000934006007 | NUT |
| 025 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 025 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 025 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 025 | N 913023008002 | NUT |
| 025 | N 913023008002 | NUT |
| 025 | N 913023008002 | NUT |
| 026 | A 4219930110 | SPRING |
| 029 | A 4063020005 | WIRE |
| Repalced by: A 4063020105 | ||
| 029 | A 4063020105 | WIRE |
| 031 | A 4043020168 | END PIECE |
| 034 | A 4213000036 | BEARING BRACKET |
| 034 | A 4213000136 | BEARING BRACKET |
| 034 | A 4213000236 | BEARING BRACKET |
| 037 | A 0009903312 | SCREW |
| Repalced by: N 000912006018 | ||
| 037 | N 000912006040 | SCREW |
| BEARING BRACKET TO OIL PAN | ||
| 039 | N 000137006204 | SPRING WASHER |
| BEARING BRACKET TO OIL PAN | ||
| 040 | A 4213000028 | LEVER |
| 040 | A 4213000028 | LEVER |
| 040 | A 4213001028 | LEVER |
| Repalced by: A 4213001128 | ||
| 040 | A 4213001128 | LEVER |
| 042 | A 4213010050 | BUSHING |
| 044 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 044 | N 000125010532 | WASHER |
| 046 | N 000471010001 | LOCK RING |
| 048 | N 900331005162 | PULL ROD |
| 048 | N 900331005147 | PULL ROD |
| 053 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 053 | N 304032005005 | NUT |
| 055 | N 071805008207 | BALL SOCKET |
| 058 | N 071805008300 | SNAP RING |
| 062 | A 4063000226 | MANUAL CONTROL |
| Repalced by: A 4063001326 | ||
| 062 | A 4063001226 | MANUAL CONTROL |
| Repalced by: A 4063001326 | ||
| 062 | A 4063001326 | MANUAL CONTROL |
| 062 | A 4063001326 | MANUAL CONTROL |
| 065 | A 0009932226 | DISC SPRING |
| 065 | A 0009932226 | DISC SPRING |
| 067 | A 4063020162 | THRUST WASHER |
| 067 | A 4063020162 | THRUST WASHER |
| 068 | A 4063020154 | GUARD PLATE |
| Repalced by: A 4063020454 | ||
| 068 | A 3262910076 | WASHER |
| Repalced by: A 4063020454 | ||
| 068 | A 4063020454 | GUARD PLATE |
| 40X16X4 | ||
| 068 | A 4063020454 | GUARD PLATE |
| 40X16X4 | ||
| 071 | A 4063000045 | FLANGE |
| 071 | A 4063000045 | FLANGE |
| 073 | A 4063020128 | STOP |
| 073 | A 4063020128 | STOP |
| 075 | N 000963005011 | SCREW |
| 077 | A 4063000153 | SLEEVE |
| Repalced by: A 4063020427 | ||
| 077 | A 4063020427 | HUB |
| 077 | A 4063020427 | HUB |
| 080 | A 4063000926 | MANUAL CONTROL |
| 080 | A 4063000926 | MANUAL CONTROL |
| 082 | N 001481004034 | CLAMPING SLEEVE |
| 082 | N 001481004034 | CLAMPING SLEEVE |
| 084 | N 000319025300 | BALL KNOB |
| 084 | N 000319025300 | BALL KNOB |
| 086 | A 4069935025 | SPRING |
| 086 | A 4069935025 | SPRING |
| 088 | A 4069885035 | CAP |
| 088 | A 4069885035 | CAP |
| 090 | A 4063000038 | COVER |
| 090 | A 4063000038 | COVER |
| 092 | A 4069875445 | LOCKING CAP |
| 092 | A 4069875445 | LOCKING CAP |
| 093 | A 4063000226 | MANUAL CONTROL |
| 093 | A 4043020068 | END PIECE |
| 093 | A 1203020087 | RING |
| Repalced by: A 1233000086 | ||
| 093 | A 1233000086 | END PIECE |
| PULL WIRE TO LEVER | ||
| 097 | N 000933005036 | SCREW |
| 097 | N 000933005058 | SCREW |
| 100 | A 4063020050 | BUSHING |
| 100 | A 4063020050 | BUSHING |
| 103 | A 3358335071 | SCREW |
| 103 | A 3358335071 | SCREW |
| 106 | N 000125005317 | WASHER |
| Repalced by: N 000125005330 | ||
| 106 | N 000125005330 | WASHER |
| 106 | N 000433005304 | WASHER |
| 109 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 109 | N 304032005005 | NUT |
| 109 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 109 | N 304032005005 | NUT |
| 112 | A 4165860030 | REPAIR KIT |
| Repalced by: A 4163000026 | ||
| 112 | A 4163000026 | MANUAL CONTROL |
| MANUAL CONTROL | ||
