Transporto priemonė: U 52,U 600; VIN numerio dalis: 421125

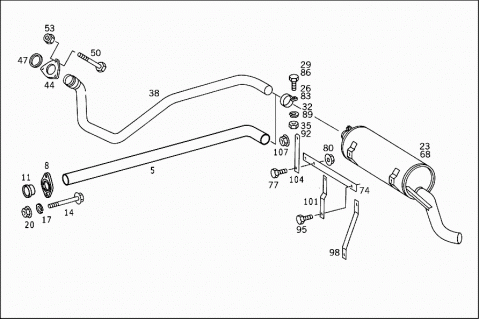

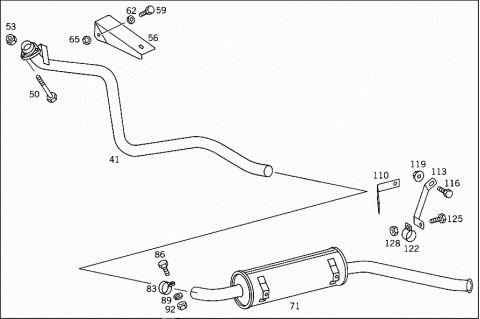

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 4214920001 | FRONT EXHAUST PIPE |
| 005 | A 4214920101 | FRONT EXHAUST PIPE |
| 008 | A 4114920045 | FLANGE |
| 011 | A 4114920108 | COLLAR |
| A 1364920081 | SEAL RING | |
| 014 | N 000931010271 | SCREW |
| Repalced by: N 910105010003 | ||
| 014 | N 910105010003 | SCREW |
| 017 | N 912004010102 | LOCK WASHER |
| 020 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 020 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 020 | N 913023010002 | NUT |
| 023 | A 4044900001 | EXHAUST MUFFLER |
| 026 | N 071555040300 | CLAMP |
| 029 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 029 | N 304017008021 | SCREW |
| 032 | N 912004008102 | LOCK WASHER |
| 035 | N 999901008005 | NUT |
| Repalced by: A 0009903250 | ||
| 035 | A 0009903250 | NUT |
| 038 | A 4214900019 | EXHAUST PIPE |
| 038 | A 4214900519 | EXHAUST PIPE |
| 041 | A 4214900819 | EXHAUST PIPE |
| Repalced by: A 4214901119 | ||
| 041 | A 4214901119 | EXHAUST PIPE |
| 041 | A 4214900119 | EXHAUST PIPE |
| 041 | A 4214900119 | EXHAUST PIPE |
| 044 | A 3094920013 | FLANGE |
| 044 | A 3094920013 | FLANGE |
| 047 | N 915035000009 | SEAL RING |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 047 | N 915035000009 | SEAL RING |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 050 | N 000931008327 | SCREW |
| Repalced by: N 304017008043 | ||
| 050 | N 304017008043 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 8X55 | ||
| 050 | N 304017008043 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 8X55 | ||
| N 912004008102 | LOCK WASHER | |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| N 912004008102 | LOCK WASHER | |
| 053 | N 999901008005 | NUT |
| Repalced by: A 0009903250 | ||
| 053 | A 0009903250 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 053 | A 0009903250 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 056 | A 4214920030 | PROTECTIVE PLATE |
| 059 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 059 | N 304017008016 | SCREW |
| PROTECTIVE PLATE TO EXHAUST PIPE | ||
| M 8X16 | ||
| 062 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 062 | N 000125008443 | WASHER |
| PROTECTIVE PLATE TO EXHAUST PIPE | ||
| N 912004008102 | LOCK WASHER | |
| PROTECTIVE PLATE TO EXHAUST PIPE | ||
| 065 | N 304032008006 | NUT |
| PROTECTIVE PLATE TO EXHAUST PIPE | ||
| 068 | A 4214900001 | EXHAUST MUFFLER |
| Repalced by: A 0014910901 | ||
| 068 | A 0014910901 | MUFFLER |
| Repalced by: A 4214900601 | ||
| 068 | A 4214900601 | EXHAUST MUFFLER |
| 068 | A 4214900601 | EXHAUST MUFFLER |
| 071 | A 4214900501 | EXHAUST MUFFLER |
| Repalced by: A 4214901201 | ||
| 071 | A 4214901201 | EXHAUST MUFFLER |
| 074 | A 4214911041 | BRACKET |
| MUFFLER | ||
| 077 | N 000933010164 | SCREW |
| M 10X22 | ||
| 080 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 080 | N 913023010003 | NUT |
| 083 | A 0009950665 | CLAMP |
| Repalced by: N 071555048503 | ||
| 083 | N 071555048503 | CLAMP |
| 083 | N 071555048503 | CLAMP |
| 086 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 086 | N 304017008021 | SCREW |
| M 8X22 | ||
| 086 | N 304017008021 | SCREW |
| M 8X22 | ||
| 089 | N 912004008102 | LOCK WASHER |
| 089 | N 912004008102 | LOCK WASHER |
| 092 | N 304032008006 | NUT |
| 092 | N 304032008006 | NUT |
| N 912004010102 | LOCK WASHER | |
| EXHAUST MUFFLER TO BRACKET | ||
| 095 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 095 | N 304017010028 | HEXAGON HEAD BOLT |
| EXHAUST MUFFLER TO BRACKET | ||
| M10X20 | ||
| 098 | A 4214910241 | BRACKET |
| 101 | A 4214910741 | BRACKET |
| 104 | A 4214910841 | BRACKET |
| 107 | N 913004016004 | NUT |
| Repalced by: N 913023016001 | ||
| 107 | N 913023016001 | NUT |
| Repalced by: N 000000005738 | ||
| 107 | N 000000005738 | NUT |
| 110 | A 4214920041 | BRACKET |
| 113 | A 4214920441 | BRACKET |
| 116 | N 000933010164 | SCREW |
| BRACKET TO FRAME | ||
| M 10X22 | ||
| N 912004010102 | LOCK WASHER | |
| BRACKET TO FRAME | ||
| 119 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 119 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 119 | N 913023010002 | NUT |
| BRACKET TO FRAME | ||
| 122 | A 4219955035 | CLAMP |
| Repalced by: A 0009950665 | ||
| 122 | A 0009950665 | CLAMP |
| Repalced by: N 071555048503 | ||
| 122 | N 071555048503 | CLAMP |
| 125 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 125 | N 304017008018 | SCREW |
| M 8X35 | ||
| N 912004008102 | LOCK WASHER | |
| 128 | N 304032008006 | NUT |
