Transporto priemonė: U 52,U 600; VIN numerio dalis: 421125

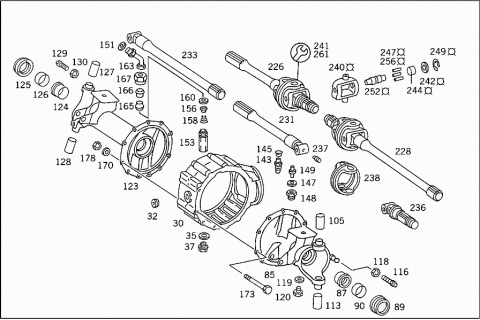

Grupė: 33 FRONT AXLE
| # | Kodas | Pavadinimas |
|---|---|---|

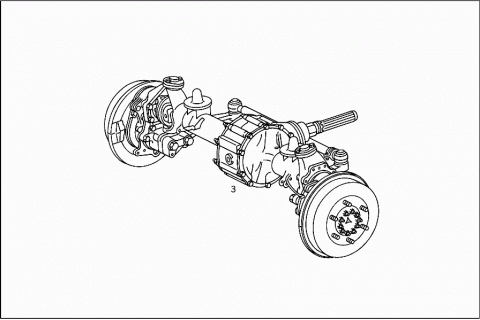

| 003 | A 4213300699 | FRONT AXLE |
| Repalced by: A 4213300899 | ||
| 003 | A 4213300899 | FRONT AXLE |
| WITH DRUM BRAKES,WHEEL HUBS & TIE ROD; AXLE RATIO 1:8.8 | ||
| 003 | A 4213302599 | FRONT AXLE |
| WITH DRUM BRAKES,WHEEL HUBS,AND TIE ROD;AXLE RATIO 1:8,29 | ||
| 003 | A 4213302499 | FRONT AXLE |
| WITH DRUM BRAKES, WHEEL HUBS, AND TIE ROD;AXLE RATIO 1:7.616 | ||
| 003 | A 4213302999 | FRONT AXLE |
| WITH DRUM BRAKES,WHEEL HUBS,AND TIE ROD;AXLE RATIO 1:8,29 | ||
| 003 | A 4213303399 | FRONT AXLE |
| WITH DRUM BRAKES, WHEEL HUBS, AND TIE ROD;AXLE RATIO 1:7.616 | ||

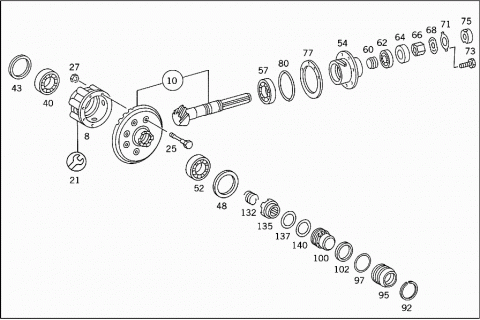

| 008 | A 4063350201 | DIFFERENTIAL CASE |
| 010 | A 4213300539 | RING GEAR AND PINION |
| RATIO: | ||
| 33:8 | ||
| 010 | A 4213300239 | RING GEAR AND PINION |
| RATIO: | ||
| 31:8 | ||
| 010 | A 4213300639 | RING GEAR AND PINION |
| RATIO: | ||
| 25:7 | ||
| A 4063350020 | DIFFERENTIAL SPIDER | |
| A 4063350114 | DIFFERENTIAL PINION | |
| A 4063370162 | SEGMENT | |
| A 4063350215 | SIDE GEAR | |
| A 4063350662 | THRUST WASHER | |
| 1.45 MM | ||
| 021 | A 4165860235 | REPAIR KIT |
| Repalced by: A 4163500240 | ||
| 021 | A 4163500240 | REPAIR KIT |
| DIFFERENTIAL GEAR | ||
| 025 | N 000960012192 | SCREW |
| 027 | A 0009909851 | NUT |
| Repalced by: N 000934012033 | ||
| 027 | N 000934012033 | NUT |
| Repalced by: A 0039909651 | ||
| 027 | A 0039909651 | NUT |
| 030 | A 4063510203 | HOUSING |
| 032 | N 000906030003 | SCREW PLUG |
| 035 | N 915035000001 | SEAL RING |
| 037 | N 007604018109 | SCREW PLUG |
| 040 | N 000720030211 | TAPERED ROLLER BEARING |
| 043 | A 4063370152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.05 MM | ||
| 043 | A 4063370252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 043 | A 4063370352 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 043 | A 4063370452 | SPACER WASHER |
| AS REQUIRED | ||
| 0.30 MM | ||
| 043 | A 4063370552 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 043 | A 4063370652 | SPACER WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 048 | A 4063371552 | SPACER WASHER |
| Repalced by: A 4063372852 | ||
| 048 | A 4063372852 | SPACER WASHER |
| AS REQUIRED | ||
| 0.15 MM | ||
| 048 | A 4063371652 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 048 | A 4063371752 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 048 | A 4063371852 | SPACER WASHER |
| AS REQUIRED | ||
| 0.30 MM | ||
| 048 | A 4063371952 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 048 | A 4063372052 | SPACER WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 052 | N 000720030214 | TAPERED ROLLER BEARING |
| 054 | A 4163530011 | BEARING BODY |
| 057 | N 000720030309 | TAPERED ROLLER BEARING |
| Repalced by: A 0019814605 | ||
| 057 | A 0019813705 | TAPERED ROLLER BEARING |
| Repalced by: A 0019814605 | ||
| 057 | A 4213360092 | INTERMEDIATE RING |
| Repalced by: A 0019814605 | ||
| 057 | A 0019814605 | TAPERED ROLLER BEARING |
| 060 | A 4063310053 | SPACER TUBE |
| 062 | A 0019814405 | TAPERED ROLLER BEARING |
| 064 | A 4063370251 | SPACER RING |
| 066 | A 4063350172 | NUT |
| 068 | A 4063370073 | LOCK |
| 071 | A 4063370173 | LOCK |
| 073 | N 000933006030 | SCREW |
| Repalced by: N 304017006022 | ||
| 073 | N 304017006022 | SCREW |
| 075 | A 4163310258 | RADIAL SEAL RING |
| 075 | A 4163310258 | RADIAL SEAL RING |
| 077 | A 4063354552 | SPACER WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 077 | A 4063352152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 077 | A 4063352252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 077 | A 4063352352 | SPACER WASHER |
| AS REQUIRED | ||
| 0.30 MM | ||
| 077 | A 4063352452 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 080 | A 0009878046 | SEALING CORD |
| 085 | A 4213301329 | FRONT AXLE TUBE |
| Repalced by: A 4213301929 | ||
| 085 | A 4213301929 | FRONT AXLE TUBE |
| LEFT | ||
| 085 | A 4213302329 | FRONT AXLE TUBE |
| Repalced by: A 4213303729 | ||
| 085 | A 4213302829 | FRONT AXLE TUBE |
| Repalced by: A 4213303729 | ||
| 085 | A 4213303729 | FRONT AXLE TUBE |
| LEFT | ||
| 085 | A 4213304329 | FRONT AXLE TUBE |
| Repalced by: A 4213305229 | ||
| 085 | A 4213305229 | FRONT AXLE TUBE |
| LEFT | ||
| 087 | A 4063320350 | BUSHING |
| Repalced by: A 4063320850 | ||
| 087 | A 4063320850 | BUSHING |
| Repalced by: A 4063321050 | ||
| 087 | A 4063321050 | BUSHING |
| 089 | A 0039970746 | SEAL RING |
| Repalced by: A 0109972246 | ||
| 089 | A 0109972246 | SEAL RING |
| Repalced by: A 0129973447 | ||
| 089 | A 0129973447 | SEAL RING |
| 090 | A 4163370851 | SPACER RING |
| 092 | A 4069940034 | SNAP RING |
| 095 | A 4063350458 | SEAL HOLDER |
| 097 | A 0009878046 | SEALING CORD |
| 76X2.5 MM | ||
| 100 | A 4063350350 | PISTON |
| 100 | A 4163350050 | BUSHING |
| Repalced by: A 4213350050 | ||
| 100 | A 4163350050 | BUSHING |
| 100 | A 4213350050 | PISTON |
| 102 | A 4069875041 | BOOT |
| INSIDE, FOR PISTON | ||
| 102 | A 4069875141 | BOOT |
| OUTSIDE,FOR PISTON | ||
| 102 | A 0009977941 | SEAL RING |
| 102 | A 0009977941 | SEAL RING |
| 102 | A 4163350091 | BOOT |
| INSIDE, FOR PISTON | ||
| 102 | A 4163350191 | BOOT |
| OUTSIDE,FOR PISTON | ||
| 105 | A 4063320650 | BUSHING |
| Repalced by: A 4063320750 | ||
| 105 | A 4063320750 | BUSHING |
| 113 | A 4063320306 | KINGPIN |
| Repalced by: A 4063320606 | ||
| 113 | A 4063320606 | KINGPIN |
| BOTTOM | ||
| 28 MM | ||
| 113 | A 4163320174 | PIN |
| Repalced by: A 4163320374 | ||
| 113 | A 4163320374 | PIN |
| BOTTOM | ||
| 30 MM | ||
| 113 | A 4163320374 | PIN |
| BOTTOM | ||
| 30 MM | ||
| 116 | A 4063320071 | SCREW |
| Repalced by: A 4063320171 | ||
| 116 | A 4063320171 | SCREW |
| Repalced by: A 4403320071 | ||
| 116 | A 4403320071 | SCREW |
| 118 | N 000936012010 | NUT |
| Repalced by: N 304035012002 | ||
| 118 | N 304035012002 | NUT |
| 119 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 119 | N 007603010110 | SEAL RING |
| 120 | A 3159900801 | SCREW |
| 123 | A 4213301429 | FRONT AXLE TUBE |
| Repalced by: A 4213302929 | ||
| 123 | A 4213302029 | FRONT AXLE TUBE |
| RIGHT | ||
| 123 | A 4213302429 | FRONT AXLE TUBE |
| Repalced by: A 4213302929 | ||
| 123 | A 4213302929 | FRONT AXLE TUBE |
| RIGHT | ||
| 123 | A 4213304429 | FRONT AXLE TUBE |
| Repalced by: A 4213305329 | ||
| 123 | A 4213305329 | FRONT AXLE TUBE |
| RIGHT | ||
| 123 | A 4063320350 | BUSHING |
| Repalced by: A 4063320850 | ||
| 124 | A 4063320850 | BUSHING |
| Repalced by: A 4063321050 | ||
| 124 | A 4063321050 | BUSHING |
| 125 | A 0039970746 | SEAL RING |
| Repalced by: A 0109972246 | ||
| 125 | A 0109972246 | SEAL RING |
| Repalced by: A 0129973447 | ||
| 125 | A 0129973447 | SEAL RING |
| 126 | A 4163370851 | SPACER RING |
| 127 | A 4063320650 | BUSHING |
| Repalced by: A 4063320750 | ||
| 127 | A 4063320750 | BUSHING |
| TOP | ||
| 128 | A 4063320306 | KINGPIN |
| Repalced by: A 4063320606 | ||
| 128 | A 4063320606 | KINGPIN |
| BOTTOM | ||
| 28 MM | ||
| 128 | A 4163320174 | PIN |
| Repalced by: A 4163320374 | ||
| 128 | A 4163320374 | PIN |
| BOTTOM | ||
| 30 MM | ||
| 128 | A 4163320374 | PIN |
| BOTTOM | ||
| 30 MM | ||
| 129 | A 4063320071 | SCREW |
| Repalced by: A 4063320171 | ||
| 129 | A 4063320171 | SCREW |
| Repalced by: A 4403320071 | ||
| 129 | A 4403320071 | SCREW |
| 130 | N 000936012010 | NUT |
| Repalced by: N 304035012002 | ||
| 130 | N 304035012002 | NUT |
| 132 | A 4069930301 | SPRING |
| 132 | A 4219935401 | SPRING |
| 135 | A 4063350236 | FOLLOWER |
| 135 | A 4063350336 | FOLLOWER |
| 137 | A 4063350362 | THRUST WASHER |
| 137 | A 4213350162 | THRUST WASHER |
| 137 | A 4213350162 | THRUST WASHER |
| 140 | A 4063350562 | THRUST WASHER |
| AS REQUIRED | ||
| 143 | A 4063310065 | BREATHER |
| 145 | A 3164210187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 145 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 145 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 145 | A 0004210887 | PROTECTIVE CAP |
| 147 | N 915035000006 | SEAL RING |
| 148 | N 003901010001 | SCREW-IN FITTING |
| 149 | A 4213300077 | STOP |
| Repalced by: A 4213310184 | ||
| 149 | A 4213310184 | FITTING |
| Repalced by: A 4219975372 | ||
| 149 | A 4219975372 | FITTING |
| 149 | A 4213310184 | FITTING |
| 151 | N 007603016105 | SEAL RING |
| 153 | A 4213500057 | VALVE |
| 156 | A 4213500257 | VALVE |
| 158 | A 4219935301 | SPRING |
| 160 | N 007603018101 | SEAL RING |
| 163 | A 4213301082 | LINE |
| 165 | N 003862010000 | DOUBLE TAPER RING |
| 166 | N 003861010009 | GLAND |
| 167 | N 915017010100 | UNION NUT |
| 170 | A 4069905048 | WASHER |
| 173 | N 000961012048 | SCREW |
| 173 | N 000960012164 | SCREW |
| 178 | N 000934012033 | NUT |
| Repalced by: A 0039909651 | ||
| 178 | A 0039909651 | NUT |

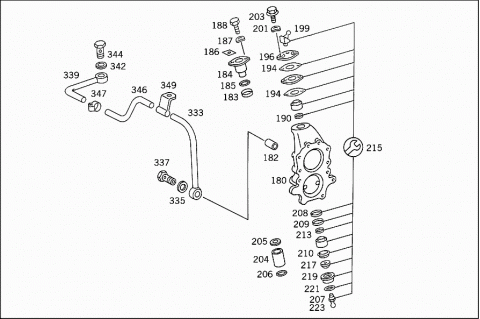

| 180 | A 4063300520 | STEERING KNUCKLE |
| OUTSIDE | ||
| 180 | A 4163300620 | STEERING KNUCKLE |
| Repalced by: A 4163300720 | ||
| 180 | A 4163300720 | STEERING KNUCKLE |
| OUTSIDE | ||
| 180 | A 4163300720 | STEERING KNUCKLE |
| OUTSIDE | ||
| 182 | A 0009911141 | CLAMPING PIN |
| 182 | A 4069925025 | SLEEVE |
| 183 | A 4063320151 | SPACER RING |
| 184 | A 4063320206 | KINGPIN |
| Repalced by: A 4063320506 | ||
| 184 | A 4063320506 | KINGPIN |
| TOP | ||
| 185 | A 0049975545 | SEAL RING |
| TOP | ||
| 185 | A 0059975945 | SEAL RING |
| 186 | A 4063320173 | LOCK |
| 187 | N 000137012203 | SPRING WASHER |
| Repalced by: N 000137012206 | ||
| 187 | N 000137012206 | SPRING WASHER |
| 188 | N 308765012015 | SCREW |
| 190 | A 0059976045 | SEAL RING |
| 190 | A 0059976045 | SEAL RING |
| A 4169810231 | JOINT BEARING | |
| Repalced by: A 4165860233 | ||
| 194 | A 4163320179 | GASKET |
| AS REQUIRED | ||
| 194 | A 4163320179 | GASKET |
| AS REQUIRED | ||
| 194 | A 4163320079 | GASKET |
| 194 | A 4163320079 | GASKET |
| 196 | A 4163320146 | PLATE |
| 196 | A 4163320146 | PLATE |
| 199 | N 071412008200 | GREASE NIPPLE |
| 199 | N 071412008200 | GREASE NIPPLE |
| 201 | N 000137010201 | SPRING WASHER |
| 201 | N 000137010201 | SPRING WASHER |
| 203 | N 000933010128 | SCREW |
| Repalced by: N 910105010006 | ||
| 203 | N 910105010006 | SCREW |
| M 10X20 | ||
| 203 | N 910105010006 | SCREW |
| M 10X20 | ||
| 204 | A 4063300050 | BUSHING |
| BOTTOM | ||
| 204 | A 4063320250 | BUSHING |
| BOTTOM | ||
| 205 | A 4063320062 | THRUST WASHER |
| 206 | A 0039970945 | SEAL RING |
| BOTTOM | ||
| 207 | N 071412008200 | GREASE NIPPLE |
| BOTTOM | ||
| 208 | A 4163320051 | SPACER RING |
| 208 | A 4163320051 | SPACER RING |
| 209 | A 0059978145 | SEAL RING |
| 209 | A 0059978145 | SEAL RING |
| 210 | A 4163320262 | THRUST WASHER |
| Repalced by: A 4163320362 | ||
| 210 | A 4163320362 | THRUST WASHER |
| 210 | A 4163320362 | THRUST WASHER |
| 213 | A 4163320059 | SEAL RING |
| Repalced by: A 0059976045 | ||
| 213 | A 0059976045 | SEAL RING |
| 213 | A 0059976045 | SEAL RING |
| 215 | A 4169810031 | JOINT BEARING |
| Repalced by: A 4169810331 | ||
| 215 | A 4169810331 | JOINT BEARING |
| Repalced by: A 4165860233 | ||
| 215 | A 4165860233 | REPAIR KIT |
| Repalced by: A 4163300012 | ||
| 215 | A 4163300012 | REPAIR KIT |
| 215 | A 4163300012 | REPAIR KIT |
| 217 | A 4163320162 | THRUST WASHER |
| 217 | A 4163320162 | THRUST WASHER |
| 219 | A 4163320150 | BUSHING |
| 219 | A 4163320150 | BUSHING |
| 221 | A 4163320083 | OIL PIPE |
| Repalced by: A 4163320783 | ||
| 221 | A 0039970845 | SEAL RING |
| 221 | A 0039970845 | SEAL RING |
| 223 | A 4163320783 | OIL PIPE |
| Repalced by: N 071412008300 | ||
| 223 | N 071412008302 | GREASE NIPPLE |
| 223 | N 071412008302 | GREASE NIPPLE |
| 226 | A 4213300401 | DRIVE SHAFT |
| LEFT | ||
| 226 | A 4213300601 | DRIVE SHAFT |
| LEFT | ||
| 226 | A 4213301201 | DRIVE SHAFT |
| Repalced by: A 4213302001 | ||
| 226 | A 4213302001 | DRIVE SHAFT |
| LEFT | ||
| 228 | A 4213300501 | DRIVE SHAFT |
| RIGHT | ||
| 228 | A 4213300701 | DRIVE SHAFT |
| RIGHT | ||
| 228 | A 4213301301 | DRIVE SHAFT |
| Repalced by: A 4213302101 | ||
| 228 | A 4213302101 | DRIVE SHAFT |
| RIGHT | ||
| 231 | A 0003370803 | PROPELLER SHAFT |
| LEFT | ||
| 231 | A 0003371203 | PROPELLER SHAFT |
| LEFT | ||
| 231 | A 0003372003 | PROPELLER SHAFT |
| Repalced by: A 0003373003 | ||
| 231 | A 0003373003 | PROPELLER SHAFT |
| LEFT | ||
| A 0003370903 | PROPELLER SHAFT | |
| RIGHT | ||
| A 0003371303 | PROPELLER SHAFT | |
| RIGHT | ||
| 233 | A 0003372103 | PROPELLER SHAFT |
| Repalced by: A 0003373103 | ||
| 233 | A 0003373103 | PROPELLER SHAFT |
| A 0003370601 | DRIVE SHAFT | |
| 236 | A 0003370801 | DRIVE SHAFT |
| Repalced by: A 0003371501 | ||
| 236 | A 0003371101 | DRIVE SHAFT |
| Repalced by: A 0003371501 | ||
| 236 | A 0003371501 | DRIVE SHAFT |
| 237 | A 0009901477 | SCREW |
| 238 | A 0003370417 | FOLLOWER |
| TO 421 330 06 01,07 01,12 01,13 01 | ||
| 240 | A 0003370311 | JOINT CROSS |
| 241 | A 4165860033 | REPAIR KIT |
| Repalced by: A 4163300035 | ||
| 241 | A 4163300035 | REPAIR KIT |
| 242 | A 0003371080 | GASKET |
| 244 | A 0003370049 | BUSHING |
| Repalced by: A 0003370449 | ||
| 244 | A 0003370449 | BUSHING |
| Repalced by: A 4063300012 | ||
| 244 | A 4063300012 | BEARING BUSHING |
| 247 | A 0009813487 | NEEDLE |
| Repalced by: A 0009817687 | ||
| A 0009817687 | NEEDLE | |
| Repalced by: A 4169810187 | ||
| 247 | A 4169810187 | NEEDLE |
| 249 | A 0003370073 | LOCK |
| Repalced by: A 0003371073 | ||
| 249 | A 0003370873 | LOCK |
| 1.4 MM | ||
| Repalced by: A 0003371073 | ||
| 249 | A 0003371073 | LOCK |
| 1.4 MM | ||
| 249 | A 0003370973 | LOCK |
| 1.5 MM | ||
| 249 | A 0003371073 | LOCK |
| 1.6 MM | ||
| 249 | A 0003371173 | LOCK |
| 1.7 MM | ||
| 252 | A 0003370274 | PIN |
| Repalced by: A 0003370674 | ||
| 252 | A 0003370674 | PIN |
| 256 | A 0009814487 | NEEDLE |
| Repalced by: A 0009817587 | ||
| 256 | A 0009817587 | NEEDLE |
| Repalced by: A 4169810087 | ||
| 256 | A 4169810087 | NEEDLE |
| N 007603010103 | SEAL RING | |
| Repalced by: N 007603010110 | ||
| N 007603010110 | SEAL RING | |
| A 0009971532 | SCREW PLUG | |
| 261 | A 0003370149 | BUSHING |
| Repalced by: A 0003370549 | ||
| 261 | A 0003370549 | BUSHING |
| Repalced by: A 4213300012 | ||
| 261 | A 4213300012 | BEARING BUSHING |
| 263 | A 0039970846 | SEAL RING |
| 263 | A 4163310158 | RADIAL SEAL RING |
| 263 | A 4163310158 | RADIAL SEAL RING |
| 265 | N 000720030309 | TAPERED ROLLER BEARING |
| Repalced by: A 0019813705 | ||
| 265 | A 0019813705 | TAPERED ROLLER BEARING |
| Repalced by: A 0099810305 | ||
| 265 | A 0099810305 | TAPERED ROLLER BEARING |

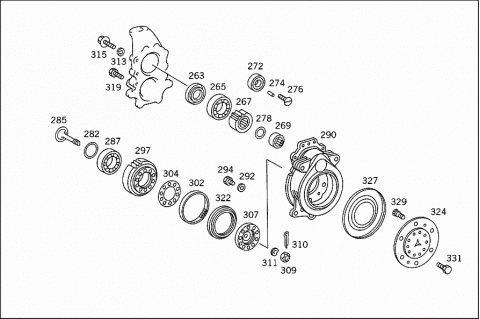

| 267 | A 4213360410 | SPUR GEAR |
| NUMBER OF TEETH: | ||
| 15 | ||
| 267 | A 4213360610 | SPUR GEAR |
| Repalced by: A 4213360810 | ||
| 267 | A 4213360810 | SPUR GEAR |
| LEFT | ||
| 267 | A 4213360810 | SPUR GEAR |
| LEFT | ||
| 267 | A 4213360510 | SPUR GEAR |
| RIGHT | ||
| 267 | A 4213360710 | SPUR GEAR |
| Repalced by: A 4213360910 | ||
| 267 | A 4213360910 | SPUR GEAR |
| RIGHT | ||
| 267 | A 4213360910 | SPUR GEAR |
| RIGHT | ||
| 269 | A 0009818605 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 272 | A 4063350062 | THRUST WASHER |
| 274 | N 001481004012 | CLAMPING SLEEVE |
| Repalced by: N 308752004000 | ||
| 274 | N 308752004000 | CLAMPING PIN |
| 276 | A 4049900330 | SCREW |
| 278 | A 4063372252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.05 MM | ||
| 278 | A 4063372352 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 278 | A 4063372452 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 278 | A 4063372552 | SPACER WASHER |
| Repalced by: A 4063372352 | ||
| 278 | A 4063372352 | SPACER WASHER |
| AS REQUIRED | ||
| 0.30 MM | ||
| 278 | A 4063372652 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 278 | A 4063372752 | SPACER WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 282 | A 4063370152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.05 MM | ||
| 282 | A 4063370252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 282 | A 4063370352 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 282 | A 4063370452 | SPACER WASHER |
| AS REQUIRED | ||
| 0.30 MM | ||
| 282 | A 4063370552 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 282 | A 4063370652 | SPACER WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 282 | A 4213360192 | INTERMEDIATE RING |
| 285 | A 4063350076 | SET SCREW |
| 285 | A 4163350176 | SET SCREW |
| 285 | A 4163350176 | SET SCREW |
| 287 | N 000625006211 | GROOVED BALL BEARING |
| 287 | N 000625006309 | GROOVED BALL BEARING |
| 287 | N 000625006309 | GROOVED BALL BEARING |
| 290 | A 4063310005 | HOUSING |
| Repalced by: A 4213310005 | ||
| 290 | A 4213310005 | HOUSING |
| Repalced by: A 4213310205 | ||
| 290 | A 4213310205 | WHEEL HUB DRIVE HOUSING |
| 292 | N 915035000006 | SEAL RING |
| 294 | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 294 | N 007604014110 | SCREW PLUG |
| 297 | A 4213530015 | SIDE GEAR |
| LEFT;32 TEETH | ||
| 297 | A 4213530215 | SIDE GEAR |
| Repalced by: A 4213530615 | ||
| 297 | A 4213530615 | SIDE GEAR |
| Repalced by: A 4213530815 | ||
| 297 | A 4213530615 | SIDE GEAR |
| Repalced by: A 4213530815 | ||
| 297 | A 4213530815 | SIDE GEAR |
| LEFT;32 TEETH | ||
| 297 | A 4213530115 | SIDE GEAR |
| RIGHT | ||
| 297 | A 4213530315 | SIDE GEAR |
| Repalced by: A 4213530715 | ||
| 297 | A 4213530715 | SIDE GEAR |
| Repalced by: A 4213530915 | ||
| 297 | A 4213530715 | SIDE GEAR |
| Repalced by: A 4213530915 | ||
| 297 | A 4213530915 | SIDE GEAR |
| RIGHT;32 TEETH | ||
| 302 | A 0009816801 | CYLINDR. ROLLER BEARING |
| 304 | A 4163310052 | SPACER WASHER |
| TO 416 337 03 51 | ||
| 307 | A 4063371151 | SPACER RING |
| LEFT | ||
| 307 | A 4163370051 | SPACER RING |
| Repalced by: A 4163370351 | ||
| 307 | A 4163370051 | SPACER RING |
| Repalced by: A 4163370351 | ||
| 307 | A 4063371251 | SPACER RING |
| RIGHT | ||
| 307 | A 4163370151 | SPACER RING |
| Repalced by: A 4163370351 | ||
| 307 | A 4163370151 | SPACER RING |
| Repalced by: A 4163370351 | ||
| 307 | A 4163370351 | SPACER RING |
| Repalced by: A 4353370451 | ||
| 307 | A 4353370451 | SPACER RING |
| LEFT AND RIGHT | ||
| 309 | N 000935020004 | NUT |
| 310 | N 000094004065 | COTTER PIN |
| 311 | N 900055020001 | SPRING WASHER |
| A 0009878046 | SEALING CORD | |
| Repalced by: A 4163510079 | ||
| A 4163510079 | GASKET | |
| A 0019873346 | SEALING CORD | |
| 11.5X1.5 | ||
| 313 | N 912004012100 | LOCK WASHER |
| 315 | N 000961012094 | SCREW |
| Repalced by: N 910105012007 | ||
| 315 | N 910105012007 | SCREW |
| 315 | N 000960012054 | SCREW |
| Repalced by: N 910105012021 | ||
| 315 | N 910105012021 | SCREW |
| 319 | A 4069905201 | SCREW |
| 322 | A 0059971946 | SEAL RING |
| 322 | A 4163310058 | RADIAL SEAL RING |
| Repalced by: A 0119977947 | ||
| 322 | A 4163311258 | RADIAL SEAL RING |
| Repalced by: A 0119977947 | ||
| 322 | A 4163310958 | RADIAL SEAL RING |
| Repalced by: A 0119977947 | ||
| 322 | A 0119977947 | SEAL RING |
| Repalced by: A 0189979347 | ||
| 322 | A 4163311358 | RADIAL SEAL RING |
| Repalced by: A 0059974547 | ||
| 322 | A 0059974547 | SEAL RING |
| Repalced by: A 0189979347 | ||
| 322 | A 0189979347 | SEAL RING |
| Repalced by: A 0219972847 | ||
| 322 | A 0219972847 | SEAL RING |
| Repalced by: A 0189973347 | ||
| 322 | A 0189973347 | SEAL RING |
| LEFT AND RIGHT | ||
| 324 | A 4063560101 | WHEEL HUB |
| 324 | A 4163500035 | WHEEL HUB |
| Repalced by: A 4163560001 | ||
| 324 | A 4163560001 | WHEEL HUB |
| 324 | A 4163560001 | WHEEL HUB |
| 327 | A 4163340082 | OIL COLLECTOR |
| 327 | A 4163340082 | OIL COLLECTOR |
| 329 | A 4044010071 | WHEEL MOUNTING BOLT |
| 329 | A 4044010071 | WHEEL MOUNTING BOLT |
| 331 | N 000960016237 | SCREW |
| Repalced by: N 910105016005 | ||
| 331 | N 910105016005 | SCREW |
| 333 | A 4213300066 | BREATHER PIPE |
| LEFT | ||
| 333 | A 4213300166 | BREATHER PIPE |
| Repalced by: A 4163300066 | ||
| 333 | A 4163300066 | BREATHER PIPE |
| RIGHT | ||
| 335 | N 007603008109 | SEAL RING |
| 337 | N 915036005100 | HOLLOW SCREW |
| Repalced by: N 000000004895 | ||
| 337 | N 000000004895 | BANJO BOLT |
| 339 | A 4213300266 | BREATHER PIPE |
| Repalced by: A 4163300066 | ||
| 339 | A 4163300066 | BREATHER PIPE |
| 342 | N 007603008107 | SEAL RING |
| 344 | N 915036005100 | HOLLOW SCREW |
| Repalced by: N 000000004895 | ||
| 344 | N 000000004895 | BANJO BOLT |
| 346 | A 4119970482 | HOSE |
| Repalced by: A 4189970182 | ||
| 346 | A 4189970182 | HOSE |
| 347 | N 900288010000 | CLAMP |
| 347 | A 4069955044 | CLAMP |
| 349 | A 4069955244 | CLAMP |
| 349 | A 4069955244 | CLAMP |

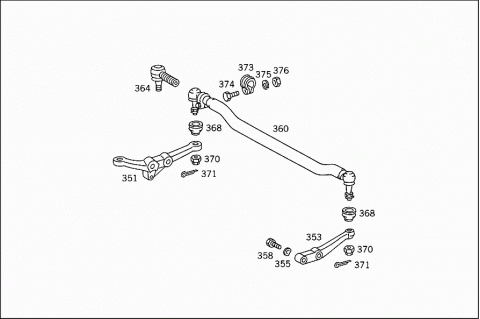

| 351 | A 4213380108 | STEERING ARM |
| 351 | A 4213381108 | STEERING ARM |
| 351 | A 4213380908 | STEERING ARM |
| 351 | A 4213381308 | STEERING ARM |
| 353 | A 4213380005 | STEERING ARM |
| 353 | A 4063380005 | STEERING ARM |
| 353 | A 4213380405 | STEERING ARM |
| 355 | N 000137016202 | SPRING WASHER |
| 358 | N 000960016154 | SCREW |
| 360 | A 4213380015 | TIE ROD |
| 360 | A 4213380215 | TIE ROD |
| 360 | A 0003387415 | TIE ROD |
| Repalced by: A 4213380515 | ||
| 360 | A 4213380515 | TIE ROD |
| 360 | A 0003387515 | TIE ROD |
| Repalced by: A 4213380715 | ||
| 360 | A 4213380715 | TIE ROD |
| 364 | A 0003381610 | BALL JOINT |
| 364 | A 0003382410 | BALL JOINT |
| Repalced by: A 0003300635 | ||
| 364 | A 0003300635 | JOINT |
| Repalced by: A 0003308535 | ||
| 364 | A 0003308535 | JOINT |
| 364 | A 0003381710 | BALL JOINT |
| Repalced by: A 0003382410 | ||
| 364 | A 0003382410 | BALL JOINT |
| Repalced by: A 0003300635 | ||
| 368 | A 0003380397 | BOOT |
| Repalced by: A 0003300185 | ||
| 368 | A 0003300185 | BOOT |
| Repalced by: A 0003300785 | ||
| 368 | A 0003300785 | BOOT |
| 368 | A 0003381697 | BOOT |
| Repalced by: A 0004631396 | ||
| 368 | A 0004631396 | BOOT |
| LEMFOERDER | ||
| 368 | A 0003380497 | BOOT |
| Repalced by: A 0003381697 | ||
| 368 | A 0003381697 | BOOT |
| Repalced by: A 0004631396 | ||
| 368 | A 0004631796 | BOOT |
| LEMFOERDER | ||
| 370 | N 000937014001 | NUT |
| 370 | N 000979016006 | NUT |
| Repalced by: N 000979016007 | ||
| 370 | N 000979016007 | NUT |
| 371 | N 000094003226 | COTTER PIN |
| 371 | N 000094004065 | COTTER PIN |
| 373 | A 0009950544 | CLAMP |
| Repalced by: A 0009957044 | ||
| 373 | A 0009957044 | CLAMP |
| 373 | A 0009953644 | CLAMP |
| Repalced by: A 0009950544 | ||
| 373 | A 0009950544 | CLAMP |
| Repalced by: A 0009957044 | ||
| 373 | A 0009957044 | CLAMP |
| 374 | N 000960010030 | SCREW |
| 374 | N 000960010023 | SCREW |
| 375 | N 912004010102 | LOCK WASHER |
| 376 | N 000934010010 | NUT |
| 377 | A 4213300131 | END PIECE |
| Repalced by: A 4213300331 | ||
| 377 | A 4213300331 | THRUST TUBE |
| 377 | A 4213301331 | END PIECE |
| 379 | A 0029978646 | SEAL RING |
| 381 | A 3044760019 | BASE |
| Repalced by: A 3142030084 | ||
| 381 | A 3142030084 | SHIM |
| 383 | N 912004006102 | LOCK WASHER |
| 385 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 385 | N 304017006016 | SCREW |
| M 6X16 | ||
| 387 | A 3129973782 | HOSE |
| A 4214280043 | ANGLE | |
| 389 | A 4064280040 | BRACKET |
| 389 | A 4064280040 | BRACKET |
| 391 | N 900055012001 | SPRING WASHER |
| 393 | N 000960012171 | SCREW |
| 395 | A 4213300011 | THRUST ARM |
| Repalced by: A 4213300211 | ||
| 395 | A 4213300211 | THRUST ARM |
| 397 | A 4213300111 | THRUST ARM |
| Repalced by: A 4213300311 | ||
| 397 | A 4213300311 | THRUST ARM |
| RIGHT | ||
| 399 | A 4063330068 | WEB |
| Repalced by: A 0019903651 | ||
| 399 | N 000960016036 | SCREW |
| 399 | N 000961016096 | SCREW |
| Repalced by: N 910105016012 | ||
| 399 | N 910105016012 | SCREW |
| 399 | N 910105016012 | SCREW |
| 402 | A 4063580073 | LOCK |
| 402 | A 0009941651 | LOCK |
| 402 | A 0009941651 | LOCK |
| 404 | A 0019903651 | NUT |
| Repalced by: N 913013016002 | ||
| 404 | N 913013016002 | NUT |
| 406 | A 4063330077 | INDEXING PLATE |
| Repalced by: A 4163330077 | ||
| 406 | A 4163330077 | INDEXING PLATE |
| 407 | A 0009931826 | DISC SPRING |
| Repalced by: A 0009941651 | ||
| 407 | A 0009941651 | LOCK |
| 408 | A 0029907001 | SCREW |
| Repalced by: N 914114016001 | ||
| 408 | N 914114016001 | SCREW |
| 410 | A 0019903651 | NUT |
| Repalced by: N 913013016002 | ||
| 410 | N 913013016002 | NUT |
| 413 | A 4063300114 | HOUSING |
| Repalced by: A 4163300314 | ||
| 413 | A 4213300014 | HOUSING |
| Repalced by: A 4163300314 | ||
| 413 | A 4163300214 | HOUSING |
| Repalced by: A 4163300314 | ||
| 413 | A 4163300314 | THRUST BALL HOUSING |
| Repalced by: A 4163301314 | ||
| 413 | A 4163301314 | HOUSING |
| 413 | A 4163301314 | HOUSING |
| 413 | A 4213300514 | HOUSING |
| 415 | N 000007006105 | CYLINDRICAL PIN |
| 417 | N 000939010008 | STUD BOLT |
| Repalced by: N 000939010138 | ||
| 417 | N 000939010138 | STUD BOLT |
| 419 | N 912004010102 | LOCK WASHER |
| 421 | N 070615010003 | NUT |
| 423 | A 4063370406 | HOUSING |
| Repalced by: A 4063370506 | ||
| 423 | A 4063370506 | THRUST BALL CUP |
| 423 | A 4163370406 | HOUSING |
| Repalced by: A 4163370506 | ||
| 423 | A 4163370506 | THRUST BALL CUP |
| 423 | A 4163370506 | THRUST BALL CUP |
| 425 | N 071412008200 | GREASE NIPPLE |
| 427 | A 4063370752 | SPACER WASHER |
| AS REQUIRED | ||
| 2.00 MM | ||
| 427 | A 4063370852 | SPACER WASHER |
| AS REQUIRED | ||
| 1.80 MM | ||
| 427 | A 4063370952 | SPACER WASHER |
| AS REQUIRED | ||
| 1.90 MM | ||
| 427 | A 4063371052 | SPACER WASHER |
| AS REQUIRED | ||
| 1.40 MM | ||
| 427 | A 4063371152 | SPACER WASHER |
| AS REQUIRED | ||
| 1.20 MM | ||
| 427 | A 4063371252 | SPACER WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 427 | A 4063371352 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 427 | A 4063371452 | SPACER WASHER |
| AS REQUIRED | ||
| 0.15 MM | ||
| 432 | A 4213370910 | JOINT |
| Repalced by: A 4213371210 | ||
| 432 | A 4213371110 | JOINT |
| Repalced by: A 4213371210 | ||
| 432 | A 4213371210 | PROPELLER SHAFT |
| Repalced by: A 4213372310 | ||
| 432 | A 4213372310 | PROPELLER SHAFT |
| FRONT | ||
| 487 MM | ||
| 432 | A 4213371210 | JOINT |
| 433 | A 0003370711 | JOINT CROSS |
| Repalced by: A 0003300728 | ||
| 433 | A 0003300728 | UNIVERSAL JOINT |
| REPAIR KIT | ||
| TO 421 337 12 10,421 337 23 10 | ||
| 434 | A 0004112073 | LOCK |
| AS REQUIRED | ||
| 1.4 MM | ||
| 434 | A 0004112173 | LOCK |
| AS REQUIRED | ||
| 1.5 MM | ||
| 434 | A 0004112273 | LOCK |
| AS REQUIRED | ||
| 1.6 MM | ||
| 434 | A 0004112373 | LOCK |
| AS REQUIRED | ||
| 1.7 MM | ||
| 434 | A 0004112473 | LOCK |
| AS REQUIRED | ||
| 1.8 MM | ||
| 434 | A 0004112573 | LOCK |
| AS REQUIRED | ||
| 1.9 MM | ||
| 435 | A 4043370073 | LOCK |
| 435 | A 4163370073 | LOCK |
| 435 | A 4163370073 | LOCK |
| 436 | N 000933008031 | SCREW |
| Repalced by: A 1249902201 | ||
| 436 | A 1249902201 | SCREW |
| M 8X18 | ||
| 436 | A 4169905001 | SCREW |
| 436 | A 4169905001 | SCREW |
| 438 | N 007603010108 | SEAL RING |
| 438 | N 007603010108 | SEAL RING |
| 438 | A 0039977940 | SEAL RING |
| Repalced by: A 0039978140 | ||
| 438 | A 0039978140 | SEAL RING |
| Repalced by: A 0009975844 | ||
| 438 | A 0009975844 | SEAL RING |
| Repalced by: A 0003340159 | ||
| 438 | A 0003340159 | SEAL RING |
| 441 | N 070613010014 | SCREW |
| 441 | N 070613010028 | SCREW |
| Repalced by: A 0069908901 | ||
| 441 | A 0069908901 | SCREW |
| 441 | A 0069908901 | SCREW |
| 441 | A 0069908901 | SCREW |
| 441 | N 000931010344 | SCREW |
| Repalced by: N 910105010025 | ||
| 441 | N 910105010025 | SCREW |
| 443 | A 4049871643 | RUBBER SLEEVE |
| Repalced by: A 4169875243 | ||
| 443 | A 4169875043 | RUBBER SLEEVE |
| Repalced by: A 4169875243 | ||
| 443 | A 4169875243 | RUBBER SLEEVE |
| 445 | N 000933006123 | SCREW |
| 447 | N 007340008103 | RIVET |
| 449 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 449 | N 009021006208 | WASHER |
| 453 | N 000934006007 | NUT |
| 455 | N 900262009100 | LOOM TIE |
| 458 | N 900263009000 | STRAP |
| 460 | N 916002109200 | CLAMP |

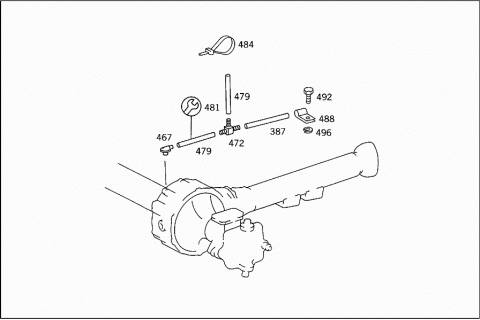

| 467 | A 4063580065 | BREATHER |
| 472 | A 0009900678 | CONNECTOR |
| Repalced by: A 0019909870 | ||
| 472 | A 0019909870 | T-FITTING |
| Repalced by: A 0009907990 | ||
| 472 | A 0009907990 | T-FITTING |
| 479 | A 0109978982 | HOSE |
| Repalced by: A 0089979082 | ||
| 479 | A 0089979082 | HOSE |
| Repalced by: A 0009872727 | ||
| 479 | A 0009872727 | PLASTIC PIPE |
| 481 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 481 | A 0029905971 | FITTING |
| 484 | A 0019978390 | LOOM TIE |
| 488 | A 3609951201 | CLAMP |
| 492 | N 000933010128 | SCREW |
| Repalced by: N 910105010006 | ||
| 492 | N 910105010006 | SCREW |
| 496 | N 912004010102 | LOCK WASHER |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
