Transporto priemonė: U 52,U 600; VIN numerio dalis: 421125

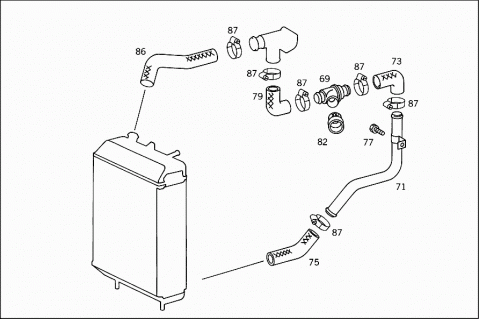

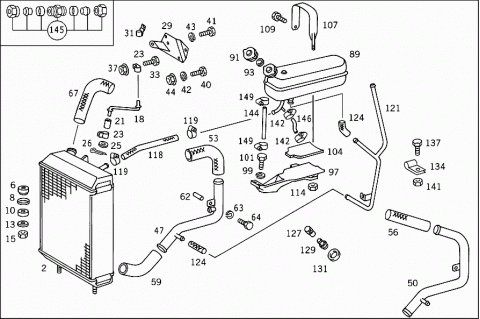

Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| A 4215000003 | RADIATOR | |
| A 4215000103 | RADIATOR | |
| 002 | A 4215000203 | RADIATOR |
| Repalced by: A 4215000303 | ||
| 002 | A 4215000303 | RADIATOR |
| 002 | A 4215000303 | RADIATOR |
| 006 | A 4115040012 | RUBBER MOUNTING |
| RADIATOR TO CHASSIS | ||
| 008 | A 4045040013 | RETAINER |
| RADIATOR TO CHASSIS | ||
| 010 | A 4045040212 | RUBBER MOUNTING |
| RADIATOR TO CHASSIS | ||
| 013 | A 4115040076 | WASHER |
| RADIATOR TO CHASSIS | ||
| 015 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 015 | N 913023010003 | NUT |
| RADIATOR TO CHASSIS | ||
| 018 | A 4215000031 | BRACKET |
| A 4215001031 | BRACKET | |
| Repalced by: A 4215000031 | ||
| 021 | A 4049871843 | RUBBER SLEEVE |
| 023 | A 4049951301 | CLAMP |
| 025 | A 4049910025 | WASHER |
| 026 | N 000094002077 | COTTER PIN |
| A 4215000431 | BRACKET | |
| 029 | A 4215000631 | BRACKET |
| 031 | A 4215000831 | BRACKET |
| 033 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 033 | N 304017008021 | SCREW |
| M 8X22 | ||
| N 912004008102 | LOCK WASHER | |
| 037 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 037 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 037 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 037 | N 913023008002 | NUT |
| 040 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 040 | N 304017010028 | HEXAGON HEAD BOLT |
| M10X20 | ||
| 041 | N 000961012056 | SCREW |
| Repalced by: N 910105012003 | ||
| 041 | N 910105012003 | SCREW |
| M 20X30 | ||
| 042 | N 912004010102 | LOCK WASHER |
| 042 | N 912004010102 | LOCK WASHER |
| 043 | N 912004012100 | LOCK WASHER |
| 044 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 044 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 044 | N 913023010002 | NUT |
| 044 | N 913023010002 | NUT |
| 047 | A 4215000207 | FILLER NECK |
| 050 | A 4215000507 | FILLER NECK |
| FROM RADIATOR TO WATER PUMP | ||
| 053 | A 4219875343 | RUBBER SLEEVE |
| 056 | N 900271038026 | HOSE |
| 38X50X80 MM | ||
| 059 | A 4069870943 | MOLDED HOSE |
| 062 | A 4212420250 | BUSHING |
| Repalced by: A 3044130053 | ||
| 062 | A 3044130053 | SPACER TUBE |
| 063 | N 912004010102 | LOCK WASHER |
| 064 | N 000931010111 | SCREW |
| Repalced by: N 304017010032 | ||
| 064 | N 304017010032 | SCREW |
| A 4219875043 | RUBBER SLEEVE | |
| 067 | A 4219876143 | RUBBER SLEEVE |
| FROM RADIATOR TO THERMOSTAT | ||
| 069 | A 0022032875 | THERMOSTAT ELEMENT |
| 071 | A 4215000807 | FILLER NECK |
| FROM THERMOSTAT TO RADIATOR | ||
| 073 | A 4219877143 | RUBBER SLEEVE |
| 075 | A 4219876543 | RUBBER SLEEVE |
| 077 | N 000933010198 | SCREW |
| M 10X16 | ||
| 079 | A 4219877143 | RUBBER SLEEVE |
| 082 | A 4049870443 | RUBBER SLEEVE |
| 086 | A 4219877243 | RUBBER SLEEVE |
| 087 | A 0009971490 | LOOM TIE |
| Repalced by: N 916018032000 | ||
| 087 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 087 | N 000000000670 | CLAMP |
| 089 | A 4215000049 | TANK |
| 091 | A 0005011815 | RADIATOR CAP |
| 093 | A 0005010281 | RUBBER PAD |
| 097 | A 4215010021 | CONSOLE |
| 099 | N 912004012100 | LOCK WASHER |
| N 912004008102 | LOCK WASHER | |
| 101 | N 000933012056 | SCREW |
| Repalced by: N 304017012020 | ||
| 101 | N 304017012020 | SCREW |
| 101 | N 000933008116 | SCREW |
| Repalced by: N 000933008337 | ||
| 101 | N 000933008337 | SCREW |
| Repalced by: A 0099900101 | ||
| 101 | A 0099900101 | SCREW |
| M 8X28 | ||
| 104 | A 4215010081 | RUBBER PAD |
| 107 | A 4215000074 | CLAMP |
| Repalced by: A 4215000374 | ||
| 107 | A 4215000374 | CLAMP |
| 109 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 109 | N 304017008016 | SCREW |
| M 8X16 | ||
| N 912004008102 | LOCK WASHER | |
| 114 | N 304032008006 | NUT |
| 118 | N 900271012018 | HOSE |
| 280 MM | ||
| 119 | A 0009971190 | LOOM TIE |
| Repalced by: N 916017011000 | ||
| 119 | N 916017011000 | CLAMP |
| Repalced by: N 916017011001 | ||
| 119 | N 000000000665 | CLAMP |
| A 4215000307 | FILLER NECK | |
| A 4215000407 | FILLER NECK | |
| 121 | A 4215000607 | FILLER NECK |
| 121 | A 4215000907 | FILLER NECK |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 124 | N 900271015037 | HOSE |
| 70 MM | ||
| 127 | A 4219876643 | RUBBER SLEEVE |
| Repalced by: A 3965011182 | ||
| 127 | A 3965011182 | HOSE |
| 129 | A 0019975572 | FITTING |
| Repalced by: A 1802030108 | ||
| 129 | A 1802030108 | CONNECTOR |
| 131 | N 007603016401 | SEAL RING |
| 134 | A 3609950501 | CLAMP |
| Repalced by: A 3609952001 | ||
| 134 | A 3609952001 | CLAMP |
| Repalced by: A 6739950001 | ||
| 134 | A 6739950001 | CLAMP |
| 134 | A 3039950032 | CLAMP |
| 137 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 137 | N 304017006016 | SCREW |
| M 6X16 | ||
| N 912004006102 | LOCK WASHER | |
| 141 | N 000934006007 | NUT |
| 142 | A 0009971390 | LOOM TIE |
| Repalced by: N 916017020000 | ||
| 142 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 142 | N 000000000667 | CLAMP |
| 144 | A 4215010410 | DRAIN PIPE |
| Repalced by: A 0089979082 | ||
| 144 | A 0089979082 | HOSE |
| Repalced by: A 0009872727 | ||
| 144 | A 0009872727 | PLASTIC PIPE |
| 780 MM | ||
| 145 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 145 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 146 | A 4069970082 | HOSE |
| Repalced by: A 4069976182 | ||
| 146 | A 4069976182 | HOSE |
| 80 MM | ||
| 149 | N 900288012001 | CLAMP |
