Transporto priemonė: U 52,U 600; VIN numerio dalis: 421125
Grupė: 26 TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| MANUAL TRANSMISSION, "F" VERSION, UP TO TRANSMISSION 002948 | ||
| A 4212600101 | TRANSMISSION | |
| Repalced by: A 4212600901 | ||
| A 4212600201 | TRANSMISSION | |
| Repalced by: A 4212600901 | ||
| A 4212600701 | TRANSMISSION | |
| Repalced by: A 4212600901 | ||

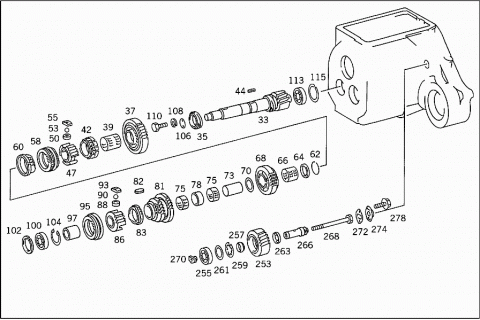

| 002 | A 4062600512 | TRANSMISSION CASE |
| 004 | N 071022016002 | SLOTTED PLUG |
| 006 | A 4069875315 | PLUG |
| Repalced by: A 4062650147 | ||
| 006 | A 4062650147 | INTERLOCK PLUG |
| 008 | N 000931006041 | SCREW |
| 009 | N 000125006421 | WASHER |
| Repalced by: N 000125006449 | ||
| 009 | N 000125006449 | WASHER |
| 011 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 011 | N 009021006208 | WASHER |
| 013 | N 000934006007 | NUT |
| 014 | A 4062650147 | INTERLOCK PLUG |
| 016 | N 000551008001 | HEADLESS SETSCREW |
| 018 | A 4069970035 | PLUG |
| 021 | A 4062610265 | OIL BAFFLE |
| Repalced by: A 4172630066 | ||
| 021 | A 4172630066 | OIL RING |
| 023 | A 4062610079 | GASKET |
| Repalced by: A 4172610180 | ||
| 023 | A 4172610180 | GASKET |
| 025 | N 000125005317 | WASHER |
| Repalced by: N 000125005330 | ||
| 025 | N 000125005330 | WASHER |
| 027 | N 000933005049 | SCREW |
| 030 | N 000007013103 | CYLINDRICAL PIN |
| 033 | A 4062600324 | COUNTERSHAFT |
| 035 | A 4062640030 | DRIVE GEAR |
| 037 | A 4062630011 | GEAR |
| 1ST AND 3RD SPEED | ||
| Z=37 | ||
| 039 | A 0009817710 | NEEDLE BEARING |
| 042 | A 4042620234 | SYNCHRONIZER RING |
| Repalced by: A 4402620034 | ||
| 042 | A 4402620034 | SYNCHRONIZER RING |
| 044 | N 006885010035 | KEY |
| 047 | A 4112630236 | FOLLOWER RING |
| 050 | A 0009931026 | DISC SPRING |
| Repalced by: A 0009930926 | ||
| 050 | A 0009930926 | DISC SPRING |
| 053 | N 005401305500 | BALL |
| 055 | A 4042620040 | FOLLOWER |
| 058 | A 4042620038 | SYNCHR.SLIDING SLEEVE |
| 060 | A 4042620234 | SYNCHRONIZER RING |
| Repalced by: A 4402620034 | ||
| 060 | A 4402620034 | SYNCHRONIZER RING |
| 062 | A 0009945941 | LOCK |
| 064 | A 4119900340 | WASHER |
| 066 | A 0009817610 | NEEDLE BEARING |
| Repalced by: A 0069815810 | ||
| 066 | A 0029818410 | NEEDLE BEARING |
| Repalced by: A 0069815810 | ||
| 066 | A 0069815810 | NEEDLE BEARING |
| 066 | A 0039813610 | NEEDLE BEARING |
| 068 | A 4062630012 | GEAR |
| 30 TEETH; 2ND AND 4TH SPEED | ||
| 070 | A 4112630136 | FOLLOWER RING |
| Repalced by: A 4112630436 | ||
| 070 | A 4112630436 | RING |
| 073 | A 4119810080 | OUTER RACE |
| 075 | A 0009811310 | NEEDLE BEARING |
| Repalced by: A 0069817510 | ||
| 075 | A 0069817510 | NEEDLE BEARING |
| 078 | A 4062630153 | SPACER TUBE |
| 081 | A 4062600018 | GEAR |
| Repalced by: A 4062600118 | ||
| 081 | A 4062600118 | GEAR |
| 5TH SPEED AND REVERSE | ||
| 082 | N 006885010035 | KEY |
| 083 | A 4042620134 | SYNCHRONIZER RING |
| 086 | A 4112630336 | FOLLOWER RING |
| 088 | A 0009931026 | DISC SPRING |
| 090 | N 005401305500 | BALL |
| 093 | A 4042620140 | FOLLOWER |
| 095 | A 4042620138 | SYNCHR.SLIDING SLEEVE |
| Repalced by: A 4402620138 | ||
| 095 | A 4402620138 | SYNCHR.SLIDING SLEEVE |
| 097 | A 4112630253 | SPACER TUBE |
| Repalced by: A 4112631053 | ||
| 097 | A 4112631053 | SPACER TUBE |
| 100 | N 000625006306 | GROOVED BALL BEARING |
| 102 | A 4112630051 | SPACER RING |
| 104 | N 000472072000 | LOCK RING |
| 106 | A 4069900140 | WASHER |
| 108 | N 912004006102 | LOCK WASHER |
| 110 | N 000933006102 | SCREW |
| 113 | A 0009814901 | CYLINDR. ROLLER BEARING |
| 115 | A 4119910635 | SPACER RING |
| 117 | A 4062630101 | COUNTERSHAFT |
| 119 | N 001481008000 | CLAMPING SLEEVE |
| 119 | N 001481005025 | CLAMPING SLEEVE |
| 121 | A 0009930926 | DISC SPRING |
| 123 | N 005401305500 | BALL |
| 125 | A 4042620140 | FOLLOWER |
| 127 | A 4042620138 | SYNCHR.SLIDING SLEEVE |
| Repalced by: A 4402620138 | ||
| 127 | A 4402620138 | SYNCHR.SLIDING SLEEVE |
| 130 | A 4042620134 | SYNCHRONIZER RING |
| 132 | A 4112600043 | SLEEVE |
| 134 | A 0009811310 | NEEDLE BEARING |
| Repalced by: A 0069817510 | ||
| 134 | A 0069817510 | NEEDLE BEARING |
| 136 | A 4062630201 | COUNTERSHAFT |
| Repalced by: A 4062630301 | ||
| 136 | A 4062630301 | GEAR |
| 23 TEETH (REVERSE SPEED, REDUCTION UNIT) | ||
| 138 | A 4062630162 | THRUST WASHER |
| Repalced by: A 4062630462 | ||
| 138 | A 4062630462 | THRUST WASHER |
| 140 | A 0009819201 | CYLINDR. ROLLER BEARING |
| Repalced by: A 0019812801 | ||
| 140 | A 0019812801 | CYLINDR. ROLLER BEARING |
| 143 | A 4119913435 | SPACER RING |
| AS REQUIRED | ||
| 2.30 MM | ||
| 143 | A 4119913535 | SPACER RING |
| AS REQUIRED | ||
| 2.40 MM | ||
| 143 | A 4119913635 | SPACER RING |
| AS REQUIRED | ||
| 2.50 MM | ||
| 143 | A 4119911535 | SPACER RING |
| AS REQUIRED | ||
| 2.60 MM | ||
| 143 | A 4119911635 | SPACER RING |
| AS REQUIRED | ||
| 2.70 MM | ||
| 143 | A 4119911735 | SPACER RING |
| AS REQUIRED | ||
| 2.80 MM | ||
| 145 | N 900055034300 | LOCK RING |
| 147 | A 4062641520 | GEAR |
| Repalced by: A 4062642020 | ||
| 147 | A 4062642020 | GEAR |
| NUMBER OF TEETH: | ||
| 24 | ||
| 150 | A 4062630362 | THRUST WASHER |
| Repalced by: A 4062630562 | ||
| 150 | A 4062630562 | GUIDE |
| 152 | N 000912008223 | SCREW |
| 154 | A 4062630113 | GEAR |
| NUMBER OF TEETH: | ||
| 52 | ||
| 156 | A 4042640051 | SPACER RING |
| 158 | N 000625506209 | GROOVED BALL BEARING |
| 161 | N 005417085001 | SNAP RING |
| 163 | A 4042630073 | LOCK |
| 165 | A 4069900063 | HOLLOW SCREW |

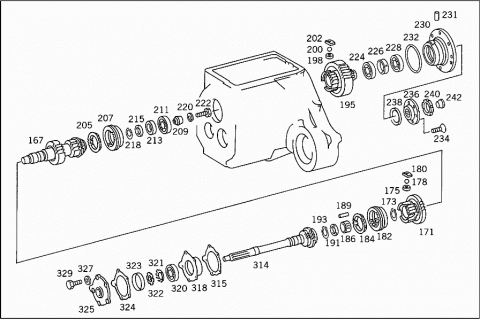

| 167 | A 4062600622 | MAIN SHAFT |
| 171 | A 4062620010 | GEAR |
| Repalced by: A 4062620110 | ||
| 171 | A 4062620110 | GEAR |
| 30 TEETH; 5TH SPEED; ON MAIN SHAFT | ||
| 173 | A 4069945041 | LOCK |
| 175 | A 0009930926 | DISC SPRING |
| 178 | N 005401305500 | BALL |
| 180 | A 4042620140 | FOLLOWER |
| 182 | A 4042620138 | SYNCHR.SLIDING SLEEVE |
| Repalced by: A 4402620138 | ||
| 182 | A 4402620138 | SYNCHR.SLIDING SLEEVE |
| 184 | A 4042620134 | SYNCHRONIZER RING |
| 186 | A 0009812584 | CAGE |
| 189 | A 4119810186 | ROLLER |
| 191 | A 4042620062 | THRUST WASHER |
| 193 | N 000471028000 | LOCK RING |
| 195 | A 4062641420 | GEAR |
| 198 | A 0009931026 | DISC SPRING |
| Repalced by: A 0009930926 | ||
| 198 | A 0009930926 | DISC SPRING |
| 200 | N 005401305500 | BALL |
| 202 | A 4042620140 | FOLLOWER |
| 205 | A 4042620134 | SYNCHRONIZER RING |
| 207 | A 0009931026 | DISC SPRING |
| Repalced by: A 4402620138 | ||
| 207 | A 4402620138 | SYNCHR.SLIDING SLEEVE |
| 209 | A 4062620162 | THRUST WASHER |
| Repalced by: A 4062620362 | ||
| 209 | A 4062620362 | THRUST WASHER |
| 211 | A 0019814105 | TAPERED ROLLER BEARING |
| 213 | A 4062620051 | SPACER RING |
| 215 | A 4062620152 | SPACER WASHER |
| AS REQUIRED | ||
| 2.60 MM | ||
| 215 | A 4062620252 | SPACER WASHER |
| AS REQUIRED | ||
| 2.80 MM | ||
| 215 | A 4062620352 | SPACER WASHER |
| Repalced by: A 4062620652 | ||
| 215 | A 4062620652 | SPACER WASHER |
| AS REQUIRED | ||
| 215 | A 4062620452 | SPACER WASHER |
| AS REQUIRED | ||
| 3.20 MM | ||
| 215 | A 4062620552 | SPACER WASHER |
| AS REQUIRED | ||
| 3.40 MM | ||
| 215 | A 4062620652 | SPACER WASHER |
| AS REQUIRED | ||
| 3.60 MM | ||
| 218 | N 900055052310 | LOCK RING |
| 220 | N 912004010102 | LOCK WASHER |
| 222 | N 910105010002 | SCREW |
| 224 | A 0029811305 | TAPERED ROLLER BEARING |
| 226 | A 4062620353 | SPACER TUBE |
| 228 | A 0029811205 | TAPERED ROLLER BEARING |
| 230 | A 4062600217 | FLANGE |
| 231 | A 4062640285 | OIL PIPE |
| 232 | A 0009875546 | SEALING CORD |
| 234 | N 000963006031 | SCREW |
| 236 | A 4062640944 | INTERMEDIATE FLANGE |
| Repalced by: A 4062641344 | ||
| 236 | A 4062641344 | INTERMEDIATE FLANGE |
| 238 | A 0049971246 | SEAL RING |
| 238 | A 0079977946 | SEAL RING |
| 240 | A 4069900060 | NUT |
| 242 | A 4062640055 | PLUG |
| 244 | A 4113580003 | FLANGE |
| Repalced by: A 4212610052 | ||
| 244 | A 4212610052 | SPACER WASHER |
| 246 | A 4042640180 | GASKET |
| 248 | A 4112640211 | COVER |
| 250 | N 000933010145 | SCREW |
| Repalced by: N 910105010007 | ||
| 250 | N 910105010007 | SCREW |
| Repalced by: N 000000000428 | ||
| 250 | N 000000000428 | HEXAGON HEAD BOLT |
| 250 | N 000933010094 | SCREW |
| Repalced by: N 910105010011 | ||
| 250 | N 910105010011 | HEXAGON HEAD BOLT |
| 253 | A 4062640021 | GEAR |
| NUMBER OF TEETH: | ||
| 26 | ||
| 255 | A 0009818605 | TAPERED ROLLER BEARING |
| 257 | A 0002620653 | SPACER TUBE |
| 259 | A 0009948541 | LOCK |
| AS REQUIRED | ||
| 2.90 MM | ||
| 259 | A 0009948641 | LOCK |
| AS REQUIRED | ||
| 2.95 MM | ||
| 259 | A 0009948741 | LOCK |
| AS REQUIRED | ||
| 3.00 MM | ||
| 261 | A 0009908940 | WASHER |
| 263 | A 4062640152 | SPACER WASHER |
| 266 | A 4062640774 | PIN |
| 268 | N 000960010031 | SCREW |
| 270 | A 4062640172 | NUT |
| Repalced by: A 4062640272 | ||
| 270 | A 4062640272 | NUT |
| 272 | A 4062640073 | LOCK |
| 274 | A 4062640457 | LOCKING CAP |
| 278 | N 000125008418 | WASHER |
| Repalced by: A 0009905022 | ||
| 278 | N 000933008034 | SCREW |
| Repalced by: A 0009905022 | ||
| 278 | A 0009905022 | SCREW |
| Repalced by: N 914114008009 | ||
| 278 | N 914114008009 | SCREW |
| 280 | A 4112640518 | SHAFT |
| 282 | N 304017010027 | HEXAGON HEAD BOLT |
| 284 | A 4112631023 | COLLAR |
| 286 | A 4112641420 | GEAR |
| 288 | A 4043350051 | SPACER RING |
| 290 | A 0009875546 | SEALING CORD |
| 292 | A 4112640444 | INTERMEDIATE FLANGE |
| 294 | N 000472100000 | LOCK RING |
| 296 | A 4062630053 | SPACER TUBE |
| 298 | N 000625006211 | GROOVED BALL BEARING |
| 300 | A 4049970040 | SEAL RING |
| 301 | A 4042640180 | GASKET |
| 302 | N 000963006031 | SCREW |
| 304 | A 4062640244 | INTERMEDIATE FLANGE |
| Repalced by: A 4062641244 | ||
| 304 | A 4062641244 | INTERMEDIATE FLANGE |
| 305 | A 4042620073 | LOCK |
| 306 | A 4042620026 | GROOVED NUT |
| 307 | N 000625306206 | GROOVED BALL BEARING |
| 309 | A 4042640180 | GASKET |
| 310 | A 4112640211 | COVER |
| 311 | N 000137010201 | SPRING WASHER |
| 312 | N 000933010128 | SCREW |
| Repalced by: N 910105010006 | ||
| 312 | N 910105010006 | SCREW |
| 314 | A 4212620202 | DRIVE SHAFT |
| 315 | A 4042650152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 315 | A 4042650252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.40 MM | ||
| A 4042650352 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.60 MM | ||
| 315 | A 4042650452 | SPACER WASHER |
| AS REQUIRED | ||
| 0.80 MM | ||
| 315 | A 4042650552 | SPACER WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| A 4042650652 | SPACER WASHER | |
| AS REQUIRED | ||
| 1.20 MM | ||
| A 4042650752 | SPACER WASHER | |
| AS REQUIRED | ||
| 1.40 MM | ||
| 318 | A 4062620145 | FLANGE |
| 320 | A 0019812501 | CYLINDR. ROLLER BEARING |
| Repalced by: A 0019817201 | ||
| 320 | A 0019817201 | CYLINDR. ROLLER BEARING |
| 321 | N 070952035101 | LOCK PLATE |
| 322 | N 070852035000 | NUT |
| 323 | A 4062620053 | SPACER TUBE |
| 324 | A 4042640280 | GASKET |
| 325 | A 4112640111 | COVER |
| 327 | N 007603008107 | SEAL RING |
| 329 | N 000933008116 | SCREW |
| Repalced by: N 000933008337 | ||
| 329 | N 000933008337 | SCREW |
| Repalced by: A 0099900101 | ||
| 329 | A 0099900101 | SCREW |

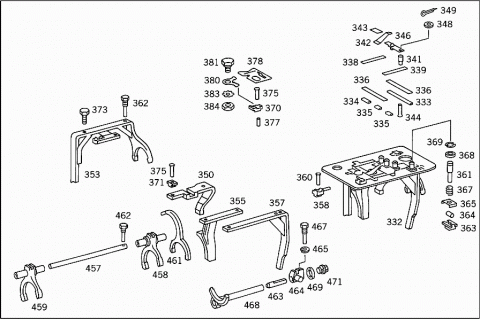

| 332 | A 4062600028 | GUIDE PLATE |
| 333 | A 4042650445 | SHIFTING GUIDE |
| 334 | A 4042650545 | SHIFTING GUIDE |
| 335 | A 4042650645 | SHIFTING GUIDE |
| 336 | A 4042650145 | SHIFTING GUIDE |
| 338 | A 4042650245 | SHIFTING GUIDE |
| 339 | A 4042650345 | SHIFTING GUIDE |
| 341 | A 4042650374 | PIN |
| 342 | A 4049930007 | SPRING |
| 343 | A 4042650745 | SHIFTING GUIDE |
| 344 | N 000661003500 | RIVET |
| 344 | N 000661003501 | RIVET |
| 346 | A 4042600087 | PAWL |
| 348 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 348 | N 000125008443 | WASHER |
| 349 | N 000094003226 | COTTER PIN |
| 350 | A 4042650035 | SHIFTING FORK |
| 1ST THRU 4TH SPEED | ||
| 353 | A 4042600730 | SHIFTING FORK |
| Repalced by: A 4062650235 | ||
| 353 | A 4062650235 | SHIFTING FORK |
| 5TH AND 6TH SPEED | ||
| 355 | A 4042600830 | SHIFTING FORK |
| REDUCTION UNIT AND DIRECT SPEED | ||
| 357 | A 4042600630 | SHIFTING FORK |
| REVERSE SPEED | ||
| 358 | A 4042600041 | FOLLOWER |
| 360 | N 000661008006 | RIVET |
| 361 | A 4042650174 | PIN |
| 362 | A 4042650274 | PIN |
| 363 | A 4042651045 | SHIFTING GUIDE |
| 364 | N 005402008200 | CYLINDRICAL ROLLER |
| 365 | A 4042650106 | COVER |
| 367 | A 4049931401 | SPRING |
| 368 | A 4042670085 | SPRING RETAINER |
| 369 | A 4042650073 | LOCK |
| 370 | A 4042650020 | FOLLOWER |
| 371 | A 4042650045 | SHIFTING GUIDE |
| 371 | A 4042650045 | SHIFTING GUIDE |
| 371 | A 4062650145 | SHIFTING GUIDE |
| 373 | N 914114008002 | SCREW |
| 375 | N 000661008004 | RIVET |
| 375 | N 000661008004 | RIVET |
| 375 | N 000661008011 | RIVET |
| 377 | N 001481004000 | CLAMPING SLEEVE |
| 378 | A 4042650042 | SLIDING PLATE |
| 380 | A 4112640019 | LEVER |
| 381 | A 4042650074 | PIN |
| 383 | N 006797010152 | TOOTHED WASHER |
| 384 | N 000936010010 | NUT |
| Repalced by: N 304035010000 | ||
| 384 | N 304035010000 | NUT |
| Repalced by: N 304035010001 | ||
| 384 | N 304035010001 | HEXAGON NUT |

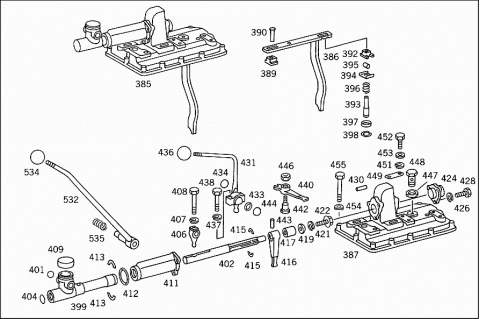

| 385 | A 4062600514 | TRANSMISSION CASE COVER |
| 385 | A 4062600914 | TRANSMISSION CASE COVER |
| 386 | A 4042600530 | SHIFTING FORK |
| 386 | A 4062600930 | SHIFTING FORK |
| 387 | A 4042610105 | TRANSMISSION CASE COVER |
| Repalced by: A 4062610105 | ||
| 387 | A 4062610105 | TRANSMISSION CASE COVER |
| SPECIAL P.T.O. | ||
| 389 | A 4042650845 | SHIFTING GUIDE |
| SPECIAL P.T.O. | ||
| 390 | N 000661008005 | RIVET |
| 392 | A 4042650945 | SHIFTING GUIDE |
| 393 | A 4042650174 | PIN |
| 394 | A 4042650106 | COVER |
| 395 | N 005402008200 | CYLINDRICAL ROLLER |
| 396 | A 4049931401 | SPRING |
| 397 | A 4042670085 | SPRING RETAINER |
| 398 | A 4042650073 | LOCK |
| 399 | A 4042610005 | SHIFT CASE |
| 401 | N 000470020000 | EXPANSION PLUG |
| 402 | A 4042650121 | SHIFTING SHAFT |
| 404 | N 900059030000 | EXPANSION PLUG |
| 406 | A 4112650431 | LEVER |
| 407 | N 912004010102 | LOCK WASHER |
| 408 | N 000931010306 | SCREW |
| Repalced by: N 910105010011 | ||
| 408 | N 910105010011 | HEXAGON HEAD BOLT |
| 409 | A 4042670006 | COVER |
| 411 | A 4112680001 | HOUSING |
| 412 | A 0019978048 | SEAL RING |
| 413 | A 4042630029 | RING HALF |
| 415 | A 4042630129 | RING HALF |
| 416 | A 4112650531 | LEVER |
| 417 | A 4042650053 | SPACER TUBE |
| 419 | A 4042650076 | WASHER |
| 421 | N 912004010102 | LOCK WASHER |
| 422 | N 000933010128 | SCREW |
| Repalced by: N 910105010006 | ||
| 422 | N 910105010006 | SCREW |
| 424 | A 4042650006 | COVER |
| 426 | N 912004008102 | LOCK WASHER |
| 428 | N 000933008116 | SCREW |
| Repalced by: N 000933008337 | ||
| 428 | N 000933008337 | SCREW |
| Repalced by: A 0099900101 | ||
| 428 | A 0099900101 | SCREW |
| 428 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 428 | N 304017008021 | SCREW |
| 430 | N 001473005010 | GROOVED PIN |
| 431 | A 4062600095 | BEARING |
| 433 | A 0009875146 | SEALING CORD |
| 434 | N 000470020000 | EXPANSION PLUG |
| 436 | N 000319040500 | BALL KNOB |
| 437 | N 912004008102 | LOCK WASHER |
| 438 | N 000931008266 | SCREW |
| 440 | A 4112650631 | LEVER |
| 442 | A 4049900314 | SCREW |
| 443 | N 001473004001 | GROOVED PIN |
| 444 | A 4219905440 | WASHER |
| 446 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 446 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 446 | N 913023010002 | NUT |
| 447 | N 007603012106 | SEAL RING |
| 448 | A 4049900363 | HOLLOW SCREW |
| 449 | A 4042640110 | COVER |
| 451 | N 912004008102 | LOCK WASHER |
| 452 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 452 | N 304017008016 | SCREW |
| 453 | N 007603008107 | SEAL RING |
| 454 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 454 | N 000137008212 | SPRING WASHER |
| 455 | N 000931008246 | SCREW |
| Repalced by: N 304017008028 | ||
| 455 | N 304017008028 | SCREW |
| 455 | N 000931008254 | SCREW |
| Repalced by: N 304014008002 | ||
| 455 | N 304014008002 | SCREW |
| 457 | A 4042650036 | ROD |
| 458 | A 4062650001 | SHIFTING FORK |
| Repalced by: A 4062650401 | ||
| 458 | A 4062650401 | SHIFTING FORK |
| 1ST THRU 4TH SPEED | ||
| 459 | A 4042640126 | SHIFTING FORK |
| Repalced by: A 4062650501 | ||
| 459 | A 4062650501 | SHIFTING FORK |
| 5TH SPEED | ||
| 461 | A 4112640626 | SHIFTING FORK |
| 462 | A 4049900015 | SCREW |
| 463 | A 4062650336 | BRACKET |
| 464 | A 4062650020 | FOLLOWER |
| 465 | N 912004008102 | LOCK WASHER |
| 467 | A 4219905015 | SCREW |
| 468 | A 4062600230 | SHIFTING FORK |
| 469 | N 007603022105 | SEAL RING |
| 471 | N 007604022100 | SCREW PLUG |
| Repalced by: A 3469970230 | ||
| 471 | A 3469970230 | SCREW PLUG |
| 473 | A 4042600739 | SHIFT LEVER |
| 475 | A 4049970245 | SEAL RING |
| 476 | A 4112640326 | SHIFTING FORK |
| 477 | A 4112650149 | SLIDE |
| 478 | N 912004006102 | LOCK WASHER |
| 479 | N 000933006049 | SCREW |
| 481 | A 4062600085 | DRIP PAN |
| 483 | A 4049870351 | RUBBER SEAL |
| 484 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 484 | N 304017008027 | SCREW |
| 485 | N 000917008007 | NUT |
| 486 | N 000933010162 | SCREW |
| 487 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 487 | N 007603010110 | SEAL RING |
| 488 | N 007603022105 | SEAL RING |
| 490 | N 007604022100 | SCREW PLUG |
| Repalced by: A 3469970230 | ||
| 490 | A 3469970230 | SCREW PLUG |
| 491 | A 4042640180 | GASKET |
| 492 | A 4042640011 | COVER |
| 493 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 493 | N 007603010110 | SEAL RING |
| 494 | N 000933010128 | SCREW |
| Repalced by: N 910105010006 | ||
| 494 | N 910105010006 | SCREW |
| 495 | A 4112610080 | GASKET |
| 496 | A 4112600065 | COVER |
| 497 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 497 | N 000125008443 | WASHER |
| 498 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 498 | N 304017008034 | SCREW |
| 500 | A 4062640118 | SHAFT |
| NUMBER OF TEETH: | ||
| 11 | ||
| 501 | A 4069920001 | BUSHING |
| 502 | A 4062610060 | GASKET |
| 503 | A 4062610033 | COVER |
| 504 | N 007603008107 | SEAL RING |
| 505 | N 000933008116 | SCREW |
| Repalced by: N 000933008337 | ||
| 505 | N 000933008337 | SCREW |
| Repalced by: A 0099900101 | ||
| 505 | A 0099900101 | SCREW |
| 507 | A 4042640067 | OIL FILLER NECK |
| 508 | A 4042600074 | POINTER |
| 510 | A 4042640010 | COVER |
| 512 | N 912004010102 | LOCK WASHER |
| 513 | N 304017010027 | HEXAGON HEAD BOLT |
| 516 | A 4042610180 | GASKET |
| Repalced by: A 4172611180 | ||
| 516 | A 4172611180 | GASKET |
| 517 | A 4042610019 | TRANSMISSION CASE COVER |
| 518 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 518 | N 007603010110 | SEAL RING |
| 520 | N 914038010005 | COMBINATION BOLT |
| Repalced by: N 304017010028 | ||
| 520 | N 304017010028 | HEXAGON HEAD BOLT |
| 520 | N 070614010001 | SCREW |
| 522 | A 4042610080 | GASKET |
| Repalced by: A 4172611280 | ||
| 522 | A 4172611280 | GASKET |
| 523 | A 4042610021 | TRANSMISSION CASE COVER |
| 524 | N 912004010102 | LOCK WASHER |
| 526 | N 000933010164 | SCREW |
| 528 | N 915035000005 | SEAL RING |
| 530 | N 000961012001 | SCREW |
| 532 | A 4062600339 | SHIFT LEVER |
| Repalced by: A 4062602139 | ||
| 532 | A 4062602139 | SHIFT LEVER |
| 534 | N 000319040500 | BALL KNOB |
| 535 | A 4069935001 | SPRING |
| 536 | A 4214200178 | BEARING BRACKET |
| 537 | A 4219925003 | BUSHING |
| 16X18X15 | ||
| 538 | A 4212670046 | SHIFTING SEGMENT |
| 539 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 539 | N 304017008034 | SCREW |
| 540 | N 912004008102 | LOCK WASHER |
| 541 | N 304032008006 | NUT |

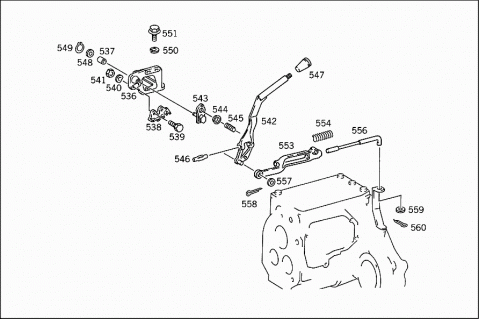

| 542 | A 4212601139 | SHIFT LEVER |
| Repalced by: A 4212601239 | ||
| 542 | A 4212601239 | SHIFT LEVER |
| 543 | A 4212600041 | FOLLOWER |
| Repalced by: A 4212600141 | ||
| 543 | A 4212600141 | FOLLOWER |
| 544 | A 4212670085 | SPRING RETAINER |
| 545 | A 4219935001 | SPRING |
| 546 | N 001475012000 | GROOVED PIN |
| 547 | A 4219885080 | FASTENER BUTTON |
| 548 | N 000125017010 | WASHER |
| Repalced by: N 000125017016 | ||
| 548 | N 000125017016 | WASHER |
| 549 | N 000471016001 | LOCK RING |
| Repalced by: A 0079942041 | ||
| 549 | A 0079942041 | LOCK |
| 550 | N 912004010102 | LOCK WASHER |
| 551 | N 000933010128 | SCREW |
| Repalced by: N 910105010006 | ||
| 551 | N 910105010006 | SCREW |
| 553 | A 4114270012 | GUIDE |
| 554 | A 4049930005 | SPRING |
| 556 | A 4044270031 | ROD |
| 557 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 557 | N 000125010532 | WASHER |
| 558 | N 000094002077 | COTTER PIN |
| 559 | N 000433013005 | WASHER |
| Repalced by: N 000433013010 | ||
| 559 | N 000433013010 | WASHER |
| 560 | N 000094003219 | COTTER PIN |

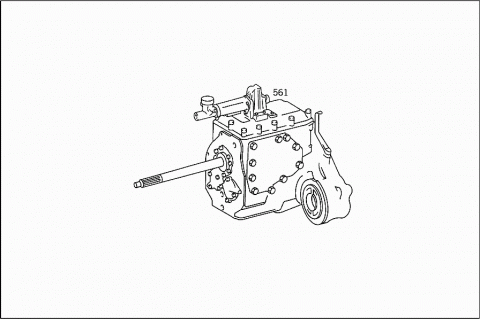

| 561 | A 4212600901 | TRANSMISSION |
| Repalced by: A 4212604501 | ||
| 561 | A 4212604501 | TRANSMISSION |
| LESS SHIFT LEVER | ||
| 562 | A 4062600812 | TRANSMISSION CASE |
| Repalced by: A 4062601712 | ||
| 562 | A 4062601712 | TRANSMISSION CASE |
| 563 | A 4062610073 | DOWEL PIN |
| Repalced by: A 4062610173 | ||
| 563 | A 4062610173 | LOCK |
| 563 | A 4062610173 | LOCK |
| 564 | N 007603010116 | SEAL RING |
| 565 | A 4402650070 | STUD |
| 566 | A 4062650147 | INTERLOCK PLUG |
| 566 | A 4062650147 | INTERLOCK PLUG |
| 567 | A 4062650247 | INTERLOCK PLUG |
| 568 | A 4069970035 | PLUG |
| 568 | A 4069970035 | PLUG |
| 569 | A 4062630166 | OIL RING |
| Repalced by: A 4172630066 | ||
| 569 | A 4172630066 | OIL RING |
| 569 | A 4172630066 | OIL RING |
| 570 | A 4172670142 | PLATE |
| 571 | N 000137006204 | SPRING WASHER |
| 572 | A 4062610079 | GASKET |
| Repalced by: A 4172610180 | ||
| 572 | A 4172610180 | GASKET |
| 573 | N 000125006421 | WASHER |
| Repalced by: N 000125006449 | ||
| 573 | N 000125006449 | WASHER |
| 573 | N 000125006421 | WASHER |
| Repalced by: N 000125006449 | ||
| 573 | N 000125006449 | WASHER |
| 574 | N 000933006130 | SCREW |
| Repalced by: N 304017006020 | ||
| 574 | N 304017006020 | SCREW |
| 574 | N 304017006020 | SCREW |

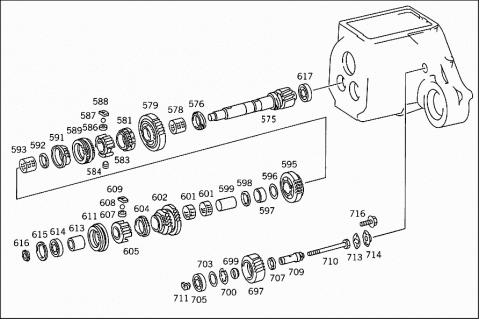

| 575 | A 4062601024 | COUNTERSHAFT |
| 575 | A 4062601024 | COUNTERSHAFT |
| 576 | A 4062640130 | DRIVE GEAR |
| 576 | A 4062640130 | DRIVE GEAR |
| 578 | A 0029818610 | NEEDLE BEARING |
| Repalced by: A 0089812410 | ||
| 578 | A 0089812410 | NEEDLE BEARING |
| 578 | A 0089812410 | NEEDLE BEARING |
| 579 | A 4062630111 | GEAR |
| 1ST AND 3RD SPEED | ||
| Z=35 | ||
| 579 | A 4062630111 | GEAR |
| 1ST AND 3RD SPEED | ||
| 581 | A 4042620234 | SYNCHRONIZER RING |
| Repalced by: A 4402620034 | ||
| 581 | A 4402620034 | SYNCHRONIZER RING |
| 581 | A 4402620034 | SYNCHRONIZER RING |
| 583 | A 4062630136 | FOLLOWER RING |
| 583 | A 4062630136 | FOLLOWER RING |
| 584 | N 000915010106 | HEADLESS SETSCREW |
| Repalced by: A 4069970019 | ||
| 584 | A 4069970019 | THREADED PIN |
| 584 | A 4069970019 | THREADED PIN |
| 586 | A 0009931026 | DISC SPRING |
| Repalced by: A 0009930926 | ||
| 586 | A 0009930926 | DISC SPRING |
| 586 | A 0009930926 | DISC SPRING |
| 587 | N 005401305500 | BALL |
| 587 | N 005401305500 | BALL |
| 588 | A 4042620040 | FOLLOWER |
| 588 | A 4042620040 | FOLLOWER |
| 589 | A 4062630023 | COLLAR |
| 589 | A 4062630023 | COLLAR |
| 591 | A 4042620234 | SYNCHRONIZER RING |
| Repalced by: A 4402620034 | ||
| 591 | A 4402620034 | SYNCHRONIZER RING |
| 591 | A 4402620034 | SYNCHRONIZER RING |
| 592 | A 4062630762 | THRUST WASHER |
| 592 | A 4062630762 | THRUST WASHER |
| 593 | A 0029818410 | NEEDLE BEARING |
| Repalced by: A 0069815810 | ||
| 593 | A 0069815810 | NEEDLE BEARING |
| 593 | A 0069815810 | NEEDLE BEARING |
| 593 | A 0039813610 | NEEDLE BEARING |
| 593 | A 0039813610 | NEEDLE BEARING |
| 595 | A 4062630112 | GEAR |
| 2ND SPEED,4TH SPEED,AND REVERSE | ||
| Z=29 | ||
| 595 | A 4062630112 | GEAR |
| 596 | A 4062630236 | GUARD PLATE |
| 596 | A 4062630236 | GUARD PLATE |
| 597 | A 0019817601 | CYLINDR. ROLLER BEARING |
| 597 | A 0019817601 | CYLINDR. ROLLER BEARING |
| 598 | A 4062630862 | THRUST WASHER |
| Repalced by: A 4062631362 | ||
| 598 | A 4062631362 | THRUST WASHER |
| 598 | A 4062631362 | THRUST WASHER |
| 599 | A 4069815080 | OUTER RACE |
| 599 | A 4069815080 | OUTER RACE |
| 601 | A 0039813310 | NEEDLE BEARING |
| 601 | A 0039813310 | NEEDLE BEARING |
| 602 | A 4062630215 | GEAR |
| 5TH SPEED | ||
| 602 | A 4062630215 | GEAR |
| 5TH SPEED | ||
| 604 | A 4042620134 | SYNCHRONIZER RING |
| Repalced by: A 4062630038 | ||
| 604 | A 4062630038 | SYNCHR.SLIDING SLEEVE |
| 604 | A 4062630038 | SYNCHR.SLIDING SLEEVE |
| 605 | A 4062630436 | FOLLOWER RING |
| 605 | A 4062630436 | FOLLOWER RING |
| 607 | A 0009931026 | DISC SPRING |
| Repalced by: A 0009930926 | ||
| 607 | A 0009930926 | DISC SPRING |
| 607 | A 0009930926 | DISC SPRING |
| 608 | N 005401305500 | BALL |
| 608 | N 005401305500 | BALL |
| 609 | A 4042620140 | FOLLOWER |
| 609 | A 4042620140 | FOLLOWER |
| 611 | A 4042620138 | SYNCHR.SLIDING SLEEVE |
| Repalced by: A 4402620138 | ||
| 611 | A 4402620138 | SYNCHR.SLIDING SLEEVE |
| 611 | A 4402620138 | SYNCHR.SLIDING SLEEVE |
| 613 | A 4062620453 | SPACER TUBE |
| Repalced by: A 4062620753 | ||
| 613 | A 4062620753 | SPACER TUBE |
| 613 | A 4062620753 | SPACER TUBE |
| 614 | N 000625506305 | GROOVED BALL BEARING |
| 614 | N 000625506305 | GROOVED BALL BEARING |
| 615 | N 005417062000 | SNAP RING |
| 615 | N 005417062000 | SNAP RING |
| 616 | A 4062630072 | NUT |
| 616 | A 4062630072 | NUT |
| 617 | A 0019817301 | CYLINDR. ROLLER BEARING |
| 617 | A 0019817301 | CYLINDR. ROLLER BEARING |

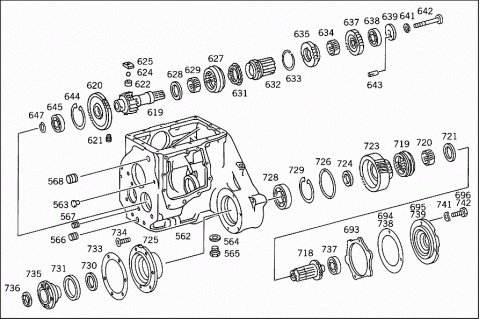

| 619 | A 4062631001 | COUNTERSHAFT |
| Repalced by: A 4062631101 | ||
| 619 | A 4062631001 | COUNTERSHAFT |
| Repalced by: A 4062631101 | ||
| 619 | A 4062631101 | COUNTERSHAFT |
| 620 | A 4062630412 | GEAR |
| NUMBER OF TEETH: | ||
| 47 | ||
| 620 | A 4062630412 | GEAR |
| NUMBER OF TEETH: | ||
| 621 | N 000915010106 | HEADLESS SETSCREW |
| 621 | N 000915010106 | HEADLESS SETSCREW |
| 622 | A 0009930926 | DISC SPRING |
| 622 | A 0009930926 | DISC SPRING |
| 624 | N 005401305500 | BALL |
| 624 | N 005401305500 | BALL |
| 625 | A 4042620140 | FOLLOWER |
| 625 | A 4042620140 | FOLLOWER |
| 627 | A 4042620138 | SYNCHR.SLIDING SLEEVE |
| Repalced by: A 4402620138 | ||
| 627 | A 4402620138 | SYNCHR.SLIDING SLEEVE |
| 627 | A 4402620138 | SYNCHR.SLIDING SLEEVE |
| 628 | A 4062630962 | THRUST WASHER |
| 628 | A 4062630962 | THRUST WASHER |
| 629 | A 0029818310 | NEEDLE BEARING |
| 629 | A 0029818310 | NEEDLE BEARING |
| 629 | A 0039816610 | NEEDLE BEARING |
| 629 | A 0039816610 | NEEDLE BEARING |
| 629 | A 0039818510 | NEEDLE BEARING |
| 629 | A 0039818510 | NEEDLE BEARING |
| 631 | A 4042620134 | SYNCHRONIZER RING |
| 631 | A 4042620134 | SYNCHRONIZER RING |
| 632 | A 4062620238 | SYNCHR.SLIDING SLEEVE |
| Repalced by: A 4062600043 | ||
| 632 | A 4062600043 | SLEEVE |
| 632 | A 4062600043 | SLEEVE |
| 633 | A 0009946135 | SNAP RING |
| 633 | A 0009946135 | SNAP RING |
| 634 | A 0029819410 | NEEDLE BEARING |
| 634 | A 0029819410 | NEEDLE BEARING |
| 634 | A 0039816710 | NEEDLE BEARING |
| 634 | A 0039816710 | NEEDLE BEARING |
| 634 | A 0039818310 | NEEDLE BEARING |
| 634 | A 0039818310 | NEEDLE BEARING |
| 635 | A 4062630211 | GEAR |
| REVERSE SPEED,REDUCTION UNIT,23 TEETH | ||
| 635 | A 4062630211 | GEAR |
| REVERSE SPEED,REDUCTION UNIT,23 TEETH | ||
| 637 | A 4062644520 | GEAR |
| NUMBER OF TEETH: | ||
| 24 | ||
| 637 | A 4062644520 | GEAR |
| NUMBER OF TEETH: | ||
| 638 | A 0019817401 | CYLINDR. ROLLER BEARING |
| Repalced by: A 0049810201 | ||
| 638 | A 0049810201 | CYLINDR. ROLLER BEARING |
| 638 | A 0049810201 | CYLINDR. ROLLER BEARING |
| 639 | A 4062631062 | THRUST WASHER |
| 639 | A 4062631062 | THRUST WASHER |
| 639 | A 4062631462 | THRUST WASHER |
| 641 | N 912004010102 | LOCK WASHER |
| 641 | N 912004010102 | LOCK WASHER |
| 642 | N 000933010094 | SCREW |
| Repalced by: N 910105010011 | ||
| 642 | N 910105010011 | HEXAGON HEAD BOLT |
| 642 | N 910105010011 | HEXAGON HEAD BOLT |
| 642 | A 4069900004 | SCREW |
| 643 | N 001473005010 | GROOVED PIN |
| 644 | N 000472080000 | LOCK RING |
| 644 | N 000472080000 | LOCK RING |
| 645 | A 0019818401 | CYLINDR. ROLLER BEARING |
| Repalced by: A 0049810301 | ||
| 645 | A 0049810301 | CYLINDR. ROLLER BEARING |
| 645 | A 0049810301 | CYLINDR. ROLLER BEARING |
| 647 | N 900055050300 | LOCK RING |
| 647 | N 900055050300 | LOCK RING |

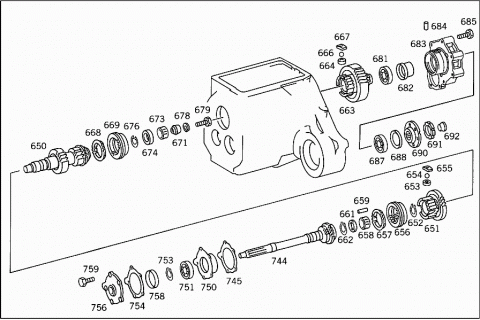

| 650 | A 4062601122 | MAIN SHAFT |
| 650 | A 4062601122 | MAIN SHAFT |
| 651 | A 4062620510 | GEAR |
| 30 TEETH; 5TH SPEED; ON MAIN SHAFT | ||
| 651 | A 4062620510 | GEAR |
| 30 TEETH; 5TH SPEED; ON MAIN SHAFT | ||
| 652 | N 000471045000 | LOCK RING |
| Repalced by: A 4069945041 | ||
| 652 | A 4069945041 | LOCK |
| 652 | A 4069945041 | LOCK |
| 653 | A 0009930926 | DISC SPRING |
| 653 | A 0009930926 | DISC SPRING |
| 654 | N 005401305500 | BALL |
| 654 | N 005401305500 | BALL |
| 655 | A 4042620140 | FOLLOWER |
| 655 | A 4042620140 | FOLLOWER |
| 656 | A 4042620138 | SYNCHR.SLIDING SLEEVE |
| Repalced by: A 4402620138 | ||
| 656 | A 4402620138 | SYNCHR.SLIDING SLEEVE |
| 656 | A 4402620138 | SYNCHR.SLIDING SLEEVE |
| 657 | A 4042620134 | SYNCHRONIZER RING |
| 657 | A 4042620134 | SYNCHRONIZER RING |
| 658 | A 0009812584 | CAGE |
| 658 | A 0009812584 | CAGE |
| 659 | A 4119810186 | ROLLER |
| 659 | A 4119810186 | ROLLER |
| 661 | A 4042620062 | THRUST WASHER |
| 661 | A 4042620062 | THRUST WASHER |
| 662 | N 000471028000 | LOCK RING |
| 662 | N 000471028000 | LOCK RING |
| 663 | A 4062643020 | GEAR |
| 663 | A 4062643020 | GEAR |
| 664 | A 0009931026 | DISC SPRING |
| Repalced by: A 0009930926 | ||
| 664 | A 0009930926 | DISC SPRING |
| 664 | A 0009930926 | DISC SPRING |
| 666 | N 005401305500 | BALL |
| 666 | N 005401305500 | BALL |
| 667 | A 4042620140 | FOLLOWER |
| 667 | A 4042620140 | FOLLOWER |
| 668 | A 4042620134 | SYNCHRONIZER RING |
| 668 | A 4042620134 | SYNCHRONIZER RING |
| 669 | A 4042620138 | SYNCHR.SLIDING SLEEVE |
| Repalced by: A 4402620138 | ||
| 669 | A 4402620138 | SYNCHR.SLIDING SLEEVE |
| 669 | A 4402620138 | SYNCHR.SLIDING SLEEVE |
| 671 | A 4062631162 | THRUST WASHER |
| 671 | A 4062631162 | THRUST WASHER |
| 673 | A 0009812484 | CAGE |
| Repalced by: A 0009813084 | ||
| 673 | A 0009813084 | CAGE |
| 673 | A 0009813084 | CAGE |
| 674 | A 4062620151 | SPACER RING |
| 674 | A 4062620151 | SPACER RING |
| 676 | N 900055058310 | LOCK RING |
| 676 | N 900055058310 | LOCK RING |
| 678 | N 912004010102 | LOCK WASHER |
| 678 | N 912004010102 | LOCK WASHER |
| 679 | N 910105010002 | SCREW |
| 679 | N 910105010002 | SCREW |
| 681 | A 0029811305 | TAPERED ROLLER BEARING |
| 681 | A 0029811305 | TAPERED ROLLER BEARING |
| 682 | A 4062620553 | SPACER TUBE |
| 682 | A 4062620553 | SPACER TUBE |
| 683 | A 4062600317 | FLANGE |
| 683 | A 4062600317 | FLANGE |
| 684 | A 4062640385 | OIL PIPE |
| 684 | A 4062640385 | OIL PIPE |
| 685 | N 000933010129 | SCREW |
| Repalced by: N 910105010001 | ||
| 685 | N 910105010001 | HEXAGON HEAD BOLT |
| 685 | N 910105010001 | HEXAGON HEAD BOLT |
| 685 | N 000933010157 | SCREW |
| 685 | N 000933010157 | SCREW |
| 687 | A 0029811205 | TAPERED ROLLER BEARING |
| 687 | A 0029811205 | TAPERED ROLLER BEARING |
| 688 | A 0049971246 | SEAL RING |
| 688 | A 0049971246 | SEAL RING |
| 688 | A 0079977946 | SEAL RING |
| 688 | A 0079977946 | SEAL RING |
| 690 | A 4062641944 | INTERMEDIATE FLANGE |
| 690 | A 4062641944 | INTERMEDIATE FLANGE |
| 691 | A 4069905160 | NUT |
| 691 | A 4069905160 | NUT |
| 692 | A 4062640055 | PLUG |
| 692 | A 4062640055 | PLUG |
| 693 | A 4212610052 | SPACER WASHER |
| 693 | A 4212610052 | SPACER WASHER |
| 694 | A 4042640180 | GASKET |
| 694 | A 4042640180 | GASKET |
| 694 | A 4042640180 | GASKET |
| Repalced by: A 4412610280 | ||
| 694 | A 4412610280 | GASKET |
| Repalced by: A 4172610380 | ||
| 694 | A 4172610380 | GASKET |
| 695 | A 4112640211 | COVER |
| 695 | A 4112640211 | COVER |
| 696 | N 000931010239 | SCREW |
| Repalced by: N 910105010016 | ||
| 696 | N 910105010016 | SCREW |
| 696 | N 910105010016 | SCREW |
| 697 | A 4062641321 | GEAR |
| NUMBER OF TEETH: | ||
| 25 | ||
| 697 | A 4062641321 | GEAR |
| NUMBER OF TEETH: | ||
| 699 | A 4062620653 | SPACER TUBE |
| 699 | A 4062620653 | SPACER TUBE |
| 700 | A 0019946041 | LOCK |
| AS REQUIRED | ||
| 2.90 MM | ||
| 700 | A 0019946041 | LOCK |
| AS REQUIRED | ||
| 2.90 MM | ||
| A 0019946141 | LOCK | |
| AS REQUIRED | ||
| 2.95 MM | ||
| A 0019946141 | LOCK | |
| AS REQUIRED | ||
| 2.95 MM | ||
| 700 | A 0019946241 | LOCK |
| AS REQUIRED | ||
| 3.00 MM | ||
| 700 | A 0019946241 | LOCK |
| AS REQUIRED | ||
| 3.00 MM | ||
| 703 | A 4062621252 | SPACER WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 703 | A 4062621252 | SPACER WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 703 | A 4062621652 | SPACER WASHER |
| AS REQUIRED | ||
| 1.20 MM | ||
| 703 | A 4062621652 | SPACER WASHER |
| AS REQUIRED | ||
| 1.20 MM | ||
| 703 | A 4062621752 | SPACER WASHER |
| AS REQUIRED | ||
| 1.50 MM | ||
| 703 | A 4062621752 | SPACER WASHER |
| AS REQUIRED | ||
| 1.50 MM | ||
| A 4062621852 | SPACER WASHER | |
| AS REQUIRED | ||
| 1.80 MM | ||
| A 4062621852 | SPACER WASHER | |
| AS REQUIRED | ||
| 1.80 MM | ||
| 705 | A 0019815705 | TAPERED ROLLER BEARING |
| 705 | A 0019815705 | TAPERED ROLLER BEARING |
| 707 | A 4062621352 | SPACER WASHER |
| 707 | A 4062621352 | SPACER WASHER |
| 709 | A 4062620074 | PIN |
| 709 | A 4062620074 | PIN |
| 710 | N 000960010031 | SCREW |
| 710 | N 000960010031 | SCREW |
| 711 | A 4062640172 | NUT |
| Repalced by: A 4062640272 | ||
| 711 | A 4062640272 | NUT |
| 711 | A 4062640272 | NUT |
| 713 | A 4062640073 | LOCK |
| 713 | A 4062640073 | LOCK |
| 714 | A 4062640457 | LOCKING CAP |
| 714 | A 4062640457 | LOCKING CAP |
| 716 | N 000125008418 | WASHER |
| Repalced by: A 0009905022 | ||
| 716 | N 000933008034 | SCREW |
| Repalced by: A 0009905022 | ||
| 716 | A 0009905022 | SCREW |
| Repalced by: N 914114008009 | ||
| 716 | N 914114008009 | SCREW |
| 716 | N 914114008009 | SCREW |
| 718 | A 4062641218 | SHAFT |
| Repalced by: A 4062641518 | ||
| 718 | A 4062641518 | SHAFT |
| 718 | A 4062641518 | SHAFT |
| 719 | A 4042620138 | SYNCHR.SLIDING SLEEVE |
| Repalced by: A 4402620138 | ||
| 719 | A 4402620138 | SYNCHR.SLIDING SLEEVE |
| 719 | A 4402620138 | SYNCHR.SLIDING SLEEVE |
| 720 | A 0039813810 | NEEDLE BEARING |
| 720 | A 0039813810 | NEEDLE BEARING |
| 721 | A 4062641453 | SPACER TUBE |
| 721 | A 4062641453 | SPACER TUBE |
| 723 | A 4062601119 | GEAR |
| Repalced by: A 4062645320 | ||
| 723 | A 4062645320 | GEAR |
| 723 | A 4062645320 | GEAR |
| 724 | A 4062640651 | SPACER RING |
| 724 | A 4062640651 | SPACER RING |
| 725 | A 4062642044 | INTERMEDIATE FLANGE |
| 725 | A 4062642044 | INTERMEDIATE FLANGE |
| 726 | A 0009875546 | SEALING CORD |
| 726 | A 0009875546 | SEALING CORD |
| 728 | N 000625006211 | GROOVED BALL BEARING |
| 728 | N 000625006211 | GROOVED BALL BEARING |
| 729 | N 000472100000 | LOCK RING |
| 729 | N 000472100000 | LOCK RING |
| 730 | A 4062641452 | SPACER WASHER |
| 730 | A 4062641452 | SPACER WASHER |
| 731 | A 0049971246 | SEAL RING |
| 731 | A 0049971246 | SEAL RING |
| 731 | A 0079977946 | SEAL RING |
| 731 | A 0079977946 | SEAL RING |
| 733 | A 4042640180 | GASKET |
| 733 | A 4042640180 | GASKET |
| 734 | N 000963006031 | SCREW |
| 734 | N 000963006031 | SCREW |
| 735 | A 4062641944 | INTERMEDIATE FLANGE |
| 735 | A 4062641944 | INTERMEDIATE FLANGE |
| 736 | A 4069900060 | NUT |
| 736 | A 4069900060 | NUT |
| 737 | N 000625306206 | GROOVED BALL BEARING |
| 737 | N 000625306206 | GROOVED BALL BEARING |
| 738 | A 4042640180 | GASKET |
| 738 | A 4042640180 | GASKET |
| 739 | A 4112640211 | COVER |
| 739 | A 4112640211 | COVER |
| 741 | N 000137010201 | SPRING WASHER |
| 741 | N 000137010201 | SPRING WASHER |
| 742 | N 000933010128 | SCREW |
| Repalced by: N 910105010006 | ||
| 742 | N 910105010006 | SCREW |
| 742 | N 910105010006 | SCREW |
| 744 | A 4212620402 | DRIVE SHAFT |
| 744 | A 4212620402 | DRIVE SHAFT |
| 745 | A 4042650152 | SPACER WASHER |
| Repalced by: A 4062630152 | ||
| 745 | A 4062630152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 745 | A 4062630152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| A 4042650252 | SPACER WASHER | |
| Repalced by: A 4062630252 | ||
| A 4062630252 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.40 MM | ||
| A 4062630252 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.40 MM | ||
| 745 | A 4042650352 | SPACER WASHER |
| Repalced by: A 4062630352 | ||
| 745 | A 4062630352 | SPACER WASHER |
| AS REQUIRED | ||
| 0.60 MM | ||
| 745 | A 4062630352 | SPACER WASHER |
| AS REQUIRED | ||
| 0.60 MM | ||
| 745 | A 4042650452 | SPACER WASHER |
| Repalced by: A 4062630452 | ||
| 745 | A 4062630452 | SPACER WASHER |
| AS REQUIRED | ||
| 0.80 MM | ||
| 745 | A 4062630452 | SPACER WASHER |
| AS REQUIRED | ||
| 0.80 MM | ||
| 745 | A 4042650552 | SPACER WASHER |
| Repalced by: A 4062630552 | ||
| 745 | A 4072630552 | SPACER WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 745 | A 4072630552 | SPACER WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 745 | A 4042650652 | SPACER WASHER |
| Repalced by: A 4062630652 | ||
| 745 | A 4062630652 | SPACER WASHER |
| AS REQUIRED | ||
| 1.20 MM | ||
| 745 | A 4062630652 | SPACER WASHER |
| AS REQUIRED | ||
| 1.20 MM | ||
| 745 | A 4042650752 | SPACER WASHER |
| Repalced by: A 4062630752 | ||
| 745 | A 4062630752 | SPACER WASHER |
| AS REQUIRED | ||
| 1.40 MM | ||
| 745 | A 4062630752 | SPACER WASHER |
| AS REQUIRED | ||
| 1.40 MM | ||
| 750 | A 4062620245 | FLANGE |
| Repalced by: A 4062620445 | ||
| 750 | A 4062620445 | FLANGE |
| 750 | A 4062620445 | FLANGE |
| 751 | A 0019817201 | CYLINDR. ROLLER BEARING |
| 751 | A 0019817201 | CYLINDR. ROLLER BEARING |
| 753 | N 000471035000 | LOCK RING |
| 753 | N 000471035000 | LOCK RING |
| 754 | A 4042640280 | GASKET |
| Repalced by: A 4062640160 | ||
| 754 | A 4062640160 | SEAL RING |
| Repalced by: A 4172610280 | ||
| 754 | A 4172610280 | GASKET |
| 754 | A 4172610280 | GASKET |
| 756 | A 4062620029 | COVERING |
| Repalced by: A 4062620229 | ||
| 756 | A 4062620229 | COVERING |
| 756 | A 4062620229 | COVERING |
| 758 | A 0069973246 | SEAL RING |
| Repalced by: A 0079974046 | ||
| 758 | A 0079974046 | SEAL RING |
| 758 | A 0079974046 | SEAL RING |
| 759 | A 0009905122 | SCREW |
| Repalced by: N 914114008010 | ||
| 759 | N 914114008010 | SCREW |
| 759 | N 914114008010 | SCREW |

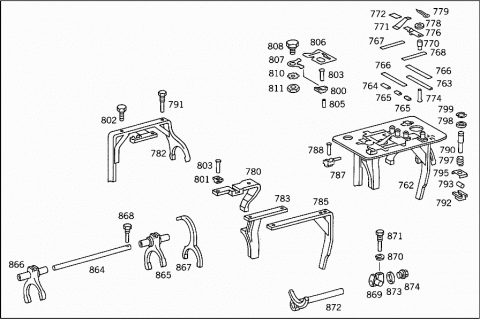

| 762 | A 4062600528 | GUIDE PLATE |
| 762 | A 4062600528 | GUIDE PLATE |
| 763 | A 4042650445 | SHIFTING GUIDE |
| 763 | A 4042650445 | SHIFTING GUIDE |
| 764 | A 4042650545 | SHIFTING GUIDE |
| 764 | A 4042650545 | SHIFTING GUIDE |
| 765 | A 4042650645 | SHIFTING GUIDE |
| 765 | A 4042650645 | SHIFTING GUIDE |
| 766 | A 4042650145 | SHIFTING GUIDE |
| 766 | A 4042650145 | SHIFTING GUIDE |
| 767 | A 4042650245 | SHIFTING GUIDE |
| 767 | A 4042650245 | SHIFTING GUIDE |
| 768 | A 4042650345 | SHIFTING GUIDE |
| 768 | A 4042650345 | SHIFTING GUIDE |
| 770 | A 4042650374 | PIN |
| 770 | A 4042650374 | PIN |
| 771 | A 4049930007 | SPRING |
| 771 | A 4049930007 | SPRING |
| 772 | A 4042650745 | SHIFTING GUIDE |
| 772 | A 4042650745 | SHIFTING GUIDE |
| 774 | N 000661003500 | RIVET |
| 774 | N 000661003500 | RIVET |
| 774 | N 000661003501 | RIVET |
| 774 | N 000661003501 | RIVET |
| 776 | A 4042600087 | PAWL |
| 776 | A 4042600087 | PAWL |
| 778 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 778 | N 000125008443 | WASHER |
| 778 | N 000125008443 | WASHER |
| 779 | N 000094003219 | COTTER PIN |
| 779 | N 000094003219 | COTTER PIN |
| 780 | A 4042650035 | SHIFTING FORK |
| 1ST THRU 4TH SPEED | ||
| 780 | A 4042650035 | SHIFTING FORK |
| 1ST THRU 4TH SPEED | ||
| 782 | A 4062601130 | SHIFTING FORK |
| Repalced by: A 4062650235 | ||
| 782 | A 4062601130 | SHIFTING FORK |
| Repalced by: A 4062650235 | ||
| 782 | A 4062650235 | SHIFTING FORK |
| 5TH AND 6TH SPEED | ||
| 783 | A 4042600830 | SHIFTING FORK |
| REDUCTION UNIT AND DIRECT SPEED | ||
| 783 | A 4042600830 | SHIFTING FORK |
| REDUCTION UNIT AND DIRECT SPEED | ||
| 785 | A 4042600630 | SHIFTING FORK |
| 785 | A 4042600630 | SHIFTING FORK |
| 787 | A 4062600041 | FOLLOWER |
| 787 | A 4062600041 | FOLLOWER |
| 788 | N 000661008006 | RIVET |
| 788 | N 000661008006 | RIVET |
| 790 | A 4042650174 | PIN |
| 790 | A 4042650174 | PIN |
| 791 | A 4042650274 | PIN |
| 791 | A 4042650274 | PIN |
| 792 | A 4042651045 | SHIFTING GUIDE |
| 792 | A 4042651045 | SHIFTING GUIDE |
| 793 | N 005402008200 | CYLINDRICAL ROLLER |
| 793 | N 005402008200 | CYLINDRICAL ROLLER |
| 795 | A 4042650106 | COVER |
| 795 | A 4042650106 | COVER |
| 797 | A 4049931401 | SPRING |
| 797 | A 4049931401 | SPRING |
| 798 | A 4042670085 | SPRING RETAINER |
| 798 | A 4042670085 | SPRING RETAINER |
| 799 | A 4042650073 | LOCK |
| 799 | A 4042650073 | LOCK |
| 800 | A 4042650020 | FOLLOWER |
| 800 | A 4042650020 | FOLLOWER |
| 801 | A 4042650045 | SHIFTING GUIDE |
| 801 | A 4042650045 | SHIFTING GUIDE |
| 801 | A 4042650045 | SHIFTING GUIDE |
| 801 | A 4062650145 | SHIFTING GUIDE |
| 802 | N 914114008002 | SCREW |
| 803 | N 000661008004 | RIVET |
| 803 | N 000661008004 | RIVET |
| 803 | N 000661008004 | RIVET |
| 803 | N 000661008011 | RIVET |
| 803 | N 000661008011 | RIVET |
| 805 | N 001481004000 | CLAMPING SLEEVE |
| 805 | N 001481004000 | CLAMPING SLEEVE |
| 806 | A 4042650042 | SLIDING PLATE |
| 806 | A 4042650042 | SLIDING PLATE |
| 807 | A 4112640019 | LEVER |
| 807 | A 4112640019 | LEVER |
| 808 | A 4042650074 | PIN |
| 808 | A 4042650074 | PIN |
| 810 | N 006797010152 | TOOTHED WASHER |
| 810 | N 006797010152 | TOOTHED WASHER |
| 811 | N 913004010010 | NUT |
| Repalced by: N 913023010004 | ||
| 811 | N 913023010004 | NUT |
| 811 | N 913023010004 | NUT |

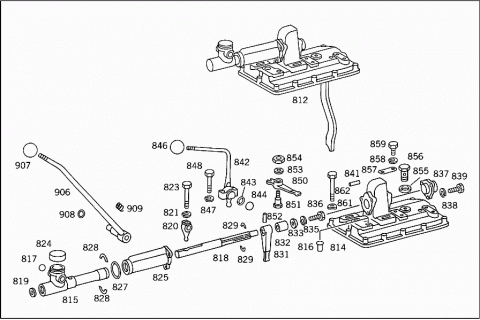

| 812 | A 4062601014 | TRANSMISSION CASE COVER |
| Repalced by: A 4062605714 | ||
| 812 | A 4062605714 | TRANSMISSION CASE COVER |
| 812 | A 4062605714 | TRANSMISSION CASE COVER |
| 814 | A 4042610105 | TRANSMISSION CASE COVER |
| Repalced by: A 4062610105 | ||
| 814 | A 4062610105 | TRANSMISSION CASE COVER |
| 814 | A 4062610105 | TRANSMISSION CASE COVER |
| 815 | A 4042610005 | SHIFT CASE |
| 815 | A 4042610005 | SHIFT CASE |
| 816 | N 000660008038 | RIVET |
| 816 | N 000660008038 | RIVET |
| 817 | N 000470020000 | EXPANSION PLUG |
| 817 | N 000470020000 | EXPANSION PLUG |
| 818 | A 4042650121 | SHIFTING SHAFT |
| 818 | A 4042650121 | SHIFTING SHAFT |
| 819 | N 900059030000 | EXPANSION PLUG |
| 819 | N 900059030000 | EXPANSION PLUG |
| 820 | A 4112650431 | LEVER |
| 820 | A 4112650431 | LEVER |
| 821 | N 912004010102 | LOCK WASHER |
| 821 | N 912004010102 | LOCK WASHER |
| 823 | N 000931010306 | SCREW |
| Repalced by: N 910105010011 | ||
| 823 | N 910105010011 | HEXAGON HEAD BOLT |
| 823 | N 910105010011 | HEXAGON HEAD BOLT |
| 824 | A 4042670006 | COVER |
| 824 | A 4042670006 | COVER |
| 825 | A 4112680001 | HOUSING |
| 825 | A 4112680001 | HOUSING |
| 827 | A 0019978048 | SEAL RING |
| 827 | A 0019978048 | SEAL RING |
| 828 | A 4042630029 | RING HALF |
| 828 | A 4042630029 | RING HALF |
| 829 | A 4042630129 | RING HALF |
| 829 | A 4042630129 | RING HALF |
| 831 | A 4112650531 | LEVER |
| 831 | A 4112650531 | LEVER |
| 832 | A 4042650053 | SPACER TUBE |
| 832 | A 4042650053 | SPACER TUBE |
| 833 | A 4042650076 | WASHER |
| 833 | A 4042650076 | WASHER |
| 835 | N 912004010102 | LOCK WASHER |
| 835 | N 912004010102 | LOCK WASHER |
| 836 | N 000933010128 | SCREW |
| Repalced by: N 910105010006 | ||
| 836 | N 910105010006 | SCREW |
| 836 | N 910105010006 | SCREW |
| 837 | A 4042650006 | COVER |
| 837 | A 4042650006 | COVER |
| 838 | N 912004008102 | LOCK WASHER |
| 838 | N 912004008102 | LOCK WASHER |
| 839 | N 000933008116 | SCREW |
| Repalced by: N 000933008337 | ||
| 839 | N 000933008337 | SCREW |
| Repalced by: A 0099900101 | ||
| 839 | A 0099900101 | SCREW |
| 839 | N 000933008337 | SCREW |
| Repalced by: A 0099900101 | ||
| 839 | A 0099900101 | SCREW |
| 839 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 839 | N 304017008021 | SCREW |
| 839 | N 304017008021 | SCREW |
| 841 | N 001473005010 | GROOVED PIN |
| 841 | N 001473005010 | GROOVED PIN |
| 842 | A 4062600095 | BEARING |
| 842 | A 4062600095 | BEARING |
| 843 | A 0009875146 | SEALING CORD |
| 843 | A 0009875146 | SEALING CORD |
| 844 | N 000470020000 | EXPANSION PLUG |
| 844 | N 000470020000 | EXPANSION PLUG |
| 846 | N 000319040500 | BALL KNOB |
| 846 | N 000319040500 | BALL KNOB |
| 847 | N 912004008102 | LOCK WASHER |
| 847 | N 912004008102 | LOCK WASHER |
| 848 | N 000931008266 | SCREW |
| 848 | N 000931008266 | SCREW |
| 850 | A 4112650631 | LEVER |
| 850 | A 4112650631 | LEVER |
| 851 | A 4049900314 | SCREW |
| 851 | A 4049900314 | SCREW |
| 852 | N 001473004001 | GROOVED PIN |
| 852 | N 001473004001 | GROOVED PIN |
| 853 | A 4219905440 | WASHER |
| 853 | A 4219905440 | WASHER |
| 854 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 854 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 854 | N 913023010002 | NUT |
| 854 | N 913023010002 | NUT |
| 855 | N 007603012106 | SEAL RING |
| 855 | N 007603012106 | SEAL RING |
| 856 | A 4049900363 | HOLLOW SCREW |
| 856 | A 4049900363 | HOLLOW SCREW |
| 857 | A 4042640110 | COVER |
| 857 | A 4042640110 | COVER |
| 858 | N 912004008102 | LOCK WASHER |
| 858 | N 912004008102 | LOCK WASHER |
| 859 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 859 | N 304017008016 | SCREW |
| 859 | N 304017008016 | SCREW |
| 861 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 861 | N 000137008212 | SPRING WASHER |
| 861 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 861 | N 000137008212 | SPRING WASHER |
| 862 | N 000931008246 | SCREW |
| Repalced by: N 304017008028 | ||
| 862 | N 304017008028 | SCREW |
| 862 | N 304017008028 | SCREW |
| 862 | N 000931008254 | SCREW |
| Repalced by: N 304014008002 | ||
| 862 | N 304014008002 | SCREW |
| 862 | N 304014008002 | SCREW |
| 864 | A 4042650036 | ROD |
| 864 | A 4042650036 | ROD |
| 865 | A 4062650001 | SHIFTING FORK |
| Repalced by: A 4062650401 | ||
| 865 | A 4062650401 | SHIFTING FORK |
| 1ST THRU 4TH SPEED | ||
| 865 | A 4062650401 | SHIFTING FORK |
| 1ST THRU 4TH SPEED | ||
| 866 | A 4042640126 | SHIFTING FORK |
| Repalced by: A 4062650501 | ||
| 866 | A 4062650501 | SHIFTING FORK |
| 5TH SPEED | ||
| 866 | A 4062650501 | SHIFTING FORK |
| 5TH SPEED | ||
| 867 | A 4112640626 | SHIFTING FORK |
| 867 | A 4112640626 | SHIFTING FORK |
| 868 | A 4049900015 | SCREW |
| 868 | A 4049900015 | SCREW |
| 869 | A 4112640146 | FOLLOWER |
| 869 | A 4112640146 | FOLLOWER |
| 870 | N 912004008102 | LOCK WASHER |
| 870 | N 912004008102 | LOCK WASHER |
| 871 | A 4219905015 | SCREW |
| 871 | A 4219905015 | SCREW |
| 872 | A 4062601230 | SHIFTING FORK |
| 872 | A 4062601230 | SHIFTING FORK |
| 873 | N 007603022105 | SEAL RING |
| 873 | N 007603022105 | SEAL RING |
| 874 | A 3469970230 | SCREW PLUG |
| 874 | A 3469970230 | SCREW PLUG |
| 875 | A 4042600739 | SHIFT LEVER |
| 875 | A 4042600739 | SHIFT LEVER |
| 876 | A 4049970245 | SEAL RING |
| 876 | A 4049970245 | SEAL RING |
| 877 | A 4062641226 | SHIFTING FORK |
| 877 | A 4062641226 | SHIFTING FORK |
| 878 | A 4112650149 | SLIDE |
| 878 | A 4112650149 | SLIDE |
| 879 | N 912004006102 | LOCK WASHER |
| 879 | N 912004006102 | LOCK WASHER |
| 880 | N 000933006049 | SCREW |
| 880 | N 000933006049 | SCREW |
| 881 | N 000933010162 | SCREW |
| 881 | N 000933010162 | SCREW |
| 882 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 882 | N 007603010110 | SEAL RING |
| 882 | N 007603010110 | SEAL RING |
| 883 | N 007603022105 | SEAL RING |
| 883 | N 007603022105 | SEAL RING |
| 884 | A 3469970230 | SCREW PLUG |
| 884 | A 3469970230 | SCREW PLUG |
| 885 | A 4062601714 | TRANSMISSION CASE COVER |
| 885 | A 4062601714 | TRANSMISSION CASE COVER |
| 886 | A 0009905022 | SCREW |
| Repalced by: N 914114008009 | ||
| 886 | N 914114008009 | SCREW |
| 886 | N 914114008009 | SCREW |
| 886 | A 0009905222 | SCREW |
| Repalced by: N 914114008011 | ||
| 886 | N 914114008011 | SCREW |
| 886 | N 914114008011 | SCREW |
| 887 | A 4062640118 | SHAFT |
| NUMBER OF TEETH: | ||
| 11 | ||
| 887 | A 4062640118 | SHAFT |
| NUMBER OF TEETH: | ||
| 888 | A 4069920001 | BUSHING |
| 888 | A 4069920001 | BUSHING |
| 889 | A 4062670080 | GASKET |
| Repalced by: A 4172610080 | ||
| 889 | A 4172610080 | GASKET |
| 889 | A 4172610080 | GASKET |
| 890 | A 4062670022 | COVER |
| 890 | A 4062670022 | COVER |
| 891 | A 0009905122 | SCREW |
| Repalced by: N 914114008010 | ||
| 891 | N 914114008010 | SCREW |
| 891 | N 914114008010 | SCREW |
| 892 | A 4042640067 | OIL FILLER NECK |
| 892 | A 4042640067 | OIL FILLER NECK |
| 893 | A 4042600074 | POINTER |
| 893 | A 4042600074 | POINTER |
| 894 | A 4062670180 | GASKET |
| Repalced by: A 4172611380 | ||
| 894 | A 4172611380 | GASKET |
| 894 | A 4172611380 | GASKET |
| 895 | A 4062670122 | COVER |
| 895 | A 4062670122 | COVER |
| 896 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 896 | N 007603010110 | SEAL RING |
| 896 | N 007603010110 | SEAL RING |
| 897 | N 914038010005 | COMBINATION BOLT |
| Repalced by: N 304017010028 | ||
| 897 | N 304017010028 | HEXAGON HEAD BOLT |
| 897 | N 304017010028 | HEXAGON HEAD BOLT |
| 897 | N 070614010001 | SCREW |
| 897 | N 070614010001 | SCREW |
| 899 | A 4042610080 | GASKET |
| Repalced by: A 4172611280 | ||
| 899 | A 4172611280 | GASKET |
| 899 | A 4172611280 | GASKET |
| 900 | A 4042610021 | TRANSMISSION CASE COVER |
| 900 | A 4042610021 | TRANSMISSION CASE COVER |
| 901 | N 912004010102 | LOCK WASHER |
| 901 | N 912004010102 | LOCK WASHER |
| 902 | N 000933010164 | SCREW |
| 902 | N 000933010164 | SCREW |
| 903 | N 915035000005 | SEAL RING |
| 903 | N 915035000005 | SEAL RING |
| 903 | N 007603016105 | SEAL RING |
| 904 | N 000961012001 | SCREW |
| 904 | N 000961012001 | SCREW |
| 905 | N 000908016001 | SCREW PLUG |
| 906 | A 4062600339 | SHIFT LEVER |
| Repalced by: A 4062602139 | ||
| 906 | A 4062600339 | SHIFT LEVER |
| Repalced by: A 4062602139 | ||
| 906 | A 4062602139 | SHIFT LEVER |
| 906 | A 4062602139 | SHIFT LEVER |
| 907 | N 000319040500 | BALL KNOB |
| 907 | N 000319040500 | BALL KNOB |
| 908 | A 0009874346 | SEALING CORD |
| 908 | A 0009874346 | SEALING CORD |
| 909 | A 4069935001 | SPRING |
| 909 | A 4069935001 | SPRING |
| 911 | A 4214200178 | BEARING BRACKET |
| 911 | A 4214200178 | BEARING BRACKET |
| 912 | A 4219925003 | BUSHING |
| 16X18X15 | ||
| 912 | A 4219925003 | BUSHING |
| 16X18X15 | ||
| 913 | A 4212670046 | SHIFTING SEGMENT |
| 913 | A 4212670046 | SHIFTING SEGMENT |
| 914 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 914 | N 304017008034 | SCREW |
| SHIFTING SEGMENT TO BEARING BRACKET | ||
| M 8X25 | ||
| 914 | N 304017008034 | SCREW |
| SHIFTING SEGMENT TO BEARING BRACKET | ||
| M 8X25 | ||
| 915 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 915 | N 000137008212 | SPRING WASHER |
| SHIFTING SEGMENT TO BEARING BRACKET | ||
| 915 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 915 | N 000137008212 | SPRING WASHER |
| SHIFTING SEGMENT TO BEARING BRACKET | ||
| 916 | N 304032008006 | NUT |
| SHIFTING SEGMENT TO BEARING BRACKET | ||
| 916 | N 304032008006 | NUT |
| SHIFTING SEGMENT TO BEARING BRACKET | ||
| 917 | A 4212601139 | SHIFT LEVER |
| Repalced by: A 4212601239 | ||
| 917 | A 4212601239 | SHIFT LEVER |
| 917 | A 4212601239 | SHIFT LEVER |
| 918 | A 4212600041 | FOLLOWER |
| Repalced by: A 4212600141 | ||
| 918 | A 4212600141 | FOLLOWER |
| 918 | A 4212600141 | FOLLOWER |
| 919 | A 4212670085 | SPRING RETAINER |
| 919 | A 4212670085 | SPRING RETAINER |
| 920 | A 4219935001 | SPRING |
| 920 | A 4219935001 | SPRING |
| 921 | N 001475012000 | GROOVED PIN |
| 921 | N 001475012000 | GROOVED PIN |
| 922 | A 4219885080 | FASTENER BUTTON |
| 922 | A 4219885080 | FASTENER BUTTON |
| 923 | N 000125017010 | WASHER |
| Repalced by: N 000125017016 | ||
| 923 | N 000125017016 | WASHER |
| SHIFT LEVER TO BEARING BRACKET | ||
| 923 | N 000125017016 | WASHER |
| SHIFT LEVER TO BEARING BRACKET | ||
| 924 | N 000471016001 | LOCK RING |
| Repalced by: A 0079942041 | ||
| 924 | A 0079942041 | LOCK |
| SHIFT LEVER TO BEARING BRACKET | ||
| 924 | A 0079942041 | LOCK |
| SHIFT LEVER TO BEARING BRACKET | ||
| 925 | N 912004010102 | LOCK WASHER |
| 925 | N 912004010102 | LOCK WASHER |
| 926 | N 000933010128 | SCREW |
| Repalced by: N 910105010006 | ||
| 926 | N 910105010006 | SCREW |
| M 10X20 | ||
| 926 | N 910105010006 | SCREW |
| M 10X20 | ||
| 927 | A 4114270012 | GUIDE |
| 927 | A 4114270012 | GUIDE |
| 928 | A 4049930005 | SPRING |
| 928 | A 4049930005 | SPRING |
| 929 | A 4044270031 | ROD |
| 929 | A 4044270031 | ROD |
| 930 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 930 | N 000125010532 | WASHER |
| 930 | N 000125010532 | WASHER |
| 931 | N 000094002077 | COTTER PIN |
| 931 | N 000094002077 | COTTER PIN |
| 932 | N 000433013005 | WASHER |
| Repalced by: N 000433013010 | ||
| 932 | N 000433013010 | WASHER |
| 932 | N 000433013010 | WASHER |
| A 4112610040 | BRACKET | |
| A 4112610140 | BRACKET | |
| A 4112610140 | BRACKET | |
| 940 | N 000094003219 | COTTER PIN |
| 940 | N 000094003219 | COTTER PIN |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
