Transporto priemonė: U 54; VIN numerio dalis: 403120
Grupė: 42 BRAKE SYSTEM - 001 BRAKES
43350
43351
43352
43353
43354
43355
43356
43357
43358
43359
43360
# Kodas Pavadinimas

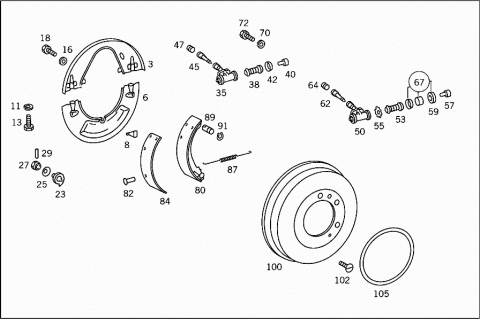

003 A 4164200644 PROTECTIVE PLATE
A 4069875151 RUBBER SEAL
006 A 4164200744 PROTECTIVE PLATE
008 A 4064210187 PROTECTIVE CAP
011 N 912004008102 LOCK WASHER
013 N 000931008276 SCREW
016 N 000125008418 WASHER
Repalced by: N 000125008443
016 N 000125008443 WASHER
018 N 000933008130 SCREW
Repalced by: N 304017008039
018 N 304017008039 SCREW
023 A 4214210434 ROLLER
LEFT
A 4214210534 ROLLER
RIGHT
025 A 0009932126 DISC SPRING
027 A 4214210176 WASHER
029 N 001481005009 CLAMPING SLEEVE
035 A 0024203718 WHEEL BRAKE CYLINDER
Repalced by: A 0024209918
038 A 0004212390 SPRING
040 A 0004211988 THRUST PIN
A 3034700031 CHAIN
042 A 0004231387 PROTECTIVE CAP
045 A 0004201555 BLEEDER VALVE
A 3164210187 PROTECTIVE CAP
Repalced by: A 0004210887
A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
047 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
047 A 0004210887 PROTECTIVE CAP
A 0005864888 REPAIR KIT
A 0024209918 WHEEL BRAKE CYLINDER
A 0004202355 BLEEDER VALVE
Repalced by: A 0004201755
A 0004201755 BLEEDER VALVE
A 0004212687 PROTECTIVE CAP
Repalced by: A 0004210887
A 3164210187 PROTECTIVE CAP
Repalced by: A 0004210887
A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
A 0004210887 PROTECTIVE CAP
A 0025861042 REPAIR KIT
050 A 0034201918 WHEEL BRAKE CYLINDER
38.1 MM
053 A 0004212790 SPRING
055 A 0004212289 FILLER
057 A 0004212288 THRUST PIN
059 A 0004213587 PROTECTIVE CAP
A 0004201855 BLEEDER VALVE
Repalced by: A 0004201555
062 A 0004201555 BLEEDER VALVE
A 0004212687 PROTECTIVE CAP
Repalced by: A 0004210887
A 3164210187 PROTECTIVE CAP
Repalced by: A 0004210887
A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
064 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
064 A 0004210887 PROTECTIVE CAP
067 A 0005865142 REPAIR KIT
070 N 912004008102 LOCK WASHER
072 N 000933008177 SCREW
Repalced by: N 304017008024
072 N 304017008024 SCREW
M 8X25
A 4064200120 BRAKE SHOE
Repalced by: A 4064200319
A 4064200320 BRAKE SHOE
Repalced by: A 4064200319
A 4164200020 BRAKE SHOE
Repalced by: A 4064200319
080 A 4064200319 BRAKE SHOE
LESS LINING
082 N 007338006300 RIVET
A 4064210110 BRAKE LINING
Repalced by: A 4164210010
A 4064210210 BRAKE LINING
Repalced by: A 4164210010
A 4164210010 BRAKE LINING
Repalced by: A 4164212510
084 A 4164212510 BRAKE LINING
PARTS KIT,ASBESTOS-FREE
7.0 MM
A 4064210310 BRAKE LINING
Repalced by: A 4164210110
A 4164210110 BRAKE LINING
Repalced by: A 4164210910
A 4164210910 BRAKE LINING
Repalced by: A 4164210610
A 4164210610 BRAKE LINING
Repalced by: A 4164211910
A 4164211910 BRAKE LINING
Repalced by: A 4164212610
A 4164212610 BRAKE LINING
PARTS KIT,ASBESTOS-FREE
7.50 MM
A 4219930010 SPRING
Repalced by: A 4169935310
A 4169935010 SPRING
Repalced by: A 4169935310
A 4169935210 SPRING
Repalced by: A 4169935310
087 A 4169935310 SPRING
A 4064210018 PIVOT PIN
Repalced by: A 4064210218
089 A 4064210218 PIVOT PIN
091 N 006799015002 LOCK PLATE
100 A 4164230201 BRAKE DRUM
N 000063010100 SCREW
Repalced by: A 4049900230
102 A 4049900230 SCREW
105 A 4164210080 GASKET
A 4064200644 PROTECTIVE PLATE
A 4069875151 RUBBER SEAL

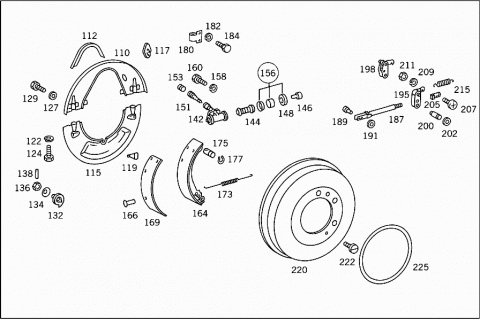

110 A 4164200444 PROTECTIVE PLATE
112 A 4069875151 RUBBER SEAL
A 4064200744 PROTECTIVE PLATE
A 4069875151 RUBBER SEAL
A 4164200544 PROTECTIVE PLATE
A 4069875151 RUBBER SEAL
A 4064200544 PROTECTIVE PLATE
115 A 4164200744 PROTECTIVE PLATE
117 A 4064210087 PROTECTIVE CAP
119 A 4064210187 PROTECTIVE CAP
122 N 912004008102 LOCK WASHER
124 N 000931008276 SCREW
127 N 000125008418 WASHER
Repalced by: N 000125008443
127 N 000125008443 WASHER
129 N 000933008130 SCREW
Repalced by: N 304017008039
129 N 304017008039 SCREW
132 A 4214210434 ROLLER
LEFT
A 4214210534 ROLLER
RIGHT
134 A 0009932126 DISC SPRING
136 A 4214210176 WASHER
138 N 001481005009 CLAMPING SLEEVE
A 0024200818 WHEEL BRAKE CYLINDER
Repalced by: A 0034200318
A 0034200318 WHEEL BRAKE CYLINDER
20.64 MM
A 0004232993 SPRING
A 0004230988 THRUST PIN
A 0004232687 PROTECTIVE CAP
A 0004200355 BLEEDER VALVE
Repalced by: A 0004201555
A 0004201555 BLEEDER VALVE
A 3164210187 PROTECTIVE CAP
Repalced by: A 0004210887
A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
A 0004210887 PROTECTIVE CAP
A 0005864988 REPAIR KIT
Repalced by: A 0004201151
A 0004201151 REPAIR KIT
142 A 0034200418 WHEEL BRAKE CYLINDER
22.2 MM
144 A 0004233393 SPRING
146 A 0004230988 THRUST PIN
148 A 0004210087 PROTECTIVE CAP
151 A 0004201555 BLEEDER VALVE
A 3164210187 PROTECTIVE CAP
Repalced by: A 0004210887
A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
153 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
153 A 0004210887 PROTECTIVE CAP
A 0005861642 REPAIR KIT
Repalced by: A 0004201251
156 A 0004201251 REPAIR KIT
158 N 912004008102 LOCK WASHER
160 N 000933008177 SCREW
Repalced by: N 304017008024
160 N 304017008024 SCREW
A 4064200120 BRAKE SHOE
Repalced by: A 4064200319
A 4064200320 BRAKE SHOE
Repalced by: A 4064200319
A 4164200020 BRAKE SHOE
Repalced by: A 4064200319
164 A 4064200319 BRAKE SHOE
LESS LINING
166 N 007338006300 RIVET
A 4064210110 BRAKE LINING
Repalced by: A 4164210010
A 4064210210 BRAKE LINING
Repalced by: A 4164210010
A 4164210010 BRAKE LINING
Repalced by: A 4164212510
169 A 4164212510 BRAKE LINING
PARTS KIT,ASBESTOS-FREE
7.0 MM
A 4064210310 BRAKE LINING
Repalced by: A 4164210110
A 4164210110 BRAKE LINING
Repalced by: A 4164210910
A 4164210910 BRAKE LINING
Repalced by: A 4164210610
A 4164210610 BRAKE LINING
Repalced by: A 4164211910
A 4164211910 BRAKE LINING
Repalced by: A 4164212610
A 4164212610 BRAKE LINING
PARTS KIT,ASBESTOS-FREE
7.50 MM
A 4219930010 SPRING
Repalced by: A 4169935310
A 4169935010 SPRING
Repalced by: A 4169935310
A 4169935210 SPRING
Repalced by: A 4169935310
173 A 4169935310 SPRING
A 4064210018 PIVOT PIN
Repalced by: A 4064210218
175 A 4064210218 PIVOT PIN
177 N 006799015002 LOCK PLATE
180 A 4064270044 GUIDE
182 N 912004006102 LOCK WASHER
184 N 000933006103 SCREW
Repalced by: N 304017006018
184 N 304017006018 SCREW
187 A 4064200274 ROD
189 N 001434008041 PIN
191 N 000125008418 WASHER
Repalced by: N 000125008443
191 N 000125008443 WASHER
N 000094002059 COTTER PIN
Repalced by: N 000094002060
N 000094002060 COTTER PIN
A 4064200389 SHACKLE
Repalced by: A 4064200489
195 A 4064200489 SHACKLE
LEFT
A 4064200289 SHACKLE
Repalced by: A 4064200589
198 A 4064200589 SHACKLE
RIGHT
N 001434010017 PIN
N 000471010001 LOCK RING
200 N 001434010105 PIN
202 N 000125010518 WASHER
Repalced by: N 000125010532
202 N 000125010532 WASHER
N 000094003219 COTTER PIN
205 A 4214230044 THRUST SHACKLE
207 A 4169905130 SCREW
209 N 912004006102 LOCK WASHER
211 N 000934006007 NUT
A 4069935210 SPRING
215 A 4069935310 SPRING
A 4064230101 BRAKE DRUM
220 A 4164230201 BRAKE DRUM
N 000063010100 SCREW
Repalced by: A 4049900230
222 A 4049900230 SCREW
225 A 4164210080 GASKET

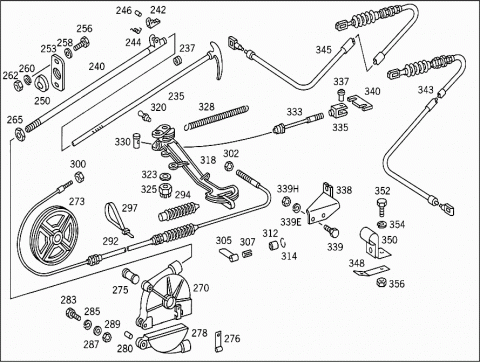

235 A 4064200188 RATCHET ROD
237 A 1124270086 DAMPING RING
240 A 4064200177 GUIDE
242 A 1204270115 PAWL
244 A 1209930020 SPRING
246 N 007341006101 RIVET
250 A 4064270060 SEAL RING
253 A 4064270193 FLANGE
256 N 000933006102 SCREW
BEARING FLANGE TO CAB
258 N 009021006205 WASHER
Repalced by: N 009021006208
258 N 009021006208 WASHER
BEARING FLANGE TO CAB
260 N 912004006102 LOCK WASHER
BEARING FLANGE TO CAB
262 N 000934006007 NUT
BEARING FLANGE TO CAB
265 N 000439018204 NUT
270 A 4064270381 HOUSING
A 4064270042 CABLE PULLEY
Repalced by: A 4064270242
273 A 4064270242 CABLE PULLEY
A 4064271574 PIN
Repalced by: A 4064271774
275 A 4064271774 PIN
A 0059811710 NEEDLE BEARING
N 900055020201 LOCK RING
276 A 4069935015 SPRING
N 001476006003 GROOVED NAIL
N 912004006102 LOCK WASHER
N 000933006122 SCREW
Repalced by: N 304017006034
N 304017006034 SCREW
278 A 4064270481 HOUSING
Repalced by: A 4174270081
278 A 4174270081 HOUSING
280 A 4064270753 SPACER TUBE
283 N 000931008327 SCREW
Repalced by: N 304017008043
283 N 304017008043 SCREW
285 N 009021008205 WASHER
Repalced by: N 009021008213
285 N 009021008213 WASHER
Repalced by: N 000000003250
285 N 000000003250 WASHER
287 N 912004008102 LOCK WASHER
289 N 913004008004 NUT
Repalced by: N 913003008003
289 N 913003008003 PART NAME MISSING
Repalced by: N 913023008003
289 N 913023008003 NUT
Repalced by: N 913023008002
289 N 913023008002 NUT
292 A 4064200585 BRAKE CABLE
A 4064200985 BRAKE CABLE
294 A 4069871343 RUBBER SLEEVE
A 0009950859 SHACKLE
Repalced by: A 0019978390
297 A 0019978390 LOOM TIE
300 N 000934006007 NUT
BRAKE CABLE
302 N 304032008006 NUT
BRAKE CABLE
A 4164210028 YOKE
Repalced by: A 4194210028
A 4194210028 YOKE
BRAKE CABLE TO INTERMEDIATE LEVER
N 918001008001 PIN
BRAKE CABLE TO INTERMEDIATE LEVER
305 A 4119950035 CLAMP
307 A 4049871943 RUBBER SLEEVE
312 A 4065990189 EYE
INTERMEDIATE LEVER TO BEARING BRACKET
314 N 009045016001 SNAP RING
INTERMEDIATE LEVER TO BEARING BRACKET
A 4064200042 BRAKE LEVER
Repalced by: A 4064270210
318 A 4064270210 INTERMEDIATE LEVER
A 4064270310 INTERMEDIATE LEVER
A 0059811610 NEEDLE BEARING
320 N 071412008200 GREASE NIPPLE
323 N 000125015013 WASHER
Repalced by: N 000125015019
323 N 000125015019 WASHER
INTERMEDIATE LEVER TO BEARING BRACKET
325 N 000935014004 NUT
INTERMEDIATE LEVER TO BEARING BRACKET
N 000094003226 COTTER PIN
INTERMEDIATE LEVER TO BEARING BRACKET
328 A 3159930210 SPRING
INTERMEDIATE LEVER TO BEARING BRACKET
A 4064271274 PIN
Repalced by: A 4194270074
330 A 4194270074 PIN
INTERMEDIATE LEVER TO BEARING BRACKET
333 A 4064200285 BRAKE CABLE
Repalced by: A 4074200885
333 A 4074200885 BRAKE CABLE
N 071752010004 YOKE
Repalced by: A 0009961401
335 A 0009961401 YOKE
N 000934010014 NUT
Repalced by: N 910112010001
N 910112010001 NUT
Repalced by: N 913023010002
N 913023010002 NUT
337 N 001434010127 PIN
N 000094003226 COTTER PIN
338 A 4064202286 BRACKET
Repalced by: A 4174200486
338 A 4174200486 BRACKET
BRAKE CABLE
339 N 910105012013 SCREW
BRACKET
N 000933010129 SCREW
Repalced by: N 910105010001
N 910105010001 HEXAGON HEAD BOLT
339E N 912004010102 LOCK WASHER
339H N 913004012008 NUT
Repalced by: N 913023012003
339H N 913023012003 NUT
BRACKET
A 4064270010 INTERMEDIATE LEVER
340 A 4044270189 CONNECTOR
A 4064200385 BRAKE CABLE
Repalced by: A 4064200685
343 A 4064200685 BRAKE CABLE
LEFT
A 4064200485 BRAKE CABLE
Repalced by: A 4064200785
345 A 4064200785 BRAKE CABLE
RIGHT
N 001434010127 PIN
N 000094003219 COTTER PIN
348 A 4064270241 BRACKET
350 A 4164260540 BRACKET
352 N 000933006130 SCREW
Repalced by: N 304017006020
352 N 304017006020 SCREW
354 N 912004006102 LOCK WASHER
356 N 000934006007 NUT
A 4254263740 BRACKET
Repalced by: A 4254264240
A 4254264240 BRACKET
N 000933010129 SCREW
Repalced by: N 910105010001
N 910105010001 HEXAGON HEAD BOLT
N 000125010518 WASHER
Repalced by: N 000125010532
N 000125010532 WASHER
N 913004010008 NUT
Repalced by: N 913023010003
N 913023010003 NUT
N 001593019001 CLAMP
Repalced by: N 000000004912
N 000000004912 CLAMP
N 000933006121 SCREW
Repalced by: N 304017006020
N 304017006020 SCREW
N 913004006002 NUT
Repalced by: N 913023006001
N 913023006001 NUT
A 0014308501 BRAKE MASTER CYLINDER
TEVES
A 0024305301 BRAKE MASTER CYLINDER
KUGELFISCHER

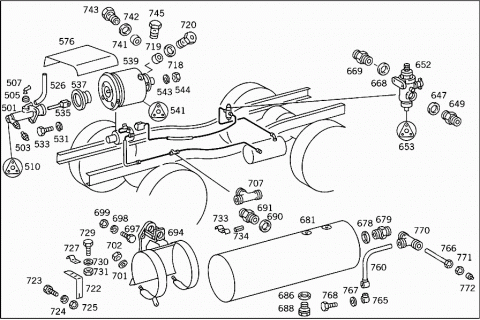

501 A 0024305701 BRAKE MASTER CYLINDER
TEVES
A 0024305601 BRAKE MASTER CYLINDER
KUGELFISCHER
A 0005455109 SWITCH
Repalced by: A 0005454309
503 A 0005454309 SWITCH
A 0009974235 PLUG
Repalced by: A 0009971186
505 A 0009971186 PLUG
TO 001 430 85 01,002 430 57 01, 56 01
507 A 0004310835 CONNECTOR
TO 001 430 85 01,002 430 57 01
A 0009907371 ELBOW FITTING
TO 002 430 53 01,002 430 56 01
A 0005861843 REPAIR KIT
TO 001 430 85 01,TEVES
A 0005868743 REPAIR KIT
TO 002 430 53 01,KUGELFISCHER
510 A 0005866143 REPAIR KIT
TO 002 430 57 01,TEVES
A 0005868843 REPAIR KIT
TO 002 430 56 01,KUGELFISCHER

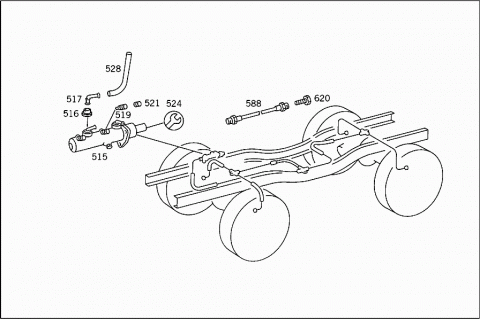

515 A 0034301301 BRAKE MASTER CYLINDER
(TANDEM BRAKE MASTER CYLINDER)
516 A 0002950050 BUSHING
Repalced by: A 0004310950
516 A 0004310950 BUSHING
517 A 0009909071 ELBOW FITTING
519 A 0004310665 VALVE
Repalced by: A 0004205255
519 A 0004205255 BLEEDER VALVE
Repalced by: A 0004208755
519 A 0004208755 BLEEDER VALVE
A 0004316087 PROTECTIVE CAP
Repalced by: A 0004210887
A 3164210187 PROTECTIVE CAP
Repalced by: A 0004210887
A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
521 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
521 A 0004210887 PROTECTIVE CAP
524 A 0015865443 REPAIR KIT
TO 003 430 13 01
526 A 0029977682 HOSE
Repalced by: A 0029976782
A 0029976782 HOSE
Repalced by: A 4069977782
528 A 4069977782 HOSE
A 0009953344 CLAMP
Repalced by: A 0019978390
A 0019978390 LOOM TIE
531 N 912004008102 LOCK WASHER
MASTER CYLINDER TO BRAKE BOOSTER
533 N 000933008154 SCREW
Repalced by: N 304017008021
533 N 304017008021 SCREW
MASTER CYLINDER TO BRAKE BOOSTER
A 4062900639 ROD
535 A 4062900939 ROD
A 4212920097 BOOT
Repalced by: A 4212920197
537 A 4212920197 BOOT
A 0004312314 BRAKE CYLINDER
Repalced by: A 0004317414
A 0005865743 REPAIR KIT
A 0004314614 BRAKE CYLINDER
Repalced by: A 0004317414
A 0015866943 REPAIR KIT
539 A 0004317414 BRAKE BOOSTER
541 A 0005865843 REPAIR KIT
543 N 912004010102 LOCK WASHER
BRAKE BOOSTER TO CAB
544 N 000934010014 NUT
Repalced by: N 910112010001
544 N 910112010001 NUT
Repalced by: N 913023010002
544 N 913023010002 NUT
BRAKE BOOSTER TO CAB
546 A 4064201035 LINE
Repalced by: A 0004290701
A 4064201037 LINE
Repalced by: A 0004290701
A 4064201137 LINE
Repalced by: A 0004290701
A 3209922282 HOSE

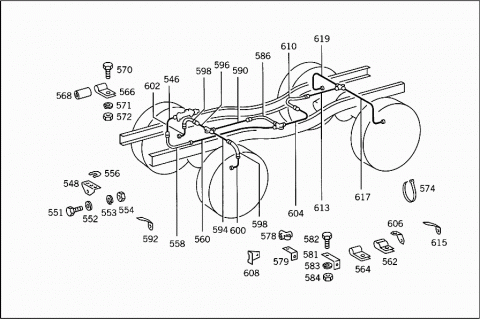

548 A 4212950040 BRACKET
BRAKE HOSE
551 N 000933006102 SCREW
BRACKET TO RADIATOR GRILLE
552 N 009021006205 WASHER
Repalced by: N 009021006208
552 N 009021006208 WASHER
BRACKET TO RADIATOR GRILLE
553 N 912004006102 LOCK WASHER
BRACKET TO RADIATOR GRILLE
554 N 000934006007 NUT
BRACKET TO RADIATOR GRILLE
556 A 0004280473 BRACKET
Repalced by: A 6525040038
556 A 6525040038 MOUNTING PLATE
BRAKE HOSE
A 0004293635 BRAKE HOSE
Repalced by: A 0004293435
558 A 0004293435 BRAKE HOSE
Repalced by: A 0024286035
558 A 0024286035 BRAKE HOSE
558 A 0024286035 BRAKE HOSE
560 A 4064201135 LINE
Repalced by: A 0004290701
A 4064203435 LINE
Repalced by: A 0004290701
A 4064203137 LINE
Repalced by: A 0004290701
A 4064201337 LINE
Repalced by: A 0004290701
562 A 3049951020 CLAMP
BRAKE LINE TO CLUTCH LINE
562 A 3049951020 CLAMP
BRAKE LINE TO CLUTCH LINE
564 A 3609950101 CLAMP
Repalced by: A 3129951401
564 A 3129951401 CLAMP
BRAKE LINE TO CLUTCH LINE
564 A 3129951401 CLAMP
566 A 3609951401 CLAMP
Repalced by: N 916016011202
566 N 916016011202 CLAMP
568 A 3209922282 HOSE
570 N 000933006183 SCREW
Repalced by: N 304017006016
570 N 304017006016 SCREW
BRAKE LINE TO CLUTCH LINE
571 N 912004006102 LOCK WASHER
BRAKE LINE TO CLUTCH LINE
572 N 000934006007 NUT
BRAKE LINE TO CLUTCH LINE
A 0009953344 CLAMP
Repalced by: A 0019978390
574 A 0019978390 LOOM TIE
BRAKE LINE TO CLUTCH LINE
A 3045460643 BRACKET
BRAKE LINE TO FRAME
N 000933005035 SCREW
BRAKE LINE TO FRAME
N 913004005001 NUT
Repalced by: N 913023005002
N 913023005002 NUT
BRAKE LINE TO FRAME
576 A 4064290440 SCREENING PLATE
578 A 0004290437 DISTRIBUTOR
579 A 3274925419 BRACKET
Repalced by: A 6205240340
579 A 6205240340 BRACKET
581 A 4064264640 BRACKET
Repalced by: A 3184280240
581 A 3184280240 BRACKET
582 N 000933008168 SCREW
DISTRIBUTOR TO BRACKET
583 N 912004008102 LOCK WASHER
DISTRIBUTOR TO BRACKET
584 N 304032008006 NUT
DISTRIBUTOR TO BRACKET
586 A 0004283635 BRAKE HOSE
Repalced by: A 0024286335
586 A 0024286335 BRAKE HOSE
586 A 0014280635 BRAKE HOSE
Repalced by: A 0024286335
586 A 0024286335 BRAKE HOSE
A 0014280935 BRAKE HOSE
Repalced by: A 0014288735
A 0014288735 BRAKE HOSE
Repalced by: A 0024282035
588 A 0024282035 BRAKE HOSE
Repalced by: A 0024285835
588 A 0024285835 BRAKE HOSE
A 4064200628 LINE
Repalced by: A 3404200729
A 3404200729 LINE
6X0.7X500 MM
A 4064201128 LINE
Repalced by: A 3404200829
590 A 3404200829 LINE
Repalced by: A 1093207753
590 A 1093207753 LINE
6X0.7X550 MM
A 3044760019 BASE
Repalced by: A 3142030084
A 3142030084 SHIM
N 912004006102 LOCK WASHER
N 000933006102 SCREW
A 4214280043 ANGLE
592 A 4064280040 BRACKET
A 0004290437 DISTRIBUTOR
N 000933008168 SCREW
DISTRIBUTOR TO BRACKET
N 912004008102 LOCK WASHER
DISTRIBUTOR TO BRACKET
N 304032008006 NUT
DISTRIBUTOR TO BRACKET
A 4064200028 LINE
Repalced by: A 3404200729
A 3404200729 LINE
6X0.7X500 MM
A 4064201228 LINE
Repalced by: A 3404201029
594 A 3404201029 LINE
6X0.7X650 MM
A 4064200128 LINE
Repalced by: A 3404201529
A 3404201529 LINE
6X0.7X900 MM
A 4064201328 LINE
Repalced by: A 3404201229
596 A 3404201229 LINE
6X0.7X750 MM
A 0014280435 BRAKE HOSE
Repalced by: A 0024285735
A 0004287135 BRAKE HOSE
Repalced by: A 0014281735
598 A 0014281735 BRAKE HOSE
Repalced by: A 0024285735
598 A 0024285735 BRAKE HOSE
596 A 3404201229 LINE
6X0.7X750 MM
A 0004280473 BRACKET
Repalced by: A 6525040038
A 6525040038 MOUNTING PLATE
A 4063350246 STOP
LEFT
A 4063350346 STOP
RIGHT
600 A 4064200828 LINE
Repalced by: A 3404200529
600 A 3404200529 LINE
6X0.7X400 MM
602 A 4064200928 LINE
Repalced by: A 3404200529
A 4064201235 LINE
Repalced by: A 0004290701
A 4064202035 LINE
Repalced by: A 0004290701
604 A 4064205737 LINE
Repalced by: A 0004290701
606 A 4063350346 STOP
A 0009972190 LOOM TIE
Repalced by: N 916017060000
N 916017060000 CLAMP
Repalced by: N 000000000673
N 000000000673 CLAMP
A 4164230094 BRACKET
Repalced by: A 4164230194
608 A 4164230194 BRACKET
PIPE LINE TO FRAME CROSS MEMBER
A 0004280473 BRACKET
Repalced by: A 6525040038
A 6525040038 MOUNTING PLATE
A 0009972290 LOOM TIE
Repalced by: N 916017080000
N 916017080000 CLAMP
Repalced by: N 000000000675
N 000000000675 CLAMP
Repalced by: A 0059972990
A 0059972990 CLAMP
610 A 0004287035 BRAKE HOSE
TEVES
A 0014280735 BRAKE HOSE
Repalced by: A 0024284035
A 0024284035 BRAKE HOSE
Repalced by: A 0024285935
A 0024285935 BRAKE HOSE
KUGELFISCHER
A 4064201028 LINE
Repalced by: A 3404201529
A 3404201529 LINE
6X0.7X900 MM
613 A 4064201728 LINE
Repalced by: A 3404201529
A 3044760019 BASE
Repalced by: A 3142030084
A 3142030084 SHIM
N 912004006102 LOCK WASHER
N 000933006102 SCREW
A 4214280043 ANGLE
615 A 4064280040 BRACKET
A 0004290437 DISTRIBUTOR
N 000933008168 SCREW
DISTRIBUTOR TO BRACKET
N 912004008102 LOCK WASHER
DISTRIBUTOR TO BRACKET
N 304032008006 NUT
DISTRIBUTOR TO BRACKET
A 4064200228 LINE
Repalced by: A 3404202429
A 3404202429 LINE
6X0.7X1350 MM
A 4064201528 LINE
Repalced by: A 3404202329
617 A 3404202329 LINE
6X0.7X1300 MM
A 4064200328 LINE
Repalced by: A 3404201729
A 3404201729 LINE
6X0.7X1000 MM
A 4064201628 LINE
Repalced by: A 3404202229
619 A 3404202229 LINE
6X0.7X1250 MM
620 A 0004280072 UNION SCREW
625 N 007603022102 SEAL RING
626 N 074313018201 FITTING
628 N 074299022202 DOUBLE FITTING
628 N 074299022202 DOUBLE FITTING

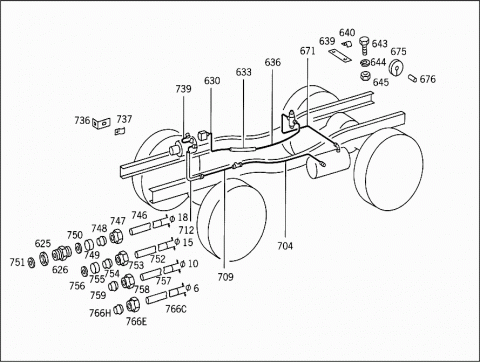

630 A 4064209526 LINE
Repalced by: A 4064290725
631 A 4064201437 LINE
Repalced by: A 4114293402
633 A 4069975882 HOSE
634 A 4069976582 HOSE
634 A 4069976582 HOSE
A 0009971390 LOOM TIE
Repalced by: N 916017020000
N 916017020000 CLAMP
Repalced by: N 000000000667
N 000000000667 CLAMP
N 916017016000 CLAMP
Repalced by: N 000000000666
N 000000000666 CLAMP
A 4064200326 LINE
Repalced by: A 4064290725
636 A 4064206826 LINE
FROM HOSE TO PRESSURE REGULATOR
18 MM
637 A 4064208736 LINE
Repalced by: A 4114293402
A 4064261040 BRACKET
Repalced by: A 6674710541
639 A 6674710541 BRACKET
FROM AIR COMPRESSOR TO PRESSURE REGULATOR
640 A 3609950601 CLAMP
A 3609950501 CLAMP
Repalced by: A 3609952001
A 3609952001 CLAMP
Repalced by: A 3049950220
A 3049950220 CLAMP
Repalced by: A 3129952420
641 A 3129952420 CLAMP
Repalced by: A 1109950401
641 A 1109950401 CLAMP
FROM AIR COMPRESSOR TO PRESSURE REGULATOR
641 A 1109950401 CLAMP
FROM AIR COMPRESSOR TO PRESSURE REGULATOR
643 N 000933006183 SCREW
Repalced by: N 304017006016
643 N 304017006016 SCREW
FROM AIR COMPRESSOR TO PRESSURE REGULATOR
644 N 912004006102 LOCK WASHER
FROM AIR COMPRESSOR TO PRESSURE REGULATOR
645 N 000934006007 NUT
FROM AIR COMPRESSOR TO PRESSURE REGULATOR
647 N 007603026104 SEAL RING
648 N 007603022102 SEAL RING
648 N 007603022102 SEAL RING
649 N 074313018201 FITTING
650 N 074313016203 FITTING
Repalced by: A 0019970172
650 A 0019970172 FITTING
Repalced by: A 0009970171
650 A 0009970171 FITTING
650 A 0009970171 FITTING
A 0004313006 VALVE
Repalced by: A 0004317906
A 0005867643 REPAIR KIT
652 A 0004317906 PRESSURE REGULATOR
Repalced by: A 0024316006
652 A 0024316006 PRESSURE REGULATOR
Repalced by: A 0024315906
652 A 0024315906 PRESSURE REGULATOR
A 0004313834 STRAINER
653 A 0005867743 REPAIR KIT
PRESSURE REGULATOR
TO 000 431 79 06

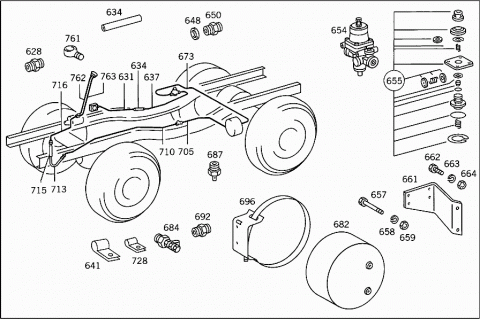

654 A 0014312906 PRESSURE REGULATOR
Repalced by: A 0034316006
654 A 0034316006 VALVE
654 A 0034316006 VALVE
655 A 0015865743 REPAIR KIT
PRESSURE REGULATOR
TO 001 431 29 06
655 A 0015865743 REPAIR KIT
N 000933008153 SCREW
Repalced by: N 304017008034
N 304017008034 SCREW
657 N 000931008251 SCREW
PRESSURE REGULATOR TO BRACKET
657 N 000931008251 SCREW
PRESSURE REGULATOR TO BRACKET
658 N 912004008102 LOCK WASHER
PRESSURE REGULATOR TO BRACKET
659 N 304032008006 NUT
PRESSURE REGULATOR TO BRACKET
661 A 4064310240 BRACKET
PRESSURE REGULATOR
661 A 4064310240 BRACKET
PRESSURE REGULATOR
662 N 000933010164 SCREW
BRACKET TO FRAME
662 N 000933010164 SCREW
BRACKET TO FRAME
663 N 912004010102 LOCK WASHER
BRACKET TO FRAME
664 N 000934010014 NUT
Repalced by: N 910112010001
664 N 910112010001 NUT
Repalced by: N 913023010002
664 N 913023010002 NUT
BRACKET TO FRAME
664 N 913023010002 NUT
BRACKET TO FRAME
668 N 007603022102 SEAL RING
N 074313016203 FITTING
Repalced by: A 0019970172
A 0019970172 FITTING
Repalced by: A 0009970171
A 0009970171 FITTING
669 N 074313010101 FITTING
A 4064200426 LINE
FROM PRESSURE REGULATOR TO AIR RESERVOIR
15 MM
A 4064201335 LINE
Repalced by: A 0005516256
671 A 4064207636 LINE
Repalced by: A 0004292301
A 4064205336 LINE
Repalced by: A 0004292301
673 A 4064200837 LINE
Repalced by: A 0004292301
A 4069875042 SPACER
675 A 4069875242 SPACER
A 0009972190 LOOM TIE
Repalced by: N 916017060000
N 916017060000 CLAMP
Repalced by: N 000000000673
N 000000000673 CLAMP
676 A 4049871943 RUBBER SLEEVE
N 074315000301 FITTING
Repalced by: A 0009909171
A 0009909171 ELBOW FITTING
N 074301022203 ELBOW FITTING
AT AIR RESERVOIR
N 080705022001 NUT
AT AIR RESERVOIR
N 007604022102 SCREW PLUG
AT AIR RESERVOIR
M 22X1.5
A 0004290227 THRUST RING
Repalced by: A 0009940203
A 0009940203 THRUST RING
AT AIR RESERVOIR
A 0009870446 O-RING
AT AIR RESERVOIR
678 N 007603022102 SEAL RING
AT AIR RESERVOIR
679 N 074313010101 FITTING
AT AIR RESERVOIR
681 A 4064300605 RESERVOIR
A 4214320715 AIR RESERVOIR
Repalced by: A 4214320815
682 A 4214320815 AIR RESERVOIR
Repalced by: A 0034327801
682 A 0034327801 RESERVOIR
682 A 0034327801 RESERVOIR
684 A 0004311431 TEST CONNECTION
A 0004312031 TEST CONNECTION
A 0004314531 TEST CONNECTION
A 0039972072 FITTING
686 N 007603022102 SEAL RING
687 A 0004320807 VALVE
DRAIN VALVE
WESTINGHOUSE
A 0004321107 VALVE
DRAIN VALVE
VOSS
Repalced by: A 0004322407
A 0004322407 DRAIN VALVE
DRAIN VALVE
VOSS
Repalced by: A 0004322107
A 0004322107 DRAIN VALVE
DRAIN VALVE
VOSS
A 0004322107 VALVE
DRAIN VALVE
AUCO
A 0004321507 VALVE
Repalced by: A 0004322407
A 0004322407 VALVE
DRAIN VALVE
WIRA
Repalced by: A 0004322107
A 0004322107 DRAIN VALVE
DRAIN VALVE
WIRA
688 A 3469970230 SCREW PLUG
690 N 007603022102 SEAL RING
691 N 074313016203 FITTING
Repalced by: A 0019970172
691 A 0019970172 FITTING
Repalced by: A 0009970171
691 A 0009970171 FITTING
692 N 074313010101 FITTING
694 A 4064200286 BRACKET
696 A 4064201486 BRACKET
696 A 4064201486 BRACKET
A 4066145043 BEARING BRACKET
SEE MICROFICHE NO.0282,GROUP 60
697 N 000933010129 SCREW
Repalced by: N 910105010001
697 N 910105010001 HEXAGON HEAD BOLT
SEE MICROFICHE NO.0282,GROUP 60
698 N 912004010102 LOCK WASHER
SEE MICROFICHE NO.0282,GROUP 60
699 N 000934010014 NUT
Repalced by: N 910112010001
699 N 910112010001 NUT
Repalced by: N 913023010002
699 N 913023010002 NUT
SEE MICROFICHE NO.0282,GROUP 60
701 N 912004010102 LOCK WASHER
702 N 000934010014 NUT
Repalced by: N 910112010001
702 N 910112010001 NUT
Repalced by: N 913023010002
702 N 913023010002 NUT
A 4064208326 LINE
Repalced by: A 0004292301
704 A 4164204437 LINE
Repalced by: A 0004292301
705 A 4064209136 LINE
FROM AIR RESERVOIR TO FITTING
10 MM
707 N 074302022202 T-FITTING
N 003908010002 T-FITTING
709 A 4064206926 LINE
Repalced by: A 0005516256
A 4064209236 LINE
Repalced by: A 4064297709
710 A 4064297709 LINE
712 A 4064200048 BRAKE HOSE
713 A 4069877943 HOSE
420 MM
N 900288015006 CLAMP
N 900288017001 CLAMP
715 A 4049970982 HOSE
350 MM
716 A 4064201537 LINE
10 MM
718 N 007603018104 SEAL RING
719 A 4214310153 SPACER TUBE
720 A 4219905563 HOLLOW SCREW
A 4064261140 BRACKET
Repalced by: A 4064265540
A 4064265540 BRACKET
Repalced by: A 4064265440
722 A 4064265440 BRACKET
PIPE LINE TO FRAME
723 N 000931010258 SCREW
Repalced by: N 910105010021
723 N 910105010021 SCREW
Repalced by: N 910105010017
723 N 910105010017 SCREW
BRACKET TO FRAME
724 N 912004010102 LOCK WASHER
BRACKET TO FRAME
725 N 000934010014 NUT
Repalced by: N 910112010001
725 N 910112010001 NUT
Repalced by: N 913023010002
725 N 913023010002 NUT
BRACKET TO FRAME
A 3049950220 CLAMP
Repalced by: A 3129952420
727 A 3129952420 CLAMP
Repalced by: A 1109950401
727 A 1109950401 CLAMP
728 A 3609950301 CLAMP
729 N 000000001147 SCREW
PIPE LINE TO FRAME
M 6X20
730 N 912004006102 LOCK WASHER
PIPE LINE TO FRAME
731 N 913004006002 NUT
Repalced by: N 913023006001
731 N 913023006001 NUT
PIPE LINE TO FRAME
733 A 3039950232 CLAMP
734 A 3129973782 HOSE
A 0009972190 LOOM TIE
Repalced by: N 916017060000
N 916017060000 CLAMP
Repalced by: N 000000000673
N 000000000673 CLAMP
A 3204340440 BRACKET
Repalced by: A 3812950440
736 A 3812950440 BRACKET
737 A 3049951520 CLAMP
Repalced by: A 1009950420
737 A 1009950420 CLAMP
739 A 4214207536 LINE
15 MM
741 A 4214310053 SPACER TUBE
742 N 007603018104 SEAL RING
743 A 4219905263 HOLLOW SCREW
A 4214310153 SPACER TUBE
745 A 4219905463 HOLLOW SCREW
746 A 4064290725 LINE
18 X 1.5 MM
747 N 915018018000 UNION NUT
748 N 003861018003 GLAND
Repalced by: A 0019901167
748 A 0019901167 SEAL CONE
749 N 915065018101 THRUST RING
750 A 0004291584 SEAL RING
Repalced by: N 007603018104
751 N 007603018104 SEAL RING
AT AIR COMPRESSOR
A 4114293402 LINE
Repalced by: A 0005516256
752 A 0005516256 TUBE
15 X 1.5 MM
A 0004292084 SEAL RING
Repalced by: N 915045012100
N 007603014106 SEAL RING
AT AIR COMPRESSOR
753 N 915018015000 UNION NUT
754 N 003861015004 GLAND
755 N 915065015101 THRUST RING
756 N 007603014106 SEAL RING
757 A 0004292301 LINE
10 X 1.0 MM
758 N 915017010100 UNION NUT
759 N 003861010009 GLAND
760 A 4214200045 LINE
Repalced by: A 4214201726
761 N 915010004202 BANJO UNION
A 4064206237 LINE
Repalced by: A 4214201726
762 A 4214201726 LINE
DELIVERY LINE TO PRESSURE GAUGE, "SUPPLY"
6X0.7 MM
762 A 4214201726 LINE
DELIVERY LINE TO PRESSURE GAUGE, "BRAKE"
6X0.7 MM
763 A 4214200545 LINE
6 MM FROM COMBI INSTRUMENT TO SINGLE CHAM BER BRAKE BOOSTER
765 N 915010004202 BANJO UNION
766 A 4214200145 LINE
Repalced by: A 0004290701
A 0004290701 LINE
Repalced by: A 0004296201
766C A 0004296201 LINE
6 X 0.7 MM
766E N 915017006100 UNION NUT
DELIVERY LINE TO PRESSURE GAUGE, "SUPPLY"
766E N 915017006100 UNION NUT
DELIVERY LINE TO PRESSURE GAUGE, "BRAKE"
766H N 003861006007 GLAND
Repalced by: A 0019901667
766H A 0019901667 SEAL CONE
DELIVERY LINE TO PRESSURE GAUGE, "SUPPLY"
766H A 0019901667 SEAL CONE
DELIVERY LINE TO PRESSURE GAUGE, "BRAKE"
767 N 007603010112 SEAL RING
768 N 915036006202 HOLLOW SCREW
N 915036006202 HOLLOW SCREW
A 0004291532 T-FITTING
Repalced by: N 003908006001
770 A 0009903470 T-FITTING
Repalced by: N 000000006204
770 N 000000006204 FITTING
A 3209970286 PLUG
771 N 915017006100 UNION NUT
772 N 003861006007 GLAND
Repalced by: A 0019901667
772 A 0019901667 SEAL CONE
A 4065840121 GUIDE SIGN
AT INSTRUMENT CLUSTER
A 4065842421 GUIDE SIGN
AT INSTRUMENT CLUSTER
A 4065842421 GUIDE SIGN
A 4214200168 SUPPORT
Repalced by: A 4064200168
775 A 4064200168 SUPPORT
776 A 4214270174 PIN
777 A 4219930001 SPRING
N 001476002008 GROOVED NAIL
779 A 4062600139 SHIFT LEVER
780 N 071412010200 GREASE NIPPLE
782 N 000471018000 LOCK RING
784 A 4064200468 SUPPORT
786 A 4219925003 BUSHING
N 000933010238 SCREW
Repalced by: N 304017010028
N 304017010028 HEXAGON HEAD BOLT
788 N 000933010164 SCREW
789 N 912004010102 LOCK WASHER
790 N 000934010014 NUT
Repalced by: N 910112010001
790 N 910112010001 NUT
Repalced by: N 913023010002
790 N 913023010002 NUT
792 A 4212670046 SHIFTING SEGMENT
793 N 000933008153 SCREW
Repalced by: N 304017008034
793 N 304017008034 SCREW
794 N 912004008102 LOCK WASHER
795 N 304032008006 NUT
N 000933010164 SCREW
797 A 4062601839 SHIFT LEVER
799 A 4212600141 FOLLOWER
800 A 4212670085 SPRING RETAINER
801 A 4219935001 SPRING
803 N 001475012000 GROOVED PIN
804 A 4219885080 FASTENER BUTTON
806 N 000471016001 LOCK RING
Repalced by: A 0079942041
806 A 0079942041 LOCK
807 N 000125017010 WASHER
Repalced by: N 000125017016
807 N 000125017016 WASHER
N 000933010164 SCREW
809 A 4114270012 GUIDE
810 A 4049930005 SPRING
812 A 4044270031 ROD
813 N 000125010518 WASHER
Repalced by: N 000125010532
813 N 000125010532 WASHER
N 000094002077 COTTER PIN
814 N 000433013005 WASHER
Repalced by: N 000433013010
814 N 000433013010 WASHER
N 000094003219 COTTER PIN
A 4112610040 BRACKET
815 A 4064202486 BRACKET
816 A 4064200778 BEARING BRACKET
A 3609950401 CLAMP
DIFFERENTIAL-LOCK COMPRESSED AIR LINE
A 4164230194 BRACKET
DIFFERENTIAL-LOCK COMPRESSED AIR LINE
N 916017060000 CLAMP
Repalced by: N 000000000673
N 000000000673 CLAMP
DIFFERENTIAL-LOCK COMPRESSED AIR LINE
N 000933006183 SCREW
Repalced by: N 304017006016
N 304017006016 SCREW
DIFFERENTIAL-LOCK COMPRESSED AIR LINE
N 912004006102 LOCK WASHER
DIFFERENTIAL-LOCK COMPRESSED AIR LINE
N 000934006007 NUT
DIFFERENTIAL-LOCK COMPRESSED AIR LINE
A 3609950301 CLAMP
DIFFERENTIAL-LOCK COMPRESSED AIR LINE
A 3609950101 CLAMP
Repalced by: A 3129951401
A 3129951401 CLAMP
DIFFERENTIAL-LOCK COMPRESSED AIR LINE

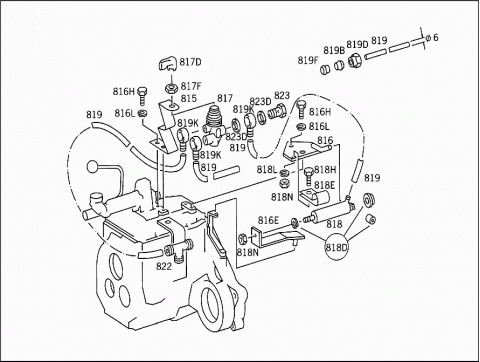

816E A 4064201674 ROD
816H N 000933010238 SCREW
Repalced by: N 304017010028
816H N 304017010028 HEXAGON HEAD BOLT
816L N 912004010102 LOCK WASHER
817 A 0019976936 VALVE
Repalced by: A 0029972636
817 A 0029972636 VALVE
ALL-WHEEL DRIVE AND DIFFERENTIAL LOCK
A 0025860943 REPAIR KIT
TO 001 997 69 36,002 997 26 36
A 0009970577 HANDLE
Repalced by: A 4252680242
817D A 4252680242 KNOB
ALL-WHEEL DRIVE AND DIFFERENTIAL LOCK
TO 002 997 26 36,001 997 69 36
817F A 3839900051 NUT
ALL-WHEEL DRIVE AND DIFFERENTIAL LOCK
TO 001 997 69 36,002 997 26 36
A 0004302726 CYLINDER
Repalced by: A 0004303026
818 A 0004303026 CYLINDER
POWER CYLINDER
KNORR
A 0004303126 CYLINDER
Repalced by: A 0004303726
A 0004303726 CYLINDER
POWER CYLINDER
TECHOMATIK
A 0015867243 REPAIR KIT
Repalced by: A 0024300060
818D A 0024300060 REPAIR KIT
POWER CYLINDER
TO 000 430 27 26
A 0004308460 REPAIR KIT
POWER CYLINDER
TO 000 430 30 26
A 0009956801 CLAMP
Repalced by: N 916016035201
818E N 916016035201 CLAMP
818H N 000933008147 SCREW
Repalced by: N 304017008021
818H N 304017008021 SCREW
818L N 912004008102 LOCK WASHER
818N N 304032008006 NUT
A 0109977082 HOSE
Repalced by: A 0089976082
819 A 0089976082 HOSE
Repalced by: A 0009872627
819 A 0009872627 PLASTIC PIPE
4X6 MM
A 0039979172 FITTING
(PARTS KIT),LINE RUPTURE
819B N 003861006007 GLAND
Repalced by: A 0019901667
819B A 0019901667 SEAL CONE
819D N 915017006100 UNION NUT
A 0009920105 BUSHING
Repalced by: N 915062004000
819F N 915062004000 SLEEVE
819K N 915052004015 BANJO UNION
N 003861006007 GLAND
Repalced by: A 0019901667
A 0019901667 SEAL CONE
A 0089979082 HOSE
Repalced by: A 0009872727
A 0009872727 PLASTIC PIPE
FROM T-FITTING TO SEPARATION POINT ON REAR AXLE
A 0009872727 PLASTIC PIPE
FROM T-FITTING TO SEPARATION POINT ON FRONT AXLE
A 0009872727 PLASTIC PIPE
FROM T-FITTING INTO THE OPEN AIR
A 0019909870 T-FITTING
Repalced by: A 0009907990
A 0009907990 T-FITTING
N 915059006002 FITTING
A 0019973572 FITTING
Repalced by: N 915059004000
N 915059004001 FITTING
822 A 3434301010 BRACKET
823 N 915036006202 HOLLOW SCREW
823D N 007603010103 SEAL RING
Repalced by: N 007603010110
823D N 007603010110 SEAL RING
A 0019978390 LOOM TIE
A 4064200136 LINE
Repalced by: A 0004290701
A 4064205126 LINE
Repalced by: A 0004290701
A 4164207137 LINE
Repalced by: A 0004292301
A 0004296344 VALVE
Repalced by: A 0014295244
A 3142030084 SHIM
BRAKE LINE & DIFFERENTIAL LOCK LINE TO THRUST TUBE
N 000933006183 SCREW
Repalced by: N 304017006016
N 304017006016 SCREW
BRAKE LINE & DIFFERENTIAL LOCK LINE TO THRUST TUBE
N 000933006147 SCREW
BRAKE LINE & DIFFERENTIAL LOCK LINE TO THRUST TUBE
N 912004006102 LOCK WASHER
BRAKE LINE & DIFFERENTIAL LOCK LINE TO THRUST TUBE
825 A 0014295244 VALVE
(OVERFLOW VALVE)
A 0014299844 VALVE
(OVERFLOW VALVE)
827 A 0005865842 REPAIR KIT
(OVERFLOW VALVE)
TO 001 429 98 44
A 0015862042 REPAIR KIT
(OVERFLOW VALVE)
TO 001 429 52 44
829 N 080705022001 NUT
830 A 0004290227 THRUST RING
Repalced by: A 0009940203
830 A 0009940203 THRUST RING
831 A 0009870446 O-RING
833 N 007603022102 SEAL RING
N 074313010101 FITTING
A 0004291034 ADAPTER FITTING
Repalced by: N 074313006100
N 074313006100 FITTING
Repalced by: A 0039972072
834 A 0039972072 FITTING
A 4064205026 LINE
Repalced by: A 0004290701
A 4064200036 LINE
Repalced by: A 0004290701
A 4064200336 LINE
Repalced by: A 0004290701
836 A 0004290701 LINE
Repalced by: A 0089976082
A 4164204637 LINE
Repalced by: A 0089976082
A 0009920105 BUSHING
Repalced by: N 915062004000
N 915062004000 SLEEVE
A 0004300409 VALVE
Repalced by: A 0004340501
A 0007631252 VALVE
Repalced by: A 0004340501
A 0004340501 VALVE
Repalced by: A 0004342301
842 A 0004342301 VALVE
3/2-WAY VALVE
A 0004317387 PROTECTIVE CAP
TO 000 434 05 01
A 0003280191 CLEANER
TO 000 434 23 01
A 0004340586 CUP
TO 000 434 23 01
A 0079972448 SEAL RING
TO 000 434 23 01
A 0079972548 SEAL RING
TO 000 434 23 01
A 0009971977 HANDLE
TO 000 434 23 01
843 A 0005869743 REPAIR KIT
3/2-WAY VALVE
TO 000 434 05 01
A 0025869843 REPAIR KIT
3/2-WAY VALVE
TO 000 434 23 01
A 0005866443 REPAIR KIT
3/2-WAY VALVE
TO 000 763 12 52
845 N 007603012405 SEAL RING
N 074298012202 DOUBLE FITTING
Repalced by: A 0019972872
A 0019972872 FITTING
Repalced by: A 0039979072
A 0039979072 FITTING
Repalced by: A 0029906071
846 A 0029906071 FITTING
848 A 4062670040 BRACKET
849 N 074305026202 NUT
A 4063500290 VALVE
Repalced by: A 4063500390
851 A 4063500390 DISTRIBUTOR
A 0009902878 CONNECTOR
Repalced by: A 0029901670
A 0029901670 T-FITTING
A 0004294237 DISTRIBUTOR
853 A 3209922282 HOSE
853 A 3209922282 HOSE
854 A 3120780185 PIPE BRACKET
854 A 3120780185 PIPE BRACKET
856 A 3609950101 CLAMP
Repalced by: A 3129951401
856 A 3129951401 CLAMP
857 A 3609950401 CLAMP
A 0009953344 CLAMP
Repalced by: A 0019978390
A 0019978390 LOOM TIE
N 000933005057 SCREW
N 912004005103 LOCK WASHER
N 304032005002 NUT
Repalced by: N 304032005005
N 304032005005 NUT
A 3044280081 RUBBER PAD
Repalced by: A 3129973482
859 A 3129973482 HOSE
A 0019979590 LOOM TIE
Repalced by: A 0019978390
A 0019978390 LOOM TIE
A 0029977190 LOOM TIE
Repalced by: N 916017100000
N 000000000676 CLAMP
Repalced by: N 000000005890
N 000000005890 CLAMP
860 A 4049951201 CLAMP
Repalced by: A 3609951101
860 A 3609951101 CLAMP
A 3609951001 CLAMP
HOSE TO REAR AXLE
A 3609951201 CLAMP
BREATHER LINE TO REAR AXLE
A 6034280184 SHIM
AT REAR AXLE
A 3609950201 CLAMP
Repalced by: A 3604300143
A 3604300143 CLAMP
Repalced by: N 916016008200
N 916016008200 CLAMP
Repalced by: N 000000000319
N 000000000319 CLAMP
A 6034280284 SHIM
AT TRUST TUBE FRONT
N 916016006208 CLAMP
AT TRUST TUBE FRONT
N 916016082001 CLAMP
BREATHER LINE TO FRONT AXLE
N 000933006102 SCREW
N 912004006102 LOCK WASHER
N 000934006007 NUT
862 N 912004010102 LOCK WASHER
863 N 000933010111 SCREW
865 A 4069976182 HOSE
5 X 9 X 220 MM
A 4063300482 LINE
Repalced by: A 0004290701
867 A 4063300682 LINE
Repalced by: A 0004290701
869 A 4069976182 HOSE
5 X 9 X 250 MM
A 4063500480 LINE
Repalced by: A 0004290701
A 4063500580 LINE
Repalced by: A 0004290701
871 A 4063500680 LINE
Repalced by: A 0004290701
A 0004290701 LINE
Repalced by: A 0089976082
881 N 915035000006 SEAL RING
N 915007006001 ADAPTER FITTING
882 A 4163310084 FITTING
A 0009900567 SEAL CONE
Repalced by: N 003862006002
883 N 003862006002 DOUBLE TAPER RING
884 N 915017006100 UNION NUT
887 N 003861006007 GLAND
Repalced by: A 0019901667
887 A 0019901667 SEAL CONE
888 N 915017006100 UNION NUT
N 916016006208 CLAMP
N 000084005180 SCREW
Repalced by: N 007985005175
N 007985005175 SCREW
N 304032005002 NUT
Repalced by: N 304032005005
N 304032005005 NUT
N 912004005103 LOCK WASHER
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
