Transporto priemonė: U 54; VIN numerio dalis: 403120

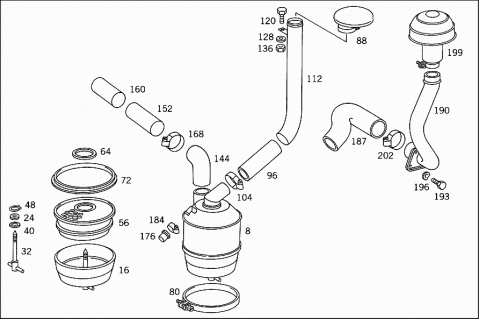

Grupė: 52 CHASSIS SHEET METAL - 001 SHEET METAL,AIR INTAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| 008 | A 0040946102 | AIR CLEANER |
| 016 | A 0000944303 | FILTER BOWL |
| 024 | A 0000948880 | GASKET |
| 032 | A 0000941071 | SCREW |
| 040 | A 0000940176 | WASHER |
| 048 | N 000471010001 | LOCK RING |
| 056 | A 0000948604 | FILTER ELEMENT |
| 064 | A 0000948380 | GASKET |
| 072 | A 0000948480 | GASKET |
| 080 | N 900288240102 | CLAMP |
| AIR CLEANER TO CAB | ||
| 088 | A 0000947506 | COVER |
| COVERING TO AIR INTAKE PIPE | ||
| 088 | A 4210940206 | COVER |
| COVERING TO AIR INTAKE PIPE | ||
| 096 | A 4069978082 | HOSE |
| FROM AIR CLEANER TO INTAKE FITTING | ||
| 104 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 104 | N 000000000674 | CLAMP |
| HOSE TO AIR CLEANER | ||
| 112 | A 4065200101 | AIR INTAKE PIPE |
| FROM AIR CLEANER TO INTAKE FITTING | ||
| 120 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 120 | N 304017006016 | SCREW |
| AIR INTAKE PIPE TO CAB | ||
| M 6X16 | ||
| 128 | N 000125006421 | WASHER |
| AIR INTAKE PIPE TO CAB | ||
| Repalced by: N 000125006449 | ||
| 128 | N 000125006449 | WASHER |
| AIR INTAKE PIPE TO CAB | ||
| 136 | N 000934006007 | NUT |
| AIR INTAKE PIPE TO CAB | ||
| 144 | A 4060920544 | PIPE |
| FROM AIR CLEANER TO ENGINE | ||
| 152 | A 4035280008 | AIR INTAKE PIPE |
| FROM AIR CLEANER TO ENGINE | ||
| 160 | A 4069978082 | HOSE |
| FROM AIR CLEANER TO ENGINE | ||
| 168 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 168 | N 000000000674 | CLAMP |
| FROM AIR CLEANER TO ENGINE | ||
| 176 | A 4069875045 | LOCKING CAP |
| LOCKING CAP TO AIR CLEANER FITTING | ||
| 184 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 184 | N 000000000666 | CLAMP |
| LOCKING CAP TO AIR CLEANER FITTING | ||
| 187 | A 4060920644 | PIPE |
| 190 | A 4260900029 | AIR INTAKE PIPE |
| FROM AIR CLEANER TO INTAKE FITTING | ||
| 193 | N 000933008145 | SCREW |
| AIR INTAKE PIPE TO CAB | ||
| 196 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 196 | N 000137008212 | SPRING WASHER |
| AIR INTAKE PIPE TO CAB | ||
| 199 | A 0000949706 | COVER |
| COVERING TO AIR INTAKE PIPE | ||
| 202 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 202 | N 000000000674 | CLAMP |
| HOSE TO AIR CLEANER | ||
