Transporto priemonė: U 54; VIN numerio dalis: 403120

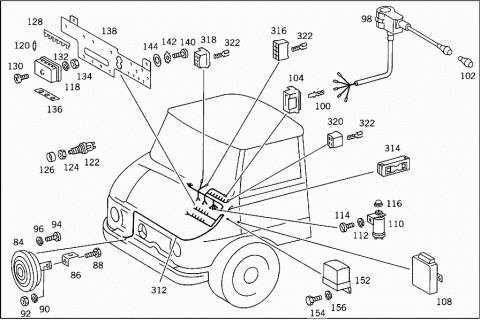

Grupė: 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
| # | Kodas | Pavadinimas |
|---|---|---|

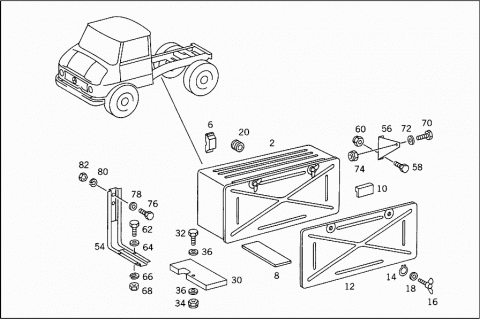

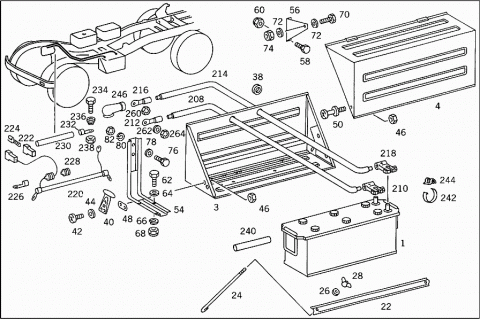

| A 0005418001 | BATTERY | |
| Repalced by: A 3875400801 | ||
| A 3875400801 | BATTERY | |
| Repalced by: A 0035410101 | ||
| A 0035410101 | BATTERY | |
| Repalced by: A 0035411801 | ||
| 001 | A 0035411801 | BATTERY |
| Repalced by: A 0025412301 | ||
| 001 | A 0025412301 | BATTERY |
| 12 V/120 AH | ||
| 002 | A 4065400414 | BATTERY CASE |
| 003 | A 4165400114 | BATTERY CASE |
| LOWER PART | ||
| 004 | A 4165400214 | BATTERY CASE |
| UPPER PART | ||
| 006 | A 4215410041 | STOP |
| 008 | A 4065410018 | BASE |
| Repalced by: A 4175410309 | ||
| 008 | A 4175410309 | TRAY |
| 010 | A 4065410342 | INSERT |
| 012 | A 4065400182 | COVER |
| 014 | N 000471008002 | LOCK RING |
| 016 | A 4045410071 | SCREW |
| 018 | N 000988008006 | FITTED WASHER |
| 020 | A 4119870241 | GROMMET |
| 022 | A 4165410121 | CLAMPING RAIL |
| A 4069965125 | ROD | |
| Repalced by: A 4165410044 | ||
| 024 | A 4165410044 | HOOK |
| 026 | N 000125006421 | WASHER |
| Repalced by: N 000125006449 | ||
| 026 | N 000125006449 | WASHER |
| 028 | A 0009900962 | NUT |
| 030 | A 4175410309 | TRAY |
| BATTERY MOUNTING | ||
| 032 | N 000931006118 | SCREW |
| BATTERY MOUNTING | ||
| M 6X35 | ||
| 034 | N 913004006002 | NUT |
| Repalced by: N 913023006001 | ||
| 034 | N 913023006001 | NUT |
| BATTERY MOUNTING | ||
| 036 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 036 | N 009021006208 | WASHER |
| BATTERY MOUNTING | ||
| A 0039977781 | GROMMET | |
| Repalced by: A 4259970281 | ||
| 038 | A 4259970281 | GROMMET |
| 040 | A 4068870214 | FASTENER |
| 042 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 042 | N 000000001146 | SCREW |
| M 6X16 | ||
| 044 | N 000125006421 | WASHER |
| Repalced by: N 000125006449 | ||
| 044 | N 000125006449 | WASHER |
| 046 | N 000934006007 | NUT |
| 048 | A 4068870056 | PAD |
| 050 | A 4068875071 | COMBINATION BOLT |
| A 4065410010 | SUPPORT | |
| Repalced by: A 4065400651 | ||
| 054 | A 4065400651 | SUPPORT |
| A 4065411210 | SUPPORT | |
| Repalced by: A 4065400216 | ||
| 054 | A 4065400216 | BATTERY SUPPORT |
| 056 | A 4065410040 | BRACKET |
| 056 | A 4065412240 | BRACKET |
| BATTERY CASE TO FRAME | ||
| 058 | N 910105012013 | SCREW |
| BRACKET TO FRAME | ||
| 058 | N 910105012013 | SCREW |
| BATTERY CASE TO BRACKET | ||
| 060 | N 913004012008 | NUT |
| Repalced by: N 913023012003 | ||
| 060 | N 913023012003 | NUT |
| BRACKET TO FRAME | ||
| 060 | N 913023012003 | NUT |
| BATTERY CASE TO BRACKET | ||
| 062 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 062 | N 304017006018 | SCREW |
| 062 | N 000933006102 | SCREW |
| 064 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 064 | N 009021006208 | WASHER |
| 066 | N 912004006102 | LOCK WASHER |
| 068 | N 000934006007 | NUT |
| 068 | N 913004006002 | NUT |
| Repalced by: N 913023006001 | ||
| 068 | N 913023006001 | NUT |
| 070 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 070 | N 304017008034 | SCREW |
| 072 | A 0009870741 | RUBBER RING |
| 074 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 074 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 074 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 074 | N 913023008002 | NUT |
| 076 | N 000933010105 | SCREW |
| Repalced by: N 910105010009 | ||
| 076 | N 910105010009 | HEXAGON HEAD BOLT |
| 078 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 078 | N 009021010209 | WASHER |
| BATTERY CASE TO FRAME | ||
| 080 | N 912004010102 | LOCK WASHER |
| BATTERY CASE TO FRAME | ||
| 082 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 082 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 082 | N 913023010002 | NUT |
| BATTERY CASE TO FRAME | ||
| A 0015427220 | HORN | |
| Repalced by: A 0025426220 | ||
| A 0015428020 | HORN | |
| Repalced by: A 0025426220 | ||
| A 0015427920 | HORN | |
| Repalced by: A 0025426220 | ||
| A 0025426320 | HORN | |
| Repalced by: A 0025426220 | ||
| A 0025426220 | HORN | |
| Repalced by: A 0035423220 | ||
| 084 | A 0035423220 | HORN |
| Repalced by: A 6315420120 | ||
| 084 | A 6315420120 | HORN |
| Repalced by: A 0035422720 | ||
| 084 | A 0035422720 | HORN |
| A 0015428320 | HORN | |
| Repalced by: A 0025426420 | ||
| A 0025425320 | HORN | |
| Repalced by: A 0025426420 | ||
| 084 | A 0025426420 | HORN |
| Repalced by: A 6315420120 | ||
| 084 | A 6315420120 | HORN |
| Repalced by: A 0035422720 | ||
| 084 | A 0035422720 | HORN |
| A 4065421140 | BRACKET | |
| Repalced by: A 4255241340 | ||
| 086 | A 4255241340 | BRACKET |
| Repalced by: A 3604280243 | ||
| 086 | A 3604280243 | ANGLE |
| HORN | ||
| 088 | N 000933008145 | SCREW |
| HORN | ||
| 090 | N 912004008102 | LOCK WASHER |
| HORN | ||
| 092 | N 304032008006 | NUT |
| HORN | ||
| 094 | N 000084004151 | SCREW |
| ELECTRIC CABLE TO HORN | ||
| 096 | N 912004004102 | LOCK WASHER |
| ELECTRIC CABLE TO HORN | ||
| A 0025450324 | SWITCH,AUTOMATIC | |
| Repalced by: A 0035458724 | ||
| A 0025455924 | SWITCH,AUTOMATIC | |
| Repalced by: A 0035458724 | ||
| 098 | A 0035458724 | SWITCH,AUTOMATIC |
| 100 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| A 0005452037 | BUTTON | |
| Repalced by: A 0005454237 | ||
| 102 | A 0005454237 | BUTTON |
| 104 | A 0015458228 | PLUG HOUSING |
| 8-POLE | ||
| 106 | A 0005457514 | SWITCH |
| 108 | A 0005448932 | SENDER UNIT |
| 110 | A 0025441332 | SENDER UNIT |
| BLINKER LIGHT | ||
| 112 | N 912004006102 | LOCK WASHER |
| 114 | N 000084006133 | SCREW |
| 116 | A 3819970881 | GROMMET |
| 118 | A 0005455401 | FUSE BOX |
| Repalced by: N 072582006100 | ||
| 118 | N 072582006100 | FUSE BOX |
| N 072581008100 | FUSE | |
| Repalced by: A 0005452934 | ||
| A 0005452934 | FUSE | |
| Repalced by: N 072581008101 | ||
| N 072581008101 | FUSE | |
| Repalced by: A 0005458234 | ||
| 120 | A 0005458234 | FUSE |
| Repalced by: N 072581008101 | ||
| 120 | N 072581008101 | FUSE |
| 8 A | ||
| A 0005454834 | FUSE | |
| Repalced by: A 0005458334 | ||
| 120 | A 0005458334 | FUSE |
| 16 A | ||
| 122 | A 0005453509 | SWITCH |
| 124 | A 3129900251 | NUT |
| Repalced by: A 4229900051 | ||
| 124 | A 4229900051 | NUT |
| 126 | A 4042910086 | STOP |
| 128 | N 072582000200 | CONNECTOR BAR |
| 130 | N 000084005180 | SCREW |
| Repalced by: N 007985005175 | ||
| 130 | N 007985005175 | SCREW |
| FUSE BOX | ||
| 132 | N 912004005103 | LOCK WASHER |
| 134 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 134 | N 304032005005 | NUT |
| 136 | A 4115450200 | MARKING STRIP |
| IN LEFT FUSE BOX | ||
| 136 | A 4115450300 | MARKING STRIP |
| IN RIGHT FUSE BOX | ||
| 138 | A 4065400021 | TRAY |
| 140 | N 000084005130 | SCREW |
| 142 | N 006797005110 | TOOTHED WASHER |
| 144 | N 007603014403 | SEAL RING |

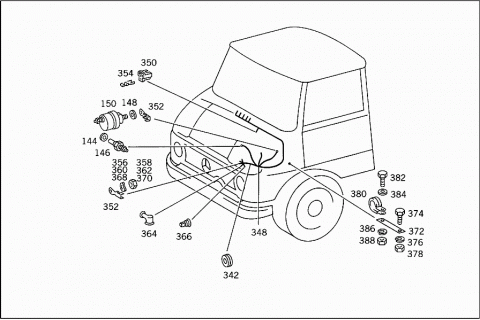

| 146 | A 0015422317 | SENDER UNIT |
| WATER TEMPERATURE GAUGE | ||
| 148 | N 007603014400 | SEAL RING |
| 150 | A 0015422117 | SENDER UNIT |
| OIL PRESSURE GAUGE | ||
| M 10 X 1 | ||
| A 0015424917 | SENDER UNIT | |
| Repalced by: A 0045428917 | ||
| 150 | A 0045428917 | SENDER UNIT |
| OIL PRESSURE GAUGE | ||
| M 14 X 1.5 | ||
| 152 | A 0011548406 | REGULATOR AND CUT-OUT |
| Repalced by: A 0021547406 | ||
| 152 | A 0021547406 | REGULATOR AND CUT-OUT |
| ALTERNATOR,12V | ||
| 154 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 154 | N 304017006018 | SCREW |
| 156 | N 912004006102 | LOCK WASHER |

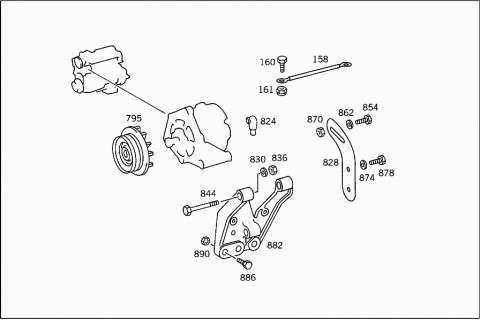

| 158 | A 6211500332 | GROUND CABLE |
| ALTERNATOR | ||
| 160 | N 000933008145 | SCREW |
| ALTERNATOR | ||
| M 8X18 | ||
| 161 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 161 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 161 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 161 | N 913023008002 | NUT |
| ALTERNATOR | ||
| M 8 | ||

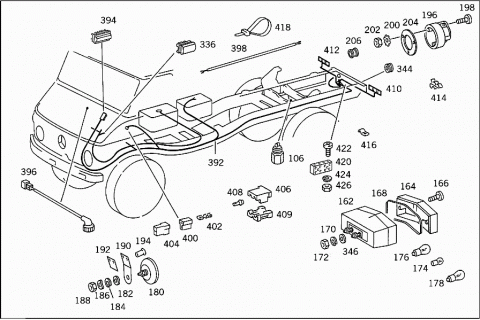

| A 0005446703 | TAIL LAMP | |
| Repalced by: A 0015440803 | ||
| A 0005449303 | TAIL LAMP | |
| Repalced by: A 0015440803 | ||
| 162 | A 0015440803 | TAIL LAMP |
| LEFT | ||
| A 0005446803 | TAIL LAMP | |
| Repalced by: A 0015440903 | ||
| A 0005449403 | TAIL LAMP | |
| Repalced by: A 0015440903 | ||
| 162 | A 0015440903 | TAIL LAMP |
| RIGHT | ||
| A 0015444490 | LENS | |
| Repalced by: A 0015446590 | ||
| A 0015445290 | LENS | |
| Repalced by: A 0015446590 | ||
| 164 | A 0015446590 | LENS |
| 166 | N 007985004168 | SCREW |
| 168 | A 0005447480 | GASKET |
| 170 | N 912004006102 | LOCK WASHER |
| 172 | N 000934006007 | NUT |
| 174 | N 072601012702 | BULB |
| G 12 V/10 W; FOR TAIL-AND-LICENSE-PLATE LAMP | ||
| 176 | N 072601012160 | BULB |
| STOP AND BLINKER LIGHTS | ||
| R 12 V/18 W | ||
| 178 | N 072601012190 | BULB |
| STOP AND BLINKER LIGHTS | ||
| RL 12 V/21 W | ||
| A 0005442205 | REFLECTOR | |
| Repalced by: A 0005442405 | ||
| A 0005442405 | REFLECTOR | |
| Repalced by: A 0005444105 | ||
| 180 | A 0005444105 | REFLECTOR |
| 182 | N 009021005202 | WASHER |
| Repalced by: N 009021005205 | ||
| 182 | N 009021005205 | WASHER |
| REFLECTOR TO BRACKET | ||
| TO 000 544 24 05 | ||
| 184 | N 912004005103 | LOCK WASHER |
| REFLECTOR TO BRACKET | ||
| TO 000 544 24 05 | ||
| 186 | N 009021005202 | WASHER |
| Repalced by: N 009021005205 | ||
| 186 | N 009021005205 | WASHER |
| REFLECTOR TO BRACKET | ||
| TO 000 544 41 05 | ||
| 188 | N 913004005001 | NUT |
| Repalced by: N 913023005002 | ||
| 188 | N 913023005002 | NUT |
| REFLECTOR TO BRACKET | ||
| TO 000 544 24 05,000 544 41 05 | ||
| 190 | A 4165460043 | BRACKET |
| REFLECTOR | ||
| 190 | A 4165460043 | BRACKET |
| ELECTRIC CABLE TO BRACKET AT ENGINE | ||
| 192 | A 4049850095 | SHIM |
| BRACKET TO FENDER | ||
| 194 | A 4119900225 | SCREW |
| Repalced by: N 007985006538 | ||
| 194 | N 007985006538 | SCREW |
| 196 | A 0005453226 | PLUG SOCKET |
| A 0005451026 | PLUG SOCKET | |
| Repalced by: A 0015455826 | ||
| A 0015455826 | PLUG SOCKET | |
| Repalced by: A 0025450726 | ||
| 196 | A 0025450726 | PLUG SOCKET |
| Repalced by: A 0025450826 | ||
| 196 | A 0025450826 | PLUG SOCKET |
| 7-POLE | ||
| 198 | N 000084005175 | SCREW |
| PLUG SOCKET TO REAR CROSS MEMBER | ||
| 200 | N 006797005210 | TOOTHED WASHER |
| PLUG SOCKET TO REAR CROSS MEMBER | ||
| 202 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 202 | N 304032005005 | NUT |
| PLUG SOCKET TO REAR CROSS MEMBER | ||
| 204 | A 4063170076 | WASHER |
| Repalced by: A 6205450176 | ||
| 204 | A 6205450176 | WASHER |
| PLUG SOCKET TO REAR CROSS MEMBER | ||
| 206 | A 3149970481 | GROMMET |
| TAIL LAMP | ||
| A 4065400130 | POSITIVE CABLE | |
| Repalced by: A 3095400730 | ||
| 208 | A 3095400730 | POSITIVE CABLE |
| Repalced by: N 922002070000 | ||
| A 4065401330 | POSITIVE CABLE | |
| Repalced by: A 3525400130 | ||
| A 3525400130 | POSITIVE CABLE | |
| Repalced by: N 922002070000 | ||
| 208 | N 922002070000 | ELECTRIC CABLE |
| Repalced by: A 6735460013 | ||
| 208 | A 6735460013 | ELECTRIC CABLE |
| A 4259970081 | GROMMET | |
| 210 | N 072332013100 | SOLDERING TERMINAL |
| 212 | N 046234010007 | CABLE SHOE |
| A 4065400131 | NEG. CABLE | |
| Repalced by: N 922002070000 | ||
| 214 | N 922002070000 | ELECTRIC CABLE |
| Repalced by: A 6735460013 | ||
| 214 | A 6735460013 | ELECTRIC CABLE |
| NEG. CABLE | ||
| A 4065401331 | NEG. CABLE | |
| Repalced by: A 4065400131 | ||
| 214 | A 4065400830 | POSITIVE CABLE |
| Repalced by: N 922002070000 | ||
| 216 | N 046234010007 | CABLE SHOE |
| NEG. CABLE | ||
| 216 | N 046234010007 | CABLE SHOE |
| 218 | N 072332011200 | SOLDERING TERMINAL |
| NEG. CABLE | ||
| 218 | N 072332013100 | SOLDERING TERMINAL |
| A 4065401031 | NEG. CABLE | |
| Repalced by: A 4065401131 | ||
| 220 | A 4065401131 | NEG. CABLE |
| 220 | A 4065401731 | NEG. CABLE |
| A 4165401531 | NEG. CABLE | |
| Repalced by: A 4165401631 | ||
| 220 | A 4165401631 | NEG. CABLE |

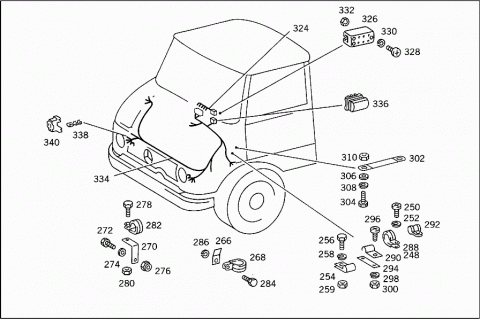

| 222 | A 0025451328 | PIN BUSHING HOUSING |
| 224 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 226 | N 046225006102 | CABLE SHOE |
| 226 | N 046234010007 | CABLE SHOE |
| 228 | A 4069975181 | GROMMET |
| A 4065400230 | POSITIVE CABLE | |
| Repalced by: N 922002070000 | ||
| 230 | N 922002070000 | ELECTRIC CABLE |
| Repalced by: A 6735460013 | ||
| 230 | A 6735460013 | ELECTRIC CABLE |
| FROM CONNECTION POINT TO STARTING MOTOR | ||
| 232 | N 046234010007 | CABLE SHOE |
| 234 | N 000933010128 | SCREW |
| Repalced by: N 910105010006 | ||
| 234 | N 910105010006 | SCREW |
| STARTING CABLE | ||
| M 10X20 | ||
| 234 | N 000933010142 | SCREW |
| POS. CABLE TO STARTING MOTOR | ||
| 236 | A 4065460037 | GROMMET |
| POS. CABLE TO STARTING MOTOR | ||
| 238 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 238 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 238 | N 913023010002 | NUT |
| A 4065460130 | INSULATING HOSE | |
| Repalced by: A 3305460130 | ||
| A 3305460130 | INSULATING HOSE | |
| Repalced by: A 4065460530 | ||
| 240 | A 4065460530 | INSULATING HOSE |
| Repalced by: A 4065460630 | ||
| 240 | A 4065460630 | INSULATING HOSE |
| ASBESTOS-FREE | ||
| 200 MM | ||
| 242 | N 900263009000 | STRAP |
| 295 MM | ||
| 242 | N 900263005000 | STRAP |
| 260 MM | ||
| 244 | N 900262005100 | LOOM TIE |
| 244 | N 900262009100 | LOOM TIE |
| A 4045440023 | RUBBER CAP | |
| Repalced by: A 0005460135 | ||
| 246 | A 0005460135 | BOOT |
| 246 | A 0005464635 | BOOT |
| BATTERY POS. POLE | ||
| 248 | A 4045460375 | CLAMP |
| A 4049951401 | CLAMP | |
| Repalced by: A 0009958801 | ||
| A 0009958801 | CLAMP | |
| Repalced by: N 916016018205 | ||
| 248 | N 916016018205 | CLAMP |
| POS. CABLE | ||
| A 0009954801 | CLAMP | |
| Repalced by: N 916016018201 | ||
| 248 | N 916016018201 | CLAMP |
| 250 | N 000084006134 | SCREW |
| LEITUNGSSATZ AN HALTER LENKHELFP. | ||
| 252 | N 912004006102 | LOCK WASHER |
| 254 | A 3609950301 | CLAMP |
| STARTING CABLE TO AIR LINE | ||
| 256 | N 000933006130 | SCREW |
| Repalced by: N 304017006020 | ||
| 256 | N 304017006020 | SCREW |
| STARTING CABLE TO AIR LINE | ||
| 258 | N 912004006102 | LOCK WASHER |
| STARTING CABLE TO AIR LINE | ||
| 259 | N 000934006007 | NUT |
| STARTING CABLE TO AIR LINE | ||
| 260 | N 000439010213 | NUT |
| GROUND CABLE TO STARTING MOTOR | ||
| 262 | N 009021010107 | WASHER |
| POS. CABLE TO STARTING MOTOR | ||
| 264 | N 000934010006 | NUT |
| POS. CABLE TO STARTING MOTOR | ||
| 264 | N 000439010206 | NUT |
| POS. CABLE TO STARTING MOTOR | ||
| 266 | A 4402950195 | WEB |
| STARTING CABLE TO BRACKET AT ENGINE | ||
| 268 | N 916016018201 | CLAMP |
| STARTING CABLE TO BRACKET AT ENGINE | ||
| A 3634293440 | BRACKET | |
| Repalced by: A 6205061740 | ||
| 270 | A 6205061740 | BRACKET |
| STARTING MOTOR LINE TO CLUTCH BELL | ||
| 272 | N 000961012151 | SCREW |
| Repalced by: N 910105012007 | ||
| 272 | N 910105012007 | SCREW |
| STARTING MOTOR LINE TO CLUTCH BELL | ||
| 274 | N 000125013008 | WASHER |
| 276 | N 913004012008 | NUT |
| Repalced by: N 913023012003 | ||
| 276 | N 913023012003 | NUT |
| STARTING MOTOR LINE TO CLUTCH BELL | ||
| 278 | N 000933006130 | SCREW |
| Repalced by: N 304017006020 | ||
| 278 | N 304017006020 | SCREW |
| STARTING CABLE TO BRACKET AT ENGINE | ||
| 278 | N 304017006020 | SCREW |
| ELECTRIC CABLE TO BRACKET AT ENGINE | ||
| 280 | N 000934006007 | NUT |
| STARTING CABLE TO BRACKET AT ENGINE | ||
| 280 | N 000934006007 | NUT |
| ELECTRIC CABLE TO BRACKET AT ENGINE | ||
| 282 | N 916016018201 | CLAMP |
| ELECTRIC CABLE TO BRACKET AT ENGINE | ||
| 282 | N 916016018201 | CLAMP |
| BATTERY CABLE TO STARTING MOTOR | ||
| 282 | N 916016006208 | CLAMP |
| ELECTRIC CABLE TO BRACKET | ||
| 282 | N 916016006208 | CLAMP |
| ELECTRIC CABLE TO ALTERNATOR | ||
| 284 | N 000933006102 | SCREW |
| BATTERY CABLE TO STARTING MOTOR | ||
| 284 | N 000933006102 | SCREW |
| ELECTRIC CABLE TO ALTERNATOR | ||
| 286 | N 912004006102 | LOCK WASHER |
| STARTING CABLE TO BRACKET AT ENGINE | ||
| 286 | N 912004006102 | LOCK WASHER |
| ELECTRIC CABLE TO BRACKET AT ENGINE | ||
| 286 | N 912004006102 | LOCK WASHER |
| BATTERY CABLE TO STARTING MOTOR | ||
| 286 | N 912004006102 | LOCK WASHER |
| ELECTRIC CABLE TO ALTERNATOR | ||
| A 0009950901 | CLAMP | |
| Repalced by: N 916016006200 | ||
| 288 | N 916016006200 | CLAMP |
| 290 | N 900288030006 | CLAMP |
| 292 | A 3609950601 | CLAMP |
| A 4065460043 | BRACKET | |
| Repalced by: A 4214292040 | ||
| 294 | A 4214292040 | BRACKET |
| Repalced by: A 3604293140 | ||
| 294 | A 3604293140 | BRACKET |
| 296 | N 000084006134 | SCREW |
| 296 | N 000084006132 | SCREW |
| 298 | N 912004006102 | LOCK WASHER |
| 300 | N 000934006007 | NUT |
| 302 | A 4065470020 | GROUND STRAP |
| 304 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 304 | N 304017008016 | SCREW |
| GROUND STRAP TO FRAME | ||
| 304 | N 304017008016 | SCREW |
| GROUND STRAP TO CAB | ||
| 306 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 306 | N 000125008443 | WASHER |
| GROUND STRAP TO FRAME | ||
| 306 | N 000125008443 | WASHER |
| GROUND STRAP TO CAB | ||
| 308 | N 912004008102 | LOCK WASHER |
| GROUND STRAP TO FRAME | ||
| 310 | N 304032008006 | NUT |
| GROUND STRAP TO FRAME | ||
| 312 | A 4065402109 | CABLE HARNESS |
| 312 | A 4065406109 | CABLE HARNESS |
| 312 | A 4065407509 | CABLE HARNESS |
| 314 | A 0025453528 | PLUG |
| Repalced by: A 0095452628 | ||
| 314 | A 0095452628 | PIN BUSHING HOUSING |
| 12-POLE | ||
| 316 | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 318 | A 0015458128 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 320 | A 0015458428 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 322 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 322 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 322 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 322 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 324 | A 4215400438 | ELECTRIC CABLE |
| WITH PLUG SOCKET | ||
| 326 | A 0005453328 | PLUG |
| TO HEADLAMPS | ||
| 328 | N 000084003160 | SCREW |
| PLUG SOCKET | ||
| 330 | N 000127003206 | LOCK WASHER |
| 332 | N 000934003003 | NUT |
| Repalced by: N 304032003001 | ||
| 332 | N 304032003001 | NUT |
| A 4215400238 | ELECTRIC CABLE | |
| Repalced by: A 4215402738 | ||
| 334 | A 4215402738 | ELECTRIC CABLE |
| TO HEADLAMPS | ||
| 336 | A 0005453528 | PLUG |
| 6-POLE | ||
| 338 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 338 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 338 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 338 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| A 0065450828 | PLUG | |
| Repalced by: A 0015458528 | ||
| 340 | A 0015458528 | PIN BUSHING HOUSING |
| 342 | A 0009972881 | GROMMET |
| CABLE TO ALTERNATOR | ||
| 344 | A 0009973181 | GROMMET |
| TAIL LAMP | ||
| 346 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 346 | N 009021006208 | WASHER |
| A 4065402009 | CABLE HARNESS | |
| Repalced by: A 4065408409 | ||
| A 4065404309 | CABLE HARNESS | |
| Repalced by: A 4065408409 | ||
| 348 | A 4065408409 | CABLE HARNESS |
| ALTERNATOR | ||
| 348 | A 4165401737 | ELECTRIC CABLE |
| ALTERNATOR | ||
| 350 | A 0025459528 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 352 | N 046225010100 | CABLE SHOE |
| 352 | N 046225006100 | CABLE SHOE |
| 352 | N 046225004102 | CABLE SHOE |
| 352 | N 046225005100 | CABLE SHOE |
| 352 | N 046225005200 | CABLE SHOE |
| 352 | N 046225005102 | CABLE SHOE |
| 354 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 354 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 354 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 354 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 356 | N 000137004105 | SPRING WASHER |
| CABLE TO TERMINAL D | ||
| 358 | N 000934004006 | NUT |
| CABLE TO TERMINAL D | ||
| 360 | N 000137005105 | SPRING WASHER |
| Repalced by: N 000137005203 | ||
| 360 | N 000137005203 | SPRING WASHER |
| ELECTRIC CABLE TO ALTERNATOR | ||
| 362 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 362 | N 304032005005 | NUT |
| ELECTRIC CABLE TO ALTERNATOR | ||
| A 0005460235 | BOOT | |
| Repalced by: A 0005463335 | ||
| 364 | A 0005463335 | BOOT |
| CABLE TO TERMINAL B+ | ||
| 366 | A 0001540685 | BOOT |
| 368 | N 000137006204 | SPRING WASHER |
| CABLE TO TERMINAL B+ | ||
| 368 | N 000137006108 | SPRING WASHER |
| CABLE TO TERMINAL B+ | ||
| 370 | N 000934006007 | NUT |
| CABLE TO TERMINAL B+ | ||
| 372 | A 4035040338 | MOUNTING PLATE |
| 374 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 374 | N 304017008021 | SCREW |
| LASCHE AN KONSOLE LIMA | ||
| 376 | N 912004008102 | LOCK WASHER |
| 378 | N 304032008006 | NUT |
| A 0009952101 | CLAMP | |
| Repalced by: N 916016012200 | ||
| 380 | N 916016012200 | CLAMP |
| 382 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 382 | N 304017006016 | SCREW |
| CLAMP TO MOUNTING PLATE | ||
| 384 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 384 | N 009021006208 | WASHER |
| CLAMP TO MOUNTING PLATE | ||
| 386 | N 912004006102 | LOCK WASHER |
| CLAMP TO MOUNTING PLATE | ||
| 388 | N 000934006007 | NUT |
| CLAMP TO MOUNTING PLATE | ||
| A 3355405137 | ELECTRIC CABLE | |
| TACHOGRAPH,OR SPEEDOMETER,W/FLAT PLUG; CABLE HARNESS LESS FLAT PIN CONNECTION | ||
| A 4065401909 | CABLE HARNESS | |
| Repalced by: A 4065406309 | ||
| 392 | A 4065406309 | CABLE HARNESS |
| FROM PLUG CONNECTION TO REAR CABLE CONNECTOR & TRAILER PLUG SOCKET,RESP. | ||
| A 0025452628 | PLUG | |
| Repalced by: A 0095455428 | ||
| 394 | A 0095455428 | PLUG HOUSING |
| 10-POLE | ||
| 396 | A 4165400937 | ELECTRIC CABLE |
| 398 | A 0005456218 | RESISTOR |
| 400 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 402 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 402 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 402 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 402 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 404 | A 0015457928 | PLUG HOUSING |
| A 0025454928 | PLUG | |
| Repalced by: A 0085453728 | ||
| 406 | A 0085453728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 408 | A 0035452626 | ROUND PIN BUSHING |
| BIPOLAR | ||
| 409 | A 0085453828 | COVER |
| BIPOLAR | ||
| 410 | A 4065400109 | CABLE HARNESS |
| 410 | A 4065400207 | CABLE HARNESS |
| LEFT TAIL LAMP | ||
| 412 | A 4065400009 | CABLE HARNESS |
| RIGHT TAIL LAMP | ||
| A 0005460575 | CLAMP | |
| Repalced by: A 0005460875 | ||
| 414 | A 0005460875 | CLAMP |
| 416 | N 072571001012 | CLAMP |
| A 0009953344 | CLAMP | |
| Repalced by: A 0019978390 | ||
| 418 | A 0019978390 | LOOM TIE |
| A 0005461241 | CABLE CONNECTOR | |
| Repalced by: A 0005460941 | ||
| 420 | A 0005460941 | CABLE CONNECTOR |
| 4-POLE | ||
| 422 | N 000084004192 | SCREW |
| KABELVERBINDER AN HALTEBLECH | ||
| 422 | N 000084004125 | SCREW |
| KABELVERBINDER AN SCHLUSSQUERTRAEGER | ||
| N 006797004232 | TOOTHED WASHER | |
| GROUND CABLE | ||
| 424 | N 912004004102 | LOCK WASHER |
| 426 | N 000934004006 | NUT |
| A 0005452813 | SWITCH BOX | |
| (IGNITION AND LIGHT SWITH) | ||
| 428 | A 0005453113 | SWITCH |
| (IGNITION AND LIGHT SWITH) | ||
| 430 | A 0005451335 | KEY |
| A 0005453915 | TELL-TALE LAMP | |
| Repalced by: A 0015451115 | ||
| 432 | A 0015451115 | TELL-TALE LAMP |
| LIGHT GREEN | ||
| 434 | N 072601012800 | BULB |
| TELL-TALE LAMP | ||
| 12 V/2 W | ||
| 436 | A 0009870244 | EXPANSION PLUG |
| 438 | A 0005457711 | SWITCH |
| PANE WIPER | ||
| 440 | A 0005450272 | NUT |
| Repalced by: A 1169900051 | ||
| 440 | A 1169900051 | NUT |
| A 1205402283 | HANDLE | |
| Repalced by: A 0005450537 | ||
| A 0005450537 | BUTTON | |
| Repalced by: A 0005450837 | ||
| 442 | A 0005450837 | BUTTON |
| 444 | A 0005451825 | PLUG SOCKET |

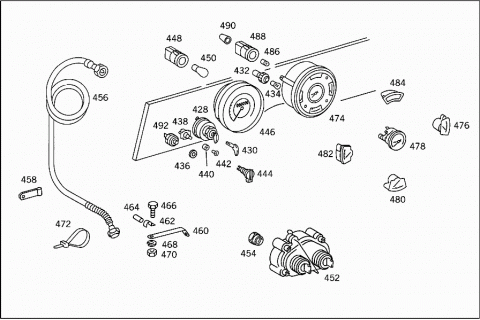

| A 0045426706 | SPEEDOMETER | |
| Repalced by: A 0075421906 | ||
| 446 | A 0075421906 | SPEEDOMETER |
| 448 | A 0005451219 | SOCKET |
| 450 | N 072601012800 | BULB |
| H 12 V/2 W | ||
| A 0025420830 | ANGLE DRIVE | |
| Repalced by: A 0005428809 | ||
| A 0005428809 | ADAPTER | |
| Repalced by: A 0005426009 | ||
| 452 | A 0005426009 | ADAPTER |
| RATIO: | ||
| 1:1.286 | ||
| 454 | A 0005421272 | NUT |
| A 0035420307 | FLEXIBLE SHAFT | |
| Repalced by: A 0015427307 | ||
| 456 | A 0015427307 | FLEXIBLE SHAFT |
| 3500 MM | ||
| 458 | A 4119950035 | CLAMP |
| 460 | A 4065420840 | BRACKET |
| 462 | A 3049951620 | CLAMP |
| 464 | A 4049871943 | RUBBER SLEEVE |
| 466 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 466 | N 304017006018 | SCREW |
| 468 | N 912004006102 | LOCK WASHER |
| 470 | N 000934006007 | NUT |
| A 0009953344 | CLAMP | |
| Repalced by: A 0019978390 | ||
| 472 | A 0019978390 | LOOM TIE |
| BIEGSAME WELLE AN HANDBREMSSEILZUG | ||
| 474 | A 0015402347 | INSTRUMENT CLUSTER |
| A 0025425505 | TEMPERATURE GAUGE | |
| Repalced by: A 0035421005 | ||
| 476 | A 0035421005 | TEMPERATURE GAUGE |
| CENTIGRADE SCALE;ELECTRIC;12V | ||
| A 0005427508 | AIR PRESSURE GAUGE | |
| Repalced by: A 0005429108 | ||
| 478 | A 0005429108 | AIR PRESSURE GAUGE |
| 480 | A 0005428503 | FUEL GAUGE DASH UNIT |
| 482 | A 0015424102 | OIL PRESSURE GAUGE |
| 484 | A 0005420332 | TELL-TALE LAMP |
| BRAKE PRESSURE | ||
| 486 | N 072601012800 | BULB |
| 12 V/2 W | ||
| 488 | A 0005451219 | SOCKET |
| 490 | A 3049971681 | GROMMET |
| 492 | A 0005455014 | SWITCH |
| STARTING MOTOR | ||

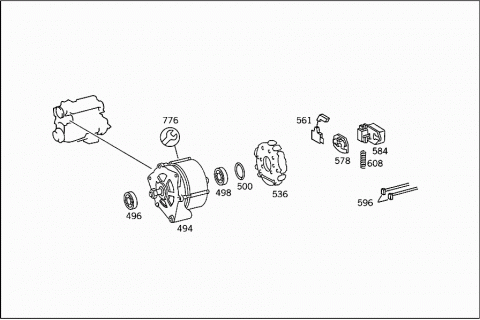

| 494 | A 0061541602 | ALTERNATOR |
| Repalced by: A 0101542602 | ||
| 494 | A 0101542602 | ALTERNATOR |
| WITH REGULATOR INCORPORATED;LESS PULLEY | ||
| 12 V 55 A | ||
| 494 | A 0101542602 | ALTERNATOR |
| 12 V 55 A | ||
| 496 | N 000625436303 | GROOVED BALL BEARING |
| 498 | A 0029819025 | BALL BEARING |
| 500 | A 0049976548 | SEAL RING |
| 536 | A 0001545716 | RECTIFIER |
| 561 | A 0011566701 | CONDENSER |
| 578 | A 0001540580 | GASKET |
| 584 | A 0021544006 | REGULATOR AND CUT-OUT |
| Repalced by: A 0001541805 | ||
| 584 | A 0001541806 | REGULATOR AND CUT-OUT |
| 596 | A 0001547114 | CARBON BRUSH SET |
| 608 | A 0001541993 | SPRING |
| 776 | A 0001500372 | REPAIR KIT |
| ROTOR | ||
| 795 | A 0001556318 | FAN |
| 824 | A 0005463335 | BOOT |
| 828 | A 4035490125 | ANGLE |
| (CLAMPING SHACKLE) | ||
| 830 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 830 | N 000125008443 | WASHER |
| GENERATOR TO BRACKET | ||
| 836 | N 000934008013 | NUT |
| GENERATOR TO BRACKET | ||
| 844 | N 000931008211 | SCREW |
| GENERATOR TO BRACKET | ||
| M 8X130 | ||
| 854 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 854 | N 304017008027 | SCREW |
| CLAMPING SHACKLE TO ALTERNATOR | ||
| M 8X30 | ||
| 862 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 862 | N 000125008443 | WASHER |
| CLAMPING SHACKLE TO ALTERNATOR | ||
| 870 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 870 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 870 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 870 | N 913023008002 | NUT |
| CLAMPING SHACKLE TO ALTERNATOR | ||
| 870 | N 913023008002 | NUT |
| CLAMPING SHACKLE TO BRACKET | ||
| 874 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 874 | N 000125008443 | WASHER |
| CLAMPING SHACKLE TO BRACKET | ||
| 878 | N 000933008119 | SCREW |
| Repalced by: N 304017008042 | ||
| 878 | N 304017008042 | SCREW |
| CLAMPING SHACKLE TO BRACKET | ||
| M 8X45 | ||
| 882 | A 4035400173 | BRACKET |
| A 3141550450 | BUSHING | |
| ALTERNATOR | ||
| 886 | N 000933008171 | SCREW |
| BRACKET | ||
| M 8X75 | ||
| 890 | N 913002008004 | NUT |
| BRACKET | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
