Transporto priemonė: U 54; VIN numerio dalis: 403120

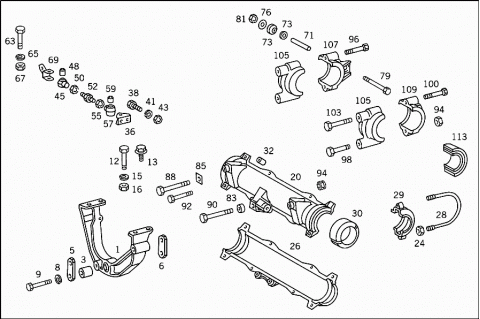

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 4062400101 | ENGINE SUPPORT |
| 003 | A 0002410050 | BUSHING |
| 005 | A 4062410031 | PLATE |
| 006 | A 4062410131 | PLATE |
| A 4032050050 | BUSHING | |
| 008 | N 912004020100 | LOCK WASHER |
| 009 | A 4062410074 | PIN |
| 012 | N 000960014110 | SCREW |
| Repalced by: N 910105014016 | ||
| 012 | N 910105014016 | SCREW |
| 012 | N 910105014016 | SCREW |
| 013 | N 000960014073 | SCREW |
| N 000960014236 | SCREW | |
| 015 | N 912004014100 | LOCK WASHER |
| 016 | N 000934014019 | NUT |
| Repalced by: N 910112014000 | ||
| 016 | N 910112014000 | NUT |
| Repalced by: N 913023014003 | ||
| 016 | N 913023014003 | NUT |
| M14X1.5 | ||
| A 4062400114 | BEARING SHELL | |
| Repalced by: A 4062401014 | ||
| A 4062400814 | BEARING SHELL | |
| Repalced by: A 4062401014 | ||
| A 4062401214 | BEARING SHELL | |
| Repalced by: A 4062401014 | ||
| 020 | A 4062401014 | BEARING SHELL |
| A 4062400714 | BEARING SHELL | |
| Repalced by: A 4062401414 | ||
| 024 | A 4062401414 | BEARING COVER |
| A 4062401114 | BEARING SHELL | |
| Repalced by: A 4062401914 | ||
| 026 | A 4062401914 | BEARING SHELL |
| 028 | A 4062410030 | CLAMP |
| 029 | N 913001014000 | NUT |
| 030 | A 4042410113 | RUBBER MOUNTING |
| N 000961012165 | SCREW | |
| Repalced by: N 000961012051 | ||
| N 000961012051 | SCREW | |
| A 4062410550 | BUSHING | |
| 032 | A 4062410650 | BUSHING |
| N 000961012106 | SCREW | |
| Repalced by: N 308676012014 | ||
| N 308676012014 | HEXAGON HEAD BOLT | |
| Repalced by: N 910105012020 | ||
| N 910105012020 | SCREW | |
| UPPER BEARING SHELL TO LOWER BEARING SHELL | ||
| N 000961012192 | SCREW | |
| Repalced by: N 308676012016 | ||
| N 308676012016 | SCREW | |
| N 913004012009 | NUT | |
| Repalced by: N 910113012005 | ||
| N 910113012005 | NUT | |
| N 000961010037 | SCREW | |
| N 000961010015 | SCREW | |
| UPPER BEARING SHELL TO LOWER BEARING SHELL | ||
| N 913001010005 | NUT | |
| N 000960010049 | SCREW | |
| Repalced by: N 308676010015 | ||
| N 308676010015 | SCREW | |
| N 000960014111 | SCREW | |
| Repalced by: N 910105014019 | ||
| N 910105014019 | SCREW | |
| N 913001014000 | NUT | |
| 036 | A 4062420040 | BRACKET |
| 038 | N 000933010105 | SCREW |
| Repalced by: N 910105010009 | ||
| 038 | N 910105010009 | HEXAGON HEAD BOLT |
| 041 | N 912004010102 | LOCK WASHER |
| 043 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 043 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 043 | N 913023010002 | NUT |
| 045 | A 4062400126 | INTERMEDIATE PIECE |
| 048 | A 4069880010 | RUBBER MOUNTING |
| 050 | N 308675014003 | NUT |
| Repalced by: N 000000005466 | ||
| 050 | N 000000005466 | HEXAGON NUT |
| 052 | A 4062420074 | PIN |
| 055 | N 000936014008 | NUT |
| 057 | A 4062400026 | INTERMEDIATE PIECE |
| 059 | A 4069880010 | RUBBER MOUNTING |
| 063 | N 000960012189 | SCREW |
| Repalced by: N 910105012021 | ||
| 063 | N 910105012021 | HEXAGON HEAD BOLT |
| 065 | N 912004012100 | LOCK WASHER |
| 067 | N 000936012005 | NUT |
| Repalced by: N 308675012000 | ||
| 067 | N 308675012000 | NUT |
| 069 | A 4062400440 | BRACKET |
| 071 | A 4062410053 | SPACER TUBE |
| 073 | A 1151500149 | BUSHING |
| 076 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 076 | N 007349010007 | WASHER |
| 079 | N 000931010455 | SCREW |
| Repalced by: N 910105010042 | ||
| 079 | N 910105010042 | SCREW |
| 081 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 081 | N 913023010003 | NUT |
| A 4069905640 | WASHER | |
| Repalced by: A 6249900040 | ||
| 083 | A 6249900040 | WASHER |
| A 4042420152 | SPACER WASHER | |
| Repalced by: A 4062420052 | ||
| A 4042420252 | SPACER WASHER | |
| Repalced by: A 4062420052 | ||
| A 4032420352 | SPACER WASHER | |
| Repalced by: A 4062420052 | ||
| 085 | A 4062420052 | SPACER WASHER |
| 088 | N 000960016277 | SCREW |
| Repalced by: N 910105016016 | ||
| 088 | N 910105016016 | SCREW |
| 090 | N 000960016121 | SCREW |
| 092 | N 000960016057 | SCREW |
| N 912004016101 | LOCK WASHER | |
| 094 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 094 | N 910113016001 | NUT |
| 096 | N 000960016261 | SCREW |
| Repalced by: N 910105016015 | ||
| 096 | N 910105016015 | SCREW |
| 098 | N 308765016000 | SCREW |
| Repalced by: N 308765016018 | ||
| 098 | N 308765016018 | SCREW |
| 100 | N 000960016177 | SCREW |
| 103 | N 000960016204 | SCREW |
| 105 | A 4062410035 | BEARING BRACKET |
| Repalced by: A 4062410135 | ||
| A 4062410135 | BEARING BRACKET | |
| 107 | A 4062410015 | COVER |
| Repalced by: A 4062410315 | ||
| A 4062410315 | COVER | |
| 109 | A 4062410115 | COVER |
| Repalced by: A 4062410215 | ||
| A 4062410215 | COVER | |
| 113 | A 4062410013 | RUBBER MOUNTING |
| Repalced by: A 4062410113 | ||
| A 4062410113 | RUBBER MOUNTING | |
| A 4062410213 | RUBBER MOUNTING | |
| N 000960016284 | SCREW | |
| RIGHT MOUNTING | ||
| N 000960016282 | SCREW | |
| Repalced by: N 308765016006 | ||
| N 308765016006 | SCREW | |
| LEFT MOUNTING | ||
