Transporto priemonė: U 54; VIN numerio dalis: 403120

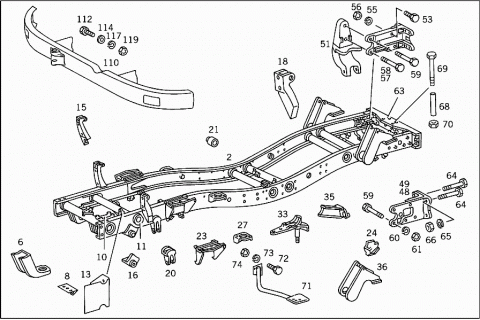

Grupė: 31 FRAME
| # | Kodas | Pavadinimas |
|---|---|---|
| A 4063100001 | FRAME | |
| Repalced by: A 4063101101 | ||
| A 4063100401 | FRAME | |
| Repalced by: A 4063101101 | ||
| A 4063100501 | FRAME | |
| Repalced by: A 4063101101 | ||
| A 4063100701 | FRAME | |
| Repalced by: A 4063101101 | ||
| 002 | A 4063101101 | FRAME |
| Repalced by: A 4063102901 | ||
| A 4063102901 | FRAME | |
| 006 | A 4063110040 | BRACKET |
| RADIATOR | ||
| 008 | A 4212950040 | BRACKET |
| 010 | A 4063110363 | CONSOLE |
| 011 | A 4063110554 | REINFORCEMENT |
| 013 | A 4063110754 | REINFORCEMENT |
| A 4063200145 | STRAP | |
| Repalced by: A 4063200345 | ||
| 015 | A 4063200345 | BRACKET |
| SHOCK ABSORBER,RIGHT FRONT | ||
| 016 | A 4063110045 | BRACKET |
| 018 | A 4063200245 | BRACKET |
| SHOCK ABSORBER,LEFT FRONT | ||
| A 4063330003 | BEARING BRACKET | |
| Repalced by: A 4063330303 | ||
| A 4063330303 | BEARING BRACKET | |
| Repalced by: A 4063330703 | ||
| 020 | A 4063330703 | BEARING BRACKET |
| TRANSVERSE CONTROL ARM | ||
| A 4193110143 | MOUNTING BRACKET | |
| TRANSVERSE CONTROL ARM | ||
| 021 | A 4063120150 | BUSHING |
| A 4063200270 | REAR SUBFRAME | |
| Repalced by: A 4063200370 | ||
| 023 | A 4063200370 | REAR SUBFRAME |
| 024 | A 4063110087 | STOP |
| A 4063130126 | BRACKET | |
| Repalced by: A 4063130326 | ||
| 027 | A 4063130326 | BRACKET |
| A 4063130226 | BRACKET | |
| Repalced by: A 4063130426 | ||
| A 4063130426 | BRACKET | |
| 033 | A 4064200378 | BEARING BRACKET |
| 035 | A 4064260940 | BRACKET |
| 036 | A 4163200075 | SPRING BRACKET |
| A 4163200175 | SPRING BRACKET | |
| A 4063110051 | TRUSS | |
| Repalced by: A 4063110951 | ||
| A 4063110451 | TRUSS | |
| Repalced by: A 4063110951 | ||
| A 4063110651 | TRUSS | |
| Repalced by: A 4063110951 | ||
| 048 | A 4063110951 | FRAME FLANGE |
| LEFT | ||
| A 4063110151 | TRUSS | |
| Repalced by: A 4163111051 | ||
| A 4063110551 | TRUSS | |
| Repalced by: A 4163111051 | ||
| A 4063110751 | TRUSS | |
| Repalced by: A 4063111051 | ||
| 049 | A 4063111051 | FRAME FLANGE |
| RIGHT | ||
| A 4063330103 | BEARING BRACKET | |
| Repalced by: A 4063330403 | ||
| 051 | A 4063330403 | BEARING BRACKET |
| CONTROL ARMS REAR | ||
| 053 | N 000961016142 | SCREW |
| 053 | N 000961016142 | SCREW |
| 053 | N 000960016223 | SCREW |
| Repalced by: N 308676016005 | ||
| 053 | N 308676016005 | SCREW |
| 053 | N 000960016223 | SCREW |
| Repalced by: N 308676016005 | ||
| 053 | N 308676016005 | SCREW |
| 053 | N 000960016223 | SCREW |
| Repalced by: N 308676016005 | ||
| 053 | N 308676016005 | SCREW |
| 055 | N 912004016101 | LOCK WASHER |
| 056 | N 000934016013 | NUT |
| Repalced by: N 308673016001 | ||
| 056 | N 308673016001 | NUT |
| N 000933010105 | SCREW | |
| Repalced by: N 910105010009 | ||
| N 910105010009 | HEXAGON HEAD BOLT | |
| N 912004010102 | LOCK WASHER | |
| N 000934010014 | NUT | |
| Repalced by: N 910112010001 | ||
| N 910112010001 | NUT | |
| Repalced by: N 913023010002 | ||
| N 913023010002 | NUT | |
| 057 | N 000961014101 | SCREW |
| Repalced by: N 910105014010 | ||
| 057 | N 910105014010 | SCREW |
| M 14X45 | ||
| 057 | N 910105014010 | SCREW |
| M 14X45 | ||
| 057 | N 910105014010 | SCREW |
| M 14X45 | ||
| 058 | N 000960012090 | SCREW |
| M 12X80 | ||
| 058 | N 000960014143 | SCREW |
| M 14X95 | ||
| 058 | N 000960014143 | SCREW |
| M 14X95 | ||
| 058 | N 000960014143 | SCREW |
| M 14X95 | ||
| 059 | N 000960012197 | SCREW |
| Repalced by: N 910105012016 | ||
| 059 | N 910105012016 | SCREW |
| M 12X55 | ||
| 059 | N 000960014250 | SCREW |
| Repalced by: N 910105014009 | ||
| 059 | N 910105014009 | SCREW |
| M 14X70 | ||
| 059 | N 910105014009 | SCREW |
| M 14X70 | ||
| 059 | N 910105014009 | SCREW |
| M 14X70 | ||
| 060 | N 912004012100 | LOCK WASHER |
| 060 | N 912004014100 | LOCK WASHER |
| 060 | N 912004014100 | LOCK WASHER |
| 060 | N 912004014100 | LOCK WASHER |
| 061 | N 000934012022 | NUT |
| Repalced by: N 913023012002 | ||
| 061 | N 913023012002 | NUT |
| 061 | N 308673014002 | NUT |
| 061 | N 308673014002 | NUT |
| 061 | N 308673014002 | NUT |
| A 4063120035 | CROSS MEMBER | |
| Repalced by: A 4063100046 | ||
| 063 | A 4063100046 | CROSS MEMBER |
| 063 | A 4063100046 | CROSS MEMBER |
| 064 | N 308676012010 | HEXAGON HEAD BOLT |
| M12X1.5X40 | ||
| 064 | N 308676012010 | HEXAGON HEAD BOLT |
| M12X1.5X40 | ||
| 065 | N 912004012100 | LOCK WASHER |
| 065 | N 912004012100 | LOCK WASHER |
| 066 | N 913004012008 | NUT |
| Repalced by: N 913023012003 | ||
| 066 | N 913023012003 | NUT |
| 066 | N 913023012003 | NUT |
| 068 | A 4063120053 | SPACER TUBE |
| 068 | A 4063120053 | SPACER TUBE |
| 069 | N 000960012254 | SCREW |
| M 12X180 | ||
| 069 | N 000960012254 | SCREW |
| M 12X180 | ||
| 070 | N 000934012022 | NUT |
| Repalced by: N 913023012002 | ||
| 070 | N 913023012002 | NUT |
| 070 | N 913023012002 | NUT |
| A 4169960125 | ROD | |
| CONTROL ARM CROSS BRACING | ||
| N 006796018101 | CONICAL SPRING WASHER | |
| CONTROL ARM CROSS BRACING | ||
| N 000934018006 | NUT | |
| Repalced by: N 913023018002 | ||
| N 913023018002 | NUT | |
| CONTROL ARM CROSS BRACING | ||
| A 4065200031 | RUNNING BOARD | |
| Repalced by: A 4063101109 | ||
| A 4063100909 | BRACKET | |
| Repalced by: A 4063101109 | ||
| 071 | A 4063101109 | STEP |
| LEFT | ||
| A 4065201131 | RUNNING BOARD | |
| Repalced by: A 4065201431 | ||
| A 4065201431 | RUNNING BOARD | |
| Repalced by: A 4065201731 | ||
| 071 | A 4065201731 | RUNNING BOARD |
| LEFT | ||
| A 4065200131 | RUNNING BOARD | |
| Repalced by: A 4063101209 | ||
| A 4063101009 | BRACKET | |
| Repalced by: A 4063101209 | ||
| A 4063101209 | STEP | |
| Repalced by: A 4063101409 | ||
| A 4063101409 | STEP | |
| Repalced by: A 4195200131 | ||
| A 4195200131 | RUNNING BOARD | |
| RIGHT | ||
| 072 | N 000933010105 | SCREW |
| Repalced by: N 910105010009 | ||
| 072 | N 910105010009 | HEXAGON HEAD BOLT |
| 073 | N 912004010102 | LOCK WASHER |
| 074 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 074 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 074 | N 913023010002 | NUT |

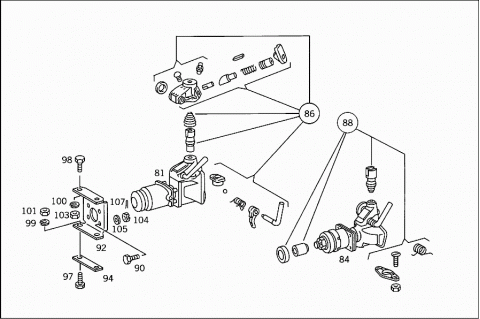

| 081 | A 0013153899 | TRAILER COUPLING |
| Repalced by: A 0033157999 | ||
| 081 | A 0033157999 | TRAILER COUPLING |
| ROCKINGER,227G 110J | ||
| A 0003100207 | COUPLING PIN | |
| A 0013150099 | TRAILER COUPLING | |
| Repalced by: A 0013153799 | ||
| 084 | A 0013153799 | TRAILER COUPLING |
| RINGFEDER | ||
| Repalced by: A 0033157999 | ||
| 084 | A 0033157999 | TRAILER COUPLING |
| ROCKINGER,227G 110J | ||
| A 0005860331 | REPAIR KIT | |
| Repalced by: A 0003100104 | ||
| 086 | A 0003100104 | REPAIR KIT |
| Repalced by: A 0003100207 | ||
| 086 | A 0003100207 | COUPLING PIN |
| TO 001 315 38 99 | ||
| A 0005860131 | REPAIR KIT | |
| TO 001 315 00 99 | ||
| A 0005861231 | REPAIR KIT | |
| Repalced by: A 0003100004 | ||
| 088 | A 0003100004 | REPAIR KIT |
| TO 000 315 37 99 | ||
| 090 | N 000931010264 | SCREW |
| Repalced by: N 910105010008 | ||
| 090 | N 910105010008 | SCREW |
| Repalced by: N 910143010000 | ||
| 090 | N 910143010000 | SCREW |
| TRAILER COUPLING TO FRAME | ||
| 092 | A 4063120280 | REINFORCEMENT |
| 094 | A 4063120380 | REINFORCEMENT |
| 097 | N 000961012151 | SCREW |
| Repalced by: N 910105012007 | ||
| 097 | N 910105012007 | SCREW |
| 097 | N 910105012007 | SCREW |
| 098 | N 000961014027 | SCREW |
| M 14X1,5X30 | ||
| 098 | N 000961014027 | SCREW |
| M 14X1,5X30 | ||
| 099 | N 912004012100 | LOCK WASHER |
| 099 | N 912004012100 | LOCK WASHER |
| 100 | N 912004014100 | LOCK WASHER |
| 101 | N 000934012022 | NUT |
| Repalced by: N 913023012002 | ||
| 101 | N 913023012002 | NUT |
| 101 | N 913023012002 | NUT |
| 101 | N 913023012002 | NUT |
| 103 | N 000934014019 | NUT |
| Repalced by: N 910112014000 | ||
| 103 | N 910112014000 | NUT |
| Repalced by: N 913023014003 | ||
| 103 | N 913023014003 | NUT |
| M14X1.5 | ||
| 103 | N 913023014003 | NUT |
| M14X1.5 | ||
| 104 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 104 | N 913023010003 | NUT |
| TRAILER COUPLING TO FRAME | ||
| 105 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 105 | N 000125010532 | WASHER |
| 107 | N 000094002072 | COTTER PIN |
| 110 | A 4065200070 | BUMPER |
| 112 | N 000961016075 | SCREW |
| Repalced by: N 308676016021 | ||
| 112 | N 308676016021 | SCREW |
| Repalced by: N 308676016020 | ||
| 112 | N 308676016020 | SCREW |
| 114 | N 000125017010 | WASHER |
| Repalced by: N 000125017016 | ||
| 114 | N 000125017016 | WASHER |
| 117 | N 912004016101 | LOCK WASHER |
| 119 | N 913004016004 | NUT |
| Repalced by: N 913023016001 | ||
| 119 | N 913023016001 | NUT |
| Repalced by: N 000000005738 | ||
| 119 | N 000000005738 | NUT |
