Transporto priemonė: U 54; VIN numerio dalis: 403120

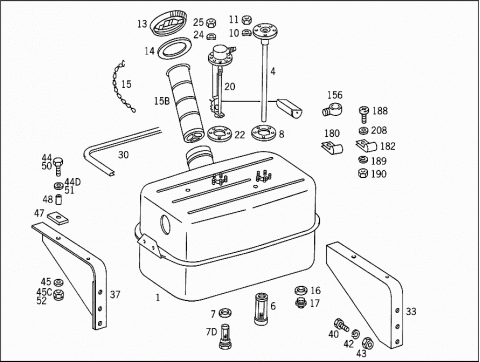

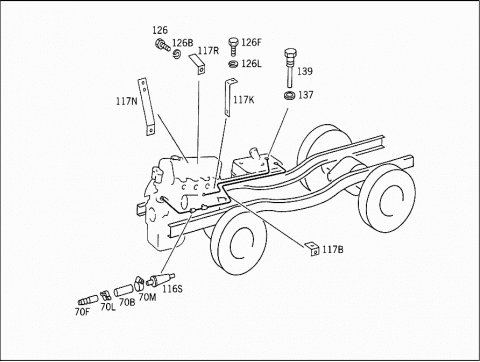

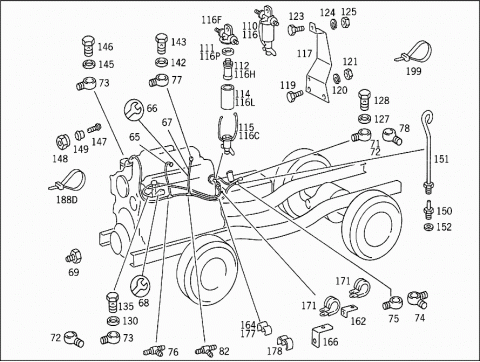

Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| A 4064700001 | FUEL TANK | |
| Repalced by: A 4064700901 | ||
| A 4064701801 | FUEL TANK | |
| Repalced by: A 4064700901 | ||
| 001 | A 4064700901 | FUEL TANK |
| 90 L | ||
| A 4064700124 | SUCTION LINE | |
| Repalced by: A 4404700024 | ||
| 004 | A 4404700024 | SUCTION LINE |
| 365 MM | ||
| 006 | A 4044730035 | STRAINER |
| 007 | N 915035000010 | SEAL RING |
| 007D | A 3034700206 | FUEL STRAINER |
| A 1864710180 | GASKET | |
| Repalced by: A 4044710080 | ||
| 008 | A 4044710080 | GASKET |
| 010 | N 000137005203 | SPRING WASHER |
| 011 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 011 | N 304032005005 | NUT |
| 013 | A 4114700105 | FILLER CAP |
| 014 | A 4214710079 | SEAL RING |
| 015 | A 3034700031 | CHAIN |
| FILLER CAP | ||
| 015B | A 4354700006 | FUEL STRAINER |
| 016 | N 915035000008 | SEAL RING |
| 017 | A 4044710185 | SCREW PLUG |
| 020 | A 4065420017 | SENDER UNIT |
| A 1864710180 | GASKET | |
| Repalced by: A 4044710080 | ||
| 022 | A 4044710080 | GASKET |
| 024 | N 000137005203 | SPRING WASHER |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 025 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 025 | N 304032005005 | NUT |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| A 0009872172 | EDGE GUARD SECTION | |
| Repalced by: A 0009870772 | ||
| 030 | A 0009870772 | EDGE GUARD SECTION |
| 033 | A 4064700042 | SUPPORT |
| LEFT FUEL TANK | ||
| 037 | A 4064700142 | SUPPORT |
| RIGHT FUEL TANK | ||
| A 4064710022 | REINFORCEMENT | |
| 040 | N 000961012151 | SCREW |
| Repalced by: N 910105012007 | ||
| 040 | N 910105012007 | SCREW |
| 042 | N 912004010102 | LOCK WASHER |
| 043 | N 913004012008 | NUT |
| Repalced by: N 913023012003 | ||
| 043 | N 913023012003 | NUT |
| A 4069870360 | RUBBER PAD | |
| FOR FUEL TANK | ||
| A 4064750426 | REINFORCEMENT | |
| Repalced by: A 4064750526 | ||
| A 4064750526 | REINFORCEMENT | |
| 044 | N 000933010145 | SCREW |
| Repalced by: N 910105010007 | ||
| 044 | N 910105010007 | SCREW |
| Repalced by: N 000000000428 | ||
| 044 | N 000000000428 | HEXAGON HEAD BOLT |
| 044D | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 044D | N 009021010209 | WASHER |
| 045 | A 0009870741 | RUBBER RING |
| 045C | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 045C | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 045C | N 913023010002 | NUT |
| A 4064750019 | BASE | |
| A 4064750019 | BASE | |
| 047 | A 4069875060 | RUBBER PAD |
| 047 | A 4069875060 | RUBBER PAD |
| 048 | A 4064710153 | SPACER TUBE |
| 048 | A 4064710153 | SPACER TUBE |
| 050 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 050 | N 304017008018 | SCREW |
| FUEL TANK TO SUPPORT | ||
| 050 | N 304017008018 | SCREW |
| FUEL TANK TO SUPPORT | ||
| 051 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 051 | N 000125008443 | WASHER |
| FUEL TANK TO SUPPORT | ||
| 051 | N 000125008443 | WASHER |
| FUEL TANK TO SUPPORT | ||
| 052 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 052 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 052 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 052 | N 913023008002 | NUT |
| FUEL TANK TO SUPPORT | ||
| 052 | N 913023008002 | NUT |
| FUEL TANK TO SUPPORT | ||
| A 4064760901 | LINE | |
| Repalced by: A 0089979082 | ||
| 065 | A 0089979082 | HOSE |
| Repalced by: A 0009872727 | ||
| 065 | A 0009872727 | PLASTIC PIPE |
| 6X8 MM | ||
| A 0039978972 | FITTING | |
| Repalced by: A 0029905971 | ||
| 066 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| A 0109977082 | HOSE | |
| Repalced by: A 0089976082 | ||
| 067 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 067 | A 0009872627 | PLASTIC PIPE |
| 4X6 MM | ||
| 068 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 069 | A 0004760124 | CONNECTOR |
| 070B | N 073379008200 | HOSE |
| FEED-PUMP-TO-TANK SUCTION LINE | ||
| 070F | A 0004760824 | CONNECTOR |
| Repalced by: A 4194760025 | ||
| 070F | A 4194760025 | INTERMEDIATE PIECE |
| FEED-PUMP-TO-TANK SUCTION LINE | ||
| 070L | A 0039974190 | CLIP |
| FEED-PUMP-TO-TANK SUCTION LINE | ||
| 11-13 MM | ||
| 070M | N 916002012100 | CLAMP |
| FEED-PUMP-TO-TANK SUCTION LINE | ||
| A 4214760025 | INTERMEDIATE PIECE | |
| Repalced by: A 0009905888 | ||
| A 0009905888 | BANJO UNION | |
| Repalced by: N 915052006005 | ||
| 071 | N 915052006021 | BANJO UNION |
| A 0004760224 | BANJO UNION | |
| Repalced by: A 0009906688 | ||
| A 0009906688 | BANJO UNION | |
| Repalced by: N 915052006013 | ||
| 072 | N 915052006013 | BANJO UNION |
| 12 MM | ||
| 073 | A 0004760324 | BANJO UNION |
| 14 MM | ||
| 074 | A 4064760125 | BANJO UNION |
| 14 MM | ||
| A 4064760025 | INTERMEDIATE PIECE | |
| Repalced by: A 0009906588 | ||
| 075 | N 915052006014 | BANJO UNION |
| 16 MM | ||
| A 0009900678 | CONNECTOR | |
| Repalced by: A 0019909870 | ||
| 076 | A 0019909870 | T-FITTING |
| Repalced by: A 0009907990 | ||
| 076 | A 0009907990 | T-FITTING |
| A 4064760225 | INTERMEDIATE PIECE | |
| Repalced by: A 0009905288 | ||
| 077 | N 915052004025 | BANJO UNION |
| 8 MM | ||
| 078 | A 4064760325 | BANJO UNION |
| 16 MM | ||
| A 0009903770 | T-FITTING | |
| Repalced by: A 0029901470 | ||
| 082 | A 0029901470 | T-FITTING |
| A 0004776801 | FUEL FILTER | |
| Repalced by: A 0014774301 | ||
| A 0014771701 | FUEL FILTER | |
| Repalced by: A 0014774301 | ||
| 110 | A 0014774301 | FUEL FILTER |
| CLAMP-ON VERSION | ||
| 111 | A 0004771980 | GASKET |
| TO 001 477 43 01 | ||
| 112 | A 4114770015 | FILTER ELEMENT |
| TO 001 477 17 01,001 477 43 01 | ||
| A 0004770216 | FILTER BOWL | |
| Repalced by: A 0004771716 | ||
| 114 | A 0004771716 | FILTER BOWL |
| TO 001 477 43 01 | ||
| A 0004770318 | MOUNTING BOW | |
| Repalced by: A 0004770918 | ||
| 115 | A 0004770918 | MOUNTING BOW |
| TO 001 477 43 01 | ||
| 116 | A 0014778001 | FUEL FILTER |
| CLAMP-ON VERSION | ||
| A 0024771601 | FUEL FILTER | |
| SCREWED | ||
| 116C | A 0004770918 | MOUNTING BOW |
| TO 001 477 80 01,002 477 16 01 | ||
| 116F | A 0004770805 | HOUSING |
| TO 001 477 80 01 | ||
| 116H | A 0004777415 | FILTER ELEMENT |
| TO 001 477 80 01,002 477 16 01 | ||
| 116L | A 0004771816 | FILTER BOWL |
| TO 001 477 80 01,002 477 16 01 | ||
| 116P | A 0004771360 | SEAL RING |
| TO 001 477 80 01,002 477 16 01 | ||
| A 0014774201 | FUEL FILTER | |
| 116S | A 0014775601 | FUEL FILTER |
| 117 | A 4034760036 | BRACKET |
| AT TANK | ||
| 117B | A 4244680040 | BRACKET |
| Repalced by: A 6205244040 | ||
| 117B | A 6205244040 | BRACKET |
| BELL HOUSING | ||
| A 4255420440 | BRACKET | |
| Repalced by: A 4044291240 | ||
| 117K | A 4044291240 | BRACKET |
| Repalced by: A 3524290740 | ||
| 117K | A 3524290740 | BRACKET |
| TRANSMISSION,REAR RIGHT | ||
| A 4254760336 | BRACKET | |
| Repalced by: A 3184924841 | ||
| 117N | A 3184924841 | BRACKET |
| FUEL LINES TO ENGINE,REAR | ||
| 117R | A 4405244040 | BRACKET |
| Repalced by: A 4244680040 | ||
| 117R | A 4244680040 | BRACKET |
| Repalced by: A 6205244040 | ||
| 117R | A 6205244040 | BRACKET |
| FUEL LINES TO ENGINE,CENTER | ||
| 119 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 119 | N 304017008016 | SCREW |
| BRACKET TO FUEL TANK | ||
| 120 | N 912004008102 | LOCK WASHER |
| BRACKET TO FUEL TANK | ||
| 121 | N 304032008006 | NUT |
| BRACKET TO FUEL TANK | ||
| 123 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 123 | N 304017006020 | SCREW |
| FILTER TO BRACKET | ||
| 124 | N 912004006102 | LOCK WASHER |
| FILTER TO BRACKET | ||
| 125 | N 000934006007 | NUT |
| FILTER TO BRACKET | ||
| 126 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 126 | N 304017008016 | SCREW |
| FUEL LINES TO ENGINE,REAR | ||
| 126 | N 304017008016 | SCREW |
| FUEL LINES TO ENGINE,CENTER | ||
| 126B | N 912004008102 | LOCK WASHER |
| 126B | N 912004008102 | LOCK WASHER |
| FUEL LINES TO ENGINE,CENTER | ||
| 126F | N 000933010198 | SCREW |
| BRACKET TO TRANSMISSION | ||
| 126L | N 912004010102 | LOCK WASHER |
| BRACKET TO TRANSMISSION | ||
| 127 | N 007603012405 | SEAL RING |
| 128 | N 915036008202 | HOLLOW SCREW |
| SUCTION LINE TO FUEL TANK | ||
| 130 | N 915035000006 | SEAL RING |
| 135 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 135 | N 915036010108 | HOLLOW SCREW |
| AT FEED PUMP | ||
| 137 | N 007603016107 | SEAL RING |
| N 915036012203 | HOLLOW SCREW | |
| Repalced by: A 4064700226 | ||
| 139 | A 4064700226 | RISING PIPE |
| AT TANK | ||
| 142 | N 007603008112 | SEAL RING |
| 143 | N 915036005100 | HOLLOW SCREW |
| Repalced by: N 000000004895 | ||
| 143 | N 000000004895 | BANJO BOLT |
| 145 | N 915035000006 | SEAL RING |
| A 3149900163 | HOLLOW SCREW | |
| Repalced by: A 6159900263 | ||
| 146 | A 6159900263 | HOLLOW SCREW |
| 147 | A 0019977672 | FITTING |
| 148 | N 915017008201 | UNION NUT |
| 149 | N 003861008005 | GLAND |
| A 4034700025 | BREATHER | |
| Repalced by: A 4064700125 | ||
| 150 | A 4064700125 | BREATHER |
| A 4064700325 | BREATHER | |
| Repalced by: A 4064700525 | ||
| 150 | A 4064700525 | BREATHER |
| 151 | A 4064710615 | BREATHER PIPE |
| 152 | N 007603016401 | SEAL RING |
| A 4064260640 | BRACKET | |
| Repalced by: A 3874661240 | ||
| 156 | A 3874661240 | BRACKET |
| Repalced by: A 3044760335 | ||
| 156 | A 3044760335 | BRACKET |
| Repalced by: A 6205244040 | ||
| 156 | A 6205244040 | BRACKET |
| 162 | A 4064760036 | BRACKET |
| AN EINSPRITZLEITUNGEN | ||
| 164 | A 0009950068 | CLAMP |
| SUCTION LINE | ||
| 166 | A 3045460643 | BRACKET |
| AT BELL HOUSING | ||
| 166 | A 3045460643 | BRACKET |
| A 0009954601 | CLAMP | |
| Repalced by: N 916016008201 | ||
| 171 | N 916016008201 | CLAMP |
| BELL HOUSING | ||
| A 3120780185 | PIPE BRACKET | |
| Repalced by: A 0009950068 | ||
| 177 | A 0009950068 | CLAMP |
| LINE CONNECTIONS | ||
| 178 | A 0009950168 | CLAMP |
| Repalced by: A 6388320028 | ||
| 178 | A 6388320028 | CLAMP |
| LINE CONNECTIONS | ||
| 180 | N 900285001200 | CLAMP |
| 182 | A 4049951201 | CLAMP |
| Repalced by: A 3609951101 | ||
| 182 | A 3609951101 | CLAMP |
| SAUGLEITUNG AN KOMPRESSOR | ||
| 188 | N 007985005149 | SCREW |
| BELL HOUSING | ||
| A 0009953344 | CLAMP | |
| Repalced by: A 0019978390 | ||
| 188D | A 0019978390 | LOOM TIE |
| 189 | N 912004005103 | LOCK WASHER |
| BELL HOUSING | ||
| 190 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 190 | N 304032005005 | NUT |
| BELL HOUSING | ||
| 199 | A 0019978490 | LOOM TIE |
| 208 | A 4249900040 | WASHER |
