Transporto priemonė: U 54; VIN numerio dalis: 403120

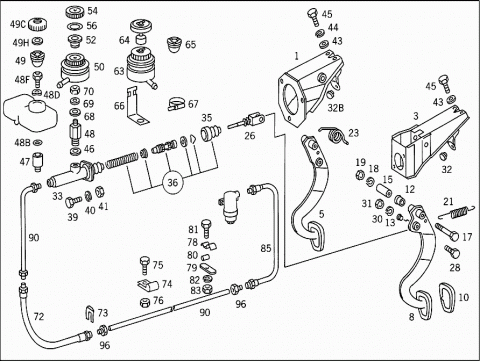

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 4062900433 | BRACKET |
| 001 | A 4042900433 | BRACKET |
| 003 | A 4062900633 | BRACKET |
| 005 | A 4062900018 | PEDAL |
| 005 | A 4062900218 | PEDAL |
| BRAKE | ||
| 008 | A 4062900401 | PEDAL |
| CLUTCH | ||
| A 1102910182 | PAD | |
| Repalced by: A 1072910182 | ||
| 010 | A 1072910182 | PAD |
| 010 | A 3192920082 | PAD |
| 010 | A 3192920082 | PAD |
| 012 | A 1102910550 | BUSHING |
| Repalced by: A 1242920050 | ||
| 012 | A 1242920050 | BUSHING |
| 013 | A 1102920150 | BUSHING |
| 015 | A 1112920150 | BUSHING |
| 017 | N 000960012224 | SCREW |
| Repalced by: A 0119901304 | ||
| 017 | A 0119901304 | CAPSCREW W HEXAL. DRIVE |
| 017 | N 000961012208 | SCREW |
| 017 | N 000960012230 | SCREW |
| Repalced by: N 910105012017 | ||
| 017 | N 910105012017 | SCREW |
| 018 | N 912004012100 | LOCK WASHER |
| 019 | N 000934012022 | NUT |
| Repalced by: N 913023012002 | ||
| 019 | N 913023012002 | NUT |
| 021 | A 4069930010 | SPRING |
| BRAKE PEDAL AND CLUTCH PEDAL | ||
| 023 | A 4069935010 | SPRING |
| BRAKE PEDAL | ||
| A 4212900239 | ROD | |
| Repalced by: A 4062900739 | ||
| 026 | A 4062900739 | ROD |
| 026 | A 4062900739 | ROD |
| 028 | A 1102950571 | SCREW |
| 030 | N 912004008102 | LOCK WASHER |
| 031 | N 000934008020 | NUT |
| 032 | A 1112910086 | STOP |
| 032 | A 1112910086 | STOP |
| 032B | A 4062910086 | STOP |
| Repalced by: A 1112910086 | ||
| 032B | A 1112910086 | STOP |
| BRAKE PEDAL | ||
| A 0002953106 | MASTER CYLINDER | |
| Repalced by: A 0012955106 | ||
| 033 | A 0012955106 | MASTER CYLINDER |
| 035 | A 0002950483 | BOOT |
| A 0005865429 | REPAIR KIT | |
| Repalced by: A 0002902967 | ||
| 036 | A 0002902967 | REPAIR KIT |
| TO 000 295 31 06 | ||
| A 0002903567 | REPAIR KIT | |
| TO 001 295 51 06 | ||
| 039 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 039 | N 304017008021 | SCREW |
| 040 | N 912004008102 | LOCK WASHER |
| 041 | N 304032008006 | NUT |
| 043 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 043 | N 000125008443 | WASHER |
| 044 | N 912004008102 | LOCK WASHER |
| 045 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 045 | N 304017008021 | SCREW |
| 045 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 045 | N 304017008027 | SCREW |
| STRAP | ||
| 046 | N 007603022102 | SEAL RING |
| 047 | A 0009979272 | FITTING |
| 048 | A 4069975172 | FITTING |
| A 0004314102 | RESERVOIR | |
| Repalced by: A 0004317902 | ||
| 048B | A 0059978445 | SEAL RING |
| 048D | N 000137012203 | SPRING WASHER |
| Repalced by: N 000137012206 | ||
| 048D | N 000137012206 | SPRING WASHER |
| 048F | A 0009902363 | HOLLOW SCREW |
| A 0004310034 | STRAINER | |
| Repalced by: A 0004313734 | ||
| A 0004313734 | STRAINER | |
| Repalced by: A 0004314334 | ||
| 049 | A 0004314334 | STRAINER |
| A 0004312033 | FILLER CAP | |
| Repalced by: A 0004313133 | ||
| A 0004311333 | FILLER CAP | |
| Repalced by: A 0004315133 | ||
| A 0004313133 | FILLER CAP | |
| Repalced by: A 0004314333 | ||
| A 0004314333 | FILLER CAP | |
| Repalced by: A 0004315133 | ||
| A 0002950237 | SCREW PLUG | |
| Repalced by: A 0004315433 | ||
| 049 | A 0004315133 | FILLER CAP |
| Repalced by: A 0004315433 | ||
| 049C | A 0004315433 | FILLER CAP |
| LESS WARNING DEVICE | ||
| 049H | A 0009972940 | SEAL RING |
| Repalced by: A 0049975340 | ||
| 049H | A 0049975340 | SEAL RING |
| Repalced by: A 0039976440 | ||
| 049H | A 0039976440 | SEAL RING |
| 43.7X30 MM | ||
| A 0014319802 | RESERVOIR | |
| Repalced by: A 0014318302 | ||
| 050 | A 0014318302 | RESERVOIR |
| WITH WARNING DEVICE | ||
| A 0002950023 | STRAINER | |
| Repalced by: A 0004313734 | ||
| A 0004310034 | STRAINER | |
| Repalced by: A 0004313734 | ||
| A 0004313734 | STRAINER | |
| Repalced by: A 0004314334 | ||
| 052 | A 0004314334 | STRAINER |
| TO 001 431 98 02 | ||
| A 0004313134 | STRAINER | |
| Repalced by: A 0004315334 | ||
| A 0004315334 | STRAINER | |
| Repalced by: A 0004316934 | ||
| A 0004316934 | STRAINER | |
| TO 001 431 83 02 | ||
| A 0002950237 | SCREW PLUG | |
| Repalced by: A 0004315433 | ||
| 054 | A 0004315433 | FILLER CAP |
| LESS WARNING DEVICE | ||
| TO 001 431 98 02 | ||
| A 0004315733 | FILLER CAP | |
| Repalced by: A 0004316633 | ||
| A 0004316633 | FILLER CAP | |
| Repalced by: A 0004317733 | ||
| A 0004317733 | FILLER CAP | |
| WITH WARNING DEVICE | ||
| TO 001 431 83 02 | ||
| 056 | A 0009976841 | SEAL RING |
| Repalced by: A 0009972940 | ||
| 056 | A 0009972940 | SEAL RING |
| Repalced by: A 0049975340 | ||
| 056 | A 0049975340 | SEAL RING |
| Repalced by: A 0039976440 | ||
| 056 | A 0039976440 | SEAL RING |
| 43.7X30 MM | ||
| A 0004318002 | RESERVOIR | |
| Repalced by: A 0004319902 | ||
| 063 | A 0004319902 | RESERVOIR |
| 063 | A 0004318102 | RESERVOIR |
| WITH WARNING DEVICE | ||
| A 0004312333 | FILLER CAP | |
| Repalced by: A 0004315533 | ||
| 064 | A 0004315533 | FILLER CAP |
| TO 000 431 80 02,000 431 81 02 | ||
| A 0004315733 | FILLER CAP | |
| Repalced by: A 0004316633 | ||
| 064 | A 0004316633 | FILLER CAP |
| Repalced by: A 0004317733 | ||
| 064 | A 0004317733 | FILLER CAP |
| WITH WARNING DEVICE | ||
| TO 000 431 99 02 | ||
| A 0009972940 | SEAL RING | |
| Repalced by: A 0049975340 | ||
| A 0049975340 | SEAL RING | |
| Repalced by: A 0039976440 | ||
| A 0039976440 | SEAL RING | |
| 43.7X30 MM | ||
| A 0004314734 | STRAINER | |
| Repalced by: A 0004315334 | ||
| 065 | A 0004315334 | STRAINER |
| Repalced by: A 0004316934 | ||
| 065 | A 0004316934 | STRAINER |
| TO 000 431 99 02 | ||
| 066 | A 4064263940 | BRACKET |
| A 0009972190 | LOOM TIE | |
| Repalced by: N 916017060000 | ||
| 067 | N 916017060000 | CLAMP |
| Repalced by: N 000000000673 | ||
| 067 | N 000000000673 | CLAMP |
| A 0099975645 | SEAL RING | |
| Repalced by: A 0139977748 | ||
| 068 | A 0139977748 | SEAL RING |
| 069 | A 4212920076 | WASHER |
| 070 | N 000936012005 | NUT |
| Repalced by: N 308675012000 | ||
| 070 | N 308675012000 | NUT |
| A 4062900213 | LINE | |
| Repalced by: A 0004290701 | ||
| A 0004293635 | BRAKE HOSE | |
| Repalced by: A 0004293435 | ||
| 072 | A 0004293435 | BRAKE HOSE |
| Repalced by: A 0024286035 | ||
| 072 | A 0024286035 | BRAKE HOSE |
| 073 | A 0004280473 | BRACKET |
| Repalced by: A 6525040038 | ||
| 073 | A 6525040038 | MOUNTING PLATE |
| 074 | A 3609950101 | CLAMP |
| Repalced by: A 3129951401 | ||
| 074 | A 3129951401 | CLAMP |
| CLUTCH LINE TO BRAKE LINE | ||
| 075 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 075 | N 304017006016 | SCREW |
| CLUTCH LINE TO BRAKE LINE | ||
| 076 | N 913004006002 | NUT |
| Repalced by: N 913023006001 | ||
| 076 | N 913023006001 | NUT |
| CLUTCH LINE TO BRAKE LINE | ||
| A 4062900313 | LINE | |
| Repalced by: A 0004290701 | ||
| 078 | A 3379950132 | CLAMP |
| A 3044760019 | BASE | |
| Repalced by: A 3142030084 | ||
| 079 | A 3142030084 | SHIM |
| A 3044280081 | RUBBER PAD | |
| Repalced by: A 3129973482 | ||
| 080 | A 3129973482 | HOSE |
| 081 | N 000933005035 | SCREW |
| 082 | N 912004005103 | LOCK WASHER |
| 083 | N 913004005001 | NUT |
| Repalced by: N 913023005002 | ||
| 083 | N 913023005002 | NUT |
| A 0004280735 | BRAKE HOSE | |
| Repalced by: A 0004280835 | ||
| 085 | A 0004280835 | BRAKE HOSE |
| 085 | A 0014284035 | BRAKE HOSE |
| Repalced by: A 0024284635 | ||
| 085 | A 0024284635 | BRAKE HOSE |
| A 0004290701 | LINE | |
| Repalced by: A 0004296201 | ||
| 090 | A 0004296201 | LINE |
| 6 X 0.70 MM | ||
| 096 | A 0004280072 | UNION SCREW |
