Transporto priemonė: U 54; VIN numerio dalis: 403120

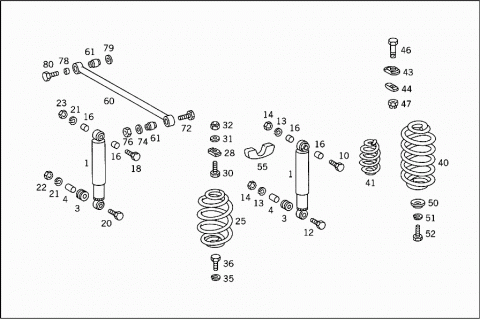

Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 4063230000 | SHOCK ABSORBER |
| Repalced by: A 0023236900 | ||
| 001 | A 0023236900 | SHOCK ABSORBER |
| BOGE | ||
| A 4063230200 | SHOCK ABSORBER | |
| F & S | ||
| A 0003231744 | RUBBER BUFFER | |
| Repalced by: A 0003233144 | ||
| 003 | A 0003233144 | RUBBER BUFFER |
| TO 406 323 00 00 | ||
| Repalced by: A 0003238085 | ||
| 003 | A 0003238085 | RUBBER MOUNTING |
| TO 406 323 00 00 | ||
| 004 | A 0003231550 | BUSHING |
| TO 406 323 00 00 | ||
| A 0003234485 | RUBBER MOUNTING | |
| Repalced by: A 0003235785 | ||
| A 0003235785 | RUBBER MOUNTING | |
| TO 406 323 02 00 | ||
| A 0003234050 | BUSHING | |
| TO 406 323 02 00 | ||
| 010 | N 000960020140 | SCREW |
| Repalced by: N 910105020009 | ||
| 010 | N 910105020009 | SCREW |
| M 20X1.5X140 | ||
| 012 | N 000960020138 | SCREW |
| Repalced by: N 000960020078 | ||
| 012 | N 000960020078 | SCREW |
| 013 | N 912004020100 | LOCK WASHER |
| 014 | N 000936020006 | NUT |
| 016 | A 4063250053 | SPACER TUBE |
| 018 | N 000960020138 | SCREW |
| Repalced by: N 000960020078 | ||
| 018 | N 000960020078 | SCREW |
| 018 | N 000960020078 | SCREW |
| 018 | N 000960020078 | SCREW |
| 020 | N 000960020201 | SCREW |
| M 12X1.5X115 | ||
| 021 | N 912004020100 | LOCK WASHER |
| 022 | N 000934020008 | NUT |
| Repalced by: N 913023020000 | ||
| 022 | N 913023020000 | NUT |
| Repalced by: N 913023020001 | ||
| 022 | N 913023020001 | NUT |
| A 0009941251 | LOCK | |
| Repalced by: N 900050021000 | ||
| N 900050021001 | LOCK PLATE | |
| 023 | N 000936020006 | NUT |
| A 4063260050 | BUSHING | |
| 025 | A 4043210204 | FRONT SPRING |
| 028 | A 4113220024 | PLATE |
| FRONT SPRING TO SPRING BRACKET | ||
| 028 | A 4113220024 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 030 | N 000960014249 | SCREW |
| FRONT SPRING TO SPRING BRACKET | ||
| 031 | N 000125015013 | WASHER |
| FRONT SPRING TO SPRING BRACKET | ||
| 032 | N 913004014002 | NUT |
| Repalced by: N 913023014004 | ||
| 032 | N 913023014004 | NUT |
| FRONT SPRING TO SPRING BRACKET | ||
| N 000094003226 | COTTER PIN | |
| FRONT SPRING TO SPRING BRACKET | ||
| 035 | N 912004014100 | LOCK WASHER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 036 | N 000960014249 | SCREW |
| FRONT SPRINGS TO FRONT AXLE | ||
| 040 | A 4043240104 | REAR SPRING |
| 041 | A 4043210006 | HELPER SPRING |
| 043 | A 4113250383 | RETAINER |
| A 4113250183 | RETAINER | |
| Repalced by: A 4063250326 | ||
| 044 | A 4063250326 | PLATE |
| 046 | N 000960014138 | SCREW |
| Repalced by: N 000961014084 | ||
| 046 | N 000961014084 | SCREW |
| Repalced by: N 000961014148 | ||
| 046 | N 000961014148 | SCREW |
| REAR SPRING TO SPRING BRACKET | ||
| 047 | N 913004014002 | NUT |
| Repalced by: N 913023014004 | ||
| 047 | N 913023014004 | NUT |
| REAR SPRING TO SPRING BRACKET | ||
| N 000094003226 | COTTER PIN | |
| REAR SPRING TO SPRING BRACKET | ||
| 050 | A 4113250083 | RETAINER |
| 051 | N 912004014100 | LOCK WASHER |
| REAR SPRING TO REAR AXLE | ||
| 052 | N 000961014028 | SCREW |
| Repalced by: N 910105014005 | ||
| 052 | N 910105014005 | SCREW |
| M 14X1.5X40 | ||
| N 000961014050 | SCREW | |
| Repalced by: N 910105014013 | ||
| N 910105014013 | SCREW | |
| M14X1.5X35 | ||
| 055 | A 4063220044 | RUBBER BUFFER |
| 060 | A 4043300007 | TRANSVERSE CONTROL ARM |
| A 0009884010 | RUBBER MOUNTING | |
| Repalced by: A 0019880510 | ||
| 061 | A 0019880510 | RUBBER MOUNTING |
| N 914125014209 | SCREW | |
| M 14X1,5X85 | ||
| N 914125014209 | SCREW | |
| M 14X1,5X85 | ||
| N 914125014209 | SCREW | |
| M 14X1,5X85 | ||
| 072 | N 000960014180 | SCREW |
| Repalced by: N 910105014020 | ||
| 072 | N 910105014020 | HEXAGON HEAD BOLT |
| M14X1.5X110 | ||
| 072 | N 910105014020 | HEXAGON HEAD BOLT |
| M14X1.5X110 | ||
| 072 | N 910105014020 | HEXAGON HEAD BOLT |
| M14X1.5X110 | ||
| N 000960014160 | SCREW | |
| CONTROL ARM TO FRONT AXLE AND TO FRAME | ||
| M 14X1,5X105 | ||
| 074 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 074 | N 000125015019 | WASHER |
| 076 | N 308673014002 | NUT |
| 076 | N 308673014002 | NUT |
| 076 | N 308673014002 | NUT |
| N 000935014004 | NUT | |
| N 000979014001 | NUT | |
| N 913004014005 | NUT | |
| Repalced by: N 910113014000 | ||
| N 910113014000 | NUT | |
| CONTROL ARM TO FRONT AXLE AND TO FRAME | ||
| N 000094003226 | COTTER PIN | |
| N 000094003226 | COTTER PIN | |
| N 000094003226 | COTTER PIN | |
| A 4049940010 | LOCK | |
| Repalced by: N 000137014201 | ||
| N 000137014201 | SPRING WASHER | |
| A 0009941651 | LOCK | |
| CONTROL ARMS TO FRONT AND REAR AXLES | ||
| A 0009941651 | LOCK | |
| CONTROL ARMS TO FRONT AND REAR AXLES | ||
| 078 | A 4063330212 | BUSHING |
| CONTROL ARMS TO FRONT AND REAR AXLES | ||
| 078 | A 4063330212 | BUSHING |
| CONTROL ARMS TO FRONT AND REAR AXLES | ||
| A 4063330112 | BUSHING | |
| CONTROL ARMS TO FRONT AND REAR AXLES | ||
| A 4063330112 | BUSHING | |
| CONTROL ARMS TO FRONT AND REAR AXLES | ||
| 079 | A 4409900047 | LOCK WASHER |
| CONTROL ARMS TO FRONT AND REAR AXLES | ||
| N 000960014119 | SCREW | |
| Repalced by: A 4069900155 | ||
| A 4069900155 | SCREW | |
| A 4069905055 | SCREW | |
| A 4069905055 | SCREW | |
| 080 | N 914125014209 | SCREW |
| Repalced by: A 4069905155 | ||
| 080 | A 4069905155 | SCREW |
| CONTROL ARMS TO FRONT AND REAR AXLES | ||
| 080 | A 4069905155 | SCREW |
| CONTROL ARMS TO FRONT AND REAR AXLES | ||
