Transporto priemonė: U 54; VIN numerio dalis: 403120
Grupė: 26 TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| F VERSION,UP TO TRANSMISSION 010398 | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| G VERSION FROM TRANSMISSION 010399 SEE 717.8 UNIT SPAR PARTS LISTE | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| UP TO CHASSIS 004291 717.800,FROM CHASSIS 004292 717.801 | ||
| A 4062600701 | TRANSMISSION | |
| Repalced by: A 4062604401 | ||
| A 4062601201 | TRANSMISSION | |
| Repalced by: A 4062604401 | ||
| A 4062601401 | TRANSMISSION | |
| Repalced by: A 4062604401 | ||

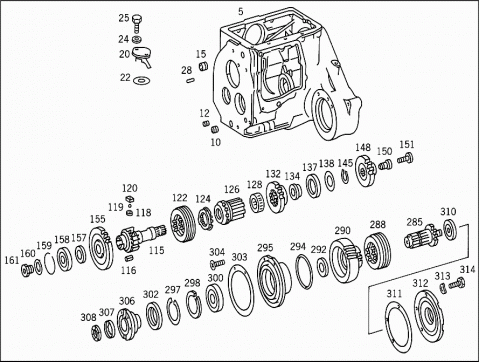

| 005 | A 4062600512 | TRANSMISSION CASE |
| N 071022016002 | SLOTTED PLUG | |
| A 4069875315 | PLUG | |
| Repalced by: A 4062650147 | ||
| A 4062650147 | INTERLOCK PLUG | |
| N 304017006026 | SCREW | |
| Repalced by: N 304017006026 | ||
| N 304017006026 | SCREW | |
| N 000125006421 | WASHER | |
| Repalced by: N 000125006449 | ||

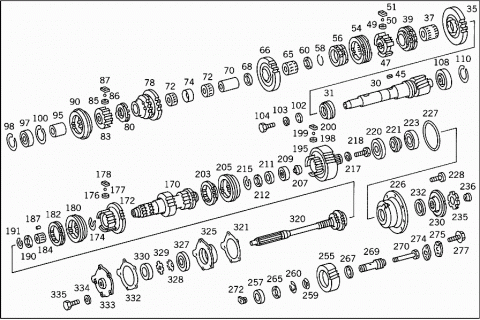

| N 000125006449 | WASHER | |
| N 009021006205 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| N 000934006007 | NUT | |
| N 000551014000 | HEADLESS SETSCREW | |
| 010 | A 4062650147 | INTERLOCK PLUG |
| 012 | N 000551008001 | HEADLESS SETSCREW |
| 015 | A 4069970035 | PLUG |
| 020 | A 4062610265 | OIL BAFFLE |
| Repalced by: A 4172630066 | ||
| 020 | A 4172630066 | OIL RING |
| 022 | A 4062610079 | GASKET |
| Repalced by: A 4172610180 | ||
| 022 | A 4172610180 | GASKET |
| 024 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 024 | N 000433005304 | WASHER |
| 025 | N 000933005049 | SCREW |
| 028 | N 000007013103 | CYLINDRICAL PIN |
| 030 | A 4062600324 | COUNTERSHAFT |
| 031 | A 4062640030 | DRIVE GEAR |
| 035 | A 4062630011 | GEAR |
| 1ST AND 3RD SPEED | ||
| 37 Z | ||
| 037 | A 0009817710 | NEEDLE BEARING |
| 039 | A 4042620234 | SYNCHRONIZER RING |
| Repalced by: A 4402620034 | ||
| 039 | A 4402620034 | SYNCHRONIZER RING |
| 045 | N 006885010035 | KEY |
| 047 | A 4112630236 | FOLLOWER RING |
| 049 | A 0009930926 | DISC SPRING |
| 050 | N 005401305500 | BALL |
| 051 | A 4042620040 | FOLLOWER |
| 054 | A 4042620038 | SYNCHR.SLIDING SLEEVE |
| 056 | A 4042620234 | SYNCHRONIZER RING |
| Repalced by: A 4402620034 | ||
| 056 | A 4402620034 | SYNCHRONIZER RING |
| 058 | A 0009945941 | LOCK |
| 060 | A 4119900340 | WASHER |
| A 0009817610 | NEEDLE BEARING | |
| Repalced by: A 0029818410 | ||
| 065 | A 0029818410 | NEEDLE BEARING |
| 066 | A 4062630012 | GEAR |
| 2ND AND 4TH SPEED | ||
| 30 Z | ||
| A 4112630136 | FOLLOWER RING | |
| Repalced by: A 4112630436 | ||
| 068 | A 4112630436 | RING |
| 070 | A 4119810080 | OUTER RACE |
| A 0009811310 | NEEDLE BEARING | |
| Repalced by: A 0069817510 | ||
| 072 | A 0069817510 | NEEDLE BEARING |
| 074 | A 4062630153 | SPACER TUBE |
| A 4062600018 | GEAR | |
| Repalced by: A 4062600118 | ||
| 078 | A 4062600118 | GEAR |
| 5TH SPEED AND REVERSE | ||
| N 006885010035 | KEY | |
| 080 | A 4042620134 | SYNCHRONIZER RING |
| 083 | A 4112630336 | FOLLOWER RING |
| 085 | A 0009930926 | DISC SPRING |
| 086 | N 005401305500 | BALL |
| 087 | A 4042620140 | FOLLOWER |
| A 4042620138 | SYNCHR.SLIDING SLEEVE | |
| Repalced by: A 4402620138 | ||
| 090 | A 4402620138 | SYNCHR.SLIDING SLEEVE |
| A 4112630253 | SPACER TUBE | |
| Repalced by: A 4112631053 | ||
| 095 | A 4112631053 | SPACER TUBE |
| 097 | N 000625006306 | GROOVED BALL BEARING |
| 098 | A 4112630051 | SPACER RING |
| 100 | N 000472072000 | LOCK RING |
| 102 | A 4069900140 | WASHER |
| 103 | N 912004006102 | LOCK WASHER |
| 104 | N 000933006102 | SCREW |
| 108 | A 0009814901 | CYLINDR. ROLLER BEARING |
| 110 | A 4119910635 | SPACER RING |
| 115 | A 4062630101 | COUNTERSHAFT |
| 116 | N 001481008000 | CLAMPING SLEEVE |
| N 001481005025 | CLAMPING SLEEVE | |
| 118 | A 0009930926 | DISC SPRING |
| 119 | N 005401305500 | BALL |
| 120 | A 4042620140 | FOLLOWER |
| A 4042620138 | SYNCHR.SLIDING SLEEVE | |
| Repalced by: A 4402620138 | ||
| 122 | A 4402620138 | SYNCHR.SLIDING SLEEVE |
| 124 | A 4042620134 | SYNCHRONIZER RING |
| 126 | A 4112600043 | SLEEVE |
| A 0009811310 | NEEDLE BEARING | |
| Repalced by: A 0069817510 | ||
| 128 | A 0069817510 | NEEDLE BEARING |
| A 4062630201 | COUNTERSHAFT | |
| Repalced by: A 4062630301 | ||
| 132 | A 4062630301 | GEAR |
| NUMBER OF TEETH: | ||
| 23 | ||
| 134 | A 4062630462 | THRUST WASHER |
| 137 | A 0019812801 | CYLINDR. ROLLER BEARING |
| 138 | A 4119913435 | SPACER RING |
| AS REQUIRED | ||
| 2.30 MM | ||
| A 4119913535 | SPACER RING | |
| AS REQUIRED | ||
| 2.40 MM | ||
| A 4119913635 | SPACER RING | |
| AS REQUIRED | ||
| 2.50 MM | ||
| A 4119911535 | SPACER RING | |
| AS REQUIRED | ||
| 2.60 MM | ||
| A 4119911635 | SPACER RING | |
| AS REQUIRED | ||
| 2.70 MM | ||
| A 4119911735 | SPACER RING | |
| AS REQUIRED | ||
| 2.80 MM | ||
| A 4119911835 | SPACER RING | |
| AS REQUIRED | ||
| 3.00 MM | ||
| A 4119911935 | SPACER RING | |
| AS REQUIRED | ||
| 3.10 MM | ||
| A 4119912035 | SPACER RING | |
| AS REQUIRED | ||
| 3.20 MM | ||
| A 4119912135 | SPACER RING | |
| AS REQUIRED | ||
| 3.30 MM | ||
| 145 | N 900055034300 | LOCK RING |
| A 4062641520 | GEAR | |
| Repalced by: A 4062642020 | ||
| 148 | A 4062642020 | GEAR |
| NUMBER OF TEETH: | ||
| 24 | ||
| A 4062630362 | THRUST WASHER | |
| Repalced by: A 4062630562 | ||
| 150 | A 4062630562 | GUIDE |
| 151 | N 000912008223 | SCREW |
| 155 | A 4062630113 | GEAR |
| NUMBER OF TEETH: | ||
| 52 | ||
| 157 | A 4042640051 | SPACER RING |
| 158 | N 000625506209 | GROOVED BALL BEARING |
| 159 | N 005417085000 | SNAP RING |
| 160 | A 4042630073 | LOCK |
| 161 | A 4069900063 | HOLLOW SCREW |
| 170 | A 4062600622 | MAIN SHAFT |
| A 4062620010 | GEAR | |
| Repalced by: A 4062620110 | ||
| 172 | A 4062620110 | GEAR |
| 5TH SPEED, ON MAIN SHAFT 30 TEETH | ||
| 174 | N 000471045000 | LOCK RING |
| 176 | A 0009930926 | DISC SPRING |
| 177 | N 005401305500 | BALL |
| 178 | A 4042620140 | FOLLOWER |
| A 4042620138 | SYNCHR.SLIDING SLEEVE | |
| Repalced by: A 4402620138 | ||
| 180 | A 4402620138 | SYNCHR.SLIDING SLEEVE |
| A 4042620134 | SYNCHRONIZER RING | |
| Repalced by: A 4062630038 | ||
| 182 | A 4062630038 | SYNCHR.SLIDING SLEEVE |
| 184 | A 0009812584 | CAGE |
| N 005402008201 | CYLINDRICAL ROLLER | |
| Repalced by: A 4119810186 | ||
| 187 | A 4119810186 | ROLLER |
| 190 | A 4042620062 | THRUST WASHER |
| 191 | N 000471028000 | LOCK RING |
| 195 | A 4062641420 | GEAR |
| A 0009931026 | DISC SPRING | |
| Repalced by: A 0009930926 | ||
| 198 | A 0009930926 | DISC SPRING |
| 199 | N 005401305500 | BALL |
| 200 | A 4042620140 | FOLLOWER |
| 203 | A 4042620134 | SYNCHRONIZER RING |
| A 4042620138 | SYNCHR.SLIDING SLEEVE | |
| Repalced by: A 4402620138 | ||
| 205 | A 4402620138 | SYNCHR.SLIDING SLEEVE |
| A 4062620162 | THRUST WASHER | |
| Repalced by: A 4062620362 | ||
| 207 | A 4062620362 | THRUST WASHER |
| 209 | A 0019814105 | TAPERED ROLLER BEARING |
| 211 | A 4062620051 | SPACER RING |
| 212 | A 4062620152 | SPACER WASHER |
| AS REQUIRED | ||
| 2.60 MM | ||
| A 4062620252 | SPACER WASHER | |
| AS REQUIRED | ||
| 2.80 MM | ||
| A 4062620352 | SPACER WASHER | |
| Repalced by: A 4062620652 | ||
| A 4062620652 | SPACER WASHER | |
| AS REQUIRED | ||
| A 4062620452 | SPACER WASHER | |
| AS REQUIRED | ||
| 3.20 MM | ||
| A 4062620552 | SPACER WASHER | |
| AS REQUIRED | ||
| 3.40 MM | ||
| A 4062620652 | SPACER WASHER | |
| AS REQUIRED | ||
| 3.60 MM | ||
| 215 | N 900055052310 | LOCK RING |
| 217 | N 912004010102 | LOCK WASHER |
| 218 | N 910105010002 | SCREW |
| 220 | A 0029811305 | TAPERED ROLLER BEARING |
| 221 | A 4062620353 | SPACER TUBE |
| 223 | A 0029811205 | TAPERED ROLLER BEARING |
| 226 | A 4062600217 | FLANGE |
| A 4062640285 | OIL PIPE | |
| 227 | A 0009875546 | SEALING CORD |
| A 4042620134 | SYNCHRONIZER RING | |
| 228 | N 000963006031 | SCREW |
| A 4062640944 | INTERMEDIATE FLANGE | |
| Repalced by: A 4062641344 | ||
| 230 | A 4062641344 | INTERMEDIATE FLANGE |
| 232 | A 0049971246 | SEAL RING |
| A 0079977946 | SEAL RING | |
| 235 | A 4069900060 | NUT |
| 236 | A 4062640055 | PLUG |
| 255 | A 4062640021 | GEAR |
| 257 | A 0009818605 | TAPERED ROLLER BEARING |
| 259 | A 0002620653 | SPACER TUBE |
| 260 | A 0009948541 | LOCK |
| AS REQUIRED | ||
| 2.90 MM | ||
| A 0009948641 | LOCK | |
| AS REQUIRED | ||
| 2.95 MM | ||
| A 0009948741 | LOCK | |
| AS REQUIRED | ||
| 3.00 MM | ||
| 265 | A 0009908940 | WASHER |
| 267 | A 4062640152 | SPACER WASHER |
| 269 | A 4062640774 | PIN |
| 270 | N 000960010031 | SCREW |
| 272 | A 4062640172 | NUT |
| Repalced by: A 4062640272 | ||
| 272 | A 4062640272 | NUT |
| 274 | A 4062640073 | LOCK |
| 275 | A 4062640457 | LOCKING CAP |
| N 000933008034 | SCREW | |
| Repalced by: A 0009905022 | ||
| 277 | A 0009905022 | SCREW |
| Repalced by: N 914114008009 | ||
| 277 | N 914114008009 | SCREW |
| 285 | A 4112640518 | SHAFT |
| 288 | A 4112641023 | SLIDING COLLAR |
| 290 | A 4112641420 | GEAR |
| 292 | A 4043350051 | SPACER RING |
| 294 | A 0009875546 | SEALING CORD |
| 295 | A 4112640444 | INTERMEDIATE FLANGE |
| 297 | N 000472100000 | LOCK RING |
| 298 | A 4062630053 | SPACER TUBE |
| 300 | N 000625006211 | GROOVED BALL BEARING |
| 302 | A 4049970040 | SEAL RING |
| 303 | A 4042640180 | GASKET |
| 304 | N 000963006031 | SCREW |
| A 4062640244 | INTERMEDIATE FLANGE | |
| Repalced by: A 4062641244 | ||
| 306 | A 4062641244 | INTERMEDIATE FLANGE |
| 307 | A 4042620073 | LOCK |
| 308 | A 4042620026 | GROOVED NUT |
| 310 | N 000625306206 | GROOVED BALL BEARING |
| 311 | A 4042640180 | GASKET |
| 312 | A 4112640211 | COVER |
| 313 | N 000137010201 | SPRING WASHER |
| 314 | N 000933010128 | SCREW |
| Repalced by: N 910105010006 | ||
| 314 | N 910105010006 | SCREW |
| 320 | A 4062620502 | DRIVE SHAFT |
| 321 | A 4042650152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| A 4042650252 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.40 MM | ||
| A 4042650352 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.60 MM | ||
| A 4042650452 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.80 MM | ||
| A 4042650552 | SPACER WASHER | |
| AS REQUIRED | ||
| 1.00 MM | ||
| A 4042650652 | SPACER WASHER | |
| AS REQUIRED | ||
| 1.20 MM | ||
| A 4042650752 | SPACER WASHER | |
| AS REQUIRED | ||
| 1.40 MM | ||
| 325 | A 4062620145 | FLANGE |
| A 0009811625 | BALL BEARING | |
| Repalced by: A 0019817201 | ||
| A 0019812501 | CYLINDR. ROLLER BEARING | |
| Repalced by: A 0019817201 | ||
| 327 | A 0019817201 | CYLINDR. ROLLER BEARING |
| 328 | N 070952035100 | LOCK PLATE |
| 329 | N 070852035000 | NUT |
| 330 | A 4062620053 | SPACER TUBE |
| 332 | A 4042640280 | GASKET |
| 333 | A 4112640111 | COVER |
| 334 | N 007603008107 | SEAL RING |
| 335 | N 000933008116 | SCREW |
| Repalced by: N 000933008337 | ||
| 335 | N 000933008337 | SCREW |
| Repalced by: A 0099900101 | ||
| 335 | A 0099900101 | SCREW |
| 340 | A 4062600028 | GUIDE PLATE |
| 341 | A 4042650445 | SHIFTING GUIDE |
| 342 | A 4042650545 | SHIFTING GUIDE |
| 343 | A 4042650645 | SHIFTING GUIDE |
| 344 | A 4042650145 | SHIFTING GUIDE |
| 346 | A 4042650245 | SHIFTING GUIDE |
| 347 | A 4042650345 | SHIFTING GUIDE |
| 350 | A 4042650374 | PIN |
| 351 | A 4049930007 | SPRING |
| 352 | A 4042650745 | SHIFTING GUIDE |
| 354 | N 000661003500 | RIVET |
| N 000661003501 | RIVET | |
| 356 | A 4042600087 | PAWL |
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| N 000094003219 | COTTER PIN | |
| 358 | A 4042650035 | SHIFTING FORK |
| 1ST THRU 4TH SPEED | ||
| A 4042600730 | SHIFTING FORK | |
| Repalced by: A 4062650237 | ||
| 359 | A 4062650237 | DETENT |
| 2ND AND 4TH SPEED | ||
| 360 | A 4042600830 | SHIFTING FORK |
| REDUCTION UNIT AND DIRECT SPEED | ||
| 361 | A 4042600630 | SHIFTING FORK |
| REVERSE SPEED | ||
| 363 | A 4042600041 | FOLLOWER |
| 364 | N 000661008006 | RIVET |
| 365 | A 4042650174 | PIN |
| 367 | A 4042650274 | PIN |
| 369 | A 4042651045 | SHIFTING GUIDE |
| 370 | N 005402008200 | CYLINDRICAL ROLLER |
| 371 | A 4042650106 | COVER |
| 373 | A 4049931401 | SPRING |
| 374 | A 4042670085 | SPRING RETAINER |
| 375 | A 4042650073 | LOCK |
| 377 | A 4042650020 | FOLLOWER |
| 379 | A 4042650045 | SHIFTING GUIDE |
| 380 | N 000661008004 | RIVET |
| N 000661008011 | RIVET | |
| 381 | N 001481004000 | CLAMPING SLEEVE |
| 383 | A 4042650042 | SLIDING PLATE |
| 384 | A 4112640019 | LEVER |
| 385 | A 4042650074 | PIN |
| 386 | N 006797010153 | TOOTHED WASHER |
| 387 | N 000439010211 | NUT |
| Repalced by: N 308675010000 | ||
| 387 | N 308675010000 | NUT |
| A 4062600514 | TRANSMISSION CASE COVER | |
| 390 | A 4062600914 | TRANSMISSION CASE COVER |
| A 4042600530 | SHIFTING FORK | |
| 392 | A 4062600930 | SHIFTING FORK |
| 394 | A 4062610105 | TRANSMISSION CASE COVER |
| 395 | A 4042650845 | SHIFTING GUIDE |
| 396 | N 000661008005 | RIVET |
| 398 | A 4042650945 | SHIFTING GUIDE |
| 399 | A 4042650174 | PIN |
| 400 | A 4042650106 | COVER |
| 401 | N 005402008200 | CYLINDRICAL ROLLER |
| 402 | A 4049931401 | SPRING |
| 403 | A 4042670085 | SPRING RETAINER |
| 404 | A 4042650073 | LOCK |
| 406 | A 4042610005 | SHIFT CASE |
| 407 | N 000470020000 | EXPANSION PLUG |
| 409 | A 4042650121 | SHIFTING SHAFT |
| 410 | N 900059030000 | EXPANSION PLUG |
| 412 | A 4112650431 | LEVER |
| 413 | N 912004010102 | LOCK WASHER |
| 414 | N 000931010306 | SCREW |
| Repalced by: N 910105010011 | ||
| 414 | N 910105010011 | HEXAGON HEAD BOLT |
| 415 | A 4042670006 | COVER |
| 417 | A 4112680001 | HOUSING |
| 418 | A 0019978048 | SEAL RING |
| 419 | A 4042630029 | RING HALF |
| 420 | A 4042630129 | RING HALF |
| 422 | A 4112650531 | LEVER |
| 423 | A 4042650053 | SPACER TUBE |
| 424 | A 4042650076 | WASHER |
| 425 | N 912004010102 | LOCK WASHER |
| 426 | N 000933010128 | SCREW |
| Repalced by: N 910105010006 | ||
| 426 | N 910105010006 | SCREW |
| 428 | A 4042650006 | COVER |
| 429 | N 912004008102 | LOCK WASHER |
| 430 | N 000933008116 | SCREW |
| Repalced by: N 000933008337 | ||
| 430 | N 000933008337 | SCREW |
| Repalced by: A 0099900101 | ||
| 430 | A 0099900101 | SCREW |
| N 000933008154 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| 433 | N 001473005010 | GROOVED PIN |
| 435 | A 4062600095 | BEARING |
| REVERSE SPEED | ||
| 436 | A 0009875146 | SEALING CORD |
| 437 | N 000470020000 | EXPANSION PLUG |
| 438 | N 000319040500 | BALL KNOB |
| 440 | N 912004008102 | LOCK WASHER |
| 441 | N 000931008266 | SCREW |
| 443 | A 4112650631 | LEVER |
| 444 | A 4049900314 | SCREW |
| 445 | N 001473004001 | GROOVED PIN |
| 446 | N 000934010015 | NUT |
| Repalced by: N 308673010000 | ||
| 446 | N 308673010000 | NUT |
| 448 | N 007603012106 | SEAL RING |
| 449 | A 4049900363 | HOLLOW SCREW |
| 451 | A 4042640110 | COVER |
| 452 | N 912004008102 | LOCK WASHER |
| 453 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 453 | N 304017008016 | SCREW |
| N 007603010103 | SEAL RING | |
| Repalced by: N 007603010110 | ||
| N 007603010110 | SEAL RING | |
| N 000933010162 | SCREW | |
| 455 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 455 | N 000137008212 | SPRING WASHER |
| 456 | N 000931008246 | SCREW |
| Repalced by: N 304017008028 | ||
| 456 | N 304017008028 | SCREW |
| N 000931008254 | SCREW | |
| Repalced by: N 304014008002 | ||
| N 304014008002 | SCREW | |
| 458 | A 4042650036 | ROD |
| 459 | A 4062650001 | SHIFTING FORK |
| Repalced by: A 4062650401 | ||
| 459 | A 4062650401 | SHIFTING FORK |
| 1ST THRU 4TH SPEED | ||
| 460 | A 4042640126 | SHIFTING FORK |
| Repalced by: A 4062650501 | ||
| 460 | A 4062650501 | SHIFTING FORK |
| 5TH SPEED | ||
| 461 | A 4112640626 | SHIFTING FORK |
| 462 | A 4049900015 | SCREW |
| 464 | A 4062650336 | BRACKET |
| 465 | A 4062650020 | FOLLOWER |
| 466 | N 912004008102 | LOCK WASHER |
| 467 | A 4219905015 | SCREW |
| 469 | A 4062600230 | SHIFTING FORK |
| N 912004008102 | LOCK WASHER | |
| SLIDING FORK TO SHIFTING TONGUE | ||
| A 4049900015 | SCREW | |
| SLIDING FORK TO SHIFTING TONGUE | ||
| 470 | N 007603022105 | SEAL RING |
| 471 | N 007604022100 | SCREW PLUG |
| Repalced by: A 3469970230 | ||
| 471 | A 3469970230 | SCREW PLUG |
| 473 | A 4042600739 | SHIFT LEVER |
| 474 | A 4049970245 | SEAL RING |
| 475 | A 4112640326 | SHIFTING FORK |
| 476 | A 4112650149 | SLIDE |
| 477 | N 912004006102 | LOCK WASHER |
| 478 | N 000933006049 | SCREW |
| 480 | A 4062600085 | DRIP PAN |
| 481 | A 4049870351 | RUBBER SEAL |
| 482 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 482 | N 304017008027 | SCREW |
| 483 | N 000917008007 | NUT |
| 485 | N 007603022105 | SEAL RING |
| 486 | N 007604022100 | SCREW PLUG |
| Repalced by: A 3469970230 | ||
| 486 | A 3469970230 | SCREW PLUG |
| 487 | A 4042640180 | GASKET |
| 488 | A 4042640011 | COVER |
| 489 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 489 | N 007603010110 | SEAL RING |
| 490 | N 000933010112 | SCREW |
| Repalced by: N 304017010043 | ||
| 490 | N 304017010043 | SCREW |
| 492 | A 4112610080 | GASKET |
| 493 | A 4112600065 | COVER |
| 494 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 494 | N 000125008443 | WASHER |
| 495 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 495 | N 304017008034 | SCREW |
| 497 | A 4062640118 | SHAFT |
| NUMBER OF TEETH: | ||
| 11 | ||
| 498 | A 4069920001 | BUSHING |
| 500 | A 4062610060 | GASKET |
| 501 | A 4062610033 | COVER |
| 502 | N 007603008104 | SEAL RING |
| 503 | N 000933008116 | SCREW |
| Repalced by: N 000933008337 | ||
| 503 | N 000933008337 | SCREW |
| Repalced by: A 0099900101 | ||
| 503 | A 0099900101 | SCREW |
| 505 | A 4042640067 | OIL FILLER NECK |
| 506 | A 4042600074 | POINTER |
| 508 | A 4042640010 | COVER |
| 509 | N 912004010102 | LOCK WASHER |
| 510 | N 304017010027 | HEXAGON HEAD BOLT |
| 512 | A 4042610180 | GASKET |
| Repalced by: A 4172611180 | ||
| 512 | A 4172611180 | GASKET |
| 513 | A 4042610019 | TRANSMISSION CASE COVER |
| 514 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 514 | N 007603010110 | SEAL RING |
| 515 | N 914038010005 | COMBINATION BOLT |
| Repalced by: N 304017010028 | ||
| 515 | N 304017010028 | HEXAGON HEAD BOLT |
| N 070614010001 | SCREW | |
| 517 | A 4042610080 | GASKET |
| Repalced by: A 4172611280 | ||
| 517 | A 4172611280 | GASKET |
| 518 | A 4042610021 | TRANSMISSION CASE COVER |
| 519 | N 912004010102 | LOCK WASHER |
| 520 | N 000933010164 | SCREW |
| 521 | N 915035000005 | SEAL RING |
| 521 | N 007603016105 | SEAL RING |
| 522 | N 000961012001 | SCREW |
| 522 | N 000908016101 | SCREW PLUG |
| A 4062600339 | SHIFT LEVER | |
| Repalced by: A 4062602139 | ||
| 524 | A 4062602139 | SHIFT LEVER |
| A 4069935001 | SPRING | |
| 530 | N 000319040500 | BALL KNOB |
| 533 | A 0009874346 | SEALING CORD |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
