Transporto priemonė: U 65 T,U 70 T; VIN numerio dalis: 406130

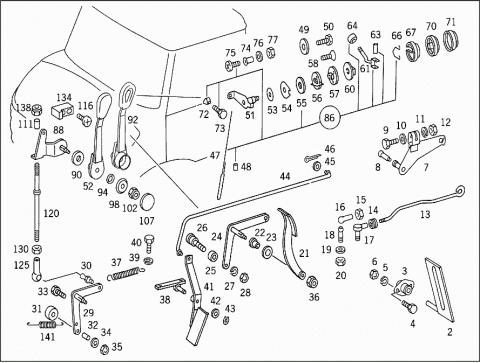

Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 002 | A 4063000002 | PLATE |
| 003 | A 4063000236 | BEARING BRACKET |
| 004 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 004 | N 304017008016 | SCREW |
| 005 | N 912004008102 | LOCK WASHER |
| 006 | N 304032008006 | NUT |
| 007 | A 4063000104 | ACCELERATOR PEDAL |
| 008 | A 1803010074 | PIN |
| 009 | N 000931006041 | SCREW |
| 010 | N 000125006421 | WASHER |
| Repalced by: N 000125006449 | ||
| 010 | N 000125006449 | WASHER |
| 011 | N 912004006102 | LOCK WASHER |
| 012 | N 000934006007 | NUT |
| 013 | A 4063010015 | ROD |
| 014 | A 1213010097 | BOOT |
| Repalced by: A 1803010097 | ||
| 014 | A 1803010097 | BOOT |
| 015 | N 304032008006 | NUT |
| 016 | A 4069910022 | BALL SOCKET |
| N 071805013403 | CIRCLIP | |
| Repalced by: A 0004310667 | ||
| 017 | A 0004310667 | YOKE |
| 018 | N 071803013102 | BALL PIVOT |
| Repalced by: N 000000004468 | ||
| 018 | N 000000004468 | BALL STUD |
| 019 | N 912004008102 | LOCK WASHER |
| 020 | N 304032008006 | NUT |
| 021 | A 4063010020 | LEVER |
| 022 | A 4063010350 | BUSHING |
| 023 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 023 | N 009021010209 | WASHER |
| 024 | A 4063000404 | LEVER |
| 025 | A 4213010011 | ROLLER |
| 026 | A 4044270071 | SCREW |
| 027 | N 912004008102 | LOCK WASHER |
| 028 | N 304032008006 | NUT |
| 029 | A 4063000904 | LEVER |
| 030 | N 071803010202 | BALL PIVOT |
| 031 | A 4253010011 | ROLLER |
| Repalced by: A 4273010011 | ||
| 031 | A 4273010011 | ROLLER |
| 032 | A 4063020253 | SPACER TUBE |
| Repalced by: A 4173020053 | ||
| 032 | A 4173020053 | SPACER TUBE |
| 033 | N 000931008228 | SCREW |
| Repalced by: N 000933008134 | ||
| 033 | N 000933008134 | SCREW |
| M 8X28 | ||
| 034 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 034 | N 000125008443 | WASHER |
| 035 | N 913004008005 | NUT |
| Repalced by: N 913023008002 | ||
| 035 | N 913023008002 | NUT |
| A 0019901651 | NUT | |
| Repalced by: N 913004008004 | ||
| 036 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 036 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 036 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 036 | N 913023008002 | NUT |
| 036 | N 913023008002 | NUT |
| 037 | A 4069935110 | SPRING |
| A 4063000536 | BEARING BRACKET | |
| Repalced by: A 4063000636 | ||
| 038 | A 4063000636 | BEARING BRACKET |
| 039 | N 912004006102 | LOCK WASHER |
| 040 | N 000933006127 | SCREW |
| A 4063000304 | ACCELERATOR PEDAL | |
| Repalced by: A 4063000704 | ||
| 041 | A 4063000704 | LEVER |
| 042 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 042 | N 000125008443 | WASHER |
| 042 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 042 | N 000125010532 | WASHER |
| 043 | N 000471008002 | LOCK RING |
| 043 | N 000471010001 | LOCK RING |
| 044 | A 4063000515 | ROD |
| Repalced by: A 4063000715 | ||
| 044 | A 4063000715 | ROD |
| 045 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 045 | N 000125008443 | WASHER |
| 046 | N 000094002077 | COTTER PIN |
| A 4043020005 | WIRE | |
| Repalced by: A 4063020105 | ||
| 047 | A 4063020105 | WIRE |
| MANUAL CONTROL WIRE CABLE | ||
| 048 | A 4043020168 | END PIECE |
| A 4063000226 | MANUAL CONTROL | |
| Repalced by: A 4063001326 | ||
| A 4063000426 | MANUAL CONTROL | |
| Repalced by: A 4063001326 | ||
| A 4063000726 | MANUAL CONTROL | |
| Repalced by: A 4063001326 | ||
| A 4063000053 | SLEEVE | |
| Repalced by: A 4063001326 | ||
| A 4063020154 | GUARD PLATE | |
| Repalced by: A 4063020454 | ||
| 049 | A 4063020454 | GUARD PLATE |
| 40X16X3 MM | ||
| A 4069810085 | BALL | |
| Repalced by: A 1203020087 | ||
| A 4043020068 | END PIECE | |
| Repalced by: A 1233000086 | ||
| 050 | N 000933005058 | SCREW |
| A 4063001226 | MANUAL CONTROL | |
| Repalced by: A 4063001326 | ||
| 051 | A 4063001326 | MANUAL CONTROL |
| 052 | A 4423001217 | LEVER |
| Repalced by: A 4413000325 | ||
| 052 | A 4413000325 | LEVER |
| 053 | A 0009932226 | DISC SPRING |
| 054 | A 4063020162 | THRUST WASHER |
| A 4063020154 | GUARD PLATE | |
| Repalced by: A 4063020454 | ||
| A 3262910076 | WASHER | |
| Repalced by: A 4063020454 | ||
| 055 | A 4063020454 | GUARD PLATE |
| 056 | A 4063000045 | FLANGE |
| 057 | A 4063020128 | STOP |
| 058 | N 000963005011 | SCREW |
| A 4063000153 | SLEEVE | |
| Repalced by: A 4063020427 | ||
| 060 | A 4063020427 | HUB |
| 061 | A 4063000926 | MANUAL CONTROL |
| 063 | N 001481004034 | CLAMPING SLEEVE |
| 064 | N 000319025300 | BALL KNOB |
| 066 | A 4069935025 | SPRING |
| 067 | A 4069885035 | CAP |
| A 4063000138 | COVER | |
| Repalced by: A 4063000038 | ||
| 070 | A 4063000038 | COVER |
| 071 | A 4069875445 | LOCKING CAP |
| 072 | A 1233000086 | END PIECE |
| 073 | N 000933005058 | SCREW |
| 073 | N 000933005036 | SCREW |
| 074 | A 4063020050 | BUSHING |
| 075 | A 3358335071 | SCREW |
| 076 | N 000125005317 | WASHER |
| Repalced by: N 000125005330 | ||
| 076 | N 000125005330 | WASHER |
| 077 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 077 | N 304032005005 | NUT |
| 086 | A 4165860030 | REPAIR KIT |
| Repalced by: A 4163000026 | ||
| 086 | A 4163000026 | MANUAL CONTROL |
| MANUAL CONTROL | ||
| 088 | A 4063001104 | ACCELERATOR PEDAL |
| Repalced by: A 4193000025 | ||
| 088 | A 4193000025 | LEVER |
| 090 | A 4063020554 | GUARD PLATE |
| 090 | A 4063020554 | GUARD PLATE |
| 090 | A 4423020154 | GUARD PLATE |
| BETWEEN CONTROL LEVER AND CAB | ||
| 092 | A 4063020114 | LEVER |
| 094 | A 4253010085 | RUBBER BUFFER |
| 098 | A 4253020162 | THRUST WASHER |
| 102 | N 913004008005 | NUT |
| Repalced by: N 913023008002 | ||
| 102 | N 913023008002 | NUT |
| 107 | A 4069875545 | LOCKING CAP |
| 111 | A 4063010041 | STOP |
| 111 | A 4193010041 | STOP |
| 116 | N 007985006148 | SCREW |
| Repalced by: N 007985006180 | ||
| 116 | N 007985006180 | SCREW |
| 120 | A 4063000615 | ROD |
| 125 | A 0009912422 | BALL SOCKET |
| 130 | N 000934006007 | NUT |
| 134 | A 4063020362 | THRUST WASHER |
| 138 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 138 | N 910113006001 | NUT |
| 141 | A 4259930110 | SPRING |
