Transporto priemonė: U 65 T,U 70 T; VIN numerio dalis: 406130
Grupė: 33 FRONT AXLE
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| "E" AND "F" VERSIONS;FOR "G" VERSION, SEE MODELS 737.0/1 | ||
| A 4063300199 | FRONT AXLE | |
| Repalced by: A 4063301299 | ||
| A 4063300299 | FRONT AXLE | |
| Repalced by: A 4063301299 | ||
| A 4063300399 | FRONT AXLE | |
| Repalced by: A 4063301299 | ||
| 003 | A 4063301299 | FRONT AXLE |
| Repalced by: A 4063300999 | ||
| 003 | A 4063300999 | FRONT AXLE |
| WITH DRUM BRAKES, WHEEL HUBS, AND TIE ROD | ||
| A 4163300299 | FRONT AXLE | |
| Repalced by: A 4163300999 | ||

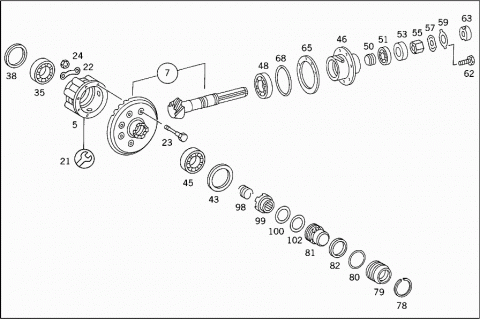

| A 4063350001 | DIFFERENTIAL CASE | |
| Repalced by: A 4063350201 | ||
| 005 | A 4063350201 | DIFFERENTIAL CASE |
| 005 | A 4163350001 | DIFFERENTIAL CASE |
| Repalced by: A 4163350401 | ||
| 005 | A 4163350101 | DIFFERENTIAL CASE |
| Repalced by: A 4163350401 | ||
| 005 | A 4163350401 | DIFFERENTIAL CASE |
| Repalced by: A 4373350401 | ||
| 005 | A 4373350401 | DIFFERENTIAL CASE |
| Repalced by: A 4053350201 | ||
| 005 | A 4053350201 | DIFFERENTIAL CASE |
| A 4063300039 | RING GEAR AND PINION | |
| Repalced by: A 4063300139 | ||
| 007 | A 4063300139 | RING GEAR AND PINION |
| RATIO: | ||
| 25:8 | ||
| A 4063300239 | RING GEAR AND PINION | |
| Repalced by: A 4163300039 | ||
| 007 | A 4163300039 | RING GEAR AND PINION |
| Repalced by: A 4063300339 | ||
| 007 | A 4063300339 | RING GEAR AND PINION |
| RATIO: | ||
| 22:7 | ||
| N 001481010005 | CLAMPING SLEEVE | |
| A 4063350020 | DIFFERENTIAL SPIDER | |
| A 4163350020 | DIFFERENTIAL SPIDER | |
| Repalced by: A 4163350220 | ||
| A 4163350220 | DIFFERENTIAL SPIDER | |
| A 4063350114 | DIFFERENTIAL PINION | |
| A 4163350014 | DIFFERENTIAL PINION | |
| A 4063370162 | SEGMENT | |
| A 4163370062 | SEGMENT | |
| A 4063350115 | SIDE GEAR | |
| Repalced by: A 4063350215 | ||
| A 4063350215 | SIDE GEAR | |
| A 4163350015 | SIDE GEAR | |
| A 4063350262 | THRUST WASHER | |
| Repalced by: A 4063350662 | ||
| A 4063350662 | THRUST WASHER | |
| 1.45 MM | ||
| A 4163350062 | THRUST WASHER | |
| 2.00 MM | ||
| 021 | A 4165860235 | REPAIR KIT |
| Repalced by: A 4163500240 | ||
| 021 | A 4163500240 | REPAIR KIT |
| DIFFERENTIAL GEAR | ||
| 021 | A 4355860035 | REPAIR KIT |
| Repalced by: A 4353500040 | ||
| 021 | A 4353500040 | REPAIR KIT |
| Repalced by: A 4373500040 | ||
| 021 | A 4373500040 | REPAIR KIT |
| DIFFERENTIAL GEAR | ||
| 022 | A 4043350073 | LOCK |
| 023 | A 4069905119 | SCREW |
| 023 | N 000960012169 | SCREW |
| 023 | N 000960012277 | SCREW |
| Repalced by: A 0079900101 | ||
| 023 | A 0079900101 | SCREW |
| 024 | N 000934012033 | NUT |
| Repalced by: A 0039909651 | ||
| 024 | A 0039909651 | NUT |
| 027 | A 4063510203 | HOUSING |
| 030 | N 000906030003 | SCREW PLUG |
| 031 | N 915035000001 | SEAL RING |
| 032 | N 007604018109 | SCREW PLUG |
| 035 | N 000720030211 | TAPERED ROLLER BEARING |
| RIGHT | ||
| 035 | A 0029816005 | TAPERED ROLLER BEARING |
| Repalced by: N 000720032013 | ||
| 035 | N 000720032013 | TAPERED ROLLER BEARING |
| RIGHT | ||
| 038 | A 4063370152 | SPACER WASHER |
| Repalced by: A 4163370052 | ||
| 038 | A 4163370052 | SPACER WASHER |
| Repalced by: A 4163371852 | ||
| 038 | A 4163371852 | SPACER WASHER |
| AS REQUIRED | ||
| 0.15 MM | ||
| 038 | A 4063370252 | SPACER WASHER |
| Repalced by: A 4163370152 | ||
| 038 | A 4163370152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 038 | A 4063370352 | SPACER WASHER |
| Repalced by: A 4163370252 | ||
| 038 | A 4163370252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 038 | A 4063370452 | SPACER WASHER |
| Repalced by: A 4163370352 | ||
| 038 | A 4063370552 | SPACER WASHER |
| Repalced by: A 4163370352 | ||
| 038 | A 4063370652 | SPACER WASHER |
| Repalced by: A 4163370352 | ||
| 038 | A 4163370552 | SPACER WASHER |
| Repalced by: A 4273370152 | ||
| 038 | A 4273370152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 043 | A 4063371552 | SPACER WASHER |
| Repalced by: A 4063372852 | ||
| 043 | A 4063372852 | SPACER WASHER |
| AS REQUIRED | ||
| 0.15 MM | ||
| 043 | A 4063371652 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 043 | A 4063371752 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 043 | A 4063371852 | SPACER WASHER |
| AS REQUIRED | ||
| 0.30 MM | ||
| 043 | A 4063371952 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 043 | A 4063372052 | SPACER WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 045 | N 000720030214 | TAPERED ROLLER BEARING |
| LEFT | ||
| 045 | N 000720032016 | TAPERED ROLLER BEARING |
| LEFT | ||
| 046 | A 4063530111 | BEARING BODY |
| Repalced by: A 4163530011 | ||
| 046 | A 4163530011 | BEARING BODY |
| 048 | A 0019814605 | TAPERED ROLLER BEARING |
| 050 | A 4063350153 | SPACER TUBE |
| Repalced by: A 4063310053 | ||
| 050 | A 4063310053 | SPACER TUBE |
| 051 | A 0019814405 | TAPERED ROLLER BEARING |
| 053 | A 4063350272 | NUT |
| Repalced by: A 4063370251 | ||
| 053 | A 4063370251 | SPACER RING |
| 055 | A 4063350172 | NUT |
| 057 | A 4063370073 | LOCK |
| 059 | A 4063370173 | LOCK |
| 062 | N 000933006030 | SCREW |
| Repalced by: N 304017006022 | ||
| 062 | N 304017006022 | SCREW |
| 063 | A 4163310258 | RADIAL SEAL RING |
| 065 | A 4063354552 | SPACER WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 065 | A 4063352152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 065 | A 4063352252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 065 | A 4063352352 | SPACER WASHER |
| AS REQUIRED | ||
| 0.30 MM | ||
| 065 | A 4063352452 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 068 | A 0009878046 | SEALING CORD |

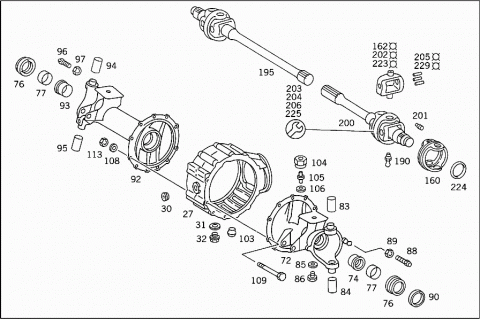

| 072 | A 4063300329 | FRONT AXLE TUBE |
| Repalced by: A 4063301829 | ||
| 072 | A 4063301329 | FRONT AXLE TUBE |
| Repalced by: A 4063301829 | ||
| 072 | A 4063301629 | FRONT AXLE TUBE |
| Repalced by: A 4063301829 | ||
| 072 | A 4063301829 | FRONT AXLE TUBE |
| LEFT | ||
| 072 | A 4163300629 | FRONT AXLE TUBE |
| Repalced by: A 4163303029 | ||
| 072 | A 4163301029 | FRONT AXLE TUBE |
| Repalced by: A 4163303029 | ||
| 072 | A 4163303029 | FRONT AXLE TUBE |
| LEFT | ||
| 072 | A 4163303229 | FRONT AXLE TUBE |
| LEFT | ||
| 074 | A 4063320350 | BUSHING |
| Repalced by: A 4063320850 | ||
| 074 | A 4063320850 | BUSHING |
| Repalced by: A 4063321050 | ||
| 074 | A 4063321050 | BUSHING |
| 076 | A 0039970746 | SEAL RING |
| Repalced by: A 0109972246 | ||
| 076 | A 0109972246 | SEAL RING |
| Repalced by: A 0129973447 | ||
| 076 | A 0129973447 | SEAL RING |
| 077 | A 4163370851 | SPACER RING |
| 078 | A 4069940034 | SNAP RING |
| 079 | A 4063350358 | SEAL HOLDER |
| Repalced by: A 4063350458 | ||
| 079 | A 4063350458 | SEAL HOLDER |
| 080 | A 0009878046 | SEALING CORD |
| A 4063350050 | BUSHING | |
| Repalced by: A 4063350350 | ||
| 081 | A 4063350150 | BUSHING |
| Repalced by: A 4063350350 | ||
| 081 | A 4063350350 | PISTON |
| 081 | A 4163350050 | BUSHING |
| Repalced by: A 4163350250 | ||
| 081 | A 4163350250 | PISTON |
| 082 | A 0039972645 | SEAL RING |
| 082 | A 4069875041 | BOOT |
| 082 | A 4069875141 | BOOT |
| 082 | A 0009977941 | SEAL RING |
| 69.2X79.8X5.3 MM | ||
| A 4063320550 | BUSHING | |
| Repalced by: A 4063320750 | ||
| A 4063320650 | BUSHING | |
| Repalced by: A 4063320750 | ||
| 083 | A 4063320750 | BUSHING |
| 084 | A 4063320106 | KINGPIN |
| 25.0 MM | ||
| 084 | A 4063320406 | KINGPIN |
| 26.5 MM | ||
| 084 | A 4063320306 | KINGPIN |
| Repalced by: A 4063320606 | ||
| 084 | A 4063320606 | KINGPIN |
| BOTTOM | ||
| 28 MM | ||
| 085 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 085 | N 007603010110 | SEAL RING |
| 086 | A 3159900801 | SCREW |
| 088 | A 4063320071 | SCREW |
| Repalced by: A 4063320171 | ||
| 088 | A 4063320171 | SCREW |
| Repalced by: A 4403320071 | ||
| 088 | A 4403320071 | SCREW |
| 089 | N 000936012010 | NUT |
| Repalced by: N 304035012002 | ||
| 089 | N 304035012002 | NUT |
| 090 | A 4033350052 | SPACER WASHER |
| 124.5 MM | ||
| 092 | A 4063300029 | FRONT AXLE TUBE |
| Repalced by: A 4063301929 | ||
| 092 | A 4063301429 | FRONT AXLE TUBE |
| Repalced by: A 4063301929 | ||
| 092 | A 4063301929 | FRONT AXLE TUBE |
| RIGHT | ||
| 092 | A 4163300729 | FRONT AXLE TUBE |
| Repalced by: A 4163301129 | ||
| 092 | A 4163301129 | FRONT AXLE TUBE |
| RIGHT | ||
| 092 | A 4163302929 | FRONT AXLE TUBE |
| Repalced by: A 4163303729 | ||
| 092 | A 4163303729 | FRONT AXLE TUBE |
| RIGHT | ||
| A 4063320350 | BUSHING | |
| Repalced by: A 4063320850 | ||
| A 4063320850 | BUSHING | |
| Repalced by: A 4063321050 | ||
| 093 | A 4063321050 | BUSHING |
| A 0039970746 | SEAL RING | |
| Repalced by: A 0109972246 | ||
| A 0109972246 | SEAL RING | |
| Repalced by: A 0129973447 | ||
| A 0129973447 | SEAL RING | |
| SEE FIG. NO.: | ||
| "76" | ||
| A 4163370851 | SPACER RING | |
| SEE FIG. NO.: | ||
| "77" | ||
| A 4063320650 | BUSHING | |
| Repalced by: A 4063320750 | ||
| 094 | A 4063320750 | BUSHING |
| 095 | A 4063320406 | KINGPIN |
| REPAIR SIZE | ||
| 26.5 MM | ||
| 095 | A 4063320306 | KINGPIN |
| Repalced by: A 4063320606 | ||
| 095 | A 4063320606 | KINGPIN |
| BOTTOM | ||
| 28 MM | ||
| A 4063320071 | SCREW | |
| Repalced by: A 4063320171 | ||
| A 4063320171 | SCREW | |
| Repalced by: A 4403320071 | ||
| 096 | A 4403320071 | SCREW |
| 097 | N 000936012010 | NUT |
| Repalced by: N 304035012002 | ||
| 097 | N 304035012002 | NUT |
| 098 | A 4069930301 | SPRING |
| 098 | A 4169935001 | SPRING |
| 099 | A 4063350136 | FOLLOWER |
| Repalced by: A 4063350236 | ||
| 099 | A 4063350236 | FOLLOWER |
| 099 | A 4213350036 | FOLLOWER |
| 099 | A 4163350036 | FOLLOWER |
| 100 | A 4063350362 | THRUST WASHER |
| 100 | A 4163350262 | THRUST WASHER |
| 102 | A 4063350562 | THRUST WASHER |
| 102 | A 4163350362 | THRUST WASHER |
| 103 | N 900087010000 | PLUG |
| 104 | N 915007006001 | ADAPTER FITTING |
| A 4163300077 | STOP | |
| Repalced by: A 4163310084 | ||
| 105 | A 4163310084 | FITTING |
| 106 | N 915035000006 | SEAL RING |
| 108 | A 4069905048 | WASHER |
| 109 | N 000961012055 | SCREW |
| 109 | N 000960012164 | SCREW |
| A 0009909851 | NUT | |
| Repalced by: N 000934012033 | ||
| 113 | N 000934012033 | NUT |
| Repalced by: A 0039909651 | ||
| 113 | A 0039909651 | NUT |

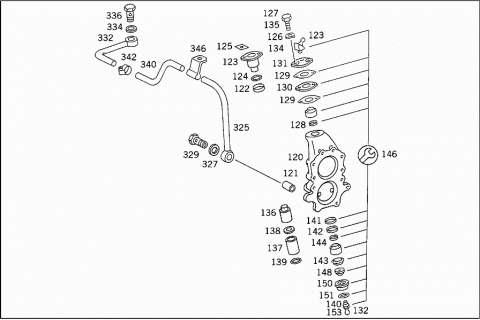

| A 4063300020 | STEERING KNUCKLE | |
| Repalced by: A 4063300520 | ||
| 120 | A 4063300520 | STEERING KNUCKLE |
| A 4163300620 | STEERING KNUCKLE | |
| Repalced by: A 4163300720 | ||
| 120 | A 4163300720 | STEERING KNUCKLE |
| 120 | A 4163301420 | STEERING KNUCKLE |
| 120 | A 4163301420 | STEERING KNUCKLE |
| LEFT | ||
| 120 | A 4163301620 | STEERING KNUCKLE |
| RIGHT | ||
| 121 | A 0009911141 | CLAMPING PIN |
| 121 | A 4069925025 | SLEEVE |
| 122 | A 4063320051 | SPACER RING |
| 122 | A 4063320151 | SPACER RING |
| 123 | A 4063320006 | KINGPIN |
| TOP | ||
| A 4063320206 | KINGPIN | |
| Repalced by: A 4063320506 | ||
| 123 | A 4063320506 | KINGPIN |
| TOP | ||
| A 4063320550 | BUSHING | |
| Repalced by: A 4063320750 | ||
| A 4063320750 | BUSHING | |
| 124 | A 0039970845 | SEAL RING |
| 124 | A 0049975545 | SEAL RING |
| 124 | A 0059975945 | SEAL RING |
| 125 | A 4063320073 | LOCK |
| AT LEFT AND RIGHT UPPER KING PINS | ||
| 125 | A 4063320173 | LOCK |
| AT LEFT AND RIGHT UPPER KING PINS | ||
| 126 | N 000137010201 | SPRING WASHER |
| UPPER KINGPIN TO STEERING KNUCKLE | ||
| 126 | N 000137012203 | SPRING WASHER |
| Repalced by: N 000137012206 | ||
| 126 | N 000137012206 | SPRING WASHER |
| UPPER KINGPIN TO STEERING KNUCKLE | ||
| 127 | N 304017010040 | SCREW |
| UPPER KINGPIN TO STEERING KNUCKLE | ||
| 127 | N 000961012190 | SCREW |
| Repalced by: N 910105012013 | ||
| 127 | N 910105012013 | SCREW |
| UPPER KINGPIN TO STEERING KNUCKLE | ||
| 128 | A 0059976045 | SEAL RING |
| 129 | A 4169810231 | JOINT BEARING |
| Repalced by: A 4165860233 | ||
| 129 | A 4163320179 | GASKET |
| 129 | A 4163320079 | GASKET |
| 130 | A 4163371052 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 130 | A 4163371152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.30 MM | ||
| 131 | A 4163320146 | PLATE |
| 131 | A 4163320346 | PLATE |
| 132 | N 071412008200 | GREASE NIPPLE |
| 134 | N 000137010201 | SPRING WASHER |
| 135 | N 000933010112 | SCREW |
| Repalced by: N 304017010043 | ||
| 135 | N 304017010043 | SCREW |
| 136 | A 4063320106 | KINGPIN |
| BOTTOM | ||
| 25 MM | ||
| 137 | A 4063300050 | BUSHING |
| BOTTOM | ||
| 137 | A 4063320250 | BUSHING |
| BOTTOM | ||
| 138 | A 4063320062 | THRUST WASHER |
| 139 | A 0039970945 | SEAL RING |
| BOTTOM | ||
| 140 | N 071412008200 | GREASE NIPPLE |
| BOTTOM | ||
| 141 | A 4163320051 | SPACER RING |
| 142 | A 0059978145 | SEAL RING |
| 143 | A 4163320262 | THRUST WASHER |
| Repalced by: A 4163320362 | ||
| 143 | A 4163320362 | THRUST WASHER |
| A 4163320059 | SEAL RING | |
| Repalced by: A 0059976045 | ||
| 144 | A 0059976045 | SEAL RING |
| A 4169810031 | JOINT BEARING | |
| Repalced by: A 4169810331 | ||
| 146 | A 4169810331 | JOINT BEARING |
| Repalced by: A 4165860233 | ||
| 146 | A 4165860233 | REPAIR KIT |
| Repalced by: A 4163300012 | ||
| 146 | A 4163300012 | REPAIR KIT |
| 148 | A 4163320162 | THRUST WASHER |
| 150 | A 4163320150 | BUSHING |
| 151 | A 0039970845 | SEAL RING |
| A 4163320083 | OIL PIPE | |
| Repalced by: A 4163320783 | ||
| 153 | A 4163320783 | OIL PIPE |
| Repalced by: N 071412008300 | ||
| 153 | N 071412008302 | GREASE NIPPLE |
| 153 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 153 | N 071412008102 | GREASE NIPPLE |
| BOTTOM | ||
| A 4063300401 | DRIVE SHAFT | |
| Repalced by: A 4063300601 | ||
| A 4063300501 | DRIVE SHAFT | |
| Repalced by: A 4063300701 | ||
| A 0003370203 | PROPELLER SHAFT | |
| LEFT | ||
| A 0003370303 | PROPELLER SHAFT | |
| RIGHT | ||
| A 0003370501 | DRIVE SHAFT | |
| 160 | A 0003370217 | FOLLOWER |
| Repalced by: A 0363370017 | ||
| 160 | A 0363370017 | FOLLOWER |
| A 0003370211 | JOINT CROSS | |
| Repalced by: A 0003370411 | ||
| 162 | A 0003370411 | JOINT CROSS |
| A 4065860033 | REPAIR KIT | |
| A 0003370174 | PIN | |
| Repalced by: A 0003370374 | ||
| A 0003370374 | PIN | |
| A 0003371180 | GASKET | |
| A 0003370880 | GASKET | |
| Repalced by: A 0369970049 | ||
| A 0369970049 | GASKET | |
| A 0003370076 | SHIM | |
| Repalced by: A 0363370015 | ||
| A 0363370015 | THRUST RING | |
| A 0003370230 | COVER | |
| A 0003370127 | PROTECTIVE CAP | |
| Repalced by: A 0363370027 | ||
| A 0363370027 | PROTECTIVE CAP | |
| A 0003370780 | GASKET | |
| A 0009813487 | NEEDLE | |
| Repalced by: A 0009817687 | ||
| A 0009817687 | NEEDLE | |
| Repalced by: A 4169810187 | ||
| A 4169810187 | NEEDLE | |
| A 0003370318 | HOUSING | |
| A 0003370980 | GASKET | |
| Repalced by: A 0363370280 | ||
| A 0363370280 | GASKET | |
| 190 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 190 | N 071412008102 | GREASE NIPPLE |
| A 4043300033 | BEARING HOUSING | |
| 195 | A 4063300601 | DRIVE SHAFT |
| LEFT | ||
| 195 | A 4163300001 | DRIVE SHAFT |
| LEFT | ||
| 200 | A 4063300701 | DRIVE SHAFT |
| RIGHT | ||
| 200 | A 4163300101 | DRIVE SHAFT |
| RIGHT | ||
| A 0003370403 | PROPELLER SHAFT | |
| LEFT | ||
| A 0003371003 | PROPELLER SHAFT | |
| LEFT | ||
| A 0003370503 | PROPELLER SHAFT | |
| RIGHT | ||
| A 0003371103 | PROPELLER SHAFT | |
| RIGHT | ||
| A 0003370601 | DRIVE SHAFT | |
| A 0003370801 | DRIVE SHAFT | |
| Repalced by: A 0003371501 | ||
| A 0003371501 | DRIVE SHAFT | |
| 201 | A 0009901477 | SCREW |
| 202 | A 0003370311 | JOINT CROSS |
| A 4165860033 | REPAIR KIT | |
| Repalced by: A 4163300035 | ||
| 203 | A 4163300035 | REPAIR KIT |
| A 0003371080 | GASKET | |
| A 0003370049 | BUSHING | |
| Repalced by: A 0003370449 | ||
| A 0003370449 | BUSHING | |
| Repalced by: A 4063300012 | ||
| 204 | A 4063300012 | BEARING BUSHING |
| A 0009813487 | NEEDLE | |
| Repalced by: A 0009817687 | ||
| A 0009817687 | NEEDLE | |
| Repalced by: A 4169810187 | ||
| 205 | A 4169810187 | NEEDLE |
| SET = 128 PIECES | ||
| A 0003370073 | LOCK | |
| Repalced by: A 0003371073 | ||
| A 0003371073 | LOCK | |
| A 0003370274 | PIN | |
| Repalced by: A 0003370674 | ||
| A 0003370674 | PIN | |
| A 0003370149 | BUSHING | |
| Repalced by: A 0003370549 | ||
| A 0003370549 | BUSHING | |
| Repalced by: A 4213300012 | ||
| A 0009814487 | NEEDLE | |
| Repalced by: A 0009817587 | ||
| A 0009817587 | NEEDLE | |
| Repalced by: A 4169810087 | ||
| A 4169810087 | NEEDLE | |
| SET = 128 PIECES | ||
| 206 | A 4213300012 | BEARING BUSHING |
| 206 | A 4063300012 | BEARING BUSHING |
| A 4163300301 | DRIVE SHAFT | |
| Repalced by: A 4163300701 | ||
| A 4163300701 | DRIVE SHAFT | |
| Repalced by: A 4163301401 | ||
| A 4163300201 | DRIVE SHAFT | |
| Repalced by: A 4163300801 | ||
| A 4163300801 | DRIVE SHAFT | |
| Repalced by: A 4163301301 | ||
| A 0003371603 | PROPELLER SHAFT | |
| LEFT | ||
| A 0003371703 | PROPELLER SHAFT | |
| RIGHT | ||
| A 0003370901 | DRIVE SHAFT | |
| 223 | A 0003370311 | JOINT CROSS |
| 224 | A 0109972547 | SEAL RING |
| A 4165860033 | REPAIR KIT | |
| Repalced by: A 4163300035 | ||
| 225 | A 4163300035 | REPAIR KIT |
| A 0003371080 | GASKET | |
| A 0003370049 | BUSHING | |
| Repalced by: A 0003370449 | ||
| A 0003370449 | BUSHING | |
| Repalced by: A 4063300012 | ||
| A 4063300012 | BEARING BUSHING | |
| A 0009817687 | NEEDLE | |
| Repalced by: A 4169810187 | ||
| 229 | A 4169810187 | NEEDLE |
| SET = 128 PIECES | ||
| A 0003370073 | LOCK | |
| Repalced by: A 0003371073 | ||
| A 0003371073 | LOCK | |
| A 0003370274 | PIN | |
| Repalced by: A 0003370674 | ||
| A 0003370674 | PIN | |
| A 0003370149 | BUSHING | |
| Repalced by: A 0003370549 | ||
| A 0003370549 | BUSHING | |
| Repalced by: A 4213300012 | ||
| A 4213300012 | BEARING BUSHING | |
| A 0009817587 | NEEDLE | |
| Repalced by: A 4169810087 | ||
| A 4169810087 | NEEDLE | |
| SET = 128 PIECES | ||

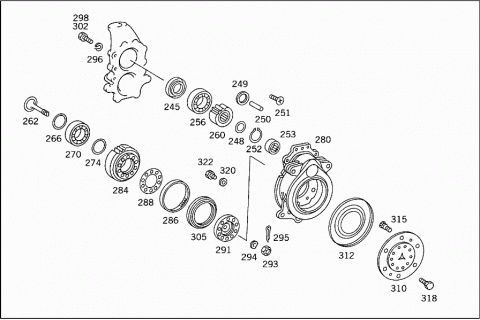

| 245 | A 0039970846 | SEAL RING |
| 245 | A 4163310158 | RADIAL SEAL RING |
| A 4163310558 | CONSOLE | |
| Repalced by: A 0109973446 | ||
| 245 | A 0109973446 | SEAL RING |
| 245 | A 0109973546 | SEAL RING |
| 248 | A 4063372252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.05 MM | ||
| 248 | A 4063372352 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 248 | A 4063372452 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 248 | A 4063372552 | SPACER WASHER |
| Repalced by: A 4063372352 | ||
| 248 | A 4063372352 | SPACER WASHER |
| AS REQUIRED | ||
| 0.30 MM | ||
| 248 | A 4063372652 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 248 | A 4063372752 | SPACER WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 248 | A 4163370752 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 248 | A 4163370852 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 248 | A 4163370952 | SPACER WASHER |
| AS REQUIRED | ||
| 0.30 MM | ||
| 249 | A 4063350062 | THRUST WASHER |
| 250 | N 001481004012 | CLAMPING SLEEVE |
| Repalced by: N 308752004000 | ||
| 250 | N 308752004000 | CLAMPING PIN |
| N 000063010103 | SCREW | |
| Repalced by: A 4049900330 | ||
| 251 | A 4049900330 | SCREW |
| 252 | N 000471042000 | LOCK RING |
| 253 | A 0009818605 | TAPERED ROLLER BEARING |
| 253 | A 0019817701 | CYLINDR. ROLLER BEARING |
| N 000720030309 | TAPERED ROLLER BEARING | |
| Repalced by: A 0019813705 | ||
| 256 | A 0019813705 | TAPERED ROLLER BEARING |
| Repalced by: A 0099810305 | ||
| 256 | A 0099810305 | TAPERED ROLLER BEARING |
| N 000625006310 | GROOVED BALL BEARING | |
| Repalced by: A 0019816125 | ||
| N 000625036310 | GROOVED BALL BEARING | |
| Repalced by: A 0019816125 | ||
| 256 | A 0019816125 | BALL BEARING |
| 256 | A 0019817225 | BALL BEARING |
| 260 | A 4063360410 | SPUR GEAR |
| LEFT;15 TEETH | ||
| 260 | A 4163360010 | SPUR GEAR |
| 260 | A 4063360510 | SPUR GEAR |
| RIGHT | ||
| 260 | A 4163360110 | SPUR GEAR |
| 260 | A 4163360410 | SPUR GEAR |
| LEFT AND RIGHT; 15 TEETH | ||
| 260 | A 4163360310 | SPUR GEAR |
| LEFT AND RIGHT; 13 TEETH | ||
| A 4063350176 | SET SCREW | |
| Repalced by: A 4063350076 | ||
| 262 | A 4063350076 | SET SCREW |
| 262 | A 4163350076 | SET SCREW |
| 262 | A 4163350176 | SET SCREW |
| 262 | A 4163350276 | SET SCREW |
| TO 416 337 03 51 | ||
| 262 | A 4163350376 | SET SCREW |
| TO 435 337 04 51 | ||
| N 000988050000 | FITTED WASHER | |
| A 4039970620 | EXPANSION PLUG | |
| N 900055050300 | LOCK RING | |
| A 4063340152 | SPACER WASHER | |
| A 4063340252 | SPACER WASHER | |
| 266 | A 4063370152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.05 MM | ||
| 266 | A 4063370252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 266 | A 4063370352 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 266 | A 4063370452 | SPACER WASHER |
| AS REQUIRED | ||
| 0.30 MM | ||
| 266 | A 4063370552 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 266 | A 4063370652 | SPACER WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 266 | A 4163370452 | SPACER WASHER |
| Repalced by: A 4273370052 | ||
| 266 | A 4273370052 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 266 | A 4163370552 | SPACER WASHER |
| Repalced by: A 4273370152 | ||
| 266 | A 4273370152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 266 | A 4163370652 | SPACER WASHER |
| Repalced by: A 4273370252 | ||
| 266 | A 4273370252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.30 MM | ||
| 270 | N 000625006211 | GROOVED BALL BEARING |
| 270 | N 000625006309 | GROOVED BALL BEARING |
| N 000625006310 | GROOVED BALL BEARING | |
| Repalced by: A 0019816125 | ||
| 270 | A 0019816125 | BALL BEARING |
| 270 | A 0019817225 | BALL BEARING |
| A 4163510079 | GASKET | |
| 274 | A 0009878046 | SEALING CORD |
| A 4063510010 | HOUSING | |
| Repalced by: A 4163310005 | ||
| A 4063310005 | HOUSING | |
| Repalced by: A 4163310005 | ||
| 280 | A 4163310005 | HOUSING |
| 280 | A 4163310105 | HOUSING |
| 284 | A 4063530015 | SIDE GEAR |
| LEFT;32 TEETH | ||
| 284 | A 4163530015 | SIDE GEAR |
| Repalced by: A 4163530215 | ||
| 284 | A 4163530215 | SIDE GEAR |
| LEFT;32 TEETH | ||
| 284 | A 4063530115 | SIDE GEAR |
| RIGHT | ||
| 284 | A 4163530115 | SIDE GEAR |
| Repalced by: A 4163530315 | ||
| 284 | A 4163530315 | SIDE GEAR |
| RIGHT;32 TEETH | ||
| 284 | A 4163530615 | SIDE GEAR |
| LEFT AND RIGHT; 32 TEETH | ||
| A 4163530515 | SIDE GEAR | |
| LEFT AND RIGHT; 27 TEETH | ||
| 286 | A 0009816801 | CYLINDR. ROLLER BEARING |
| 286 | A 0019814201 | CYLINDR. ROLLER BEARING |
| 288 | A 4163310052 | SPACER WASHER |
| TO 416 337 03 51 | ||
| A 4063370451 | SPACER RING | |
| Repalced by: A 4063371151 | ||
| A 4063370551 | SPACER RING | |
| Repalced by: A 4063371151 | ||
| 291 | A 4063371151 | SPACER RING |
| LEFT | ||
| A 4163370051 | SPACER RING | |
| Repalced by: A 4163370351 | ||
| A 4063370651 | SPACER RING | |
| Repalced by: A 4063371251 | ||
| 291 | A 4063371251 | SPACER RING |
| RIGHT | ||
| A 4163370151 | SPACER RING | |
| Repalced by: A 4163370351 | ||
| A 4163370351 | SPACER RING | |
| Repalced by: A 4353370451 | ||
| 291 | A 4353370451 | SPACER RING |
| A 4063371551 | SPACER RING | |
| 293 | N 000937020001 | NUT |
| 293 | N 000935020004 | NUT |
| 294 | N 900055020001 | SPRING WASHER |
| 295 | N 000094004065 | COTTER PIN |
| 296 | N 912004012100 | LOCK WASHER |
| 298 | A 0029908201 | SCREW |
| 298 | N 000961012106 | SCREW |
| Repalced by: N 308676012014 | ||
| 298 | N 308676012014 | HEXAGON HEAD BOLT |
| Repalced by: N 910105012020 | ||
| 298 | N 910105012020 | SCREW |
| 298 | N 910105012020 | SCREW |
| 298 | N 000960012006 | SCREW |
| 298 | A 0029908201 | SCREW |
| 298 | N 000960012054 | SCREW |
| Repalced by: N 910105012021 | ||
| 298 | N 910105012021 | SCREW |
| 298 | N 000960012261 | SCREW |
| Repalced by: N 910105012016 | ||
| 298 | N 910105012016 | SCREW |
| A 4069900001 | SCREW | |
| Repalced by: A 4069905201 | ||
| 302 | A 4069905201 | SCREW |
| A 0039970946 | SEAL RING | |
| Repalced by: A 0059971946 | ||
| A 0049970346 | SEAL RING | |
| Repalced by: A 0059971946 | ||
| 305 | A 0059971946 | SEAL RING |
| 305 | A 4163310058 | RADIAL SEAL RING |
| Repalced by: A 0119977947 | ||
| 305 | A 4163311258 | RADIAL SEAL RING |
| Repalced by: A 0119977947 | ||
| 305 | A 4163310958 | RADIAL SEAL RING |
| Repalced by: A 0119977947 | ||
| 305 | A 0119977947 | SEAL RING |
| Repalced by: A 0219971147 | ||
| 305 | A 4163311358 | RADIAL SEAL RING |
| Repalced by: A 0059974547 | ||
| 305 | A 0059974547 | SEAL RING |
| Repalced by: A 0219971147 | ||
| 305 | A 0219971147 | SEAL RING |
| LEFT AND RIGHT | ||
| 310 | A 4063560001 | WHEEL HUB |
| Repalced by: A 4063560101 | ||
| 310 | A 4063560101 | WHEEL HUB |
| 310 | A 4163500035 | WHEEL HUB |
| Repalced by: A 4163560001 | ||
| 310 | A 4163560001 | WHEEL HUB |
| 312 | A 4163340082 | OIL COLLECTOR |
| 315 | A 4044010071 | WHEEL MOUNTING BOLT |
| 315 | A 4044010071 | WHEEL MOUNTING BOLT |
| 318 | N 000960016237 | SCREW |
| Repalced by: N 910105016005 | ||
| 318 | N 910105016005 | SCREW |
| 320 | N 007603014405 | SEAL RING |
| 322 | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 322 | N 007604014110 | SCREW PLUG |
| 325 | A 4213300066 | BREATHER PIPE |
| LEFT | ||
| 325 | A 4163300066 | BREATHER PIPE |
| LEFT | ||
| A 4213300166 | BREATHER PIPE | |
| Repalced by: A 4163300066 | ||
| 325 | A 4163300066 | BREATHER PIPE |
| RIGHT | ||
| A 4163300166 | BREATHER PIPE | |
| Repalced by: A 4163300066 | ||
| 325 | A 4163300066 | BREATHER PIPE |
| RIGHT | ||
| 327 | N 007603006107 | SEAL RING |
| 327 | N 007603008107 | SEAL RING |
| A 4069900101 | SCREW | |
| Repalced by: N 915036005100 | ||
| 329 | N 915036005100 | HOLLOW SCREW |
| Repalced by: N 000000004895 | ||
| 329 | N 000000004895 | BANJO BOLT |
| A 4063300966 | BREATHER PIPE | |
| Repalced by: A 4163300066 | ||
| 332 | A 4163300066 | BREATHER PIPE |
| A 4163300266 | BREATHER PIPE | |
| Repalced by: A 4163300066 | ||
| 332 | A 4163300066 | BREATHER PIPE |
| LEFT | ||
| A 4163300366 | BREATHER PIPE | |
| Repalced by: A 4163300066 | ||
| 332 | A 4163300066 | BREATHER PIPE |
| RIGHT | ||
| 334 | N 007603008107 | SEAL RING |
| 336 | N 915036005100 | HOLLOW SCREW |
| Repalced by: N 000000004895 | ||
| 336 | N 000000004895 | BANJO BOLT |
| 340 | A 4119970482 | HOSE |
| Repalced by: A 4189970182 | ||
| 340 | A 4189970182 | HOSE |
| 342 | N 900288010000 | CLAMP |
| 346 | A 4069955044 | CLAMP |
| 346 | A 4069955244 | CLAMP |
| 346 | A 4169955044 | CLAMP |

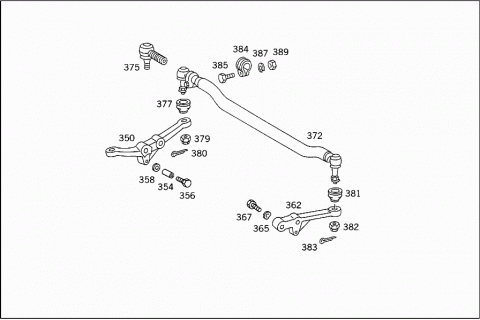

| 350 | A 4063380108 | STEERING ARM |
| A 4063380308 | STEERING ARM | |
| A 4063380508 | STEERING ARM | |
| Repalced by: A 4163380408 | ||
| 350 | A 4163380408 | STEERING ARM |
| 350 | A 4163380108 | STEERING ARM |
| A 4063380608 | STEERING ARM | |
| Repalced by: A 4163380508 | ||
| 350 | A 4163380508 | STEERING ARM |
| 350 | A 4163380208 | STEERING ARM |
| 354 | A 4163380050 | BUSHING |
| 356 | N 000960012206 | SCREW |
| 358 | N 000988012009 | FITTED WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 358 | N 000988012009 | FITTED WASHER |
| AS REQUIRED | ||
| 1.20 MM | ||
| 358 | N 000988012019 | FITTED WASHER |
| AS REQUIRED | ||
| 1.40 M | ||
| 358 | N 000988012015 | FITTED WASHER |
| AS REQUIRED | ||
| 1.60 MM | ||
| 358 | N 000988012020 | FITTED WASHER |
| AS REQUIRED | ||
| 1.80 MM | ||
| 362 | A 4063380005 | STEERING ARM |
| 362 | A 4213380405 | STEERING ARM |
| 362 | A 4063380305 | STEERING ARM |
| 362 | A 4063380405 | STEERING ARM |
| 365 | N 000137016202 | SPRING WASHER |
| 365 | N 000137020202 | SPRING WASHER |
| Repalced by: N 000137020205 | ||
| 365 | N 000137020205 | SPRING WASHER |
| 367 | N 000960016154 | SCREW |
| 367 | A 4169905319 | SCREW |
| 372 | A 4063300003 | TIE ROD |
| Repalced by: A 4063300103 | ||
| 372 | A 4063300103 | TIE ROD |
| 372 | A 4063300203 | TIE ROD |
| 375 | A 3103300635 | JOINT |
| Repalced by: A 0003381810 | ||
| 375 | A 0003381810 | BALL JOINT |
| Repalced by: A 0003305635 | ||
| 375 | A 0003305635 | JOINT |
| Repalced by: A 0004604348 | ||
| 375 | A 0004604348 | DRAG LINK END |
| 377 | A 0004630096 | BOOT |
| Repalced by: A 0003300285 | ||
| 377 | A 0003300285 | BOOT |
| Repalced by: A 0003300885 | ||
| 377 | A 0003300885 | BOOT |
| 379 | N 000979016006 | NUT |
| Repalced by: N 000979016007 | ||
| 379 | N 000979016007 | NUT |
| 380 | N 000094004065 | COTTER PIN |
| A 0004630096 | BOOT | |
| Repalced by: A 0003300285 | ||
| 381 | A 0003300285 | BOOT |
| Repalced by: A 0003300885 | ||
| 381 | A 0003300885 | BOOT |
| 382 | N 000979016006 | NUT |
| Repalced by: N 000979016007 | ||
| 382 | N 000979016007 | NUT |
| 383 | N 000094004065 | COTTER PIN |
| 384 | A 0009953244 | CLAMP |
| 385 | N 000960010033 | SCREW |
| 387 | N 912004010102 | LOCK WASHER |
| 389 | N 000934010015 | NUT |
| Repalced by: N 308673010000 | ||
| 389 | N 308673010000 | NUT |

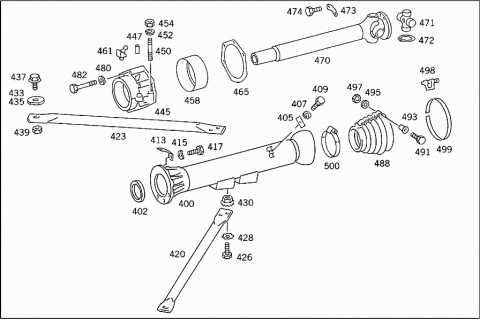

| 400 | A 4063300331 | END PIECE |
| Repalced by: A 4063300931 | ||
| 400 | A 4063300831 | END PIECE |
| Repalced by: A 4063300931 | ||
| 400 | A 4063300931 | THRUST TUBE |
| Repalced by: A 4163300831 | ||
| 400 | A 4163300831 | THRUST TUBE |
| Repalced by: A 4403300231 | ||
| 400 | A 4403300231 | THRUST TUBE |
| 402 | A 0029978646 | SEAL RING |
| 405 | A 3044760019 | BASE |
| Repalced by: A 3142030084 | ||
| 405 | A 3142030084 | SHIM |
| 407 | N 912004006102 | LOCK WASHER |
| 409 | N 000933006102 | SCREW |
| A 4214280043 | ANGLE | |
| 413 | A 4064280040 | BRACKET |
| 415 | N 900055012001 | SPRING WASHER |
| 417 | N 000960012171 | SCREW |
| 420 | A 4063300111 | THRUST ARM |
| Repalced by: A 4163300211 | ||
| 420 | A 4163300211 | THRUST ARM |
| LEFT | ||
| 420 | A 4063300211 | THRUST ARM |
| Repalced by: A 4163300011 | ||
| 420 | A 4163300011 | THRUST ARM |
| LEFT | ||
| 423 | A 4063300011 | THRUST ARM |
| Repalced by: A 4163300111 | ||
| 423 | A 4163300111 | THRUST ARM |
| RIGHT | ||
| 426 | A 4063330068 | WEB |
| Repalced by: A 0019903651 | ||
| 426 | N 000961016036 | SCREW |
| Repalced by: N 910105016004 | ||
| 426 | N 910105016004 | SCREW |
| 428 | A 4063580073 | LOCK |
| 428 | A 0009941651 | LOCK |
| 430 | A 0019903651 | NUT |
| Repalced by: N 913013016002 | ||
| 430 | N 913013016002 | NUT |
| 433 | A 4063330077 | INDEXING PLATE |
| Repalced by: A 4163330077 | ||
| 433 | A 4163330077 | INDEXING PLATE |
| A 0009931826 | DISC SPRING | |
| Repalced by: A 0009941651 | ||
| 435 | A 0009941651 | LOCK |
| 437 | A 0029907001 | SCREW |
| 439 | A 0019903651 | NUT |
| Repalced by: N 913013016002 | ||
| 439 | N 913013016002 | NUT |
| 445 | A 4063300114 | HOUSING |
| Repalced by: A 4163300314 | ||
| 445 | A 4163300014 | HOUSING |
| Repalced by: A 4163300314 | ||
| 445 | A 4163300214 | HOUSING |
| Repalced by: A 4163300314 | ||
| 445 | A 4163300314 | THRUST BALL HOUSING |
| Repalced by: A 4163301314 | ||
| 445 | A 4163301314 | HOUSING |
| 447 | N 000007006105 | CYLINDRICAL PIN |
| 450 | N 000939010008 | STUD BOLT |
| Repalced by: N 000939010138 | ||
| 450 | N 000939010138 | STUD BOLT |
| 452 | N 912004010102 | LOCK WASHER |
| 454 | N 070615010003 | NUT |
| 458 | A 4063370406 | HOUSING |
| Repalced by: A 4063370506 | ||
| 458 | A 4063370506 | THRUST BALL CUP |
| TO 406 330 01 14,416 330 00 14 | ||
| 458 | A 4163370506 | THRUST BALL CUP |
| TO 416 330 03 14 | ||
| 461 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 461 | N 071412008102 | GREASE NIPPLE |
| 465 | A 4063370752 | SPACER WASHER |
| AS REQUIRED | ||
| 2.00 MM | ||
| 465 | A 4063370852 | SPACER WASHER |
| AS REQUIRED | ||
| 2.00 MM | ||
| 465 | A 4063370952 | SPACER WASHER |
| AS REQUIRED | ||
| 1.60 MM | ||
| 465 | A 4063371052 | SPACER WASHER |
| AS REQUIRED | ||
| 1.40 MM | ||
| 465 | A 4063371152 | SPACER WASHER |
| AS REQUIRED | ||
| 1.20 MM | ||
| 465 | A 4063371252 | SPACER WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 465 | A 4063371352 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 465 | A 4063371452 | SPACER WASHER |
| AS REQUIRED | ||
| 0.15 MM | ||
| A 4063370210 | JOINT | |
| Repalced by: A 4163370210 | ||
| A 4063370410 | JOINT | |
| Repalced by: A 4163370210 | ||
| 470 | A 4163370210 | PROPELLER SHAFT |
| 626 MM | ||
| 471 | A 0003370711 | JOINT CROSS |
| Repalced by: A 0003300728 | ||
| A 0003300728 | UNIVERSAL JOINT | |
| REPAIR KIT | ||
| 472 | A 0004112073 | LOCK |
| AS REQUIRED | ||
| 1.4 MM | ||
| 472 | A 0004112173 | LOCK |
| AS REQUIRED | ||
| 1.5 MM | ||
| 472 | A 0004112273 | LOCK |
| AS REQUIRED | ||
| 1.6 MM | ||
| 472 | A 0004112373 | LOCK |
| AS REQUIRED | ||
| 1.7 MM | ||
| 472 | A 0004112473 | LOCK |
| AS REQUIRED | ||
| 1.8 MM | ||
| 472 | A 0004112573 | LOCK |
| AS REQUIRED | ||
| 1.9 MM | ||
| 473 | A 4043370073 | LOCK |
| 473 | A 4163370073 | LOCK |
| 474 | N 000933008031 | SCREW |
| Repalced by: A 1249902201 | ||
| 474 | A 1249902201 | SCREW |
| M 8X18 | ||
| 474 | A 4169905001 | SCREW |
| Repalced by: N 070614010033 | ||
| 474 | N 070614010033 | SCREW |
| Repalced by: A 4169905001 | ||
| 474 | A 4169905001 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 480 | N 007603010108 | SEAL RING |
| 482 | N 070613010014 | SCREW |
| 482 | N 070613010028 | SCREW |
| Repalced by: A 0069908901 | ||
| 482 | A 0069908901 | SCREW |
| A 4049871643 | RUBBER SLEEVE | |
| Repalced by: A 4169875243 | ||
| A 4169875043 | RUBBER SLEEVE | |
| Repalced by: A 4169875243 | ||
| 488 | A 4169875243 | RUBBER SLEEVE |
| 491 | N 000931006011 | SCREW |
| 493 | N 007340008103 | RIVET |
| 495 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 495 | N 009021006208 | WASHER |
| 497 | N 000934006007 | NUT |
| 498 | N 900262009100 | LOOM TIE |
| 499 | N 900263009000 | STRAP |
| 1200 MM | ||
| 500 | N 916002109200 | CLAMP |
| A 3933280065 | PIPE SOCKET | |
| Repalced by: A 4063580065 | ||

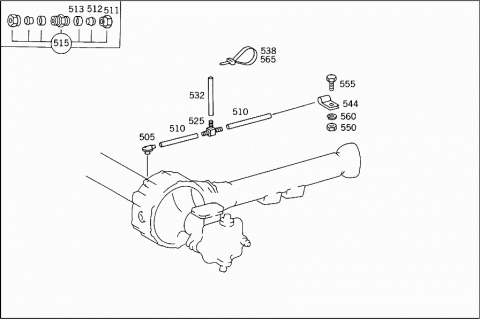

| 505 | A 4063580065 | BREATHER |
| 510 | A 0109978982 | HOSE |
| Repalced by: A 0089979082 | ||
| 510 | A 0089979082 | HOSE |
| Repalced by: A 0009872727 | ||
| 510 | A 0009872727 | PLASTIC PIPE |
| 511 | N 915017008100 | UNION NUT |
| DE-AERATION LINE | ||
| 512 | N 003861008005 | GLAND |
| DE-AERATION LINE | ||
| 513 | N 915062006000 | SLEEVE |
| DE-AERATION LINE | ||
| 515 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 515 | A 0029905971 | FITTING |
| 525 | A 0009900678 | CONNECTOR |
| Repalced by: A 0019909870 | ||
| 525 | A 0019909870 | T-FITTING |
| Repalced by: A 0009907990 | ||
| 525 | A 0009907990 | T-FITTING |
| 532 | A 4064710715 | BREATHER PIPE |
| 538 | A 0019978390 | LOOM TIE |
| 544 | A 3609951201 | CLAMP |
| 550 | N 070615010003 | NUT |
| A 3609951301 | CLAMP | |
| Repalced by: A 3609951201 | ||
| 555 | N 000933010128 | SCREW |
| Repalced by: N 910105010006 | ||
| 555 | N 910105010006 | SCREW |
| 560 | N 912004010102 | LOCK WASHER |
| 565 | A 0019978490 | LOOM TIE |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
