Transporto priemonė: U 65 T,U 70 T; VIN numerio dalis: 406130

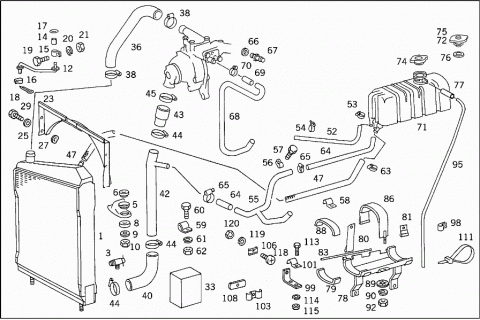

Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 4065000103 | RADIATOR |
| A 4065000403 | RADIATOR | |
| Repalced by: A 4065000503 | ||
| 001 | A 4065000503 | RADIATOR |
| A 4165000003 | RADIATOR | |
| Repalced by: A 4165000303 | ||
| A 4165000303 | RADIATOR | |
| Repalced by: A 4165000603 | ||
| 001 | A 4165000603 | RADIATOR |
| 003 | N 071401014200 | DRAIN COCK |
| Repalced by: A 0009970136 | ||
| 003 | A 0009970136 | VALVE |
| 005 | A 4045040013 | RETAINER |
| RADIATOR TO CHASSIS | ||
| 006 | A 4045040012 | RUBBER MOUNTING |
| RADIATOR TO CHASSIS | ||
| 008 | A 4045040212 | RUBBER MOUNTING |
| RADIATOR TO CHASSIS | ||
| 009 | A 4115040076 | WASHER |
| RADIATOR TO CHASSIS | ||
| 010 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 010 | N 913023010003 | NUT |
| RADIATOR TO CHASSIS | ||
| 012 | A 4065000031 | BRACKET |
| 012 | A 4065000131 | BRACKET |
| Repalced by: A 4165000031 | ||
| 012 | A 4165000031 | BRACKET |
| 012 | A 4165000031 | BRACKET |
| 014 | A 4049871843 | RUBBER SLEEVE |
| 015 | A 4049951301 | CLAMP |
| 016 | A 4049951401 | CLAMP |
| 017 | A 4049910025 | WASHER |
| 018 | N 000094002021 | COTTER PIN |
| 019 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 019 | N 304017008021 | SCREW |
| BRACKET TO RADIATOR | ||
| 020 | N 912004008102 | LOCK WASHER |
| BRACKET TO RADIATOR | ||
| 021 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 021 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 021 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 021 | N 913023008002 | NUT |
| 023 | A 4165000016 | AIR BAFFLE |
| 025 | N 000125006421 | WASHER |
| Repalced by: N 000125006449 | ||
| 025 | N 000125006449 | WASHER |
| 027 | N 000137006204 | SPRING WASHER |
| 029 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 029 | N 304017006018 | SCREW |
| 033 | A 4169870065 | RUBBER FILLER |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| COOLING WATER LINES AND WATER EXPANSION TANK | ||
| A 4069870443 | RUBBER SLEEVE | |
| 036 | A 4069875043 | MOLDED HOSE |
| FROM THERMOSTAT TO RADIATOR | ||
| A 0009971490 | LOOM TIE | |
| Repalced by: N 916017032000 | ||
| 038 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 038 | N 000000000670 | CLAMP |
| A 0012030875 | THERMOSTAT ELEMENT | |
| A 4065000072 | LINE | |
| N 900271032008 | HOSE | |
| 85 MM | ||
| A 4069870343 | RUBBER SLEEVE | |
| RISING PIPE TO CYLINDER HEAD | ||
| A 4069870543 | RUBBER SLEEVE | |
| COOLING WATER PUMP TO THERMOSTAT | ||
| A 0009971490 | LOOM TIE | |
| Repalced by: N 916017032000 | ||
| N 916017032000 | CLAMP | |
| Repalced by: N 000000000670 | ||
| N 000000000670 | CLAMP | |
| 040 | A 4069870943 | MOLDED HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| A 4065000007 | FILLER NECK | |
| Repalced by: A 4165000007 | ||
| 042 | A 4165000007 | FILLER NECK |
| N 900271038026 | HOSE | |
| 70 MM | ||
| 043 | A 4069875743 | RUBBER SLEEVE |
| A 0009971490 | LOOM TIE | |
| Repalced by: N 916017032000 | ||
| 044 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 044 | N 000000000670 | CLAMP |
| 044 | N 000000000670 | CLAMP |
| A 0009971590 | LOOM TIE | |
| Repalced by: N 916017040000 | ||
| 045 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 045 | N 000000000671 | CLAMP |
| A 4065010025 | BREATHER PIPE | |
| Repalced by: A 4065000124 | ||
| A 4065000024 | BREATHER PIPE | |
| A 4065000124 | BREATHER PIPE | |
| FROM RADIATOR TO WATER EXPANSION TANK | ||
| A 4065000224 | BREATHER PIPE | |
| Repalced by: N 900271012029 | ||
| A 4065010325 | BREATHER PIPE | |
| Repalced by: N 900271012029 | ||
| 047 | N 900271012018 | HOSE |
| FROM RADIATOR TO EXPANSION TANK | ||
| N 007603012106 | SEAL RING | |
| FOR SCREW FITTING | ||
| A 4062000083 | FITTING | |
| A 4069970082 | HOSE | |
| Repalced by: A 4069976182 | ||
| A 4069976182 | HOSE | |
| 5X9X380 MM | ||
| 052 | A 4069976882 | HOSE |
| 380 MM | ||
| 053 | N 900288010000 | CLAMP |
| HOSE | ||
| 053 | N 000000000665 | CLAMP |
| HOSE | ||
| 054 | N 916026010000 | CLAMP |
| Repalced by: N 000000000665 | ||
| 054 | N 000000000665 | CLAMP |
| HOSE | ||
| A 4065000172 | LINE | |
| Repalced by: A 4065000372 | ||
| A 4065000472 | LINE | |
| FROM FEED PIPE TO WATER EXPANSION TANK | ||
| A 4065000772 | LINE | |
| Repalced by: A 4065000872 | ||
| 055 | A 4065000872 | LINE |
| 056 | A 4049951401 | CLAMP |
| FILLER PIPE TO ENGINE | ||
| 057 | N 000931010089 | SCREW |
| Repalced by: N 304017010053 | ||
| 057 | N 304017010053 | SCREW |
| A 3609950501 | CLAMP | |
| Repalced by: A 3609952001 | ||
| 058 | A 3609952001 | CLAMP |
| Repalced by: A 6739950001 | ||
| 058 | A 6739950001 | CLAMP |
| AT WATER EXPANSION TANK | ||
| A 0009954801 | CLAMP | |
| Repalced by: N 916016018201 | ||
| 059 | N 916016018201 | CLAMP |
| 060 | N 000933006102 | SCREW |
| 061 | N 912004006102 | LOCK WASHER |
| 062 | N 000934006007 | NUT |
| A 0009971190 | LOOM TIE | |
| Repalced by: N 916017011000 | ||
| 063 | N 916017011000 | CLAMP |
| Repalced by: N 916017011001 | ||
| 063 | N 000000000665 | CLAMP |
| 063 | N 000000000665 | CLAMP |
| 064 | N 900271018038 | HOSE |
| A 0009971390 | LOOM TIE | |
| Repalced by: N 916017020000 | ||
| 065 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 065 | N 000000000667 | CLAMP |
| 066 | N 007603018400 | SEAL RING |
| A 3522000083 | FITTING | |
| Repalced by: A 3522030808 | ||
| 067 | A 3522030808 | CONNECTOR |
| A 4065010656 | PIPE ELBOW | |
| A 4065010956 | PIPE ELBOW | |
| Repalced by: A 4165010256 | ||
| 068 | A 4165010256 | PIPE ELBOW |
| 069 | N 900271015037 | HOSE |
| 60 MM | ||
| A 0009971390 | LOOM TIE | |
| Repalced by: N 916017020000 | ||
| 070 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 070 | N 000000000667 | CLAMP |
| A 4065000049 | TANK | |
| Repalced by: A 4065000749 | ||
| A 4065000449 | TANK | |
| Repalced by: A 4065000749 | ||
| A 4065000549 | TANK | |
| Repalced by: A 4065000749 | ||
| A 4065000649 | TANK | |
| Repalced by: A 4065000749 | ||
| 071 | A 4065000749 | TANK |
| 072 | A 4045000006 | FILLER CAP |
| A 4045010060 | SEAL RING | |
| A 0005000540 | VALVE | |
| 072 | A 0005011815 | RADIATOR CAP |
| 074 | A 0005013215 | RADIATOR CAP |
| Repalced by: A 0005014215 | ||
| A 0005014215 | RADIATOR CAP | |
| 0.7 BAR | ||
| 075 | A 0005012815 | RADIATOR CAP |
| Repalced by: A 0005015715 | ||
| 075 | A 0005015715 | RADIATOR CAP |
| 1.7 BAR | ||
| 076 | A 0005010281 | RUBBER PAD |
| 077 | A 0004352082 | HOSE |
| Repalced by: A 4609970882 | ||
| 077 | A 4609970882 | HOSE |
| 50 MM | ||
| 078 | A 4065000027 | SUPPORT |
| A 4065000127 | SUPPORT | |
| Repalced by: A 4065000527 | ||
| A 4065000327 | SUPPORT | |
| A 4065000527 | SUPPORT | |
| Repalced by: A 4065000727 | ||
| 078 | A 4065000727 | SUPPORT |
| 079 | A 4069870260 | RUBBER PAD |
| A 4069875160 | RUBBER PAD | |
| Repalced by: A 4069875460 | ||
| 079 | A 4069875460 | RUBBER PAD |
| 080 | A 4065040538 | MOUNTING PLATE |
| 080 | A 4035040138 | MOUNTING PLATE |
| 081 | A 4065040738 | MOUNTING PLATE |
| A 4065040174 | PIN | |
| Repalced by: A 4035040074 | ||
| 083 | A 4035040074 | PIN |
| A 4065000074 | CLAMP | |
| Repalced by: A 4065000374 | ||
| A 4065000374 | CLAMP | |
| A 4065000174 | CLAMP | |
| Repalced by: A 4065000274 | ||
| A 4065000274 | CLAMP | |
| A 4065000474 | CLAMP | |
| 086 | A 4035000074 | CLAMP |
| Repalced by: A 4065000674 | ||
| A 4065000674 | CLAMP | |
| 088 | A 4039875160 | RUBBER PAD |
| 088 | A 4039875160 | RUBBER PAD |
| N 007603008403 | SEAL RING | |
| N 007603008403 | SEAL RING | |
| N 000933008160 | SCREW | |
| Repalced by: N 304017008040 | ||
| N 304017008040 | SCREW | |
| Repalced by: N 910105008010 | ||
| N 910105008010 | SCREW | |
| Repalced by: N 910143008005 | ||
| N 910143008005 | SCREW | |
| N 000933008153 | SCREW | |
| Repalced by: N 304017008034 | ||
| N 304017008034 | SCREW | |
| 089 | N 006797008120 | TOOTHED WASHER |
| 090 | N 912004008102 | LOCK WASHER |
| 092 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 092 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 092 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 092 | N 913023008002 | NUT |
| 092 | N 913023008002 | NUT |
| A 4065010110 | DRAIN PIPE | |
| Repalced by: A 0089979082 | ||
| A 4039975282 | HOSE | |
| Repalced by: A 0089979082 | ||
| 095 | A 0089979082 | HOSE |
| Repalced by: A 0009872727 | ||
| 095 | A 0009872727 | PLASTIC PIPE |
| 900 MM | ||
| A 0039978972 | FITTING | |
| Repalced by: A 0029905971 | ||
| A 0029905971 | FITTING | |
| (PARTS KIT),LINE RUPTURE | ||
| N 900271010015 | HOSE | |
| 60 MM | ||
| A 3279950001 | CLAMP | |
| Repalced by: A 3039950535 | ||
| A 3039950535 | CLAMP | |
| Repalced by: N 900285001200 | ||
| 098 | N 900285001200 | CLAMP |
| Repalced by: A 4069955001 | ||
| 098 | A 4069955001 | CLAMP |
| 099 | A 3044293040 | BRACKET |
| Repalced by: A 3604292940 | ||
| 099 | A 3604292940 | BRACKET |
| 101 | A 3049950220 | CLAMP |
| Repalced by: A 3129952420 | ||
| 101 | A 3129952420 | CLAMP |
| Repalced by: A 1109950401 | ||
| 101 | A 1109950401 | CLAMP |
| 103 | A 0679950132 | CLAMP |
| 106 | A 3379950432 | CLAMP |
| A 3044760019 | BASE | |
| Repalced by: A 3142030084 | ||
| 108 | A 3142030084 | SHIM |
| A 0009953344 | CLAMP | |
| Repalced by: A 0019978390 | ||
| 111 | A 0019978390 | LOOM TIE |
| A 0019978490 | LOOM TIE | |
| 113 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 113 | N 304017008021 | SCREW |
| 114 | N 912004008102 | LOCK WASHER |
| 115 | N 304032008006 | NUT |
| 118 | N 000084005174 | SCREW |
| 119 | N 912004005103 | LOCK WASHER |
| 120 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 120 | N 304032005005 | NUT |
