Transporto priemonė: U 65 T,U 70 T; VIN numerio dalis: 406130

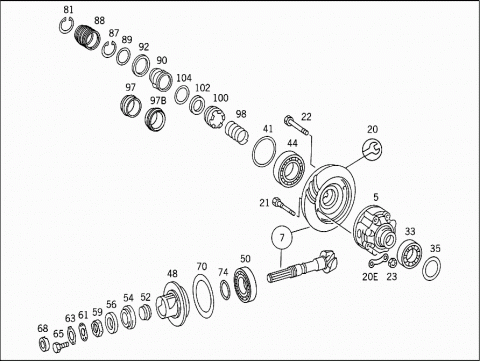

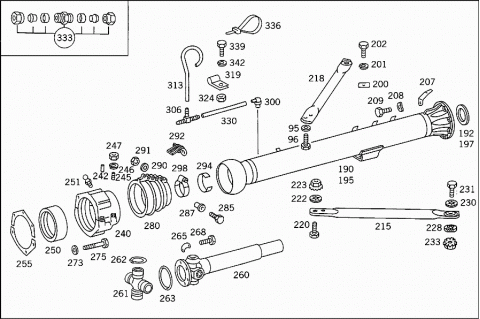

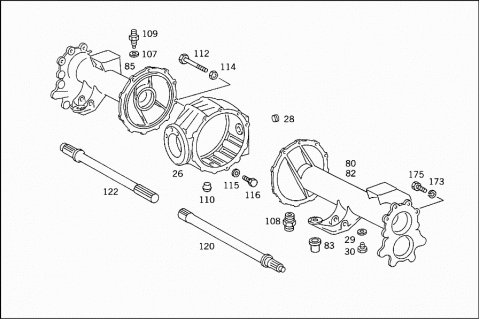

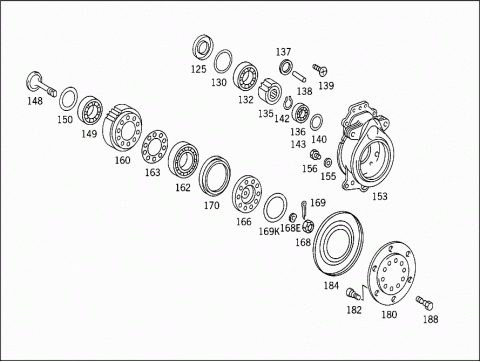

Grupė: 35 REAR AXLE
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| "E" AND "F" VERSIONS;FOR "G" VERSION, SEE MODEL 747.0/1 | ||
| A 4063500099 | REAR AXLE | |
| Repalced by: A 4163501299 | ||
| A 4063500199 | REAR AXLE | |
| Repalced by: A 4163501299 | ||
| A 4163500199 | REAR AXLE | |
| Repalced by: A 4163501299 | ||
| A 4163500299 | REAR AXLE | |
| Repalced by: A 4163501299 | ||
| A 4163500399 | REAR AXLE | |
| Repalced by: A 4163501299 | ||
| 003 | A 4163501299 | REAR AXLE |
| WITH BRAKES | ||
| 003 | A 4163500599 | REAR AXLE |
| WITH BRAKES | ||
| A 4163501399 | REAR AXLE | |
| Repalced by: A 4163502099 | ||
| A 4063350001 | DIFFERENTIAL CASE | |
| Repalced by: A 4063350201 | ||
| 005 | A 4063350201 | DIFFERENTIAL CASE |
| 005 | A 4163350001 | DIFFERENTIAL CASE |
| Repalced by: A 4163350401 | ||
| 005 | A 4163350101 | DIFFERENTIAL CASE |
| Repalced by: A 4163350401 | ||
| 005 | A 4163350401 | DIFFERENTIAL CASE |
| Repalced by: A 4373350401 | ||
| 005 | A 4373350401 | DIFFERENTIAL CASE |
| Repalced by: A 4053350201 | ||
| 005 | A 4053350201 | DIFFERENTIAL CASE |
| 007 | A 4063300039 | RING GEAR AND PINION |
| Repalced by: A 4063300139 | ||
| 007 | A 4063300139 | RING GEAR AND PINION |
| RATIO: | ||
| 25:8 | ||
| 007 | A 4063300239 | RING GEAR AND PINION |
| Repalced by: A 4163300039 | ||
| 007 | A 4163300039 | RING GEAR AND PINION |
| Repalced by: A 4063300339 | ||
| 007 | A 4063300339 | RING GEAR AND PINION |
| RATIO: | ||
| 22:7 | ||
| N 001481010005 | CLAMPING SLEEVE | |
| A 4063350020 | DIFFERENTIAL SPIDER | |
| A 4163350020 | DIFFERENTIAL SPIDER | |
| Repalced by: A 4163350220 | ||
| A 4163350220 | DIFFERENTIAL SPIDER | |
| A 4063350114 | DIFFERENTIAL PINION | |
| A 4163350014 | DIFFERENTIAL PINION | |
| A 4063370162 | SEGMENT | |
| A 4163370062 | SEGMENT | |
| A 4063350115 | SIDE GEAR | |
| Repalced by: A 4063350215 | ||
| A 4063350215 | SIDE GEAR | |
| A 4163350015 | SIDE GEAR | |
| A 4063350262 | THRUST WASHER | |
| Repalced by: A 4063350662 | ||
| A 4063350662 | THRUST WASHER | |
| 1.45 MM | ||
| A 4163350062 | THRUST WASHER | |
| 2.00 MM | ||
| 020 | A 4165860235 | REPAIR KIT |
| Repalced by: A 4163500240 | ||
| 020 | A 4163500240 | REPAIR KIT |
| DIFFERENTIAL GEAR | ||
| 020 | A 4353500040 | REPAIR KIT |
| Repalced by: A 4373500040 | ||
| 020 | A 4373500040 | REPAIR KIT |
| DIFFERENTIAL GEAR | ||
| 020E | A 4043350073 | LOCK |
| 021 | A 4069905119 | SCREW |
| 021 | A 4069905219 | SCREW |
| 022 | N 000960012169 | SCREW |
| 022 | N 000960012277 | SCREW |
| Repalced by: A 0079900101 | ||
| 022 | A 0079900101 | SCREW |
| 023 | N 000934012033 | NUT |
| Repalced by: A 0039909651 | ||
| 023 | A 0039909651 | NUT |
| 026 | A 4063510203 | HOUSING |
| 028 | N 000906030003 | SCREW PLUG |
| 029 | N 915035000001 | SEAL RING |
| 030 | N 007604018109 | SCREW PLUG |
| 033 | N 000720030211 | TAPERED ROLLER BEARING |
| 033 | A 0029816005 | TAPERED ROLLER BEARING |
| Repalced by: N 000720032013 | ||
| 033 | N 000720032013 | TAPERED ROLLER BEARING |
| 035 | A 0009878146 | SEALING CORD |
| Repalced by: A 0029772840 | ||
| 035 | A 4063350129 | OIL BAFFLE |
| Repalced by: A 0029972840 | ||
| 035 | A 0029972840 | SEAL RING |
| 035 | A 0029974640 | SEAL RING |
| 041 | A 4063370152 | SPACER WASHER |
| Repalced by: A 4163370052 | ||
| 041 | A 4163370052 | SPACER WASHER |
| Repalced by: A 4163371852 | ||
| 041 | A 4163371852 | SPACER WASHER |
| AS REQUIRED | ||
| 0.15 MM | ||
| 041 | A 4063370252 | SPACER WASHER |
| Repalced by: A 4163370152 | ||
| 041 | A 4163370152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 041 | A 4063370352 | SPACER WASHER |
| Repalced by: A 4163370252 | ||
| 041 | A 4163370252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 041 | A 4063370452 | SPACER WASHER |
| Repalced by: A 4163370352 | ||
| 041 | A 4063370552 | SPACER WASHER |
| Repalced by: A 4163370352 | ||
| 041 | A 4063370652 | SPACER WASHER |
| Repalced by: A 4163370352 | ||
| 041 | A 4163370352 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 041 | A 4063371552 | SPACER WASHER |
| Repalced by: A 4063372852 | ||
| 041 | A 4063372852 | SPACER WASHER |
| AS REQUIRED | ||
| 0.15 MM | ||
| 041 | A 4063371652 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 041 | A 4063371752 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 041 | A 4063371852 | SPACER WASHER |
| AS REQUIRED | ||
| 0.30 MM | ||
| 041 | A 4063371952 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 041 | A 4063372052 | SPACER WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 044 | N 000720030214 | TAPERED ROLLER BEARING |
| 044 | N 000720032016 | TAPERED ROLLER BEARING |
| 048 | A 4063530111 | BEARING BODY |
| Repalced by: A 4163530011 | ||
| 048 | A 4163530011 | BEARING BODY |
| 050 | A 0019814605 | TAPERED ROLLER BEARING |
| 052 | A 4063350153 | SPACER TUBE |
| Repalced by: A 4063310053 | ||
| 052 | A 4063310053 | SPACER TUBE |
| 054 | A 0019814405 | TAPERED ROLLER BEARING |
| 056 | A 4063350272 | NUT |
| Repalced by: A 4063370251 | ||
| 056 | A 4063370251 | SPACER RING |
| 059 | A 4063350172 | NUT |
| 061 | A 4063370073 | LOCK |
| 063 | A 4063370173 | LOCK |
| 065 | N 000933006030 | SCREW |
| Repalced by: N 304017006022 | ||
| 065 | N 304017006022 | SCREW |
| 068 | A 4163310258 | RADIAL SEAL RING |
| 070 | A 4063354552 | SPACER WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 070 | A 4063352152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 070 | A 4063352252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 070 | A 4063352352 | SPACER WASHER |
| AS REQUIRED | ||
| 0.30 MM | ||
| 070 | A 4063352452 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 074 | A 0009878046 | SEALING CORD |
| 76X2.5 M | ||
| 080 | A 4063500819 | REAR AXLE TUBE |
| Repalced by: A 4163501619 | ||
| 080 | A 4063501219 | REAR AXLE TUBE |
| Repalced by: A 4163501619 | ||
| 080 | A 4163500219 | REAR AXLE TUBE |
| Repalced by: A 4163501619 | ||
| 080 | A 4163501119 | REAR AXLE TUBE |
| Repalced by: A 4163501619 | ||
| 080 | A 4163501419 | REAR AXLE TUBE |
| Repalced by: A 4163501619 | ||
| 080 | A 4163501619 | REAR AXLE TUBE |
| A 4163510066 | PIPE | |
| 081 | A 4169935007 | SPRING |
| A 4163502319 | REAR AXLE TUBE | |
| Repalced by: A 4163503519 | ||
| 082 | A 4163503519 | REAR AXLE TUBE |
| 083 | A 4063330112 | BUSHING |
| A 4063500019 | REAR AXLE TUBE | |
| Repalced by: A 4163502619 | ||
| A 4063501619 | REAR AXLE TUBE | |
| Repalced by: A 4163502619 | ||
| A 4163500519 | REAR AXLE TUBE | |
| Repalced by: A 4163502619 | ||
| A 4163501319 | REAR AXLE TUBE | |
| Repalced by: A 4163502619 | ||
| 085 | A 4163502119 | REAR AXLE TUBE |
| Repalced by: A 4163502619 | ||
| 085 | A 4163502219 | REAR AXLE TUBE |
| Repalced by: A 4163502619 | ||
| 085 | A 4163502619 | REAR AXLE TUBE |
| 085 | A 4163502819 | REAR AXLE TUBE |
| A 4163510066 | PIPE | |
| 087 | A 4169935007 | SPRING |
| 087 | A 4069940034 | SNAP RING |
| A 4063350358 | SEAL HOLDER | |
| Repalced by: A 4063350458 | ||
| 088 | A 4063350458 | SEAL HOLDER |
| 089 | A 0009878046 | SEALING CORD |
| 76X2.5 MM | ||
| 090 | A 4063350050 | BUSHING |
| Repalced by: A 4063350350 | ||
| 090 | A 4063350150 | BUSHING |
| Repalced by: A 4063350350 | ||
| 090 | A 4063350350 | PISTON |
| 090 | A 4163350050 | BUSHING |
| Repalced by: A 4163350250 | ||
| 090 | A 4163350250 | PISTON |
| 092 | A 0039972645 | SEAL RING |
| 092 | A 4069875041 | BOOT |
| INSIDE | ||
| 092 | A 4069875141 | BOOT |
| OUTSIDE | ||
| 092 | A 0009977941 | SEAL RING |
| 69.2X79.8X5.3 MM | ||
| 095 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 095 | N 007603010110 | SEAL RING |
| 096 | A 3159900801 | SCREW |
| 097 | A 4033350052 | SPACER WASHER |
| 125 MM FOR RIGHT REAR AXLE TUBE | ||
| 097B | A 4163510051 | SPACER RING |
| 100 MM FOR LEFT AND RIGHT REAR AXLE TUBES | ||
| 097B | A 4163510052 | SPACER WASHER |
| 100 MM FOR LEFT AND RIGHT REAR AXLE TUBES | ||
| 098 | A 4069930301 | SPRING |
| 098 | A 4169935001 | SPRING |
| A 4063350136 | FOLLOWER | |
| Repalced by: A 4063350236 | ||
| 100 | A 4063350236 | FOLLOWER |
| 100 | A 4213350036 | FOLLOWER |
| 100 | A 4163350036 | FOLLOWER |
| 102 | A 4063350362 | THRUST WASHER |
| 102 | A 4163350262 | THRUST WASHER |
| 104 | A 4063350562 | THRUST WASHER |
| 104 | A 4163350362 | THRUST WASHER |
| 107 | N 915035000006 | SEAL RING |
| 108 | N 915007006001 | ADAPTER FITTING |
| A 4163300077 | STOP | |
| Repalced by: A 4163310084 | ||
| 109 | A 4163310084 | FITTING |
| 110 | N 900087010000 | PLUG |
| 112 | N 000960012164 | SCREW |
| 114 | N 000934012033 | NUT |
| Repalced by: A 0039909651 | ||
| 114 | A 0039909651 | NUT |
| 115 | A 4069905048 | WASHER |
| 116 | N 000961012055 | SCREW |
| 120 | A 4063570101 | REAR AXLE SHAFT |
| LEFT | ||
| 120 | A 4163570001 | REAR AXLE SHAFT |
| Repalced by: A 4163570101 | ||
| 120 | A 4163570101 | REAR AXLE SHAFT |
| 120 | A 4163570201 | REAR AXLE SHAFT |
| LEFT | ||
| 122 | A 4063570102 | REAR AXLE SHAFT |
| RIGHT | ||
| A 4163570002 | REAR AXLE SHAFT | |
| Repalced by: A 4163570102 | ||
| 122 | A 4163570102 | REAR AXLE SHAFT |
| RIGHT | ||
| 122 | A 4163570402 | REAR AXLE SHAFT |
| Repalced by: A 4163570202 | ||
| 122 | A 4163570202 | REAR AXLE SHAFT |
| RIGHT | ||
| 125 | A 4163310158 | RADIAL SEAL RING |
| 125 | A 4163310558 | CONSOLE |
| Repalced by: A 0109973446 | ||
| 125 | A 0109973446 | SEAL RING |
| 125 | A 0109973546 | SEAL RING |
| 125 | A 4063370152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.05 MM | ||
| 125 | A 4063370252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 125 | A 4063370352 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 125 | A 4063370452 | SPACER WASHER |
| AS REQUIRED | ||
| 0.30 MM | ||
| 125 | A 4063370552 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 125 | A 4063370652 | SPACER WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 130 | A 4163370452 | SPACER WASHER |
| Repalced by: A 4273370052 | ||
| 130 | A 4273370052 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 130 | A 4163370552 | SPACER WASHER |
| Repalced by: A 4273370152 | ||
| 130 | A 4273370152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 130 | A 4163370652 | SPACER WASHER |
| Repalced by: A 4273370252 | ||
| 130 | A 4273370252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.30 MM | ||
| N 000720030309 | TAPERED ROLLER BEARING | |
| Repalced by: A 0019813705 | ||
| 132 | A 0019813705 | TAPERED ROLLER BEARING |
| Repalced by: A 0099810305 | ||
| 132 | A 0099810305 | TAPERED ROLLER BEARING |
| INSIDE | ||
| N 000625006310 | GROOVED BALL BEARING | |
| Repalced by: A 0019816125 | ||
| N 000625036310 | GROOVED BALL BEARING | |
| Repalced by: A 0019816125 | ||
| 132 | A 0019816125 | BALL BEARING |
| 132 | A 0019817225 | BALL BEARING |
| 135 | A 4063360410 | SPUR GEAR |
| LEFT;15 TEETH | ||
| 135 | A 4163360010 | SPUR GEAR |
| LEFT;15 TEETH | ||
| 135 | A 4063360510 | SPUR GEAR |
| RIGHT;15 TEETH | ||
| 135 | A 4163360110 | SPUR GEAR |
| RIGHT;15 TEETH | ||
| 135 | A 4163360410 | SPUR GEAR |
| LEFT AND RIGHT; 15 TEETH | ||
| 135 | A 4163360310 | SPUR GEAR |
| LEFT AND RIGHT; 13 TEETH | ||
| 136 | A 0009818605 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 137 | A 4063350062 | THRUST WASHER |
| 138 | N 001481004012 | CLAMPING SLEEVE |
| Repalced by: N 308752004000 | ||
| 138 | N 308752004000 | CLAMPING PIN |
| N 000063010103 | SCREW | |
| Repalced by: A 4049900330 | ||
| 139 | A 4049900330 | SCREW |
| 140 | A 4063372752 | SPACER WASHER |
| 140 | A 4163370752 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 140 | A 4163370852 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 140 | A 4163370952 | SPACER WASHER |
| AS REQUIRED | ||
| 0.30 MM | ||
| 142 | N 000471042000 | LOCK RING |
| 143 | A 0019817701 | CYLINDR. ROLLER BEARING |
| A 4063350176 | SET SCREW | |
| Repalced by: A 4063350076 | ||
| 148 | A 4063350076 | SET SCREW |
| 148 | A 4163350076 | SET SCREW |
| 148 | A 4163350176 | SET SCREW |
| 148 | A 4163350276 | SET SCREW |
| TO 416 337 03 51 | ||
| 148 | A 4163350376 | SET SCREW |
| TO 435 337 04 51 | ||
| N 000988050000 | FITTED WASHER | |
| A 4039970620 | EXPANSION PLUG | |
| N 900055050300 | LOCK RING | |
| A 4063340152 | SPACER WASHER | |
| A 4063340252 | SPACER WASHER | |
| 149 | N 000625006211 | GROOVED BALL BEARING |
| 149 | N 000625006309 | GROOVED BALL BEARING |
| N 000625006310 | GROOVED BALL BEARING | |
| Repalced by: A 0019816125 | ||
| N 000625036310 | GROOVED BALL BEARING | |
| Repalced by: A 0019816125 | ||
| 149 | A 0019816125 | BALL BEARING |
| 149 | A 0019817225 | BALL BEARING |
| A 0009878046 | SEALING CORD | |
| Repalced by: A 4163510079 | ||
| A 4163510079 | GASKET | |
| 150 | A 0009878046 | SEALING CORD |
| A 4063510010 | HOUSING | |
| Repalced by: A 4163310005 | ||
| A 4063310005 | HOUSING | |
| Repalced by: A 4163310005 | ||
| 153 | A 4163310005 | HOUSING |
| 153 | A 4163310105 | HOUSING |
| 155 | N 915035000006 | SEAL RING |
| 156 | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 156 | N 007604014110 | SCREW PLUG |
| 160 | A 4063530015 | SIDE GEAR |
| NUMBER OF TEETH: | ||
| 32 | ||
| A 4163530015 | SIDE GEAR | |
| Repalced by: A 4163530215 | ||
| 160 | A 4163530215 | SIDE GEAR |
| NUMBER OF TEETH: | ||
| 32 | ||
| 160 | A 4063530115 | SIDE GEAR |
| NUMBER OF TEETH: | ||
| 32 | ||
| 160 | A 4163530115 | SIDE GEAR |
| Repalced by: A 4163530315 | ||
| 160 | A 4163530315 | SIDE GEAR |
| NUMBER OF TEETH: | ||
| 32 | ||
| 160 | A 4163530615 | SIDE GEAR |
| LEFT AND RIGHT; 32 TEETH | ||
| A 4163530515 | SIDE GEAR | |
| LEFT AND RIGHT; 27 TEETH | ||
| 162 | A 0009816801 | CYLINDR. ROLLER BEARING |
| 162 | A 0019814201 | CYLINDR. ROLLER BEARING |
| 163 | A 4163310052 | SPACER WASHER |
| TO 416 337 03 51 | ||
| A 4063370451 | SPACER RING | |
| Repalced by: A 4063371151 | ||
| A 4063370551 | SPACER RING | |
| Repalced by: A 4063371151 | ||
| 166 | A 4063371151 | SPACER RING |
| LEFT | ||
| A 4163370051 | SPACER RING | |
| Repalced by: A 4163370351 | ||
| A 4063370651 | SPACER RING | |
| Repalced by: A 4063371251 | ||
| 166 | A 4063371251 | SPACER RING |
| RIGHT | ||
| A 4163370151 | SPACER RING | |
| Repalced by: A 4163370351 | ||
| A 4163370351 | SPACER RING | |
| Repalced by: A 4353370451 | ||
| 166 | A 4353370451 | SPACER RING |
| LEFT AND RIGHT | ||
| A 4063371551 | SPACER RING | |
| 168 | N 000937020001 | NUT |
| 168 | N 000935020004 | NUT |
| 168E | N 900055020001 | SPRING WASHER |
| 169 | N 000094004065 | COTTER PIN |
| A 0039970946 | SEAL RING | |
| Repalced by: A 0059971946 | ||
| A 0049970346 | SEAL RING | |
| Repalced by: A 0059971946 | ||
| 169K | A 0059971946 | SEAL RING |
| A 4163310058 | RADIAL SEAL RING | |
| Repalced by: A 4163311258 | ||
| 170 | A 4163311258 | RADIAL SEAL RING |
| Repalced by: A 0119977947 | ||
| A 4163310958 | RADIAL SEAL RING | |
| Repalced by: A 0119977947 | ||
| 170 | A 0119977947 | SEAL RING |
| Repalced by: A 0219971147 | ||
| A 4163311358 | RADIAL SEAL RING | |
| Repalced by: A 0059974547 | ||
| 170 | A 0059974547 | SEAL RING |
| Repalced by: A 0219971147 | ||
| 170 | A 0219971147 | SEAL RING |
| LEFT AND RIGHT | ||
| 173 | N 912004012100 | LOCK WASHER |
| 175 | A 0029908201 | SCREW |
| 175 | N 000961012106 | SCREW |
| Repalced by: N 308676012014 | ||
| 175 | N 308676012014 | HEXAGON HEAD BOLT |
| Repalced by: N 910105012020 | ||
| 175 | N 910105012020 | SCREW |
| 180 | A 4063560001 | WHEEL HUB |
| Repalced by: A 4063560101 | ||
| 180 | A 4063560101 | WHEEL HUB |
| 180 | A 4163500035 | WHEEL HUB |
| Repalced by: A 4163560001 | ||
| 180 | A 4163560001 | WHEEL HUB |
| 182 | A 4044010071 | WHEEL MOUNTING BOLT |
| 182 | A 4044010071 | WHEEL MOUNTING BOLT |
| 184 | A 4163340082 | OIL COLLECTOR |
| 188 | N 000960016237 | SCREW |
| Repalced by: N 910105016005 | ||
| 188 | N 910105016005 | SCREW |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| THRUST TUBE,THRUST BALL HOUSING AND PROPELLER SHAFT | ||
| A 4063500431 | END PIECE | |
| Repalced by: A 4063500631 | ||
| 190 | A 4063500631 | END PIECE |
| 192 | A 0029978646 | SEAL RING |
| 195 | A 4163500531 | END PIECE |
| Repalced by: A 4163500631 | ||
| 195 | A 4163500631 | THRUST TUBE |
| Repalced by: A 4163502531 | ||
| 195 | A 4163502531 | THRUST TUBE |
| 197 | A 0029978646 | SEAL RING |
| A 3044760019 | BASE | |
| Repalced by: A 3142030084 | ||
| 200 | A 3142030084 | SHIM |
| 201 | N 912004006102 | LOCK WASHER |
| 202 | N 000933006102 | SCREW |
| A 4214280043 | ANGLE | |
| 207 | A 4064280040 | BRACKET |
| 208 | N 900055012001 | SPRING WASHER |
| 209 | N 000960012171 | SCREW |
| A 4063500129 | THRUST ARM | |
| Repalced by: A 4063500429 | ||
| 215 | A 4063500429 | THRUST ARM |
| A 4163500129 | THRUST ARM | |
| Repalced by: A 4163500229 | ||
| 215 | A 4163500229 | THRUST ARM |
| 215 | A 4063500029 | THRUST ARM |
| Repalced by: A 4063500529 | ||
| 215 | A 4063500529 | THRUST ARM |
| 218 | A 4163500029 | THRUST ARM |
| Repalced by: A 4163500329 | ||
| 218 | A 4163500329 | THRUST ARM |
| 220 | A 4063330068 | WEB |
| Repalced by: A 0019903651 | ||
| 220 | N 000961016096 | SCREW |
| Repalced by: N 910105016012 | ||
| 220 | N 910105016012 | SCREW |
| 222 | A 4063580073 | LOCK |
| 222 | A 0009941651 | LOCK |
| 223 | A 0019903651 | NUT |
| Repalced by: N 913013016002 | ||
| 223 | N 913013016002 | NUT |
| 228 | A 4063330077 | INDEXING PLATE |
| Repalced by: A 4163330077 | ||
| 228 | A 4163330077 | INDEXING PLATE |
| 230 | A 0009931826 | DISC SPRING |
| Repalced by: A 0009941651 | ||
| 230 | A 0009941651 | LOCK |
| 231 | N 000961016096 | SCREW |
| Repalced by: A 0029907001 | ||
| 231 | A 0029907001 | SCREW |
| 233 | A 0019903651 | NUT |
| Repalced by: N 913013016002 | ||
| 233 | N 913013016002 | NUT |
| 240 | A 4063300114 | HOUSING |
| Repalced by: A 4163300314 | ||
| 240 | A 4163300014 | HOUSING |
| Repalced by: A 4163300314 | ||
| 240 | A 4163300214 | HOUSING |
| Repalced by: A 4163300314 | ||
| 240 | A 4163300314 | THRUST BALL HOUSING |
| Repalced by: A 4163301314 | ||
| 240 | A 4163301314 | HOUSING |
| 242 | N 000007006105 | CYLINDRICAL PIN |
| 245 | N 000939010008 | STUD BOLT |
| Repalced by: N 000939010138 | ||
| 245 | N 000939010138 | STUD BOLT |
| 246 | N 912004010102 | LOCK WASHER |
| 247 | N 070615010003 | NUT |
| 250 | A 4063370406 | HOUSING |
| Repalced by: A 4063370506 | ||
| 250 | A 4063370506 | THRUST BALL CUP |
| AS REQUIRED | ||
| TO 406 330 01 14,416 330 00 14 | ||
| 250 | A 4163370406 | HOUSING |
| Repalced by: A 4163370506 | ||
| 250 | A 4163370506 | THRUST BALL CUP |
| TO 416 330 03 14 | ||
| 251 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 251 | N 071412008102 | GREASE NIPPLE |
| 255 | A 4063370752 | SPACER WASHER |
| AS REQUIRED | ||
| 2.00 MM | ||
| 255 | A 4063370852 | SPACER WASHER |
| AS REQUIRED | ||
| 1.80 MM | ||
| 255 | A 4063370952 | SPACER WASHER |
| AS REQUIRED | ||
| 1.60 MM | ||
| 255 | A 4063371052 | SPACER WASHER |
| AS REQUIRED | ||
| 1.40 MM | ||
| 255 | A 4063371152 | SPACER WASHER |
| AS REQUIRED | ||
| 1.20 MM | ||
| 255 | A 4063371252 | SPACER WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 255 | A 4063371352 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 255 | A 4063371452 | SPACER WASHER |
| AS REQUIRED | ||
| 0.15 MM | ||
| A 4063370310 | JOINT | |
| Repalced by: A 4163370310 | ||
| A 4063370510 | JOINT | |
| Repalced by: A 4163370310 | ||
| A 4163370310 | PROPELLER SHAFT | |
| Repalced by: A 4163371910 | ||
| 260 | A 4163371910 | JOINT |
| REAR | ||
| 1016 MM | ||
| 260 | A 4163370810 | PROPELLER SHAFT |
| Repalced by: A 4163371610 | ||
| 260 | A 4163371610 | PROPELLER SHAFT |
| REAR | ||
| 980 MM | ||
| A 0003370711 | JOINT CROSS | |
| Repalced by: A 0003300728 | ||
| 261 | A 0003300728 | UNIVERSAL JOINT |
| REPAIR KIT | ||
| TO 416 337 03 10,416 337 19 10 | ||
| 261 | A 0003300728 | UNIVERSAL JOINT |
| TO 416 337 08 10,416 337 16 10 | ||
| 262 | A 0004112073 | LOCK |
| AS REQUIRED | ||
| 1.4 MM | ||
| 262 | A 0004112173 | LOCK |
| AS REQUIRED | ||
| 1.5 MM | ||
| 262 | A 0004112273 | LOCK |
| AS REQUIRED | ||
| 1.6 MM | ||
| 262 | A 0004112373 | LOCK |
| AS REQUIRED | ||
| 1.7 MM | ||
| 262 | A 0004112473 | LOCK |
| AS REQUIRED | ||
| 1.8 MM | ||
| 262 | A 0004112573 | LOCK |
| AS REQUIRED | ||
| 1.9 MM | ||
| 263 | A 0039977945 | SEAL RING |
| 265 | A 4043370073 | LOCK |
| 265 | A 4163370073 | LOCK |
| 268 | N 000933008031 | SCREW |
| Repalced by: A 1249902201 | ||
| 268 | A 1249902201 | SCREW |
| M 8X18 | ||
| 268 | A 4169905001 | SCREW |
| Repalced by: N 070614010033 | ||
| 268 | N 070614010033 | SCREW |
| Repalced by: A 4169905001 | ||
| 268 | A 4169905001 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 273 | N 007603010108 | SEAL RING |
| 275 | N 070613010032 | SCREW |
| A 4169875043 | RUBBER SLEEVE | |
| Repalced by: A 4169875243 | ||
| 280 | A 4169875243 | RUBBER SLEEVE |
| 285 | N 000933006123 | SCREW |
| 287 | N 007340008103 | RIVET |
| 290 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 290 | N 009021006208 | WASHER |
| 291 | N 000934006007 | NUT |
| 292 | N 900262009100 | LOOM TIE |
| 294 | N 900263009000 | STRAP |
| 1200 MM | ||
| 298 | N 916002109200 | CLAMP |
| 300 | A 3933280065 | PIPE SOCKET |
| Repalced by: A 4063580065 | ||
| 300 | A 4063580065 | BREATHER |
| 306 | A 0009900678 | CONNECTOR |
| Repalced by: A 0019909870 | ||
| 306 | A 0019909870 | T-FITTING |
| Repalced by: A 0009907990 | ||
| 306 | A 0009907990 | T-FITTING |
| 313 | A 4064710615 | BREATHER PIPE |
| Repalced by: A 4064710715 | ||
| 313 | A 4064710715 | BREATHER PIPE |
| A 3609951101 | CLAMP | |
| Repalced by: A 3609951201 | ||
| 319 | A 3609951201 | CLAMP |
| 324 | N 070615010003 | NUT |
| 330 | A 0109978982 | HOSE |
| Repalced by: A 0089979082 | ||
| 330 | A 0089979082 | HOSE |
| Repalced by: A 0009872727 | ||
| 330 | A 0009872727 | PLASTIC PIPE |
| 333 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 333 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 336 | A 0019978390 | LOOM TIE |
| 336 | A 0019978490 | LOOM TIE |
| A 3609951301 | CLAMP | |
| Repalced by: A 3609951201 | ||
| 339 | N 000933010128 | SCREW |
| Repalced by: N 910105010006 | ||
| 339 | N 910105010006 | SCREW |
| 342 | N 912004010102 | LOCK WASHER |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
