Transporto priemonė: U 800; VIN numerio dalis: 417200

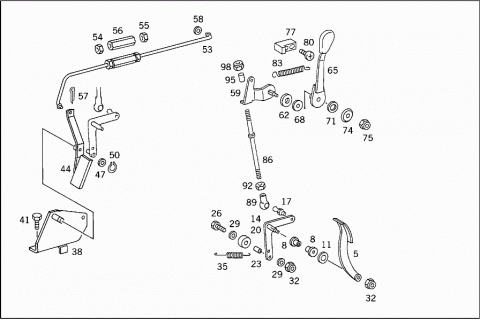

Grupė: 30 CONTROL - 025 MANUAL/ACCELERATOR-PEDAL CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 4063010020 | LEVER |
| ACCELERATOR PEDAL | ||
| 008 | A 4063010350 | BUSHING |
| 011 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 011 | N 009021010209 | WASHER |
| 014 | A 4063000904 | LEVER |
| 017 | N 071803010202 | BALL PIVOT |
| 020 | A 4273010011 | ROLLER |
| 023 | A 4173020053 | SPACER TUBE |
| ROLLER TO LEVER | ||
| 026 | N 000931008228 | SCREW |
| Repalced by: N 000933008134 | ||
| 026 | N 000933008134 | SCREW |
| ROLLER TO LEVER | ||
| M 8X28 | ||
| 029 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 029 | N 000125008443 | WASHER |
| ROLLER TO LEVER | ||
| 029 | N 000125008443 | WASHER |
| ROD TO LEVER | ||
| 032 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 032 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 032 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 032 | N 913023008002 | NUT |
| 032 | N 913023008002 | NUT |
| BETWEEN CONTROL LEVER AND CAB | ||
| 035 | A 4069935110 | SPRING |
| ACCELERATOR PEDAL | ||
| 038 | A 4173000336 | BEARING BRACKET |
| Repalced by: A 4173000236 | ||
| 038 | A 4173000236 | BEARING BRACKET |
| A 4173000036 | BEARING BRACKET | |
| 038 | A 4173000136 | BEARING BRACKET |
| Repalced by: A 4173000236 | ||
| 038 | A 4173000236 | BEARING BRACKET |
| 041 | N 000933006124 | SCREW |
| BEARING BRACKET TO OIL PAN | ||
| M 6X30 | ||
| 044 | A 4173000025 | LEVER |
| Repalced by: A 4173000325 | ||
| 044 | A 4173000325 | LEVER |
| Repalced by: A 4193000125 | ||
| 044 | A 4193000125 | LEVER |
| CONTROL ROD | ||
| 044 | A 4173000225 | LEVER |
| CONTROL ROD | ||
| 047 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 047 | N 000125010532 | WASHER |
| LEVER | ||
| 050 | N 000471010001 | LOCK RING |
| LEVER | ||
| 053 | A 4173000315 | ROD |
| A 4173000015 | ROD | |
| 053 | A 4173000115 | ROD |
| Repalced by: A 4173000215 | ||
| 053 | A 4173000215 | ROD |
| Repalced by: A 4173000615 | ||
| 053 | A 4173000615 | ROD |
| 054 | N 000934008035 | NUT |
| L.H. THREAD | ||
| 055 | N 304032008006 | NUT |
| 056 | N 001479008003 | TURNBUCKLE |
| 057 | N 000094002077 | COTTER PIN |
| ROD TO LEVER | ||
| 058 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 058 | N 000125008443 | WASHER |
| ROD TO LEVER | ||
| 059 | A 4173000125 | LEVER |
| MANUAL CONTROL | ||
| 062 | A 4063020554 | GUARD PLATE |
| BETWEEN CONTROL LEVER AND CAB | ||
| 065 | A 4063020114 | LEVER |
| MANUAL CONTROL | ||
| 068 | A 4423020154 | GUARD PLATE |
| BETWEEN CONTROL LEVER AND CAB | ||
| 071 | A 4253010085 | RUBBER BUFFER |
| BETWEEN CONTROL LEVER AND CAB | ||
| 074 | A 4253020162 | THRUST WASHER |
| BETWEEN CONTROL LEVER AND CAB | ||
| 075 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 075 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 075 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 075 | N 913023008002 | NUT |
| 077 | A 4193010041 | STOP |
| BETWEEN CONTROL LEVER AND CAB | ||
| 080 | N 007985006148 | SCREW |
| Repalced by: N 007985006180 | ||
| 080 | N 007985006180 | SCREW |
| STOP TO CAB INTERIOR PANEL | ||
| M 6X35 | ||
| 083 | A 4259930110 | SPRING |
| MANUAL CONTROL | ||
| TO 417 300 01 25 | ||
| 086 | A 4063000615 | ROD |
| MANUAL-CONTROL/ACCELERATOR-PEDAL CONNECTION | ||
| 086 | A 4073000015 | ROD |
| MANUAL-CONTROL/ACCELERATOR-PEDAL CONNECTION | ||
| 089 | A 0009912422 | BALL SOCKET |
| MANUAL-CONTROL/ACCELERATOR-PEDAL CONNECTION | ||
| 092 | N 000934006007 | NUT |
| MANUAL-CONTROL/ACCELERATOR-PEDAL CONNECTION | ||
| 095 | A 4063020362 | THRUST WASHER |
| ROD | ||
| 098 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 098 | N 910113006001 | NUT |
| ROD | ||
