Transporto priemonė: U 800; VIN numerio dalis: 417200

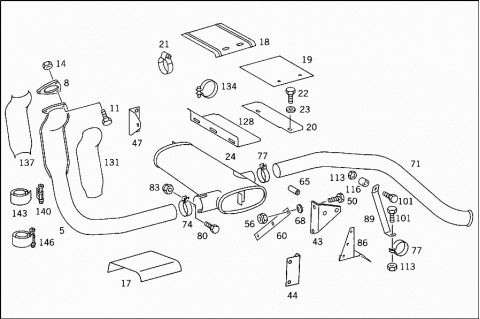

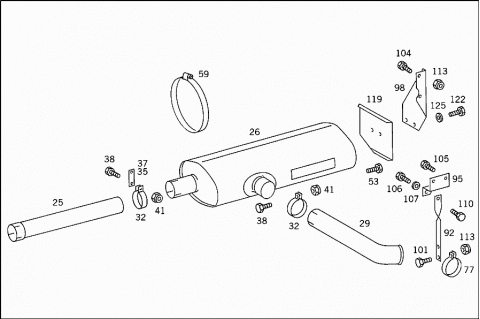

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 4064900919 | EXHAUST PIPE |
| Repalced by: A 4174900020 | ||
| 005 | A 4174900020 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 4174900419 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 4064901019 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 4174900319 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 4064901119 | EXHAUST PIPE |
| FRONT | ||
| 008 | A 4064920180 | FLANGE GASKET |
| Repalced by: A 4064920280 | ||
| 008 | A 4064920280 | FLANGE GASKET |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 011 | N 000931010282 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 10X40 | ||
| 011 | N 000933010145 | SCREW |
| Repalced by: N 910105010007 | ||
| 011 | N 910105010007 | SCREW |
| Repalced by: N 000000000428 | ||
| 011 | N 000000000428 | HEXAGON HEAD BOLT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 10X35 | ||
| 011 | N 000931010260 | SCREW |
| Repalced by: N 910105010002 | ||
| 011 | N 910105010002 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 10X50 | ||
| 011 | N 000933010105 | SCREW |
| Repalced by: N 910105010009 | ||
| 011 | N 910105010009 | SCREW |
| 014 | N 999901010000 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 017 | A 4064290440 | SCREENING PLATE |
| 018 | A 4064910530 | PROTECTIVE PLATE |
| CROSS MEMBER | ||
| 019 | A 4174910230 | PROTECTIVE PLATE |
| CROSS MEMBER | ||
| 019 | A 4174910230 | PROTECTIVE PLATE |
| CROSS MEMBER | ||
| 020 | A 4174910430 | PROTECTIVE PLATE |
| CROSS MEMBER | ||
| 021 | N 916017080000 | CLAMP |
| Repalced by: N 000000000675 | ||
| 021 | N 000000000675 | CLAMP |
| Repalced by: A 0059972990 | ||
| 021 | A 0059972990 | CLAMP |
| HEAT SHIELD TO CROSS MEMBER | ||
| 82 - 105 X 15.8 MM | ||
| 022 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 022 | N 304017008016 | SCREW |
| HEAT SHIELD TO CROSS MEMBER | ||
| M 8X16 | ||
| 022 | N 304017008016 | SCREW |
| M 8X16 | ||
| 023 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 023 | N 000125008443 | WASHER |
| HEAT SHIELD TO CROSS MEMBER | ||
| 023 | N 000125008443 | WASHER |
| 024 | A 4064900001 | EXHAUST MUFFLER |
| 024 | A 4064910099 | REAR MUFFLER |
| 024 | A 0004910599 | REAR MUFFLER |
| 025 | A 4174920701 | FRONT EXHAUST PIPE |
| 025 | A 4174920101 | FRONT EXHAUST PIPE |
| 026 | A 4174900001 | EXHAUST MUFFLER |
| 029 | A 4174920201 | FRONT EXHAUST PIPE |
| REAR | ||
| 029 | A 4354920306 | REAR EXHAUST PIPE |
| REAR | ||
| 032 | N 071555078502 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 035 | A 4174910023 | SHACKLE |
| EXHAUST PIPE TO MUFFLER | ||
| 035 | A 4174910123 | SHACKLE |
| Repalced by: A 4214911041 | ||
| 035 | A 4214911041 | BRACKET |
| EXHAUST PIPE TO MUFFLER | ||
| 037 | A 4174910223 | SHACKLE |
| EXHAUST PIPE TO MUFFLER | ||
| 038 | N 000933010129 | SCREW |
| Repalced by: N 910105010001 | ||
| 038 | N 910105010001 | SCREW |
| EXHAUST PIPE TO MUFFLER | ||
| M 10X30 | ||
| 041 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 041 | N 913023010003 | NUT |
| EXHAUST PIPE TO MUFFLER | ||
| A 4064920019 | BRACKET | |
| Repalced by: A 4174920041 | ||
| A 4174920041 | BRACKET | |
| Repalced by: A 4174911041 | ||
| A 4174920041 | BRACKET | |
| Repalced by: A 4174911041 | ||
| 043 | A 4174911041 | BRACKET |
| LEFT | ||
| A 4064920141 | BRACKET | |
| LEFT | ||
| 044 | A 4064920741 | BRACKET |
| Repalced by: A 4174911041 | ||
| 044 | A 4064291240 | BRACKET |
| MUFFLER | ||
| 047 | A 4064920919 | BRACKET |
| Repalced by: A 4174911041 | ||
| 047 | A 4064920841 | BRACKET |
| RIGHT | ||
| 050 | N 000933010105 | SCREW |
| Repalced by: N 910105010009 | ||
| 050 | N 910105010009 | SCREW |
| 050 | N 000931010268 | SCREW |
| Repalced by: N 910105010010 | ||
| 050 | N 910105010010 | SCREW |
| Repalced by: N 000931010283 | ||
| 050 | N 000931010283 | SCREW |
| Repalced by: N 000931010357 | ||
| 050 | N 000931010357 | SCREW |
| Repalced by: N 000933010192 | ||
| 050 | A 0019909404 | SCREW |
| MUFFLER TO BRACKET | ||
| M 10X70 | ||
| 053 | N 000933010128 | SCREW |
| Repalced by: N 910105010006 | ||
| 053 | N 910105010006 | SCREW |
| MUFFLER TO BRACKET | ||
| M 10X20 | ||
| 056 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 056 | N 913023010003 | NUT |
| MUFFLER TO BRACKET | ||
| 059 | N 900288203100 | CLAMP |
| EXHAUST MUFFLER TO CONSOLE | ||
| A 4064920143 | CLAMP | |
| Repalced by: A 4064291240 | ||
| A 4064920023 | SHACKLE | |
| Repalced by: A 3954923241 | ||
| A 3954923241 | BRACKET | |
| Repalced by: A 3184924841 | ||
| 060 | A 3184923441 | BRACKET |
| 060 | A 4064920123 | SHACKLE |
| Repalced by: A 6734921041 | ||
| 060 | A 6734921041 | BRACKET |
| 065 | A 4072020153 | SPACER TUBE |
| 068 | N 002093020102 | DISC SPRING |
| A 4064921104 | REAR EXHAUST PIPE | |
| Repalced by: A 4174900021 | ||
| A 4174900021 | EXHAUST PIPE | |
| Repalced by: A 4174900221 | ||
| 071 | A 4174900221 | EXHAUST PIPE |
| REAR | ||
| 071 | A 4164920404 | REAR EXHAUST PIPE |
| 071 | A 4064900321 | EXHAUST PIPE |
| 074 | N 071555068502 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 077 | N 071555070501 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 077 | N 071555070501 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 077 | N 071555070501 | CLAMP |
| REAR EXHAUST PIPE TO BATTERY CASE CONSOLE | ||
| 080 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 080 | N 304017008034 | SCREW |
| EXHAUST PIPE TO MUFFLER | ||
| M 8X25 | ||
| 080 | N 000931008046 | SCREW |
| Repalced by: N 304017008018 | ||
| 080 | N 304017008018 | SCREW |
| EXHAUST PIPE TO MUFFLER | ||
| M 8X35 | ||
| 083 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 083 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 083 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 083 | N 913023008002 | NUT |
| EXHAUST PIPE TO MUFFLER | ||
| A 4064920141 | BRACKET | |
| Repalced by: A 4174900040 | ||
| A 4174900040 | BRACKET | |
| Repalced by: A 4174900140 | ||
| 086 | A 4174900140 | BRACKET |
| EXHAUST PIPE TO FRAME | ||
| 089 | A 4164910341 | BRACKET |
| EXHAUST PIPE TO FRAME | ||
| 092 | A 4174910441 | BRACKET |
| REAR EXHAUST PIPE TO BATTERY CASE CONSOLE | ||
| 095 | A 4174910541 | BRACKET |
| EXHAUST PIPE TO FRAME | ||
| 098 | A 4174910141 | BRACKET |
| EXHAUST PIPE TO FRAME | ||
| 101 | N 000933010129 | SCREW |
| Repalced by: N 910105010001 | ||
| 101 | N 910105010001 | SCREW |
| BRACKET TO FRAME | ||
| M 10X30 | ||
| 101 | N 910105010001 | SCREW |
| REAR EXHAUST PIPE TO BATTERY CASE CONSOLE | ||
| M 10X30 | ||
| 101 | N 000933010145 | SCREW |
| Repalced by: N 910105010007 | ||
| 101 | N 910105010007 | SCREW |
| Repalced by: N 000000000428 | ||
| 101 | N 000000000428 | HEXAGON HEAD BOLT |
| BRACKET TO FRAME | ||
| M 10X35 | ||
| 101 | N 000000000428 | HEXAGON HEAD BOLT |
| EXHAUST PIPE TO BRACKET | ||
| M 10X35 | ||
| 104 | N 000933010105 | SCREW |
| Repalced by: N 910105010009 | ||
| 104 | N 910105010009 | SCREW |
| 105 | N 000933010157 | SCREW |
| BRACKET TO FRAME | ||
| M 10X28 | ||
| 106 | N 000931010282 | SCREW |
| BRACKET TO FRAME | ||
| M 10X20 | ||
| 107 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 107 | N 009021010209 | WASHER |
| BRACKET TO FRAME | ||
| 110 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 110 | N 304017008021 | SCREW |
| REAR EXHAUST PIPE TO BATTERY CASE CONSOLE | ||
| M 8X22 | ||
| 113 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 113 | N 913023010003 | NUT |
| BRACKET TO FRAME | ||
| 113 | N 913023010003 | NUT |
| EXHAUST PIPE TO BRACKET | ||
| 113 | N 913023010003 | NUT |
| REAR EXHAUST PIPE TO BATTERY CASE CONSOLE | ||
| 116 | A 1869912740 | SPACER TUBE |
| BRACKET TO FRAME | ||
| 119 | A 4174910730 | PROTECTIVE PLATE |
| 122 | N 000933010198 | SCREW |
| PROTECTIVE PLATE | ||
| M10X16 | ||
| 125 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 125 | N 009021010209 | WASHER |
| PROTECTIVE PLATE | ||
| 128 | A 4064910730 | PROTECTIVE PLATE |
| 131 | A 4164920383 | INSULATION |
| INSIDE | ||
| 131 | A 4174920083 | INSULATION |
| INSIDE | ||
| 134 | N 916002080100 | CLAMP |
| 137 | A 4164920483 | INSULATION |
| OUTSIDE | ||
| 137 | A 4174920183 | INSULATION |
| OUTSIDE | ||
| 140 | N 900262009100 | LOOM TIE |
| INSULATION TO EXHAUST PIPE | ||
| 143 | N 900263009000 | STRAP |
| INSULATION TO EXHAUST PIPE | ||
| 146 | N 900264009508 | LOOM TIE |
| INSULATION TO EXHAUST PIPE | ||
