Transporto priemonė: U 90; VIN numerio dalis: 408100

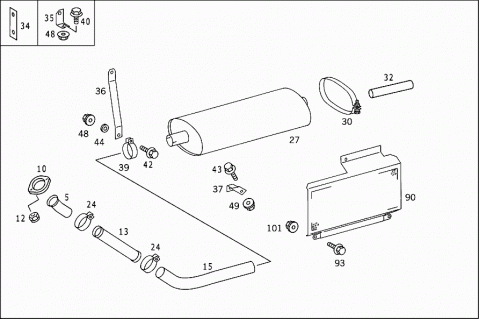

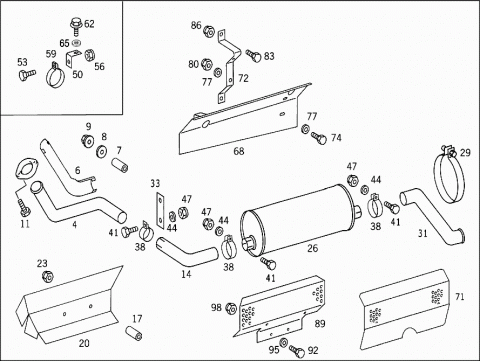

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 4084920001 | FRONT EXHAUST PIPE |
| Repalced by: A 4084900019 | ||
| 004 | A 4084900019 | EXHAUST PIPE |
| FRONT | ||
| 004 | A 4084900119 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 4084900419 | EXHAUST PIPE |
| Repalced by: A 4084900319 | ||
| 005 | A 4084900519 | EXHAUST PIPE |
| Repalced by: A 4084900319 | ||
| 005 | A 4084900319 | EXHAUST PIPE |
| FRONT | ||
| 006 | A 4084920230 | PROTECTIVE PLATE |
| FRONT EXHAUST PIPE | ||
| 007 | A 6499910040 | SPACER TUBE |
| FRONT EXHAUST PIPE | ||
| 008 | N 009021006208 | WASHER |
| FRONT EXHAUST PIPE | ||
| 009 | A 0009902150 | NUT |
| FRONT EXHAUST PIPE | ||
| A 1264920745 | FLANGE | |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 010 | A 1264920945 | FLANGE |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 011 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 011 | N 304017008034 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 8X25 | ||
| 012 | A 6039900951 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 013 | A 0004922259 | FLEXIBLE METAL TUBE |
| TO CONNECT FRONT EXHAUST PIPE TO CENTRAL EXHAUST PIPE | ||
| 014 | A 4084920101 | FRONT EXHAUST PIPE |
| Repalced by: A 4084920901 | ||
| 014 | A 4084920901 | FRONT EXHAUST PIPE |
| CENTRAL | ||
| 014 | A 4084900219 | EXHAUST PIPE |
| CENTRAL | ||
| 015 | A 4084920501 | FRONT EXHAUST PIPE |
| CENTRAL | ||
| 015 | A 4084920701 | FRONT EXHAUST PIPE |
| CENTRAL | ||
| 017 | A 6499910040 | SPACER TUBE |
| CENTRAL EXHAUST PIPE | ||
| 020 | A 4184921030 | PROTECTIVE PLATE |
| CENTRAL EXHAUST PIPE | ||
| 023 | N 910113006001 | NUT |
| CENTRAL EXHAUST PIPE | ||
| 024 | N 071555053503 | CLAMP |
| METAL HOSE ON FRONT EXHAUST PIPE AND SLIP LINK | ||
| 024 | N 071555060502 | CLAMP |
| METAL HOSE ON FRONT EXHAUST PIPE AND SLIP LINK | ||
| 026 | A 6014903201 | EXHAUST MUFFLER |
| Repalced by: A 6014903601 | ||
| 026 | A 6014903601 | EXHAUST MUFFLER |
| 027 | A 4084900401 | EXHAUST MUFFLER |
| 029 | N 900288203100 | CLAMP |
| EXHAUST MUFFLER TO FRAME | ||
| TO 601 490 32 01 | ||
| 029 | N 900288171100 | CLAMP |
| EXHAUST MUFFLER TO FRAME | ||
| TO 601 490 36 01 | ||
| 030 | A 4084910040 | CLAMP |
| EXHAUST MUFFLER TO FRAME | ||
| 031 | A 4084920014 | END PIECE |
| 032 | A 4084920801 | FRONT EXHAUST PIPE |
| (TAIL PIPE) | ||
| 033 | A 4044920041 | BRACKET |
| FRONT EXHAUST PIPE TO TRANSMISSION | ||
| 034 | A 4084910541 | BRACKET |
| FRONT EXHAUST PIPE TO TRANSMISSION | ||
| 035 | A 4084910941 | BRACKET |
| EXHAUST PIPE AT STEP | ||
| 036 | A 4084910641 | BRACKET |
| FRONT EXHAUST PIPE TO TRANSMISSION | ||
| 036 | A 4084910641 | BRACKET |
| CENTRAL EXHAUST PIPE TO EXHAUST MUFFLER | ||
| 037 | A 4084910841 | BRACKET |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 038 | A 3144910240 | CLAMP |
| Repalced by: N 071555050502 | ||
| 038 | N 071555050502 | CLAMP |
| FRONT EXHAUST PIPE TO TRANSMISSION | ||
| 038 | A 3144910240 | CLAMP |
| Repalced by: N 071555053503 | ||
| 038 | N 071555053503 | CLAMP |
| CENTRAL EXHAUST PIPE TO EXHAUST MUFFLER | ||
| 038 | N 071555053503 | CLAMP |
| TAIL PIPE TO EXHAUST MUFFLER | ||
| 039 | N 071555060500 | CLAMP |
| Repalced by: N 000000001642 | ||
| 039 | N 000000001642 | CLAMP |
| FRONT EXHAUST PIPE TO TRANSMISSION | ||
| 039 | N 071555060500 | CLAMP |
| Repalced by: N 000000001642 | ||
| 039 | N 000000001642 | CLAMP |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 039 | N 000000001642 | CLAMP |
| EXHAUST PIPE AT STEP | ||
| N 071555063501 | CLAMP | |
| CENTRAL EXHAUST PIPE TO EXHAUST MUFFLER | ||
| 039 | A 3144910340 | CLAMP |
| Repalced by: N 071555063501 | ||
| 039 | N 071555063501 | CLAMP |
| CENTRAL EXHAUST PIPE TO EXHAUST MUFFLER | ||
| 039 | A 3144910340 | CLAMP |
| TAIL PIPE TO EXHAUST MUFFLER | ||
| 040 | N 910105008012 | SCREW |
| EXHAUST PIPE AT STEP | ||
| M 8X30 | ||
| 041 | N 910107008020 | SCREW |
| FRONT EXHAUST PIPE TO TRANSMISSION | ||
| M 8X28 | ||
| 041 | N 910107008020 | SCREW |
| CENTRAL EXHAUST PIPE TO EXHAUST MUFFLER | ||
| 041 | N 910107008020 | SCREW |
| TAIL PIPE TO EXHAUST MUFFLER | ||
| 042 | N 910105008039 | SCREW |
| Repalced by: N 910105008005 | ||
| 042 | N 910105008005 | SCREW |
| FRONT EXHAUST PIPE TO TRANSMISSION | ||
| M 8X25 | ||
| 042 | N 910105008039 | SCREW |
| Repalced by: N 910143008002 | ||
| 042 | N 910143008002 | SCREW |
| TAIL PIPE TO EXHAUST MUFFLER | ||
| 042 | N 910105008039 | SCREW |
| Repalced by: N 910143008002 | ||
| 042 | N 910143008002 | SCREW |
| TAIL PIPE TO EXHAUST MUFFLER | ||
| 042 | N 910105008039 | SCREW |
| Repalced by: N 910143008002 | ||
| 042 | N 910143008002 | SCREW |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 043 | N 910105012013 | SCREW |
| EXHAUST PIPE TO SIDE MEMBER | ||
| M 12X1.5X25 | ||
| 044 | N 000125008443 | WASHER |
| FRONT EXHAUST PIPE TO TRANSMISSION | ||
| 044 | N 000125008443 | WASHER |
| CENTRAL EXHAUST PIPE TO EXHAUST MUFFLER | ||
| 044 | N 000125008443 | WASHER |
| TAIL PIPE TO EXHAUST MUFFLER | ||
| 047 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 047 | N 913023008002 | NUT |
| FRONT EXHAUST PIPE TO TRANSMISSION | ||
| 047 | N 913023008003 | NUT |
| CENTRAL EXHAUST PIPE TO EXHAUST MUFFLER | ||
| 047 | N 913023008003 | NUT |
| TAIL PIPE TO EXHAUST MUFFLER | ||
| 048 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 048 | N 913023008002 | NUT |
| FRONT EXHAUST PIPE TO TRANSMISSION | ||
| 048 | N 913023008003 | NUT |
| CENTRAL EXHAUST PIPE TO EXHAUST MUFFLER | ||
| 048 | N 913023008003 | NUT |
| TAIL PIPE TO EXHAUST MUFFLER | ||
| 048 | N 913023008003 | NUT |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 048 | N 913023008002 | NUT |
| EXHAUST PIPE AT STEP | ||
| 049 | N 913023012002 | NUT |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 050 | A 6205240340 | BRACKET |
| 053 | N 910105008004 | SCREW |
| M 8X20 | ||
| 056 | N 913023008002 | NUT |
| 059 | N 071555050503 | CLAMP |
| Repalced by: N 000000001641 | ||
| 059 | N 000000001641 | CLAMP |
| Repalced by: A 9424310043 | ||
| 059 | A 9424310043 | CLAMP |
| 062 | N 910105008012 | SCREW |
| M 8X30 | ||
| 065 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 065 | N 000125008443 | WASHER |
| 068 | A 4084900030 | PROTECTIVE PLATE |
| BETWEEN FRAME AND MUFFLER | ||
| 071 | A 4084900130 | PROTECTIVE PLATE |
| SCREENING PLATE TO MUFFLER | ||
| 072 | A 4084920141 | BRACKET |
| SCREENING PLATE | ||
| 074 | N 304017006016 | SCREW |
| SCREENING PLATE TO BRACKET | ||
| M 6X16 | ||
| N 914146006102 | SCREW | |
| SCREENING PLATE TO BRACKET | ||
| M 6X16 | ||
| 077 | N 000125006421 | WASHER |
| SCREENING PLATE TO BRACKET | ||
| Repalced by: N 000125006449 | ||
| 077 | N 000125006449 | WASHER |
| SCREENING PLATE TO BRACKET | ||
| 080 | A 0009902150 | NUT |
| SCREENING PLATE TO BRACKET | ||
| A 0009902150 | NUT | |
| SCREENING PLATE TO BRACKET | ||
| 083 | N 910105012003 | SCREW |
| SCREENING PLATE TO FRAME | ||
| M 12X1.5X20 | ||
| N 910105012003 | SCREW | |
| SCREENING PLATE TO FRAME | ||
| M 12X1.5X20 | ||
| 086 | N 913023012003 | NUT |
| SCREENING PLATE TO FRAME | ||
| N 913023012002 | NUT | |
| SCREENING PLATE TO FRAME | ||
| 089 | A 4084920330 | PROTECTIVE PLATE |
| SCREENING PLATE TO ROCKER PANEL | ||
| 090 | A 4084900330 | PROTECTIVE PLATE |
| SCREENING PLATE TO ROCKER PANEL | ||
| 090 | A 4084900230 | PROTECTIVE PLATE |
| SCREENING PLATE TO ROCKER PANEL | ||
| 092 | N 000933006207 | SCREW |
| SCREENING PLATE TO ROCKER PANEL | ||
| M 6X14 | ||
| 092 | N 304017006016 | SCREW |
| SCREENING PLATE TO FRAME | ||
| M 6X16 | ||
| 092 | N 000933010164 | SCREW |
| SCREENING PLATE TO FRAME | ||
| M 10X22 | ||
| 093 | N 914146006102 | SCREW |
| SCREENING PLATE TO FRAME | ||
| M 6X16 | ||
| 093 | A 0019908204 | SCREW |
| Repalced by: N 910105010009 | ||
| 093 | N 910105010009 | HEXAGON HEAD BOLT |
| SCREENING PLATE TO FRAME | ||
| M10X25 | ||
| 095 | N 000125006421 | WASHER |
| SCREENING PLATE TO ROCKER PANEL | ||
| Repalced by: N 000125006449 | ||
| 095 | N 000125006449 | WASHER |
| SCREENING PLATE TO ROCKER PANEL | ||
| 098 | A 0009902150 | NUT |
| SCREENING PLATE TO ROCKER PANEL | ||
| 098 | N 913023010003 | NUT |
| SCREENING PLATE TO FRAME | ||
| 101 | A 0009902150 | NUT |
| SCREENING PLATE TO FRAME | ||
| 101 | N 913023010002 | NUT |
| SCREENING PLATE TO FRAME | ||
| 101 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 101 | N 913023008002 | NUT |
| SCREENING PLATE TO ROCKER PANEL | ||
