Transporto priemonė: U 90; VIN numerio dalis: 408100

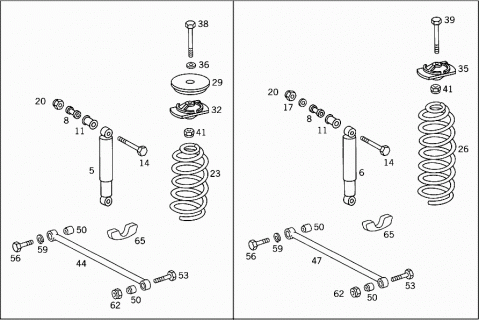

Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0053238800 | SHOCK ABSORBER |
| FRONT AXLE | ||
| A 0053238200 | SHOCK ABSORBER | |
| FRONT AXLE | ||
| 006 | A 0043269600 | SHOCK ABSORBER |
| REAR AXLE | ||
| FICHTEL & SACHS | ||
| 006 | A 0043269200 | SHOCK ABSORBER |
| REAR AXLE | ||
| BOGE | ||
| 008 | A 0003237350 | BUSHING |
| TO 005 323 88 00, 004 326 96 00 | ||
| 011 | A 0003231585 | RUBBER MOUNTING |
| TO 005 323 88 00, 004 326 96 00 | ||
| 014 | N 910105016002 | SCREW |
| SHOCK ABSORBER TO FRAME | ||
| M 16X1.5X120 | ||
| 014 | N 910105016009 | SCREW |
| SHOCK ABSORBER TO FRAME | ||
| M 16X1.5X100 | ||
| 014 | N 000960016267 | SCREW |
| SHOCK ABSORBER TO FRAME | ||
| M 16X1.5X95 | ||
| 014 | N 000960016138 | SCREW |
| SHOCK ABSORBER TO FRONT & REAR AXLES | ||
| M 16X1.5X75 | ||
| Repalced by: N 000961016122 | ||
| 014 | N 000961016122 | SCREW |
| SHOCK ABSORBER TO FRONT & REAR AXLES | ||
| M 16X1.5X75 | ||
| 014 | N 910105016006 | SCREW |
| SHOCK ABSORBER TO FRONT & REAR AXLES | ||
| M 16X1.5X80 | ||
| 014 | N 910105016005 | SCREW |
| SHOCK ABSORBER TO FRAME | ||
| M 16X1.5X60 | ||
| 017 | N 000125017016 | WASHER |
| SHOCK ABSORBER TO FRAME | ||
| 020 | N 913023016001 | NUT |
| SHOCK ABSORBER TO SUBSTRUCTURE | ||
| Repalced by: N 000000005738 | ||
| 020 | N 000000005738 | NUT |
| SHOCK ABSORBER TO SUBSTRUCTURE | ||
| 020 | N 913023016001 | NUT |
| SHOCK ABSORBER TO FRAME | ||
| Repalced by: N 000000005738 | ||
| 020 | N 000000005738 | NUT |
| SHOCK ABSORBER TO FRAME | ||
| 023 | A 0003210604 | FRONT SPRING |
| 023 | A 0003210504 | FRONT SPRING |
| 026 | A 0003240304 | REAR SPRING |
| 029 | A 4083210036 | SPACER |
| FRONT SPRING TO FRAME | ||
| 032 | A 4083220309 | PLATE |
| FRONT SPRING TO FRAME | ||
| 035 | A 4183220109 | PLATE |
| Repalced by: A 4183220209 | ||
| 035 | A 4183220209 | PLATE |
| REAR SPRING TO FRAME | ||
| 036 | A 4183220076 | WASHER |
| FRONT SPRING TO FRAME | ||
| 038 | N 308676014002 | SCREW |
| FRONT SPRING TO FRAME | ||
| M 14X1.5X80 | ||
| 038 | N 910105014019 | SCREW |
| FRONT SPRING TO FRAME | ||
| M 14X1.5X60 | ||
| 039 | N 308676014017 | SCREW |
| REAR SPRING TO FRAME | ||
| M 14X1,5X60 | ||
| 039 | N 308676014017 | SCREW |
| FRONT SPRING TO FRAME | ||
| 039 | N 910105014005 | SCREW |
| REAR SPRING TO FRAME | ||
| M 14X1.5X40 | ||
| 039 | N 910105014005 | SCREW |
| 041 | N 913023014004 | NUT |
| SPRING TO FRAME | ||
| 044 | A 4083300207 | TRANSVERSE CONTROL ARM |
| FRONT AXLE | ||
| 044 | A 4083301107 | TRANSVERSE CONTROL ARM |
| FRONT AXLE | ||
| 047 | A 4083300407 | TRANSVERSE CONTROL ARM |
| REAR AXLE | ||
| 047 | A 4083300607 | TRANSVERSE CONTROL ARM |
| REAR AXLE | ||
| 050 | A 0019880510 | RUBBER MOUNTING |
| TRANSVERSE CONTROL ARM | ||
| 053 | N 308676014009 | SCREW |
| CONTROL ARM TO FRAME | ||
| 053 | N 910105014014 | SCREW |
| CONTROL ARM TO FRAME | ||
| M 14X1.5X140 | ||
| 056 | A 0089906601 | SCREW |
| CONTROL ARMS TO FRONT AND REAR AXLES | ||
| 059 | A 4409900047 | LOCK WASHER |
| CONTROL ARMS TO FRONT AND REAR AXLES | ||
| 062 | N 910113014000 | NUT |
| CONTROL ARM TO FRAME | ||
| 065 | A 4063220044 | RUBBER BUFFER |
| FRONT AND REAR AXLES | ||

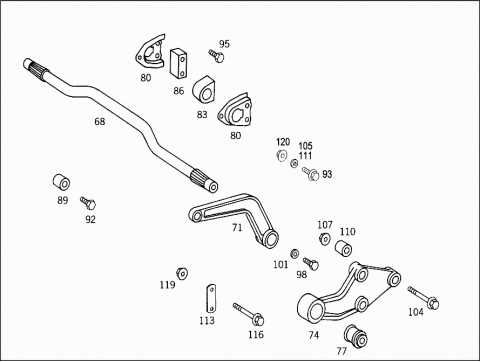

| 068 | A 4083230365 | TORSION BAR |
| FRONT AXLE | ||
| 071 | A 4083230011 | LEVER |
| TORSION BAR,LEFT | ||
| 071 | A 4083230111 | LEVER |
| TORSION BAR,RIGHT | ||
| 074 | A 4083230263 | BEARING BRACKET |
| TORSION BAR TO FRONT AXLE | ||
| 074 | A 4083230363 | BEARING BRACKET |
| TORSION BAR TO FRONT AXLE | ||
| 077 | A 3093200073 | BEARING |
| TORSION BAR | ||
| 080 | A 3163260040 | BRACKET |
| TORSION BAR TO FRAME | ||
| 083 | A 3163260081 | RUBBER MOUNTING |
| TORSION BAR TO FRAME | ||
| 086 | A 4063230625 | PLATE |
| Repalced by: A 4083230025 | ||
| 086 | A 4083230025 | PLATE |
| TORSION BAR TO FRAME | ||
| 089 | A 4068265529 | TUBE |
| Repalced by: A 6739910640 | ||
| 089 | A 6739910640 | SPACER TUBE |
| TORSION BAR TO FRAME | ||
| 092 | N 910106008003 | SCREW |
| TORSION BAR TO FRAME | ||
| M 8X50 | ||
| 092 | N 910105008016 | SCREW |
| TORSION BAR TO FRAME | ||
| M 8X30 | ||
| 092 | N 910105008016 | SCREW |
| TORSION BAR TO FRAME | ||
| M 8X30 | ||
| 092 | N 910105010003 | SCREW |
| TORSION BAR TO FRAME | ||
| M 10X60 | ||
| 093 | N 910105012016 | SCREW |
| SHACKLE TO BRACKET AND TO TORSION BAR | ||
| M 12X1,5X55 | ||
| 095 | N 910106010015 | SCREW |
| TORSION BAR TO FRAME | ||
| M 10X65 | ||
| 098 | N 910106010031 | SCREW |
| LEVER TO TORSION BAR | ||
| M 10X25 | ||
| 101 | A 4083230076 | WASHER |
| LEVER TO TORSION BAR | ||
| 104 | N 910105012011 | SCREW |
| BEARING BRACKET TO FRONT AXLE | ||
| M 12X1.5X60 | ||
| 105 | N 007349013002 | WASHER |
| Repalced by: N 007349013005 | ||
| 105 | N 007349013005 | WASHER |
| BEARING BRACKET,LEFT,ON FRONT AXLE | ||
| 107 | N 913023012002 | NUT |
| LEVER TO TORSION BAR | ||
| 110 | A 4065510950 | BUSHING |
| BEARING BRACKET TO FRONT AXLE | ||
| 111 | N 007349013002 | WASHER |
| Repalced by: N 007349013005 | ||
| 111 | N 007349013005 | WASHER |
| AT RIGHT BEARING BRACKET | ||
| 113 | A 4083230216 | LINK |
| LEVER TO BEARING BRACKET | ||
| 116 | N 910105012011 | SCREW |
| LINK TO LEVER | ||
| M 12X1.5X60 | ||
| 119 | N 913023012002 | NUT |
| LINK TO LEVER | ||
| 120 | N 913023012002 | NUT |
| SHACKLE TO BRACKET AND TO TORSION BAR | ||

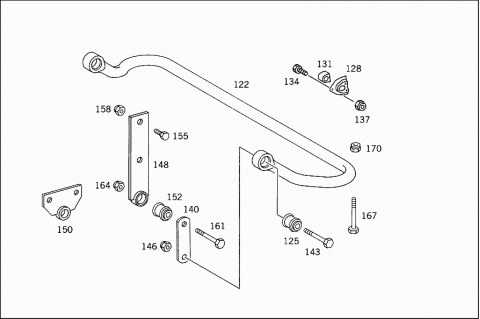

| 122 | A 4083230765 | TORSION BAR |
| REAR AXLE | ||
| 125 | A 3093200073 | BEARING |
| TORSION BAR | ||
| 128 | A 3163260040 | BRACKET |
| TORSION BAR TO REAR AXLE | ||
| 131 | A 4083260181 | RUBBER MOUNTING |
| TORSION BAR TO REAR AXLE | ||
| 134 | N 910105008004 | SCREW |
| BEARING TO TORSION BAR | ||
| M 8X20 | ||
| 137 | N 913023008002 | NUT |
| BEARING TO TORSION BAR | ||
| 140 | A 4083230316 | LINK |
| TORSION BAR TO PLATE | ||
| 140 | A 4083230516 | LINK |
| TORSION BAR TO PLATE | ||
| 143 | N 910105012011 | SCREW |
| LINK TO TORSION BAR | ||
| M 12X1.5X60 | ||
| 143 | N 910105010003 | SCREW |
| LINK TO TORSION BAR | ||
| M 10X60 | ||
| 146 | N 913023012002 | NUT |
| LINK TO TORSION BAR | ||
| 146 | N 913023010002 | NUT |
| LINK TO TORSION BAR | ||
| 148 | A 4083200035 | PLATE |
| LINK TO FRAME | ||
| 150 | A 4083201243 | BRACKET |
| LINK TO FRAME | ||
| 152 | A 3093200073 | BEARING |
| LINK TO FRAME | ||
| 155 | N 000961014113 | SCREW |
| PLATE TO FRAME | ||
| M 14X1.5X28 | ||
| 155 | N 910105014012 | SCREW |
| PLATE TO FRAME | ||
| M 14X1.5X30 | ||
| 155 | N 910105014013 | SCREW |
| PLATE TO FRAME | ||
| M 14X1.5X35 | ||
| 158 | N 913023014003 | NUT |
| PLATE TO FRAME | ||
| 161 | N 910105012011 | SCREW |
| LINK TO BRACKET | ||
| M 12X1.5X60 | ||
| 164 | N 913023012002 | NUT |
| LINK TO BRACKET | ||
| 167 | N 910105010003 | SCREW |
| TORSION BAR TO REAR AXLE | ||
| M 10X60 | ||
| 167 | N 910105010003 | SCREW |
| BRACKET TO FRAME | ||
| 167 | N 910105010003 | SCREW |
| BRACKET TO FRAME | ||
| 170 | N 913023010002 | NUT |
| TORSION BAR TO REAR AXLE | ||
| 170 | N 913023010002 | NUT |
| BRACKET TO FRAME | ||
| 170 | N 913023010002 | NUT |
| BRACKET TO FRAME | ||
