Transporto priemonė: 108 D; VIN numerio dalis: 638068

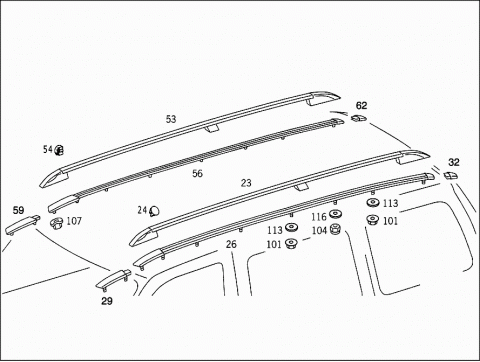

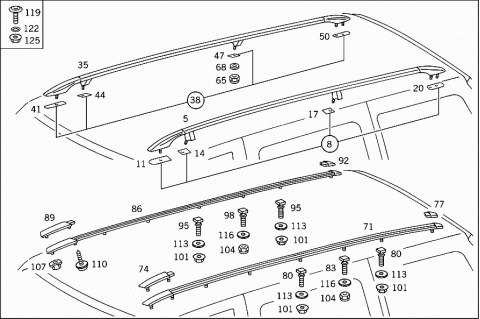

Grupė: 84 TRUNKS AND CASES - 260 ROOF RAILING
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6388400020 | ROOF RACK |
| LEFT | ||
| 008 | A 0008420897 | PAD |
| PARTS KIT | ||
| 011 | A 0008420097 | PAD |
| FRONT LEFT | ||
| 014 | A 0008420497 | PAD |
| CENTRAL FRONT LEFT | ||
| 017 | A 0008420697 | PAD |
| CENTRAL REAR LEFT | ||
| 020 | A 0008420297 | PAD |
| REAR LEFT | ||
| 023 | A 6388400920 | ROOF RACK |
| LEFT | ||
| 024 | A 0008490325 | CAP |
| 026 | A 6388500268 | RAIL |
| LEFT | ||
| 029 | A 6388510027 | COVERING |
| FRONT LEFT | ||
| 032 | A 6388510227 | COVERING |
| REAR LEFT | ||
| 035 | A 6388400120 | ROOF RACK |
| RIGHT | ||
| 038 | A 0008420997 | PAD |
| PARTS KIT | ||
| 041 | A 0008420197 | PAD |
| FRONT RIGHT | ||
| 044 | A 0008420597 | PAD |
| CENTRAL FRONT RIGHT | ||
| 047 | A 0008420797 | PAD |
| CENTRAL REAR RIGHT | ||
| 050 | A 0008420397 | PAD |
| REAR RIGHT | ||
| 053 | A 6388401020 | ROOF RACK |
| RIGHT | ||
| 054 | A 0008490325 | CAP |
| 056 | A 6388500368 | RAIL |
| RIGHT | ||
| 059 | A 6388510127 | COVERING |
| FRONT RIGHT | ||
| 062 | A 6388510327 | COVERING |
| REAR RIGHT | ||
| 065 | N 910113008003 | NUT |
| ROOF RAILING TO BODY | ||
| 068 | N 000125008443 | WASHER |
| ROOF RAILING TO BODY | ||
| 071 | A 6388500068 | RAIL |
| LEFT | ||
| 074 | A 0008510127 | COVERING |
| FRONT LEFT | ||
| 077 | A 0008510027 | COVERING |
| REAR LEFT | ||
| 080 | A 0029905122 | SCREW |
| M 6X29 | ||
| 083 | A 0029905222 | SCREW |
| M 6X22 | ||
| 086 | A 6388500168 | RAIL |
| RIGHT | ||
| 089 | A 0008510327 | COVERING |
| FRONT RIGHT | ||
| 092 | A 0008510227 | COVERING |
| REAR RIGHT | ||
| 095 | A 0029905122 | SCREW |
| M 6X29 | ||
| 098 | A 0029905222 | SCREW |
| M 6X22 | ||
| 101 | N 913023006001 | NUT |
| RAIL TO ROOF | ||
| 104 | N 913004006001 | NUT |
| 107 | N 910104005000 | NUT |
| RAIL TO ROOF | ||
| 107 | N 910104005000 | NUT |
| RAIL TO ROOF | ||
| 110 | N 914127003209 | SHEET METAL SCREW |
| RAIL TO ROOF | ||
| 113 | A 1269900144 | PLATE |
| RAIL TO ROOF | ||
| 116 | N 009021006205 | WASHER |
| RAIL TO ROOF | ||
| 119 | A 6389900125 | SCREW |
| PLUG | ||
| 122 | A 0079970348 | SEAL RING |
| PLUG | ||
| 125 | N 913023006001 | NUT |
| PLUG |
