Transporto priemonė: 207 D/208 D; VIN numerio dalis: 601316

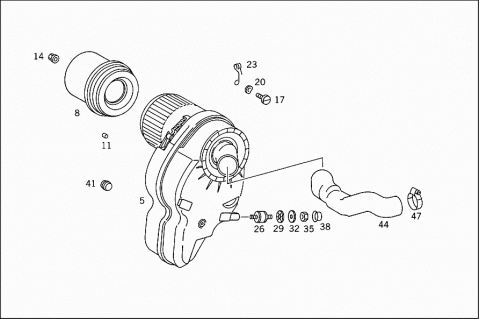

Grupė: 52 AIR CLEANER - 001 SHEET METAL,AIR INTAKE

#	Kodas	Pavadinimas
	T YYYYYYYYYYYY	PART NAME MISSING
		FOR BUMPER,SEE BODY STANDARD VERSION, GROUPS 83 AND 88
005	A 0160943202	AIR CLEANER
005	A 0150948502	AIR CLEANER
005	A 0160940902	AIR CLEANER
008	A 0030945104	FILTER ELEMENT
011	N 007603010100	SEAL RING
014	N 000917010005	NUT
017	N 000084006197	SCREW
		TO 015 094 85 02 ; 016 094 09 02
020	N 000137006204	SPRING WASHER
		TO 015 094 85 02 ; 016 094 09 02
023	A 0000940625	SPRING CLIP
		TO 015 094 85 02 ; 016 094 09 02
023	A 0000940725	SPRING CLIP
		TO 016 094 32 02
026	A 6169880011	BUFFER
		AIR CLEANER TO BODY
029	N 006798008200	SERRATED WASHER
		AIR CLEANER TO BODY
032	N 009021008205	WASHER
	Repalced by: N 009021008213
032	N 009021008213	WASHER
		AIR CLEANER TO BODY
	Repalced by: N 000000003250
032	N 000000003250	WASHER
		AIR CLEANER TO BODY
035	N 000934008010	NUT
	Repalced by: N 304032008006
035	N 304032008006	NUT
		AIR CLEANER TO BODY
038	N 913018013200	PROTECTION CAP
041	A 3199970281	GROMMET
		TO PLUG THE BORES
044	A 6010940782	HOSE
044	A 6010940982	HOSE
047	N 916026060000	CLAMP
	Repalced by: A 0069972790
047	A 0069972790	LOOM TIE
		HOSE TO AIR CLEANER
