Transporto priemonė: 208/210; VIN numerio dalis: 601012

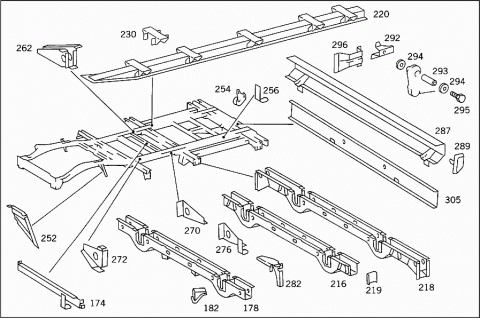

Grupė: 31 FRAME
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR SIDE MEMBER REPAIR VERSION,SEE: | ||
| SA 43 683 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR REINFORCEMENT USED FOR STRAIGHTENED SIDE MEMBER,SEE: | ||
| SA 43 676 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR REAR CROSS MEMBER USED FOR TRAILER COUPLING (RETROFIT), SEE: | ||
| SA 43 742 | ||
| 020 | A 6013100222 | CROSS MEMBER |
| Repalced by: A 6013101222 | ||
| 020 | A 6013101222 | CROSS MEMBER |
| Repalced by: A 6013101422 | ||
| 020 | A 6013101422 | CROSS MEMBER |
| RADIATOR | ||
| NO. 1 | ||
| 020 | A 6013101622 | CROSS MEMBER |
| RADIATOR | ||
| NO. 1 | ||
| 030 | N 000933010128 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 036 | N 912004010102 | LOCK WASHER |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 042 | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 042 | N 304032010003 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 050 | A 6013100008 | TOW HOOK |
| Repalced by: A 6113100008 | ||
| 050 | A 6113100008 | TOW HOOK |
| (TOW-HOOK) | ||
| 058 | A 6013100809 | BRACKET |
| AT SIDE MEMBER | ||
| 064 | A 6013170215 | RAIL |
| FRONT SPRING FRONT BRACKET | ||
| 068 | A 6013100052 | COVER |
| STEERING BRACKET TO SIDE MEMBER,LEFT | ||
| 068 | A 6013100152 | COVER |
| STEERING BRACKET TO SIDE MEMBER,RIGHT | ||
| 068 | A 6013170655 | COVER |
| STEERING BRACKET TO SIDE MEMBER,LEFT | ||
| 068 | A 6013170755 | COVER |
| STEERING BRACKET TO SIDE MEMBER,RIGHT | ||
| 070 | A 6013200270 | REAR SUBFRAME |
| FRONT SPRING FRONT BRACKET | ||
| 076 | A 6013200470 | REAR SUBFRAME |
| FRONT SPRING REAR BRACKET | ||
| 082 | A 6013110187 | STOP |
| AT SIDE MEMBER | ||
| 088 | A 6013260250 | BUSHING |
| INSIDE RIGHT | ||
| 088 | A 6013260250 | BUSHING |
| INSIDE RIGHT | ||
| 088 | A 6013260350 | BUSHING |
| INSIDE LEFT | ||
| 088 | A 6013260350 | BUSHING |
| INSIDE LEFT | ||
| 092 | A 6013260450 | BUSHING |
| LEFT OUTSIDE,LEFT | ||
| 092 | A 6013260550 | BUSHING |
| RIGHT OUTSIDE,RIGHT | ||
| 096 | A 6012420002 | SUPPORT |
| ENGINE LEFT REAR MOUNTING | ||
| 096 | A 6012420602 | SUPPORT |
| ENGINE LEFT REAR MOUNTING | ||
| 102 | A 6012420102 | SUPPORT |
| Repalced by: A 6012400006 | ||
| 102 | A 6012400006 | CONSOLE |
| ENGINE RIGHT REAR MOUNTING | ||
| 102 | A 6012420702 | SUPPORT |
| ENGINE RIGHT REAR MOUNTING | ||
| 110 | A 6013100024 | CROSS MEMBER |
| Repalced by: A 6013100424 | ||
| 110 | A 6013100424 | CROSS MEMBER |
| Repalced by: A 6013101024 | ||
| 110 | A 6013101024 | CROSS MEMBER |
| FRONT SPRING,REAR | ||
| NO. 2 | ||
| 110 | A 6013100124 | CROSS MEMBER |
| Repalced by: A 6013100524 | ||
| 110 | A 6013100524 | CROSS MEMBER |
| Repalced by: A 6013101124 | ||
| 110 | A 6013101124 | CROSS MEMBER |
| FRONT SPRING,REAR | ||
| NO. 2 | ||
| 113 | A 6012570076 | WASHER |
| CLUTCH LINE | ||
| 113 | A 6012570076 | WASHER |
| CLUTCH LINE | ||
| 116 | A 6013170040 | BRACKET |
| Repalced by: A 6013100109 | ||
| 116 | A 6013100109 | BRACKET |
| LEFT | ||
| 116 | A 6013171240 | BRACKET |
| LEFT | ||
| 119 | A 6013170140 | BRACKET |
| Repalced by: A 6013101409 | ||
| 119 | A 6013101409 | BRACKET |
| RIGHT | ||
| 119 | A 6013103609 | BRACKET |
| RIGHT | ||
| 122 | A 6013100168 | RAIL |
| LEFT | ||
| 122 | A 6013103509 | BRACKET |
| LEFT | ||
| A 6013100068 | RAIL | |
| RIGHT | ||
| 126 | A 6013102137 | CROSS MEMBER |
| Repalced by: A 6013100237 | ||
| 126 | A 6013100237 | CROSS MEMBER |
| Repalced by: A 6113101137 | ||
| 126 | A 6113101137 | CROSS MEMBER |
| CAB,REAR | ||
| NO.3 | ||
| 126 | A 6113102537 | CROSS MEMBER |
| CAB,REAR | ||
| NO.3 | ||
| 134 | A 6013102109 | BRACKET |
| Repalced by: A 6014700281 | ||
| 134 | A 6013102209 | BRACKET |
| Repalced by: A 6014700281 | ||
| 134 | A 6014700281 | BRACKET |
| FUEL TANK | ||
| 140 | A 6014921241 | BRACKET |
| Repalced by: A 6014920440 | ||
| 140 | A 6014920440 | CLAMP |
| EXHAUST | ||
| 150 | A 6013100136 | CROSS MEMBER |
| Repalced by: A 6013100236 | ||
| 150 | A 6013100636 | CROSS MEMBER |
| Repalced by: A 6113100436 | ||
| 150 | A 6113100436 | CROSS MEMBER |
| INTERMEDIATE SHAFT BEARING | ||
| NO.4 | ||
| 160 | A 6013100036 | CROSS MEMBER |
| Repalced by: A 6013100536 | ||
| 160 | A 6013100536 | CROSS MEMBER |
| INTERMEDIATE SHAFT BEARING | ||
| NO.4 | ||
| 160 | A 6013100336 | CROSS MEMBER |
| INTERMEDIATE SHAFT BEARING | ||
| NO.4 | ||
| 160 | A 6013100336 | CROSS MEMBER |
| INTERMEDIATE SHAFT BEARING | ||
| NO.5 | ||
| 160 | A 6013100336 | CROSS MEMBER |
| INTERMEDIATE SHAFT BEARING | ||
| NO.5 | ||
| 160 | A 6013103837 | CROSS MEMBER |
| FRAME STRUTTING | ||
| NO.4 | ||
| 160 | A 6014030301 | SUPPORT |
| Repalced by: A 6014030701 | ||
| 160 | A 6014030701 | SUPPORT |
| (CROSS MEMBER) | ||
| NO.4 | ||
| 165 | A 6014901040 | BRACKET |
| EXHAUST SYSTEM | ||
| 170 | A 6013200841 | CONSOLE |
| LEFT | ||
| 170 | A 6013200941 | CONSOLE |
| RIGHT | ||
| 174 | A 6013100837 | CROSS MEMBER |
| FRAME STRUTTING | ||
| NO.5 | ||
| 174 | A 6013101637 | CROSS MEMBER |
| FRAME STRUTTING | ||
| NO.5 | ||
| 178 | A 6013100438 | CROSS MEMBER |
| REAR SPRING,FRONT | ||
| NO.6 | ||
| 178 | A 6013100438 | CROSS MEMBER |
| REAR SPRING,FRONT | ||
| NO.5 | ||
| 178 | A 6013100438 | CROSS MEMBER |
| REAR SPRING,FRONT | ||
| NO.6 | ||
| 178 | A 6013100638 | CROSS MEMBER |
| REAR SPRING,FRONT | ||
| NO.6 | ||
| 178 | A 6013100638 | CROSS MEMBER |
| REAR SPRING,FRONT | ||
| NO.5 | ||
| 178 | A 6013100638 | CROSS MEMBER |
| REAR SPRING,FRONT | ||
| NO.6 | ||
| 182 | A 6014270241 | BRACKET |
| BRAKE CABLE | ||
| 216 | A 6013100342 | CROSS MEMBER |
| REAR SPRING,REAR | ||
| NO.7 | ||
| 216 | A 6013100342 | CROSS MEMBER |
| REAR SPRING,REAR | ||
| NO.6 | ||
| 216 | A 6013100342 | CROSS MEMBER |
| REAR SPRING,REAR | ||
| NO.7 | ||
| 218 | A 6013101042 | CROSS MEMBER |
| REAR SPRING,REAR | ||
| NO.7 | ||
| 218 | A 6013101042 | CROSS MEMBER |
| REAR SPRING,REAR | ||
| NO.6 | ||
| 218 | A 6013101042 | CROSS MEMBER |
| REAR SPRING,REAR | ||
| NO.7 | ||
| 219 | A 6013120654 | COVER |
| AT CROSS MEMBER | ||
| A 6013120854 | COVER | |
| AT CROSS MEMBER | ||
| 220 | A 6013170105 | SUPPORT |
| Repalced by: A 6013100167 | ||
| 220 | A 6013170105 | SUPPORT |
| Repalced by: A 6013101667 | ||
| 220 | A 6013170205 | SUPPORT |
| Repalced by: A 6013100367 | ||
| 220 | A 6013170205 | SUPPORT |
| Repalced by: A 6013101867 | ||
| 220 | A 6013170305 | SUPPORT |
| Repalced by: A 6013100467 | ||
| 220 | A 6013170305 | SUPPORT |
| Repalced by: A 6013102067 | ||
| 220 | A 6013100167 | BODY SUPPORT |
| Repalced by: A 6023100067 | ||
| 220 | A 6023100067 | BODY SUPPORT |
| LEFT AND RIGHT | ||
| 220 | A 6013100367 | BODY SUPPORT |
| Repalced by: A 6023100267 | ||
| 220 | A 6023100267 | BODY SUPPORT |
| LEFT AND RIGHT | ||
| 220 | A 6013100467 | BODY SUPPORT |
| Repalced by: A 6023100367 | ||
| 220 | A 6023100367 | BODY SUPPORT |
| LEFT AND RIGHT | ||
| 220 | A 6013101667 | BODY SUPPORT |
| Repalced by: A 6023100767 | ||
| 220 | A 6023100767 | BODY SUPPORT |
| LEFT AND RIGHT | ||
| 220 | A 6013101867 | BODY SUPPORT |
| Repalced by: A 6023100967 | ||
| 220 | A 6023100967 | BODY SUPPORT |
| LEFT AND RIGHT | ||
| 220 | A 6013102067 | BODY SUPPORT |
| Repalced by: A 6023101167 | ||
| 220 | A 6023101167 | BODY SUPPORT |
| LEFT AND RIGHT | ||
| 230 | A 6013170001 | CONSOLE |
| Repalced by: A 6013171001 | ||
| 230 | A 6013171001 | CONSOLE |
| BODY MOUNTING | ||
| 230 | A 6013100058 | CONSOLE |
| Repalced by: A 6013100158 | ||
| 230 | A 6013100158 | CONSOLE |
| BODY MOUNTING | ||
| 230 | A 6013171001 | CONSOLE |
| BODY MOUNTING | ||
| 230 | A 6013100158 | CONSOLE |
| BODY MOUNTING | ||
| 252 | A 6016110230 | CONNECTION |
| LEFT | ||
| 252 | A 6016110330 | CONNECTION |
| RIGHT | ||
| 254 | A 6014921641 | BRACKET |
| EXHAUST | ||
| 256 | A 6014922541 | BRACKET |
| EXHAUST | ||
| 262 | A 6014700081 | BRACKET |
| Repalced by: A 6014700581 | ||
| 262 | A 6014700581 | BRACKET |
| FUEL TANK | ||
| 262 | A 6014700781 | BRACKET |
| FUEL TANK | ||
| 270 | A 6014920241 | BRACKET |
| EXHAUST | ||
| 272 | A 6014900340 | BRACKET |
| EXHAUST | ||
| 272 | A 6014900440 | BRACKET |
| EXHAUST | ||
| 276 | A 6014901440 | BRACKET |
| EXHAUST | ||
| 282 | A 6013101709 | BRACKET |
| SPARE WHEEL | ||
| 287 | A 6015200371 | BUMPER |
| UNDERRUN PROTECTION | ||
| 289 | A 6015250038 | CAP |
| Repalced by: A 6015250238 | ||
| 289 | A 6015250238 | CAP |
| UNDERRUN PROTECTION,LEFT | ||
| 289 | A 6015250138 | CAP |
| Repalced by: A 6015250338 | ||
| 289 | A 6015250338 | CAP |
| UNDERRUN PROTECTION,RIGHT | ||
| 292 | A 6013101309 | BRACKET |
| Repalced by: A 6013103209 | ||
| 292 | A 6013102509 | BRACKET |
| Repalced by: A 6013103209 | ||
| 292 | A 6013103209 | BRACKET |
| BRAKE POWER REGULATOR | ||
| 293 | A 6114310050 | BUSHING |
| LEVER TO BRACKET | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 42,FIG.NO.: | ||
| 276 | ||
| 294 | A 6114310076 | WASHER |
| LEVER TO BRACKET | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 42,FIG.NO.: | ||
| 274 | ||
| 295 | N 914125010108 | SCREW |
| LEVER TO BRACKET | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 42,FIG.NO.: | ||
| 278 | ||
| 296 | A 6013110940 | BRACKET |
| BRAKE POWER REGULATOR | ||
| 305 | A 6013120235 | CROSS MEMBER |
| Repalced by: A 6013100546 | ||
| 305 | A 6013100546 | CROSS MEMBER |
| REAR | ||
| 305 | A 6013120135 | CROSS MEMBER |
| Repalced by: A 6013100646 | ||
| 305 | A 6013100646 | CROSS MEMBER |
| REAR | ||
| 313 | A 6013101546 | CROSS MEMBER |
| REAR | ||
| 315 | A 6013100490 | STIFFENING |
| REAR CROSS MEMBER TO SIDE MEMBERS | ||
| 340 | A 6013102218 | SIDE MEMBER |
| LEFT | ||
| 345 | A 6013200475 | SPRING BRACKET |
| FRONT LEFT | ||
| 350 | A 6013102318 | SIDE MEMBER |
| RIGHT | ||
| 366 | A 6013200775 | SPRING BRACKET |
| FRONT RIGHT | ||
| 368 | A 6013250203 | REAR SPRING BRACKET |
| REAR | ||
| 368 | A 6013250603 | REAR SPRING BRACKET |
| REAR | ||
| 368 | A 6013250703 | REAR SPRING BRACKET |
| REAR | ||
| 370 | A 6013250955 | COVER PLATE |
| REAR SPRING BRACKET | ||
| 372 | A 6013150061 | EYE |
| TOW-HOOK | ||
| 374 | A 6014001339 | BRACKET |
| SPARE WHEEL MOUNTING | ||
| 376 | A 6014001639 | BRACKET |
| SPARE WHEEL MOUNTING | ||
| 378 | A 6014001539 | BRACKET |
| SPARE WHEEL MOUNTING | ||
| A 6014030340 | BRACKET | |
| SPARE WHEEL MOUNTING | ||
| 416 | A 6013170631 | COVER PLATE |
| AT REAR CROSS MENBER | ||
| 420 | N 000933006102 | SCREW |
| COVER PLATE TO REAR CROSS MEMBER | ||
| 424 | N 000137006204 | SPRING WASHER |
| COVER PLATE TO REAR CROSS MEMBER | ||
| 428 | A 0019904191 | NUT RETAINER |
| AT REAR CROSS MENBER | ||
| 432 | N 000934006007 | NUT |
| AT REAR CROSS MENBER | ||
| 436 | A 6019880311 | BUFFER |
| AT REAR CROSS MENBER | ||
| 440 | N 910113008001 | NUT |
| BUFFER TO REAR CROSS MEMBER | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
