Transporto priemonė: 208/210; VIN numerio dalis: 601062
Grupė: 42 BRAKE SYSTEM - 001 BRAKES
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR FRONT WHEEL BRAKE,SEE UNIT STANDARD VERSION, MODEL: | ||
| 730.4 | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR BRAKES,SEE UNIT STANDARD VERSION, MODEL: | ||
| 741.4 | ||

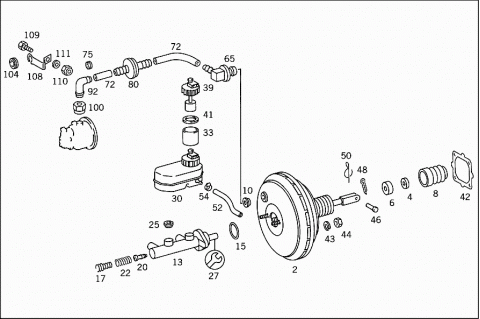

| 002 | A 0024300230 | BRAKE BOOSTER ASSEMBLY |
| TEVES | ||
| 002 | A 0024300230 | BRAKE BOOSTER ASSEMBLY |
| TEVES | ||
| 002 | A 0024309930 | BRAKE BOOSTER ASSEMBLY |
| TEVES | ||
| 002 | A 0024309930 | BRAKE BOOSTER ASSEMBLY |
| TEVES | ||
| 004 | A 0004350712 | DAMPING RING |
| "TEVES",TO 002 430 02 30 | ||
| 004 | A 0004350712 | DAMPING RING |
| "TEVES",TO 002 430 02 30 | ||
| 006 | A 0004312734 | STRAINER |
| "TEVES",TO 002 430 02 30 | ||
| 006 | A 0004312734 | STRAINER |
| "TEVES",TO 002 430 02 30 | ||
| 008 | A 0004316587 | PROTECTIVE CAP |
| Repalced by: A 0004319987 | ||
| 008 | A 0004319987 | PROTECTIVE CAP |
| "TEVES",TO 002 430 02 30 | ||
| 008 | A 0004319987 | PROTECTIVE CAP |
| "TEVES",TO 002 430 02 30 | ||
| 008 | A 0004317187 | PROTECTIVE CAP |
| TO 002 430 99 30 | ||
| 008 | A 0004317187 | PROTECTIVE CAP |
| TO 002 430 99 30 | ||
| 010 | A 0049973245 | SEAL RING |
| TO 002 430 99 30,TEVES | ||
| 010 | A 0049973245 | SEAL RING |
| TO 002 430 99 30,TEVES | ||
| 010 | A 0004319960 | SEAL RING |
| "TEVES",TO 002 430 02 30,002 430 99 30 | ||
| 013 | A 0034308201 | BRAKE MASTER CYLINDER |
| TEVES,TO 002 430 02 30 | ||
| 013 | A 0034308201 | BRAKE MASTER CYLINDER |
| TEVES,TO 002 430 02 30 | ||
| 013 | A 0044302801 | BRAKE MASTER CYLINDER |
| TEVES,TO 002 430 99 30 | ||
| 013 | A 0044302801 | BRAKE MASTER CYLINDER |
| TEVES,TO 002 430 99 30 | ||
| 015 | A 0049973245 | SEAL RING |
| "TEVES",TO 003 430 82 01,004 430 28 01 | ||
| 017 | A 6084310193 | SPRING |
| "TEVES",TO 003 430 82 01 | ||
| 017 | A 6084310193 | SPRING |
| "TEVES",TO 003 430 82 01 | ||
| 020 | A 0004311571 | SCREW |
| "TEVES",TO 003 430 82 01 | ||
| 020 | A 0004311571 | SCREW |
| "TEVES",TO 003 430 82 01 | ||
| 022 | A 0014312593 | SPRING |
| "TEVES",TO 003 430 82 01 | ||
| 022 | A 0014312593 | SPRING |
| "TEVES",TO 003 430 82 01 | ||
| 025 | A 0002950050 | BUSHING |
| Repalced by: A 0004310950 | ||
| 025 | A 0004310950 | BUSHING |
| "TEVES",TO 003 430 82 01,004 430 28 01 | ||
| 027 | A 0025863743 | REPAIR KIT |
| TO 003 430 82 01,TEVES | ||
| 027 | A 0025863743 | REPAIR KIT |
| TO 003 430 82 01,TEVES | ||
| 027 | A 0014300360 | REPAIR KIT |
| TO 004 430 28 01,TEVES | ||
| 027 | A 0014300360 | REPAIR KIT |
| TO 004 430 28 01,TEVES | ||
| 030 | A 0014312202 | RESERVOIR |
| "TEVES",TO 003 430 82 01 | ||
| 030 | A 0014312202 | RESERVOIR |
| "TEVES",TO 003 430 82 01 | ||
| 030 | A 0014316702 | RESERVOIR |
| TO 004 430 28 01,TEVES | ||
| 030 | A 0014316702 | RESERVOIR |
| TO 004 430 28 01,TEVES | ||
| 033 | A 0004313234 | STRAINER |
| Repalced by: A 0004312634 | ||
| 033 | A 0004312634 | STRAINER |
| Repalced by: A 0004315334 | ||
| 033 | A 0004315334 | STRAINER |
| Repalced by: A 0004316934 | ||
| 033 | A 0004316934 | STRAINER |
| "TEVES",TO 001 431 22 02,001 431 67 02 | ||
| 039 | A 0004313833 | FILLER CAP |
| Repalced by: A 0004315533 | ||
| 039 | A 0004315533 | FILLER CAP |
| "TEVES",TO 001 431 22 02 | ||
| 039 | A 0004315533 | FILLER CAP |
| "TEVES",TO 001 431 22 02 | ||
| 039 | A 0004315733 | FILLER CAP |
| Repalced by: A 0004316633 | ||
| 039 | A 0004316633 | FILLER CAP |
| Repalced by: A 0004317733 | ||
| 039 | A 0004317733 | FILLER CAP |
| TO 001 431 67 02,TEVES | ||
| 039 | A 0004317733 | FILLER CAP |
| TO 001 431 67 02,TEVES | ||
| 041 | A 0009972940 | SEAL RING |
| "TEVES", 43.7X30 MM | ||
| 042 | A 1154310180 | GASKET |
| BRAKE BOOSTER ASSEMBLY TO FIRE WALL | ||
| 043 | N 912004008102 | LOCK WASHER |
| BRAKE BOOSTER ASSEMBLY TO FIRE WALL | ||
| 044 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 044 | N 304032008006 | NUT |
| BRAKE BOOSTER ASSEMBLY TO FIRE WALL | ||
| 046 | N 001444008206 | PIN |
| Repalced by: A 1262920074 | ||
| 046 | A 1262920074 | PIN |
| BRAKE BOOSTER ASSEMBLY TO PEDAL | ||
| 048 | N 000094002059 | COTTER PIN |
| BRAKE BOOSTER ASSEMBLY TO PEDAL | ||
| Repalced by: N 000094002060 | ||
| 048 | N 000094002060 | COTTER PIN |
| BRAKE BOOSTER ASSEMBLY TO PEDAL | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR SWITCH,SEE GROUP 29 | ||
| 050 | N 912011008000 | LOCK |
| BRAKE BOOSTER ASSEMBLY TO PEDAL | ||
| 052 | A 6039970482 | HOSE |
| 190 MM | ||
| 054 | A 0029971090 | LOOM TIE |
| Repalced by: A 0039975390 | ||
| 054 | A 0039975390 | LOOM TIE |
| 065 | A 0019900371 | ELBOW FITTING |
| 065 | A 0029908271 | ELBOW FITTING |
| VACUUM LINE | ||
| 072 | A 0139971282 | HOSE |
| 10,5X13 MM | ||
| 072 | A 0004358382 | HOSE |
| 10X12.5 MM | ||
| 075 | A 8339970181 | GROMMET |
| Repalced by: A 0009972881 | ||
| 075 | A 0009972781 | GROMMET |
| Repalced by: A 0009972881 | ||
| 075 | A 0009972881 | GROMMET |
| 080 | A 0004313607 | VALVE |
| STRAIGHT | ||
| 080 | A 0004314007 | VALVE |
| Repalced by: A 0004316107 | ||
| 080 | A 0004316107 | VALVE |
| STRAIGHT | ||
| 080 | A 0004351133 | VALVE |
| Repalced by: A 0004316307 | ||
| 080 | A 0004316307 | VALVE |
| BENT | ||
| 092 | A 1154350125 | LINE |
| 092 | A 1154350125 | LINE |
| 092 | A 1154350025 | LINE |
| 100 | A 0009907454 | NUT |
| 104 | A 8339970181 | GROMMET |
| Repalced by: A 0009972881 | ||
| 104 | A 0009972881 | GROMMET |
| 108 | A 6014270741 | BRACKET |
| LINE TO RADIATOR | ||
| 109 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 109 | N 304017006016 | SCREW |
| LINE TO RADIATOR | ||
| 110 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 110 | N 913004006001 | NUT |
| LINE TO RADIATOR | ||
| 111 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 111 | N 009021006208 | WASHER |
| LINE TO RADIATOR | ||
| A 6014301329 | LINE | |
| VACUUM LINE | ||
| A 6014301429 | LINE | |
| VACUUM LINE | ||

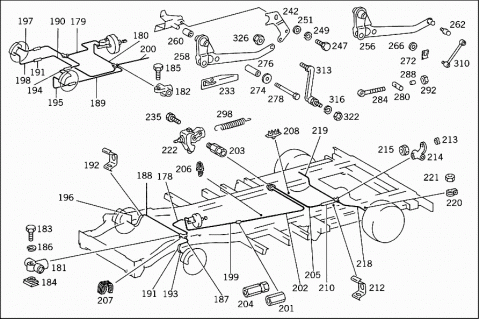

| 178 | A 6014201928 | LINE |
| Repalced by: A 1234205828 | ||
| 178 | A 1234205828 | LINE |
| FROM BRAKE BOOSTER ASSEMBLY TO FRONT DISTRIBUTOR | ||
| 490 MM | ||
| 178 | A 1234205828 | LINE |
| FROM BRAKE BOOSTER ASSEMBLY TO FRONT DISTRIBUTOR | ||
| 490 MM | ||
| 178 | A 4604202228 | LINE |
| Repalced by: A 1234206028 | ||
| 178 | A 1234206028 | LINE |
| FROM BRAKE BOOSTER ASSEMBLY TO FRONT DISTRIBUTOR | ||
| 580 MM | ||
| 179 | A 6014201828 | LINE |
| Repalced by: A 1234205628 | ||
| 179 | A 1234205628 | LINE |
| FROM BRAKE BOOSTER ASSEMBLY TO FRONT DISTRIBUTOR | ||
| 380 MM | ||
| 180 | A 6014201928 | LINE |
| Repalced by: A 1234205828 | ||
| 180 | A 1234205828 | LINE |
| FROM BRAKE BOOSTER ASSEMBLY TO QUADRUPLE DISTRIBUTOR | ||
| 490 MM | ||
| 181 | A 0004290537 | DISTRIBUTOR |
| 181 | A 0004290537 | DISTRIBUTOR |
| 181 | A 0004284924 | DISTRIBUTOR |
| 181 | A 0004284924 | DISTRIBUTOR |
| 182 | A 0004285024 | DISTRIBUTOR |
| 182 | A 0004284224 | DISTRIBUTOR |
| 183 | N 000933006127 | SCREW |
| M 6X25 | ||
| 183 | N 000933006127 | SCREW |
| M 6X25 | ||
| 183 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 183 | N 304017006016 | SCREW |
| M 6X16 | ||
| 183 | N 000933006083 | SCREW |
| M 6X35 | ||
| 184 | A 0009907191 | NUT RETAINER |
| 185 | N 000931006118 | SCREW |
| 186 | N 912004006102 | LOCK WASHER |
| 187 | A 6014204528 | LINE |
| Repalced by: A 1234206428 | ||
| 187 | A 1234206428 | LINE |
| FROM DISTRIBUTOR TO FRONT LEFT BRAKE HOSE | ||
| 885 MM | ||
| 187 | A 6014200529 | LINE |
| Repalced by: A 1234207628 | ||
| 187 | A 1234207628 | LINE |
| FROM DISTRIBUTOR TO FRONT LEFT BRAKE HOSE | ||
| 2520 MM | ||
| 188 | A 6014205128 | LINE |
| Repalced by: | ||
| 188 | A 1234207528 | LINE |
| FROM DISTRIBUTOR TO FRONT RIGHT BRAKE HOSE | ||
| 2200 MM | ||
| 188 | A 6014200629 | LINE |
| Repalced by: A 1234206228 | ||
| 188 | A 1234206228 | LINE |
| FROM DISTRIBUTOR TO FRONT RIGHT BRAKE HOSE | ||
| 725 MM | ||
| 189 | A 6014200628 | LINE |
| Repalced by: A 1234206428 | ||
| 189 | A 1234206428 | LINE |
| FROM QUADRUPLE DISTRIBUTOR TO BRAKE HOSE AT LEFT FRONT WHEEL | ||
| 895 MM | ||
| 190 | A 6014205128 | LINE |
| Repalced by: A 1234207528 | ||
| 190 | A 1234207528 | LINE |
| FROM QUADRUPLE DISTRIBUTOR TO BRAKE HOSE AT RIGHT FRONT WHEEL | ||
| 2200 MM | ||
| 191 | A 0014289535 | BRAKE HOSE |
| LEFT AND RIGHT FRONT | ||
| 192 | A 0004280373 | LOCK |
| Repalced by: A 0004280673 | ||
| 192 | A 0004280673 | RETAINING SPRING |
| 193 | A 6014203528 | LINE |
| Repalced by: A 1234209128 | ||
| 193 | A 1234209128 | LINE |
| FROM STEERING KNUCKLE TO LEFT CALIPER | ||
| 130 MM | ||
| 194 | A 6014201429 | LINE |
| Repalced by: A 1234209228 | ||
| 194 | A 1234209228 | LINE |
| FROM LEFT STEERING KNUCKLE TO CALIPER, BOTTOM | ||
| 160 MM | ||
| 195 | A 6014203728 | LINE |
| Repalced by: A 1234205028 | ||
| 195 | A 1234205028 | LINE |
| FROM LEFT STEERING KNUCKLE TO CALIPER, TOP | ||
| 180 MM | ||
| 196 | A 6014203628 | LINE |
| Repalced by: A 1234209128 | ||
| 196 | A 1234209128 | LINE |
| FROM STEERING KNUCKLE TO RIGHT CALIPER | ||
| 130 MM | ||
| 197 | A 1234209228 | LINE |
| FROM RIGHT STEERING KNUCKLE TO CALIPER BOTTOM | ||
| 160 MM | ||
| 198 | A 6014203828 | LINE |
| Repalced by: A 1234205028 | ||
| 198 | A 1234205028 | LINE |
| FROM RIGHT STEERING KNUCKLE TO CALIPER TOP | ||
| 180 MM | ||
| 199 | A 6014205128 | LINE |
| Repalced by: A 1234207528 | ||
| 199 | A 1234207528 | LINE |
| FROM BRAKE BOOSTER ASSEMBLY TO ADAPTER FITTING | ||
| 2200 MM | ||
| 199 | A 6014200229 | LINE |
| Repalced by: A 1234200029 | ||
| 199 | A 1234200029 | LINE |
| FROM QUADRUPLE DISTRIBUTOR TO PRESSURE RETAINING VALVE | ||
| 2000 MM | ||
| 199 | A 4604205028 | LINE |
| Repalced by: A 1234208428 | ||
| 199 | A 1234208428 | LINE |
| FROM QUADRUPLE DISTRIBUTOR TO PRESSURE RETAINING VALVE | ||
| 3390 MM | ||
| 200 | A 6114200228 | LINE |
| Repalced by: A 1234208628 | ||
| 200 | A 1234208628 | LINE |
| FROM QUADRUPLE DISTRIBUTOR TO PRESSURE RETAINING VALVE | ||
| 3560 MM | ||
| 200 | A 6014200329 | LINE |
| Repalced by: A 1234207228 | ||
| 200 | A 1234207228 | LINE |
| FROM QUADRUPLE DISTRIBUTOR TO PRESSURE RETAINING VALVE | ||
| 1685 MM | ||
| 201 | A 1214290134 | ADAPTER FITTING |
| 201 | A 1214290134 | ADAPTER FITTING |
| 202 | A 6014204128 | LINE |
| Repalced by: A 1234207928 | ||
| 202 | A 1234207928 | LINE |
| FROM ADAPTER FITTING TO BRAKE PRESSURE REGULATOR | ||
| 2890 MM | ||
| 202 | A 6014201328 | LINE |
| Repalced by: A 1234208228 | ||
| 202 | A 1234208228 | LINE |
| FROM ADAPTER FITTING TO BRAKE PRESSURE REGULATOR | ||
| 3190 MM | ||
| 203 | A 0004313707 | VALVE |
| FROM BRAKE POWER REGULATOR TO REAR BRAKE HOSE | ||
| 204 | A 0004315907 | VALVE |
| Repalced by: A 0004313907 | ||
| 204 | A 0004313907 | VALVE |
| PRESSURE RETAINING | ||
| 205 | A 6014203928 | LINE |
| Repalced by: A 1234209328 | ||
| 205 | A 1234209328 | LINE |
| FROM BRAKE POWER REGULATOR TO REAR BRAKE HOSE | ||
| 680 MM | ||
| 205 | A 6014201629 | LINE |
| Repalced by: A 1234209328 | ||
| 205 | A 1234209328 | LINE |
| FROM BRAKE POWER REGULATOR TO REAR BRAKE HOSE | ||
| 680 MM | ||
| 206 | A 6014280040 | BRACKET |
| BRAKE LINES | ||
| 207 | A 6014282640 | BRACKET |
| BRAKE LINES | ||
| 208 | A 6014281240 | BRACKET |
| BRAKE LINES | ||
| 208 | A 6014281440 | BRACKET |
| BRAKE LINES | ||
| 210 | A 0014289435 | BRAKE HOSE |
| Repalced by: A 1234280535 | ||
| 210 | A 1234280535 | BRAKE HOSE |
| REAR | ||
| 212 | A 0004280373 | LOCK |
| Repalced by: A 0004280673 | ||
| 212 | A 0004280673 | RETAINING SPRING |
| REAR BRAKE HOSE TO BRACKET | ||
| 213 | A 6014285076 | WASHER |
| AT REAR AXLE | ||
| 214 | A 0004284224 | DISTRIBUTOR |
| AT REAR AXLE | ||
| 215 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 215 | N 913004006001 | NUT |
| AT REAR AXLE | ||
| 218 | A 6014201528 | LINE |
| Repalced by: A 1234206728 | ||
| 218 | A 1234206728 | LINE |
| FROM DISTRIBUTOR TO LEFT REAR WHEEL | ||
| 1225 MM | ||
| 219 | A 6014203928 | LINE |
| Repalced by: A 1234209328 | ||
| 219 | A 1234209328 | LINE |
| FROM DISTRIBUTOR TO RIGHT REAR WHEEL | ||
| 680 MM | ||
| 220 | A 6014285041 | CLAMP |
| BRAKE LINE MOUNTING | ||
| 221 | N 000439006204 | NUT |
| Repalced by: N 304035006001 | ||
| 221 | N 304035006001 | NUT |
| BRAKE LINE MOUNTING | ||
| 222 | A 0014310812 | BRAKE PRESSURE REGULATOR |
| 222 | A 0014310812 | BRAKE PRESSURE REGULATOR |
| 222 | A 0014310812 | BRAKE PRESSURE REGULATOR |
| 222 | A 0014315912 | BRAKE PRESSURE REGULATOR |
| 222 | A 0014315912 | BRAKE PRESSURE REGULATOR |
| 222 | A 0014316912 | BRAKE PRESSURE REGULATOR |
| 233 | A 6015840238 | GUMMED LABEL |
| Repalced by: A 6015845238 | ||
| 233 | A 6015845238 | GUMMED LABEL |
| LOAD-DEPENDING BRAKE | ||
| 233 | A 6015845238 | GUMMED LABEL |
| LOAD-DEPENDING BRAKE | ||
| 233 | A 6015845238 | GUMMED LABEL |
| LOAD-DEPENDING BRAKE | ||
| 233 | A 6115840338 | GUMMED LABEL |
| LOAD-DEPENDING BRAKE | ||
| 233 | A 6115840338 | GUMMED LABEL |
| LOAD-DEPENDING BRAKE | ||
| 233 | A 6015842348 | GUMMED LABEL |
| LOAD-DEPENDING BRAKE | ||
| 233 | A 6015842348 | GUMMED LABEL |
| LOAD-DEPENDING BRAKE | ||
| 233 | A 6015842448 | GUMMED LABEL |
| LOAD-DEPENDING BRAKE | ||
| 235 | N 000933008145 | SCREW |
| 242 | A 6014310740 | BRACKET |
| Repalced by: A 6014310940 | ||
| 242 | A 6014310940 | BRACKET |
| BRAKE POWER REGULATOR | ||
| 247 | N 000933081454 | SCREW |
| AT BRACKET | ||
| 247 | N 000933010128 | SCREW |
| AT BRACKET | ||
| 249 | N 912004008102 | LOCK WASHER |
| AT BRACKET | ||
| 249 | N 000137010201 | SPRING WASHER |
| AT BRACKET | ||
| 251 | N 000125008443 | WASHER |
| AT BRACKET | ||
| 251 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 251 | N 000125010532 | WASHER |
| AT BRACKET | ||
| 256 | A 6014300235 | LEVER |
| BRAKE POWER REGULATOR | ||
| 258 | A 6014300335 | LEVER |
| Repalced by: A 6014300635 | ||
| 258 | A 6014300635 | LEVER |
| BRAKE POWER REGULATOR | ||
| 258 | A 6014300735 | LEVER |
| BRAKE POWER REGULATOR | ||
| 260 | A 1102910550 | BUSHING |
| Repalced by: A 1242920050 | ||
| 260 | A 1242920050 | BUSHING |
| 262 | N 071803013208 | BALL PIVOT |
| 266 | A 1152910076 | WASHER |
| LEVER TO BRACKET | ||
| 272 | A 0009941151 | LOCK |
| LEVER TO BRACKET | ||
| 274 | A 6114310076 | WASHER |
| LEVER TO BRACKET | ||
| 276 | A 6114310050 | BUSHING |
| LEVER TO BRACKET | ||
| 278 | N 914125010108 | SCREW |
| LEVER TO BRACKET | ||
| 280 | A 6084270074 | PIN |
| LEVER TO BRACKET | ||
| 284 | A 6019900038 | SCREW |
| LEVER TO BRACKET | ||
| 288 | A 6039920101 | BUSHING |
| LEVER TO BRACKET | ||
| 292 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 292 | N 304032008006 | NUT |
| LEVER TO BRACKET | ||
| 298 | A 6039930010 | SPRING |
| 298 | A 6039930010 | SPRING |
| 298 | A 6039930010 | SPRING |
| 298 | A 6119930610 | SPRING |
| 298 | A 6119930610 | SPRING |
| 298 | A 6119930610 | SPRING |
| 310 | A 0004312692 | ROD |
| BRAKE POWER REGULATOR CONTROL | ||
| 313 | A 6014300435 | LEVER |
| Repalced by: A 6014300535 | ||
| 313 | A 6014300535 | LEVER |
| BRAKE POWER REGULATOR CONTROL | ||
| 316 | N 912004008102 | LOCK WASHER |
| ROD TO LEVER | ||
| 322 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 322 | N 304032008006 | NUT |
| ROD TO LEVER | ||
| 326 | N 910113008001 | NUT |
| OPERATING ROD TO LEVER AND TO REAR AXLE | ||
| 330 | A 6014271411 | BEARING BRACKET |
| 330 | A 6014271511 | BEARING BRACKET |

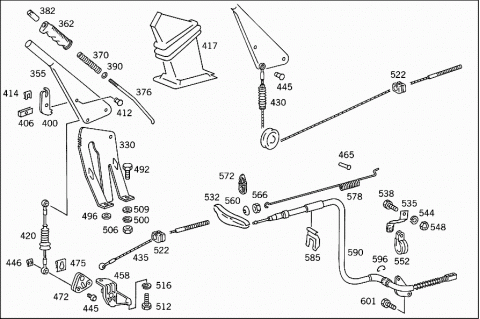

| 355 | A 6014200412 | BRAKE LEVER |
| 362 | A 6014270020 | HANDLE |
| 370 | A 6019930001 | SPRING |
| 376 | A 6014270231 | ROD |
| 382 | A 6014270022 | FASTENER BUTTON |
| 390 | A 0119975345 | SEAL RING |
| 400 | A 6014270215 | PAWL |
| 406 | A 6014270084 | SHIM |
| 406 | A 6014270184 | SHIM |
| 412 | A 6014270074 | PIN |
| 414 | N 912007008000 | CLIP |
| Repalced by: N 000000002965 | ||
| 414 | N 000000002965 | CLIP |
| 417 | A 6014270196 | CUP |
| 420 | A 6014201585 | BRAKE CABLE |
| FROM HAND BRAKE LEVER TO FRONT INTERMEDIATE LEVER | ||
| 430 | A 6014201085 | BRAKE CABLE |
| FROM HAND BRAKE LEVER TO FRONT INTERMEDIATE LEVER | ||
| 430 | A 6014200311 | CONVERSION KIT |
| HAND BRAKE | ||
| A 6014271411 | BEARING BRACKET | |
| A 6014200978 | BEARING BRACKET | |
| A 6014201585 | BRAKE CABLE | |
| A 6014201685 | BRAKE CABLE | |
| A 6014270074 | PIN | |
| A 6014200040 | ADJUSTING LEVER | |
| A 6014270215 | PAWL | |
| A 6014270874 | PIN | |
| N 912002014000 | LOCK | |
| N 000000002965 | CLIP | |
| 430 | A 6014200011 | CONVERSION KIT |
| HAND BRAKE | ||
| A 6014271511 | BEARING BRACKET | |
| A 6014201078 | BEARING BRACKET | |
| A 6014200040 | ADJUSTING LEVER | |
| A 6014201585 | BRAKE CABLE | |
| A 6014201685 | BRAKE CABLE | |
| A 6014270215 | PAWL | |
| A 6014270074 | PIN | |
| A 6014270874 | PIN | |
| N 912002014000 | LOCK | |
| N 000000002965 | CLIP | |
| 430 | A 6014200885 | BRAKE CABLE |
| FROM HAND BRAKE LEVER TO FRONT INTERMEDIATE LEVER | ||
| 430 | A 6014200411 | CONVERSION KIT |
| HAND BRAKE | ||
| A 6014271411 | BEARING BRACKET | |
| A 6014200978 | BEARING BRACKET | |
| A 6014201585 | BRAKE CABLE | |
| A 6014201685 | BRAKE CABLE | |
| A 6014270215 | PAWL | |
| A 6014270074 | PIN | |
| A 6014200040 | ADJUSTING LEVER | |
| A 6014270874 | PIN | |
| N 912002014000 | LOCK | |
| N 000000002965 | CLIP | |
| 430 | A 6014200111 | CONVERSION KIT |
| HAND BRAKE | ||
| A 6014271511 | BEARING BRACKET | |
| A 6014201078 | BEARING BRACKET | |
| A 6014200040 | ADJUSTING LEVER | |
| A 6014201585 | BRAKE CABLE | |
| A 6014201785 | BRAKE CABLE | |
| A 6014270215 | PAWL | |
| A 6014270074 | PIN | |
| A 6014270874 | PIN | |
| N 912002014000 | LOCK | |
| N 000000002965 | CLIP | |
| 435 | A 6014201685 | BRAKE CABLE |
| FROM LEVER TO DOUBLE LEVER | ||
| 435 | A 6014201785 | BRAKE CABLE |
| FROM LEVER TO DOUBLE LEVER | ||
| 445 | A 6014270074 | PIN |
| 445 | A 6014270874 | PIN |
| 446 | N 912007008000 | CLIP |
| Repalced by: N 000000002965 | ||
| 446 | N 000000002965 | CLIP |
| 458 | A 6014200778 | BEARING BRACKET |
| Repalced by: A 6014200978 | ||
| 458 | A 6014200978 | BEARING BRACKET |
| 458 | A 6014200878 | BEARING BRACKET |
| Repalced by: A 6014201078 | ||
| 458 | A 6014201078 | BEARING BRACKET |
| 465 | N 001444010207 | PIN |
| Repalced by: A 4252920074 | ||
| 465 | A 4252920074 | PIN |
| 472 | A 6014200091 | LEVER |
| Repalced by: A 6014200040 | ||
| 472 | A 6014200091 | LEVER |
| Repalced by: A 6014200040 | ||
| 472 | A 6014200040 | ADJUSTING LEVER |
| 475 | N 912002014000 | LOCK |
| 492 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 492 | N 304017008021 | SCREW |
| HAND BRAKE LEVER TO FRAME | ||
| M 8X22 | ||
| 492 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 492 | N 304017008027 | SCREW |
| HAND BRAKE LEVER TO FRAME | ||
| M 8X30 | ||
| 496 | N 000125008443 | WASHER |
| HAND BRAKE LEVER TO FRAME | ||
| 500 | N 912004008102 | LOCK WASHER |
| HAND BRAKE LEVER TO FRAME | ||
| 506 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 506 | N 304032008006 | NUT |
| HAND BRAKE LEVER TO FRAME | ||
| 509 | A 1109870441 | RUBBER RING |
| HAND BRAKE LEVER TO FRAME | ||
| 512 | N 000933006102 | SCREW |
| 516 | N 912004006102 | LOCK WASHER |
| 522 | A 6014270091 | GROMMET |
| 532 | A 6014270013 | LEVER |
| 535 | A 6014270441 | BRACKET |
| FROM BRAKE POWER REGULATOR TO BRAKE HOSE | ||
| 538 | N 000933006102 | SCREW |
| BRAKE CABLE TO SUBSTRUCTURE | ||
| 538 | N 000933006102 | SCREW |
| BRAKE CABLE TO SUBSTRUCTURE | ||
| 544 | N 912004006102 | LOCK WASHER |
| BRAKE CABLE TO SUBSTRUCTURE | ||
| 544 | N 912004006102 | LOCK WASHER |
| BRAKE CABLE TO SUBSTRUCTURE | ||
| 548 | N 000934006007 | NUT |
| BRAKE CABLE TO SUBSTRUCTURE | ||
| 548 | N 000934006007 | NUT |
| BRAKE CABLE TO SUBSTRUCTURE | ||
| 548 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 548 | N 913004006001 | NUT |
| BRAKE CABLE TO SUBSTRUCTURE | ||
| 552 | A 8379951001 | CLAMP |
| Repalced by: N 916016010201 | ||
| 552 | N 916016010201 | CLAMP |
| Repalced by: N 916016010211 | ||
| 552 | N 916016010211 | CLAMP |
| Repalced by: N 000000001045 | ||
| 552 | N 000000001045 | CLAMP |
| BRAKE CABLE TO SUBSTRUCTURE | ||
| 560 | N 006319008301 | SPHERICAL WASHER |
| LEVER TO BRAKE CABLE | ||
| 566 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 566 | N 304032008006 | NUT |
| LEVER TO BRAKE CABLE | ||
| 572 | A 6014280740 | BRACKET |
| LEVER TO BRAKE CABLE | ||
| 578 | A 6019930210 | SPRING |
| LEVER TO BRAKE CABLE | ||
| 585 | A 1159930325 | SPRING |
| BRAKE CABLE TO BRACKET | ||
| 590 | A 6014201185 | BRAKE CABLE |
| REAR | ||
| PERROT | ||
| 590 | A 6014203385 | BRAKE CABLE |
| Repalced by: A 6014204685 | ||
| 590 | A 6014204685 | BRAKE CABLE |
| REAR LEFT | ||
| DB | ||
| 590 | A 6014203685 | BRAKE CABLE |
| REAR LEFT | ||
| DB | ||
| 590 | A 6014203485 | BRAKE CABLE |
| Repalced by: A 6014204785 | ||
| 590 | A 6014204785 | BRAKE CABLE |
| REAR RIGHT | ||
| DB | ||
| 590 | A 6014203785 | BRAKE CABLE |
| REAR RIGHT | ||
| DB | ||
| 596 | A 6019930025 | SPRING |
| PERROT | ||
| 601 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 601 | N 304017008016 | SCREW |
| BRAKE CABLE GUIDE TO BRAKE ANCHOR PLATE | ||
| DB | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
