Transporto priemonė: 208/210; VIN numerio dalis: 601062

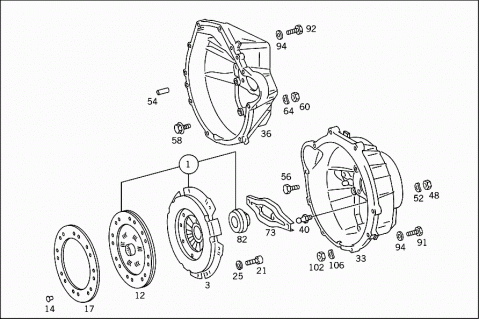

Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 0152502801 | CLUTCH |
| Repalced by: A 0152502901 | ||
| 001 | A 0152502901 | CLUTCH |
| PARTS KIT | ||
| 001 | A 0152503101 | CLUTCH |
| Repalced by: A 0152503301 | ||
| 001 | A 0152503301 | CLUTCH |
| Repalced by: A 0152503701 | ||
| 001 | A 0152503701 | CLUTCH |
| PARTS KIT | ||
| 001 | A 0152503501 | CLUTCH |
| PARTS KIT | ||
| 001 | A 0152503201 | CLUTCH |
| Repalced by: A 0152503601 | ||
| 001 | A 0152503601 | CLUTCH |
| PARTS KIT | ||
| 001 | A 0152503801 | CLUTCH |
| PARTS KIT | ||
| 001 | A 0152503601 | CLUTCH |
| PARTS KIT | ||
| 003 | A 0032500804 | CLUTCH PRESSURE PLATE |
| 003 | A 0042508304 | CLUTCH PRESSURE PLATE |
| 003 | A 0022507304 | CLUTCH PRESSURE PLATE |
| 003 | A 0022507304 | CLUTCH PRESSURE PLATE |
| 003 | A 0032506604 | CLUTCH PRESSURE PLATE |
| 003 | A 0032506604 | CLUTCH PRESSURE PLATE |
| 003 | A 0032507904 | CLUTCH PRESSURE PLATE |
| 003 | A 0032509104 | CLUTCH PRESSURE PLATE |
| 012 | A 0092509103 | CLUTCH DISC |
| 012 | A 0102504903 | CLUTCH DISC |
| Repalced by: A 0182508903 | ||
| 012 | A 0182508903 | CLUTCH DISC |
| 012 | A 0092502603 | CLUTCH DISC |
| 014 | A 0002524375 | RIVET |
| LINING WITH INTERMEDIATE SPRING | ||
| 017 | A 0012526210 | CLUTCH LINING |
| ASBESTOS-FREE | ||
| 021 | N 000912008012 | SCREW |
| CLUTCH PRESSURE PLATE TO FLYWHEEL | ||
| 025 | N 912004008102 | LOCK WASHER |
| CLUTCH PRESSURE PLATE TO FLYWHEEL | ||
| 033 | A 1152512701 | BELL HOUSING |
| Repalced by: A 1152506905 | ||
| 033 | A 1152506905 | HOUSING |
| 036 | A 6022510201 | BELL HOUSING |
| Repalced by: A 6022501905 | ||
| 036 | A 6022501905 | HOUSING |
| 040 | A 1159910115 | BALL PIVOT |
| RELEASE YOKE BEARING | ||
| 048 | N 000936010008 | NUT |
| BALL PIVOT TO BELL HOUSING | ||
| 052 | N 000137010201 | SPRING WASHER |
| BALL PIVOT TO BELL HOUSING | ||
| 054 | N 000007010102 | CYLINDRICAL PIN |
| BELL HOUSING TO ENGINE | ||
| 056 | N 000931010282 | SCREW |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 058 | A 0009900910 | SCREW |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 060 | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 060 | N 304032010003 | NUT |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 064 | N 000137010201 | SPRING WASHER |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 073 | A 1152900029 | RELEASE YOKE |
| 082 | A 0002505115 | RELEASE BEARING |
| 082 | A 0002505215 | RELEASE BEARING |
| 091 | N 000931010268 | SCREW |
| Repalced by: N 304017010050 | ||
| 091 | N 304017010050 | SCREW |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| M 10X70 | ||
| 092 | N 000933010094 | SCREW |
| BELL HOUSING TO ENGINE | ||
| M 10X40 | ||
| 094 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 094 | N 000125010532 | WASHER |
| BELL HOUSING TO ENGINE | ||
| 102 | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 102 | N 304032010003 | NUT |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| 106 | N 000137010201 | SPRING WASHER |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
