Transporto priemonė: 208/210; VIN numerio dalis: 601062

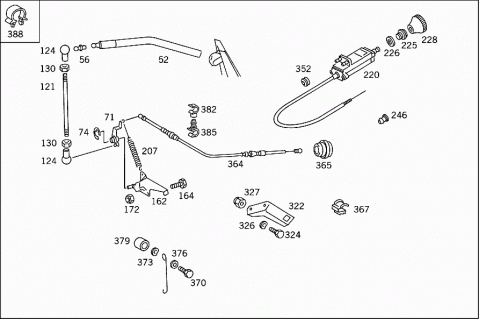

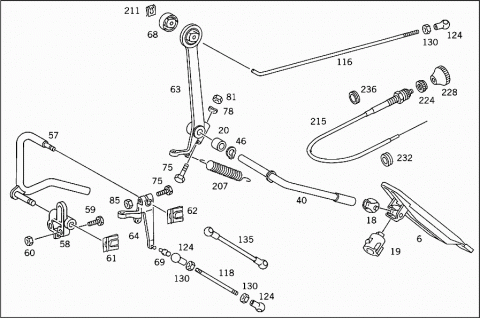

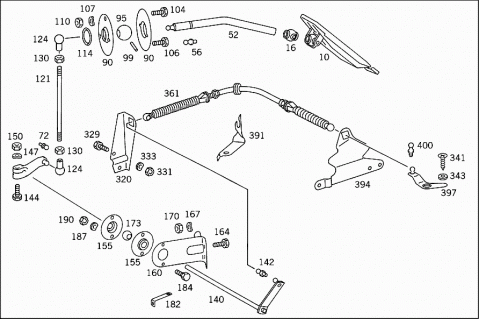

Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 006 | A 6013000604 | ACCELERATOR PEDAL |
| 006 | A 6013000604 | ACCELERATOR PEDAL |
| 010 | A 6033010002 | PEDAL PLATE |
| Repalced by: A 6083000104 | ||
| 010 | A 6083000104 | ACCELERATOR PEDAL |
| 016 | A 1153010022 | JOINT |
| 018 | A 3093010022 | JOINT |
| 018 | A 3093010022 | JOINT |
| 019 | A 1263010141 | STOP |
| FULL THROTTLE | ||
| 020 | A 3193010150 | BUSHING |
| 040 | A 6013000304 | ACCELERATOR PEDAL |
| (ACCELERATOR PEDAL CONTROL ROD) | ||
| 046 | N 900055010402 | RETAINING RING |
| 052 | A 6013000504 | ACCELERATOR PEDAL |
| (ACCELERATOR PEDAL CONTROL ROD) | ||
| 056 | N 071803008207 | BALL PIVOT |
| 057 | A 6013002625 | LEVER |
| (ACCELERATOR PEDAL CONTROL ROD) | ||
| 058 | A 2013010218 | BEARING |
| PEDAL LEVER TO FRONT PANEL | ||
| 059 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 059 | N 304017006016 | SCREW |
| PEDAL LEVER BEARING TO FRONT PANEL | ||
| 060 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 060 | N 913004006001 | NUT |
| PEDAL LEVER BEARING TO FRONT PANEL | ||
| 061 | N 912007012000 | CLIP |
| PEDAL LEVER TO BEARING | ||
| 062 | N 912007006001 | CLIP |
| WIRE CABLE TO ACCELERATOR PEDAL | ||
| 063 | A 6013000625 | LEVER |
| (CONTROL LEVER) | ||
| 064 | A 6013001525 | LEVER |
| (CONTROL LEVER) | ||
| 064 | A 6013002125 | LEVER |
| (CONTROL LEVER) | ||
| 068 | A 6013010050 | BUSHING |
| 069 | N 071803008207 | BALL PIVOT |
| 071 | A 6013001625 | LEVER |
| (CONTROL LEVER) | ||
| 072 | N 071803008205 | BALL PIVOT |
| 074 | N 006799007007 | LOCK PLATE |
| 075 | N 000931008266 | SCREW |
| CONTROL LEVER TO ACCELERATOR PEDAL | ||
| 078 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 078 | N 000137008212 | SPRING WASHER |
| CONTROL LEVER TO ACCELERATOR PEDAL | ||
| 081 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 081 | N 304032008006 | NUT |
| CONTROL LEVER TO ACCELERATOR PEDAL | ||
| 085 | N 910113008001 | NUT |
| CONTROL LEVER TO ACCELERATOR PEDAL | ||
| 090 | A 6013010135 | BEARING BRACKET |
| ACCELERATOR PEDAL CONTROL | ||
| 095 | A 6013010018 | BEARING |
| ACCELERATOR PEDAL CONTROL | ||
| 099 | N 000007005303 | CYLINDRICAL PIN |
| 104 | N 000933006122 | SCREW |
| Repalced by: N 304017006034 | ||
| 104 | N 304017006034 | SCREW |
| BEARING BRACKET TO FIRE WALL | ||
| M 6X10 | ||
| 106 | N 000933006102 | SCREW |
| BEARING BRACKET TO FIRE WALL | ||
| M 6X16 | ||
| 107 | N 000137006204 | SPRING WASHER |
| BEARING BRACKET TO FIRE WALL | ||
| 110 | N 000934006007 | NUT |
| BEARING BRACKET TO FIRE WALL | ||
| 110 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 110 | N 913004006001 | NUT |
| BEARING BRACKET TO FIRE WALL | ||
| 114 | A 0019875646 | SEALING CORD |
| BEARING BRACKET TO FIRE WALL | ||
| 116 | A 6013010115 | ROD |
| FROM CONTROL LEVER TO REVERSING LEVER | ||
| 116 | A 6013010715 | ROD |
| FROM CONTROL LEVER TO REVERSING LEVER | ||
| 118 | N 900331005050 | PULL ROD |
| FROM CONTROL LEVER TO REVERSING LEVER | ||
| 121 | N 900331005161 | PULL ROD |
| FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE | ||
| 124 | A 6089910022 | BALL SOCKET |
| 124 | A 6089910022 | BALL SOCKET |
| 130 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 130 | N 304032005005 | NUT |
| 135 | A 6013014015 | ROD |
| FROM CONTROL LEVER TO REVERSING LEVER | ||
| 140 | A 6013000520 | SHAFT |
| (REVERSING SHAFT) | ||
| 142 | N 071803008207 | BALL PIVOT |
| 144 | N 000933008116 | SCREW |
| Repalced by: N 000933008337 | ||
| 144 | N 000933008337 | SCREW |
| Repalced by: A 0099900101 | ||
| 144 | A 0099900101 | SCREW |
| CONTROL LEVER TO CONTROL SHAFT | ||
| 147 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 147 | N 000137008212 | SPRING WASHER |
| CONTROL LEVER TO CONTROL SHAFT | ||
| 150 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 150 | N 304032008006 | NUT |
| CONTROL LEVER TO CONTROL SHAFT | ||
| 155 | A 6083010036 | COVER |
| REVERSING SHAFT | ||
| 160 | A 6013010240 | BRACKET |
| REVERSING SHAFT | ||
| 162 | A 6013000036 | BEARING BRACKET |
| REVERSING SHAFT | ||
| 164 | N 000933008130 | SCREW |
| Repalced by: N 304017008039 | ||
| 164 | N 304017008039 | SCREW |
| BRACKET TO FIRE WALL | ||
| 167 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 167 | N 000137008212 | SPRING WASHER |
| BRACKET TO FIRE WALL | ||
| 170 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 170 | N 304032008006 | NUT |
| BRACKET TO FIRE WALL | ||
| 172 | N 910113008001 | NUT |
| BEARING BRACKET TO FIRE WALL | ||
| 173 | A 6083010018 | BEARING |
| REVERSING SHAFT | ||
| 182 | A 6013010044 | ANGLE |
| REVERSING SHAFT | ||
| 184 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 184 | N 304017006018 | SCREW |
| COVER TO BRACKET | ||
| M 6X12 | ||
| 184 | N 000933006102 | SCREW |
| COVER TO BRACKET | ||
| M 6X15 | ||
| 187 | N 000137006204 | SPRING WASHER |
| COVER TO BRACKET | ||
| 190 | N 000934006007 | NUT |
| COVER TO BRACKET | ||
| 207 | A 1219930010 | SPRING |
| ACCELERATOR PEDAL RESET | ||
| 207 | A 1219930010 | SPRING |
| ACCELERATOR PEDAL RESET | ||
| 207 | A 1269932810 | SPRING |
| ACCELERATOR PEDAL RESET | ||
| 211 | N 912007005000 | CLIP |
| LINK TO LEVER | ||
| 215 | A 6013000330 | WIRE CABLE |
| Repalced by: A 6013000730 | ||
| 215 | A 6013000430 | WIRE CABLE |
| Repalced by: A 6013000730 | ||
| 215 | A 6013000830 | WIRE CABLE |
| Repalced by: A 6013000730 | ||
| 220 | A 6013000730 | WIRE CABLE |
| (CHOKE CABLE) | ||
| 224 | A 6019900057 | NUT |
| 225 | A 6013020008 | GUIDE |
| CHOKE CABLE | ||
| 226 | A 0019904140 | WASHER |
| CHOKE CABLE | ||
| 228 | A 0005454837 | BUTTON |
| CHOKE CABLE | ||
| 232 | A 8339970381 | GROMMET |
| WIRE CABLE TO BRACKET | ||
| 236 | A 3129970981 | GROMMET |
| BORE IN HOOD CLAMP | ||
| 236 | A 0009971981 | GROMMET |
| Repalced by: A 0009972081 | ||
| 236 | A 0009972081 | GROMMET |
| BORE IN HOOD CLAMP | ||
| 236 | A 6019971381 | GROMMET |
| BORE IN HOOD CLAMP | ||
| 236 | A 6019972681 | GROMMET |
| BORE IN HOOD CLAMP | ||
| 246 | A 0009977586 | PLUG |
| INSTRUMENT PANEL PLUG | ||
| 320 | A 6013010440 | BRACKET |
| WIRE CABLE TO CAB | ||
| 322 | A 6013010740 | BRACKET |
| Repalced by: A 6013011140 | ||
| 322 | A 6013011140 | BRACKET |
| WIRE CABLE TO CAB | ||
| 324 | N 000933006207 | SCREW |
| BRACKET TO ENGINE | ||
| 326 | N 000137006204 | SPRING WASHER |
| BRACKET TO ENGINE | ||
| 327 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 327 | N 913004006001 | NUT |
| BRACKET TO BRACKET | ||
| 329 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 329 | N 304017006018 | SCREW |
| BRACKET TO BRACKET | ||
| 331 | N 000934006007 | NUT |
| BRACKET TO BRACKET | ||
| 333 | N 000137006204 | SPRING WASHER |
| BRACKET TO BRACKET | ||
| 341 | N 007976004217 | SHEET METAL SCREW |
| Repalced by: N 914128004303 | ||
| 341 | N 914128004303 | SHEET METAL SCREW |
| LEVER TO BRACKET | ||
| 343 | N 000125006421 | WASHER |
| LEVER TO BRACKET | ||
| Repalced by: N 000125006449 | ||
| 343 | N 000125006449 | WASHER |
| LEVER TO BRACKET | ||
| 352 | A 0009972081 | GROMMET |
| WIRE CABLE TO FIRE WALL | ||
| 361 | A 6013000530 | WIRE CABLE |
| FROM LEVER TO INTERMEDIATE LEVER AT ENGINE | ||
| 364 | A 6013001230 | WIRE CABLE |
| FROM LEVER TO INTERMEDIATE LEVER AT ENGINE | ||
| 364 | A 6013001630 | WIRE CABLE |
| Repalced by: A 6013003430 | ||
| 364 | A 6013003430 | WIRE CABLE |
| FROM LEVER TO INTERMEDIATE LEVER AT ENGINE | ||
| 364 | A 6013001830 | WIRE CABLE |
| Repalced by: A 6013003630 | ||
| 364 | A 6013003630 | WIRE CABLE |
| FROM LEVER TO INTERMEDIATE LEVER AT ENGINE | ||
| 365 | A 2013010285 | RUBBER BUFFER |
| WIRE CABLE TO FIRE WALL | ||
| 367 | A 0009881878 | CLIP |
| AT RADIATOR | ||
| A 6013010940 | BRACKET | |
| WIRE CABLE | ||
| 370 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 370 | N 304017008018 | SCREW |
| BRACKET TO FIRE WALL | ||
| 373 | N 900055008002 | SPRING WASHER |
| BRACKET TO FIRE WALL | ||
| 376 | N 000125008443 | WASHER |
| BRACKET TO FIRE WALL | ||
| 379 | A 3094280053 | SPACER TUBE |
| BRACKET TO FIRE WALL | ||
| 382 | A 0009951765 | CLAMP |
| BOWDEN CABLE TO BRAKE LINE | ||
| 385 | A 0009952965 | CLAMP |
| BOWDEN CABLE TO BRAKE LINE | ||
| 388 | A 0009955444 | CLAMP |
| Repalced by: A 0009956044 | ||
| 388 | A 0009956044 | CLAMP |
| BOWDEN WIRE AT FRONT END BRACE | ||
| 391 | A 6013010640 | BRACKET |
| CARBURETOR | ||
| 394 | A 6013010540 | BRACKET |
| WIRE CABLE TO ENGINE | ||
| 397 | A 6013001225 | LEVER |
| (CONTROL LEVER) | ||
| 400 | N 071803008207 | BALL PIVOT |
| (CONTROL LEVER) | ||
