Transporto priemonė: 208/210; VIN numerio dalis: 601062

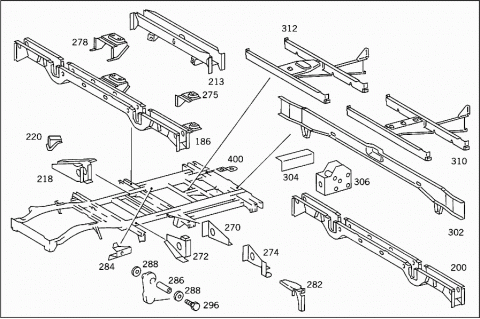

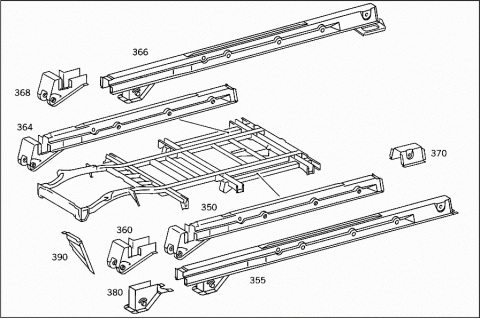

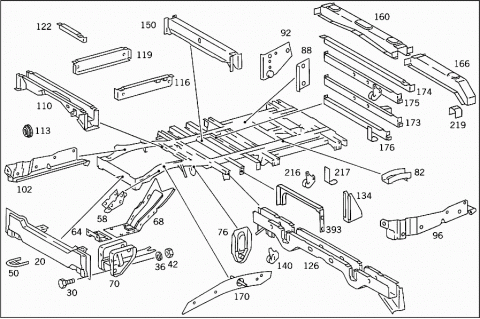

Grupė: 31 FRAME
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR SIDE MEMBER REPAIR VERSION,SEE: | ||
| SA 43 683 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR REINFORCEMENT USED FOR STRAIGHTENED SIDE MEMBER,SEE: | ||
| SA 43 676 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR REAR CROSS MEMBER USED FOR TRAILER COUPLING (RETROFIT), SEE: | ||
| SA 43 742 | ||
| 020 | A 6013100222 | CROSS MEMBER |
| Repalced by: A 6013101222 | ||
| 020 | A 6013101222 | CROSS MEMBER |
| Repalced by: A 6013101422 | ||
| 020 | A 6013101422 | CROSS MEMBER |
| RADIATOR | ||
| NO. 1 | ||
| 020 | A 6013101622 | CROSS MEMBER |
| RADIATOR | ||
| NO. 1 | ||
| 030 | N 000933010128 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 036 | N 912004010102 | LOCK WASHER |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 042 | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 042 | N 304032010003 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 050 | A 6013100008 | TOW HOOK |
| Repalced by: A 6113100008 | ||
| 050 | A 6113100008 | TOW HOOK |
| (TOW-HOOK) | ||
| 058 | A 6013100809 | BRACKET |
| AT SIDE MEMBER | ||
| 064 | A 6013170215 | RAIL |
| FRONT SPRING FRONT BRACKET | ||
| 068 | A 6013100052 | COVER |
| STEERING BRACKET TO SIDE MEMBER,LEFT | ||
| 068 | A 6013100152 | COVER |
| STEERING BRACKET TO SIDE MEMBER,RIGHT | ||
| 068 | A 6013170655 | COVER |
| STEERING BRACKET TO SIDE MEMBER,LEFT | ||
| 068 | A 6013170755 | COVER |
| STEERING BRACKET TO SIDE MEMBER,RIGHT | ||
| 070 | A 6013200270 | REAR SUBFRAME |
| FRONT SPRING FRONT BRACKET | ||
| 076 | A 6013200470 | REAR SUBFRAME |
| (ROLLER CARRIER) | ||
| 082 | A 6013110187 | STOP |
| AT SIDE MEMBER | ||
| 088 | A 6013260250 | BUSHING |
| INSIDE RIGHT | ||
| 088 | A 6013260250 | BUSHING |
| INSIDE RIGHT | ||
| 088 | A 6013260350 | BUSHING |
| INSIDE LEFT | ||
| 088 | A 6013260350 | BUSHING |
| INSIDE LEFT | ||
| 092 | A 6013260550 | BUSHING |
| RIGHT OUTSIDE,RIGHT | ||
| 092 | A 6013260450 | BUSHING |
| LEFT OUTSIDE,LEFT | ||
| 096 | A 6012420002 | SUPPORT |
| ENGINE LEFT REAR MOUNTING | ||
| 096 | A 6012420602 | SUPPORT |
| ENGINE LEFT REAR MOUNTING | ||
| 102 | A 6012420102 | SUPPORT |
| Repalced by: A 6012400006 | ||
| 102 | A 6012400006 | CONSOLE |
| ENGINE RIGHT REAR MOUNTING | ||
| 102 | A 6012420702 | SUPPORT |
| ENGINE RIGHT REAR MOUNTING | ||
| 110 | A 6013100024 | CROSS MEMBER |
| Repalced by: A 6013100424 | ||
| 110 | A 6013100424 | CROSS MEMBER |
| Repalced by: A 6013101024 | ||
| 110 | A 6013101024 | CROSS MEMBER |
| FRONT SPRING,REAR | ||
| NO. 2 | ||
| 110 | A 6013100124 | CROSS MEMBER |
| Repalced by: A 6013100524 | ||
| 110 | A 6013100524 | CROSS MEMBER |
| Repalced by: A 6013101124 | ||
| 110 | A 6013101124 | CROSS MEMBER |
| FRONT SPRING,REAR | ||
| NO. 2 | ||
| 113 | A 6012570076 | WASHER |
| CLUTCH LINE | ||
| 113 | A 6012570076 | WASHER |
| CLUTCH LINE | ||
| 116 | A 6013170040 | BRACKET |
| Repalced by: A 6013100109 | ||
| 116 | A 6013100109 | BRACKET |
| LEFT | ||
| 116 | A 6013171240 | BRACKET |
| LEFT | ||
| 119 | A 6013170140 | BRACKET |
| Repalced by: A 6013101409 | ||
| 119 | A 6013101409 | BRACKET |
| RIGHT | ||
| 119 | A 6013103609 | BRACKET |
| RIGHT | ||
| 122 | A 6013100168 | RAIL |
| LEFT | ||
| 122 | A 6013103509 | BRACKET |
| LEFT | ||
| A 6013100068 | RAIL | |
| RIGHT | ||
| 126 | A 6013102137 | CROSS MEMBER |
| Repalced by: A 6013100237 | ||
| 126 | A 6013100237 | CROSS MEMBER |
| Repalced by: A 6113101137 | ||
| 126 | A 6113101137 | CROSS MEMBER |
| CAB,REAR | ||
| NO.3 | ||
| 126 | A 6113102537 | CROSS MEMBER |
| CAB,REAR | ||
| NO.3 | ||
| 134 | A 6013102109 | BRACKET |
| Repalced by: A 6014700281 | ||
| 134 | A 6013102209 | BRACKET |
| Repalced by: A 6014700281 | ||
| 134 | A 6014700281 | BRACKET |
| FUEL TANK | ||
| 140 | A 6014921241 | BRACKET |
| Repalced by: A 6014920440 | ||
| 140 | A 6014920440 | CLAMP |
| EXHAUST | ||
| 150 | A 6013100136 | CROSS MEMBER |
| Repalced by: A 6013100236 | ||
| 150 | A 6013100636 | CROSS MEMBER |
| Repalced by: A 6113100436 | ||
| 150 | A 6113100436 | CROSS MEMBER |
| INTERMEDIATE SHAFT BEARING | ||
| NO.4 | ||
| 160 | A 6013101367 | BODY SUPPORT |
| (CROSS MEMBER) | ||
| NO.5 | ||
| 160 | A 6013101367 | BODY SUPPORT |
| (CROSS MEMBER) | ||
| NO.5,NO.10 | ||
| 160 | A 6013101367 | BODY SUPPORT |
| (CROSS MEMBER) | ||
| NO.10 | ||
| 166 | A 6013101467 | BODY SUPPORT |
| OUTSIDE LEFT | ||
| 170 | A 6013200841 | CONSOLE |
| LEFT | ||
| 170 | A 6013200941 | CONSOLE |
| RIGHT | ||
| 173 | A 6013100937 | CROSS MEMBER |
| FRAME STRUTTING | ||
| NO.5 | ||
| 173 | A 6013101737 | CROSS MEMBER |
| FRAME STRUTTING | ||
| NO.5 | ||
| 174 | A 6013120825 | CROSS MEMBER |
| FRAME STRUTTING | ||
| NO.5 | ||
| 175 | A 6013100837 | CROSS MEMBER |
| FRAME STRUTTING | ||
| NO.6 | ||
| 176 | A 6013101637 | CROSS MEMBER |
| FRAME STRUTTING | ||
| NO.6 | ||
| 186 | A 6013100842 | CROSS MEMBER |
| Repalced by: A 6013100338 | ||
| 186 | A 6013100338 | CROSS MEMBER |
| Repalced by: A 6113100638 | ||
| 186 | A 6113100638 | CROSS MEMBER |
| REAR SPRING,FRONT | ||
| NO.7 | ||
| 186 | A 6113100638 | CROSS MEMBER |
| REAR SPRING,FRONT | ||
| NO.6 | ||
| 186 | A 6013100637 | CROSS MEMBER |
| Repalced by: A 6013100538 | ||
| 186 | A 6013100538 | CROSS MEMBER |
| REAR SPRING,FRONT | ||
| NO.7 | ||
| 186 | A 6014030301 | SUPPORT |
| Repalced by: A 6014030701 | ||
| 186 | A 6014030701 | SUPPORT |
| (CROSS MEMBER) | ||
| NO.7 | ||
| 186 | A 6014030701 | SUPPORT |
| (CROSS MEMBER) | ||
| NO.9 | ||
| 186 | A 6014030701 | SUPPORT |
| (CROSS MEMBER) | ||
| NO.8 | ||
| 200 | A 6013100442 | CROSS MEMBER |
| REAR SPRING,REAR | ||
| NO.8 | ||
| 200 | A 6013100442 | CROSS MEMBER |
| REAR SPRING,REAR | ||
| NO.11 | ||
| 200 | A 6013100442 | CROSS MEMBER |
| REAR SPRING,REAR | ||
| NO.9 | ||
| 213 | A 6013100737 | CROSS MEMBER |
| FRAME STRUTTING | ||
| NO.8 | ||
| 216 | A 6014921641 | BRACKET |
| EXHAUST | ||
| 217 | A 6014922541 | BRACKET |
| EXHAUST | ||
| 218 | A 6014700081 | BRACKET |
| Repalced by: A 6014700581 | ||
| 218 | A 6014700581 | BRACKET |
| FUEL TANK | ||
| 218 | A 6014700781 | BRACKET |
| FUEL TANK | ||
| 219 | A 6013100909 | BRACKET |
| AT CROSS MEMBER | ||
| 220 | A 6014270241 | BRACKET |
| HAND BRAKE | ||
| 270 | A 6014920241 | BRACKET |
| EXHAUST | ||
| 272 | A 6014900340 | BRACKET |
| EXHAUST | ||
| 272 | A 6014900440 | BRACKET |
| EXHAUST | ||
| 274 | A 6014901440 | BRACKET |
| EXHAUST PIPE | ||
| 275 | A 6013101109 | BRACKET |
| SAFETY BELT | ||
| 278 | A 6013101009 | BRACKET |
| SAFETY BELT | ||
| 282 | A 6013101709 | BRACKET |
| SPARE WHEEL | ||
| 284 | A 6013101309 | BRACKET |
| Repalced by: A 6013103209 | ||
| 284 | A 6013102509 | BRACKET |
| Repalced by: A 6013103209 | ||
| 284 | A 6013103209 | BRACKET |
| BRAKE POWER REGULATOR | ||
| 286 | A 6114310050 | BUSHING |
| LEVER TO BRACKET | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 42,FIG.NO.: | ||
| 276 | ||
| 288 | A 6114310076 | WASHER |
| LEVER TO BRACKET | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 42,FIG.NO.: | ||
| 274 | ||
| 296 | N 914125010108 | SCREW |
| LEVER TO BRACKET | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 42,FIG.NO.: | ||
| 278 | ||
| 302 | A 6013100146 | CROSS MEMBER |
| Repalced by: A 6013101646 | ||
| 302 | A 6013101646 | CROSS MEMBER |
| REAR | ||
| 304 | A 6013110083 | ANGLE |
| Repalced by: A 6764760036 | ||
| 304 | A 6764760036 | BRACKET |
| Repalced by: A 6764760136 | ||
| 304 | A 6764760136 | BRACKET |
| REAR CROSS MEMBER TO SIDE MEMBERS | ||
| 306 | A 6013100190 | STIFFENING |
| REAR CROSS MEMBER TO SIDE MEMBERS | ||
| 310 | A 6014001439 | BRACKET |
| SPARE WHEEL MOUNTING | ||
| 312 | A 6014001839 | BRACKET |
| SPARE WHEEL MOUNTING | ||
| 350 | A 6013102218 | SIDE MEMBER |
| REAR LEFT | ||
| 355 | A 6013102018 | SIDE MEMBER |
| REAR LEFT | ||
| 360 | A 6013200475 | SPRING BRACKET |
| FRONT LEFT | ||
| 364 | A 6013102318 | SIDE MEMBER |
| RIGHT | ||
| 366 | A 6013102118 | SIDE MEMBER |
| RIGHT | ||
| 368 | A 6013200775 | SPRING BRACKET |
| FRONT RIGHT | ||
| 370 | A 6013250203 | REAR SPRING BRACKET |
| REAR | ||
| 380 | A 6013200375 | SPRING BRACKET |
| FRONT | ||
| 390 | A 6016110230 | CONNECTION |
| LEFT | ||
| 390 | A 6016110330 | CONNECTION |
| RIGHT | ||
| 393 | A 6013170807 | SUPPORT |
| BODY MOUNTING | ||
| 400 | A 6013150061 | EYE |
| TOW-HOOK | ||
