Transporto priemonė: 208/210; VIN numerio dalis: 601062

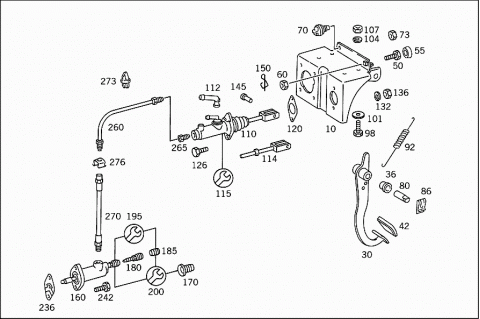

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 6012900019 | BEARING BRACKET |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 010 | A 6012900319 | BEARING BRACKET |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 030 | A 6012900001 | PEDAL |
| BRAKE | ||
| 030 | A 6012900001 | PEDAL |
| CLUTCH | ||
| 030 | A 6012900901 | PEDAL |
| CLUTCH | ||
| 030 | A 6012900101 | PEDAL |
| BRAKE | ||
| 030 | A 6012900101 | PEDAL |
| CLUTCH | ||
| 030 | A 6022900101 | PEDAL |
| CLUTCH | ||
| 036 | A 1102910550 | BUSHING |
| Repalced by: A 1242920050 | ||
| 036 | A 1242920050 | BUSHING |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 042 | A 1102910182 | PAD |
| Repalced by: A 1072910182 | ||
| 042 | A 1072910182 | PAD |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 042 | A 3192920082 | PAD |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 050 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 050 | N 304017008034 | SCREW |
| CLUTCH PEDAL STOP | ||
| 055 | A 6012910182 | PAD |
| CLUTCH PEDAL STOP | ||
| 060 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 060 | N 304035008001 | NUT |
| CLUTCH PEDAL STOP | ||
| 070 | A 0005455309 | SWITCH |
| Repalced by: A 0005456809 | ||
| 070 | A 0005456809 | SWITCH |
| STOP LIGHT | ||
| 073 | A 0009909251 | NUT |
| STOP LIGHT SWITCH TO CONSOLE | ||
| 080 | A 6012940005 | SHAFT |
| PEDALS TO CONSOLE | ||
| 086 | A 0009941151 | LOCK |
| PEDALS TO CONSOLE | ||
| 092 | A 1809931010 | SPRING |
| Repalced by: A 1079930410 | ||
| 092 | A 1079930410 | SPRING |
| CLUTCH PEDAL | ||
| 098 | N 000933008145 | SCREW |
| CONSOLE WITH PEDALS TO FIRE WALL | ||
| 101 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 101 | N 009021008213 | WASHER |
| CONSOLE WITH PEDALS TO FIRE WALL | ||
| Repalced by: N 000000003250 | ||
| 101 | N 000000003250 | WASHER |
| CONSOLE WITH PEDALS TO FIRE WALL | ||
| 104 | N 912004008102 | LOCK WASHER |
| CONSOLE WITH PEDALS TO FIRE WALL | ||
| 107 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 107 | N 304032008006 | NUT |
| CONSOLE WITH PEDALS TO FIRE WALL | ||
| 110 | A 0002959606 | MASTER CYLINDER |
| CLUTCH OPERATION | ||
| FAG, M10X1 | ||
| 110 | A 0002959706 | MASTER CYLINDER |
| CLUTCH OPERATION | ||
| TEVES | ||
| 110 | A 0012951106 | MASTER CYLINDER |
| Repalced by: A 0012957606 | ||
| 110 | A 0012957606 | MASTER CYLINDER |
| Repalced by: A 0012957906 | ||
| 110 | A 0012957906 | MASTER CYLINDER |
| Repalced by: A 0012958606 | ||
| 110 | A 0012958606 | MASTER CYLINDER |
| CLUTCH OPERATION | ||
| FAG, M12X1 | ||
| 112 | A 0009907371 | ELBOW FITTING |
| FAG | ||
| 114 | A 0002950333 | ROD |
| TO 000 295 96 06,001 295 11 06 | ||
| 115 | A 0005865129 | REPAIR KIT |
| Repalced by: A 0002901247 | ||
| 115 | A 0002901247 | CLUTCH BOOSTER |
| CLUTCH MASTER CYLINDER | ||
| TO 000 295 96 06,001 295 11 06 | ||
| 115 | A 0002900912 | REPAIR KIT |
| CLUTCH MASTER CYLINDER | ||
| TO 001 295 76 06,001 295 79 06 | ||
| 115 | A 0002903312 | REPAIR KIT |
| CLUTCH MASTER CYLINDER | ||
| TO 001 295 86 06 | ||
| 120 | A 6012950180 | GASKET |
| MASTER CYLINDER TO CONSOLE | ||
| 126 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 126 | N 304017008034 | SCREW |
| CLUTCH MASTER CYLINDER TO PEDAL BEARING BRACKET | ||
| 132 | N 912004008102 | LOCK WASHER |
| CLUTCH MASTER CYLINDER TO PEDAL BEARING BRACKET | ||
| 136 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 136 | N 304032008006 | NUT |
| CLUTCH MASTER CYLINDER TO PEDAL BEARING BRACKET | ||
| 145 | N 001444008206 | PIN |
| Repalced by: A 1262920074 | ||
| 145 | A 1262920074 | PIN |
| BRACKET TO TRANSMISSION | ||
| 150 | N 912011008000 | LOCK |
| MASTER CYLINDER TO PEDAL ASSEMBLY | ||
| 160 | A 0002956507 | SLAVE CYLINDER |
| Repalced by: A 0012956807 | ||
| 160 | A 0012956807 | SLAVE CYLINDER |
| Repalced by: A 0022951307 | ||
| 160 | A 0022951307 | SLAVE CYLINDER |
| CLUTCH OPERATION | ||
| TEVES | ||
| 160 | A 0002958207 | SLAVE CYLINDER |
| Repalced by: A 0002957607 | ||
| 160 | A 0002957607 | SLAVE CYLINDER |
| CLUTCH OPERATION | ||
| FAG | ||
| 170 | A 0002955783 | BOOT |
| Repalced by: A 2012950983 | ||
| 170 | A 2012950983 | BOOT |
| FAG | ||
| 180 | A 0004201055 | BLEEDER VALVE |
| M 6 | ||
| 180 | A 3075530107 | VALVE |
| BREATHER | ||
| M 8 | ||
| 185 | A 3164210187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 185 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 185 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 185 | A 0004210887 | PROTECTIVE CAP |
| 195 | A 0005863929 | REPAIR KIT |
| Repalced by: A 0002902111 | ||
| 195 | A 0002902111 | SLAVE CYLINDER |
| SLAVE CYLINDER | ||
| TEVES | ||
| 200 | A 0005862829 | REPAIR KIT |
| Repalced by: A 0002902867 | ||
| 200 | A 0002902867 | REPAIR KIT |
| Repalced by: A 0002903467 | ||
| 200 | A 0002903467 | REPAIR KIT |
| Repalced by: A 0002901111 | ||
| 200 | A 0002901111 | REPAIR KIT |
| SLAVE CYLINDER | ||
| FAG | ||
| 236 | A 1152510080 | GASKET |
| SLAVE CYLINDER TO BELL HOUSING | ||
| 242 | N 000933008116 | SCREW |
| Repalced by: N 000933008337 | ||
| 242 | N 000933008337 | SCREW |
| Repalced by: A 0099900101 | ||
| 242 | A 0099900101 | SCREW |
| SLAVE CYLINDER TO BELL HOUSING | ||
| 260 | A 6012900313 | LINE |
| Repalced by: A 6012900213 | ||
| 260 | A 6012900213 | LINE |
| Repalced by: A 3404202729 | ||
| 260 | A 3404202729 | LINE |
| FROM CLUTCH MASTER CYLINDER TO CLUTCH HOSE | ||
| 1500 MM, M12X1 | ||
| 260 | A 6012900013 | LINE |
| Repalced by: A 1234207028 | ||
| 260 | A 6012900113 | LINE |
| Repalced by: A 1234207028 | ||
| 260 | A 1234207028 | LINE |
| FROM CLUTCH MASTER CYLINDER TO CLUTCH HOSE | ||
| 1495 MM, M10X1 | ||
| 265 | A 0002952236 | INTERMEDIATE PIECE |
| SLAVE CYLINDER | ||
| 270 | A 0014289335 | BRAKE HOSE |
| FROM HYDRAULIC LINE TO CLUTCH SLAVE CYLINDER | ||
| 270 | A 6012950635 | HOSE |
| FROM HYDRAULIC LINE TO CLUTCH SLAVE CYLINDER | ||
| 270 | A 6012950835 | HOSE |
| FROM HYDRAULIC LINE TO CLUTCH SLAVE CYLINDER | ||
| 270 | A 0024280435 | BRAKE HOSE |
| FROM HYDRAULIC LINE TO CLUTCH SLAVE CYLINDER | ||
| 270 | A 6012950735 | HOSE |
| FROM HYDRAULIC LINE TO CLUTCH SLAVE CYLINDER | ||
| 273 | A 6014280040 | BRACKET |
| CLUTCH LINE TO FRAME | ||
| 273 | A 6014280040 | BRACKET |
| CLUTCH LINE TO FRAME | ||
| 273 | A 6014281340 | BRACKET |
| CLUTCH LINE TO FRAME | ||
| 276 | A 0004280373 | LOCK |
| Repalced by: A 0004280673 | ||
| 276 | A 0004280673 | RETAINING SPRING |
| LINE TO CROSS MEMBER | ||
| 276 | A 0004280473 | BRACKET |
| Repalced by: A 6525040038 | ||
| 276 | A 6525040038 | MOUNTING PLATE |
| LINE TO CROSS MEMBER | ||
