Transporto priemonė: 208/210; VIN numerio dalis: 601062

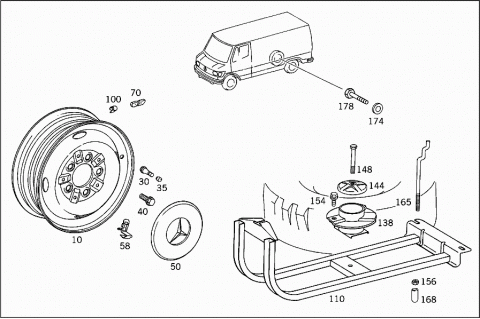

Grupė: 40 WHEELS
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 6014010401 | DISC WHEEL |
| 010 | A 6014010501 | DISC WHEEL |
| 010 | A 6014010301 | DISC WHEEL |
| 030 | A 0004000213 | TIRE VALVE |
| 035 | N 007757008600 | VALVE CAP |
| 040 | A 6014010170 | SCREW |
| Repalced by: A 6014010370 | ||
| 040 | A 6014010370 | SCREW |
| DISC WHEELS TO FRONT AND REAR AXLES | ||
| 040 | A 6014010270 | SCREW |
| DISC WHEELS TO FRONT AND REAR AXLES | ||
| 050 | A 6014010025 | HUB CAP |
| 050 | A 6014010325 | HUB CAP |
| 058 | A 6014010026 | BRACKET |
| HUB CAP | ||
| 070 | A 1084011494 | BALANCING WEIGHT |
| 10 GR | ||
| 070 | A 1244015394 | BALANCING WEIGHT |
| Repalced by: A 1714011494 | ||
| 070 | A 1714011494 | BALANCING WEIGHT |
| 20G | ||
| 070 | A 1244015794 | BALANCING WEIGHT |
| 40G | ||
| 070 | A 1244016594 | BALANCING WEIGHT |
| 80 GR | ||
| 100 | A 1264010828 | RETAINING SPRING |
| BALANCING WEIGHT | ||
| 110 | A 6014000141 | MOUNTING BOW |
| SPARE WHEEL TO FRAME | ||
| 110 | A 6014000141 | MOUNTING BOW |
| SPARE WHEEL TO FRAME | ||
| 110 | A 6014004141 | MOUNTING BOW |
| SPARE WHEEL TO FRAME | ||
| 138 | A 6014001239 | BRACKET |
| SPARE WHEEL TO CARRIER | ||
| 138 | A 6014001239 | BRACKET |
| SPARE WHEEL TO CARRIER | ||
| 138 | A 6014003339 | BRACKET |
| SPARE WHEEL TO CARRIER | ||
| 144 | A 6014030069 | CLAMPING PIECE |
| SPARE WHEEL TO CARRIER | ||
| 144 | A 6014030069 | CLAMPING PIECE |
| SPARE WHEEL TO CARRIER | ||
| 148 | N 000931012175 | SCREW |
| SPARE WHEEL TO CARRIER | ||
| M 12X120 | ||
| 148 | N 000931012175 | SCREW |
| SPARE WHEEL TO CARRIER | ||
| M 12X120 | ||
| 148 | N 000931012091 | SCREW |
| SPARE WHEEL TO CARRIER | ||
| M 12X130 | ||
| 154 | A 6014010170 | SCREW |
| Repalced by: A 6014010370 | ||
| 154 | A 6014010370 | SCREW |
| SPARE WHEEL TO CARRIER | ||
| 154 | A 6014010270 | SCREW |
| SPARE WHEEL TO CARRIER | ||
| 154 | A 6014010270 | SCREW |
| SPARE WHEEL TO CARRIER | ||
| 156 | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 156 | N 304032010003 | NUT |
| MOUNTING BRACKET TO FRAME | ||
| 156 | N 304032010003 | NUT |
| MOUNTING BRACKET TO FRAME | ||
| 165 | A 6014030029 | HOOK BOLT |
| MOUNTING BRACKET TO FRAME | ||
| 165 | A 6014030029 | HOOK BOLT |
| MOUNTING BRACKET TO FRAME | ||
| 168 | A 6089970083 | SLEEVE |
| HOOK BOLT | ||
| 168 | A 6089970083 | SLEEVE |
| HOOK BOLT | ||
| 174 | N 009021013203 | WASHER |
| SPARE WHEEL TO BODY | ||
| 178 | N 000933012040 | SCREW |
| SPARE WHEEL TO BODY | ||
