Transporto priemonė: 209 D/210 D; VIN numerio dalis: 601412

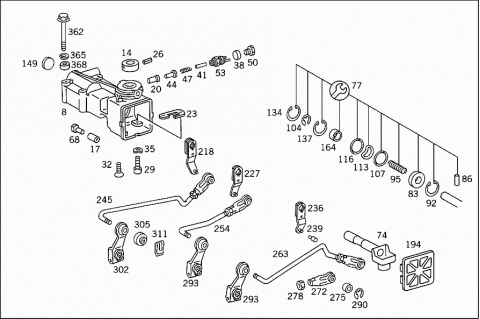

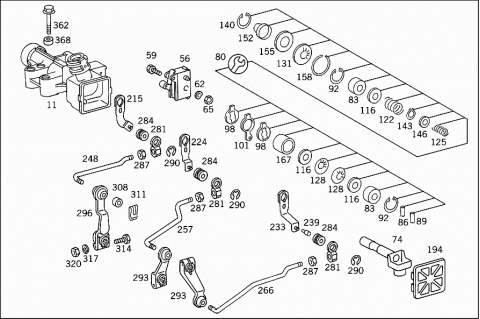

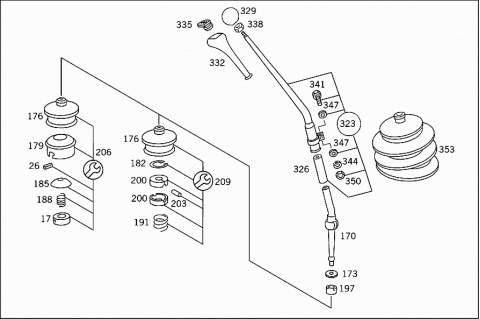

Grupė: 26 TRANSMISSION - 310 MANUAL SHIFT, L.H.D.
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 711.1 | ||
| 008 | A 6112601694 | BEARING BRACKET |
| Repalced by: A 6112601894 | ||
| 008 | A 6112601894 | BEARING BRACKET |
| Repalced by: A 6112602494 | ||
| 008 | A 6112602494 | BEARING BRACKET |
| TRANSMISSION GEARSHIFT | ||
| 011 | A 6012672537 | BEARING BRACKET |
| Repalced by: A 6012672637 | ||
| 011 | A 6012672637 | BEARING BRACKET |
| TRANSMISSION GEARSHIFT | ||
| 014 | A 3192670005 | BEARING |
| GEARSHIFT LEVER LOWER PART | ||
| 017 | A 3192670050 | BUSHING |
| SHIFT LEVER BEARING | ||
| 020 | A 1539920005 | BUSHING |
| INTERLOCK PIN | ||
| 023 | A 6112670541 | STOP |
| GEARSHIFT LEVER LOWER PART | ||
| 026 | N 001473005010 | GROOVED PIN |
| COVER TO BEARING BRACKET | ||
| 029 | N 007984006030 | SCREW |
| STOP TO BEARING BRACKET | ||
| M 6X12 | ||
| 032 | N 914125006704 | SCREW |
| STOP TO BEARING BRACKET | ||
| M 6X10 | ||
| 032 | N 914125006704 | SCREW |
| STOP TO BEARING BRACKET | ||
| M 6X10 | ||
| 035 | N 000137006204 | SPRING WASHER |
| STOP TO BEARING BRACKET | ||
| 038 | N 000443012001 | EXPANSION PLUG |
| SHIFT CASE | ||
| 041 | A 1832610474 | PIN |
| REVERSE SPEED;AS REQUIRED | ||
| 40 MM | ||
| 041 | A 1832610574 | PIN |
| REVERSE SPEED;AS REQUIRED | ||
| 40.5 MM | ||
| 041 | A 1832610674 | PIN |
| REVERSE SPEED;AS REQUIRED | ||
| 41 MM | ||
| 044 | A 1362650048 | INTERLOCK PIN |
| REVERSE SPEED | ||
| 047 | A 1362650093 | PRESSURE SPRING |
| INTERLOCK PIN | ||
| 050 | A 1369970830 | SCREW PLUG |
| PRESSURE SPRING | ||
| 053 | A 0005455011 | SWITCH |
| REVERSE SPEED | ||
| 056 | A 0025456814 | SWITCH |
| REVERSE SPEED | ||
| 059 | N 000933004019 | SCREW |
| SWITCH TO CASE | ||
| 062 | N 000137004202 | SPRING WASHER |
| SWITCH TO CASE | ||
| 065 | N 000934004006 | NUT |
| SWITCH TO CASE | ||
| 068 | A 3092670025 | SLIDING BLOCK |
| SHIFT LEVER BEARING | ||
| 074 | A 6112600182 | SHIFTING TUBE |
| 074 | A 6012602282 | SHIFTING TUBE |
| 077 | A 6012600050 | REPAIR KIT |
| SHIFTING PARTS | ||
| 077 | A 6012600250 | REPAIR KIT |
| SHIFTING PARTS | ||
| 080 | A 6012605182 | REPAIR KIT |
| SHIFTING PARTS | ||
| 083 | A 3092671050 | BUSHING |
| SHIFTING TUBE | ||
| 083 | A 3092671050 | BUSHING |
| SHIFTING TUBE | ||
| 086 | A 1159910301 | PIN |
| SHIFTING TUBE | ||
| 089 | A 3099910201 | PIN |
| SHIFTING TUBE | ||
| 092 | N 000472035000 | LOCK RING |
| SHIFTING TUBE | ||
| 092 | N 000472035000 | LOCK RING |
| SHIFTING TUBE | ||
| 095 | A 3099933501 | SPRING |
| SHIFTING TUBE | ||
| 098 | A 3092670647 | SLOTTED GATE |
| Repalced by: A 3092600150 | ||
| 098 | A 3092600150 | REPAIR KIT |
| SHIFTING TUBE | ||
| 101 | A 6012670376 | WASHER |
| SHIFTING TUBE | ||
| 104 | A 6119940051 | LOCK |
| PRESSURE SPRING | ||
| 107 | A 1159902540 | WASHER |
| Repalced by: A 6012671476 | ||
| 107 | A 6012671476 | WASHER |
| SHIFTING TUBE | ||
| 113 | N 900055018001 | SPRING WASHER |
| INTERMEDIATE LEVER | ||
| 116 | A 1232670552 | SPACER WASHER |
| SHIFTING TUBE | ||
| 116 | A 1232670352 | SPACER WASHER |
| SHIFTING TUBE | ||
| 122 | A 6019933601 | SPRING |
| SHIFTING TUBE | ||
| 125 | A 6019933801 | SPRING |
| SHIFTING TUBE | ||
| 128 | A 1239930626 | DISC SPRING |
| SHIFTING TUBE | ||
| 131 | A 6019930226 | DISC SPRING |
| Repalced by: A 6019930326 | ||
| 131 | A 6019930326 | DISC SPRING |
| SHIFTING TUBE | ||
| 134 | N 000472030000 | LOCK RING |
| COVER TO BEARING BRACKET | ||
| 137 | N 000472028000 | LOCK RING |
| SHIFTING TUBE | ||
| 140 | N 000472052000 | LOCK RING |
| COVER TO BEARING BRACKET | ||
| 143 | N 000471018000 | LOCK RING |
| SHIFTING TUBE | ||
| 146 | N 000988018003 | FITTED WASHER |
| SHIFTING TUBE | ||
| 149 | N 900059030000 | EXPANSION PLUG |
| SHIFT CASE,REAR | ||
| 152 | A 6012670222 | COVER |
| SHIFT CASE,REAR | ||
| 155 | A 6012670876 | WASHER |
| INTERMEDIATE LEVER | ||
| 158 | A 6019940035 | SNAP RING |
| INTERMEDIATE LEVER | ||
| 164 | A 6012670050 | BUSHING |
| SHIFTING TUBE | ||
| 167 | A 6012670353 | SPACER TUBE |
| SHIFTING TUBE | ||
| 170 | A 6112670402 | SHIFT LEVER LOWER PART |
| LOWER PART | ||
| 170 | A 6012670902 | SHIFT LEVER LOWER PART |
| Repalced by: A 6012671702 | ||
| 170 | A 6012671702 | SHIFT LEVER LOWER PART |
| LOWER PART | ||
| 173 | A 6672670076 | WASHER |
| SHIFT LEVER UPPER PART TO SHIFT LEVER LOWER PART | ||
| 176 | A 3192670196 | BOOT |
| GEARSHIFT LEVER LOWER PART | ||
| 179 | A 3192670006 | COVER |
| GEARSHIFT LEVER LOWER PART | ||
| 182 | N 000472038000 | LOCK RING |
| GEARSHIFT LEVER LOWER PART | ||
| 185 | A 3192670008 | SPHERICAL PIECE |
| GEARSHIFT LEVER LOWER PART | ||
| 188 | A 3199930301 | SPRING |
| GEARSHIFT LEVER LOWER PART | ||
| 191 | A 6019933701 | SPRING |
| GEARSHIFT LEVER LOWER PART | ||
| 194 | A 3092670322 | COVER |
| SHIFT LEVER BEARING COVERING | ||
| 194 | A 6012670122 | COVER |
| SHIFT LEVER BEARING COVERING | ||
| 197 | A 3092671350 | BUSHING |
| GEARSHIFT LEVER LOWER PART | ||
| 197 | A 6112670250 | BUSHING |
| GEARSHIFT LEVER LOWER PART | ||
| 200 | A 6012670105 | BEARING |
| GEARSHIFT LEVER LOWER PART | ||
| 203 | A 6019910201 | PIN |
| GEARSHIFT LEVER LOWER PART | ||
| 206 | A 6012600095 | REPAIR KIT |
| SHIFTING PARTS | ||
| 209 | A 6012604639 | REPAIR KIT |
| SHIFTING PARTS | ||
| 215 | A 6012603637 | LEVER |
| 1ST SPEED AND REVERSE | ||
| 218 | A 6112600037 | LEVER |
| 1ST SPEED AND REVERSE | ||
| 224 | A 6012602637 | LEVER |
| 2ND AND 3RD SPEED | ||
| 227 | A 6112600137 | LEVER |
| 2ND AND 3RD SPEED | ||
| 233 | A 6012602737 | LEVER |
| 4TH AND 5TH SPEED | ||
| 236 | A 6112600237 | LEVER |
| 4TH AND 5TH SPEED | ||
| 239 | A 1152670274 | PIN |
| 245 | A 6112600131 | SHIFTING ROD |
| 1ST SPEED AND REVERSE | ||
| 248 | A 6012671717 | ROD |
| 1ST SPEED AND REVERSE | ||
| 254 | A 6112600231 | SHIFTING ROD |
| 2ND AND 3RD SPEED | ||
| 257 | A 6012671617 | ROD |
| 2ND AND 3RD SPEED | ||
| 263 | A 6112600331 | SHIFTING ROD |
| 4TH AND 5TH SPEED | ||
| 266 | A 6012671917 | ROD |
| 4TH AND 5TH SPEED | ||
| 272 | A 1152600353 | END PIECE |
| Repalced by: A 6012680027 | ||
| 272 | A 6012680027 | END PIECE |
| 275 | A 1159920110 | BUSHING |
| 278 | N 070616010004 | NUT |
| END PIECE TO SHIFTING ROD | ||
| 281 | A 6012670332 | END PIECE |
| SHIFTING ROD TO LEVER | ||
| 284 | A 1159920110 | BUSHING |
| SHIFTING ROD TO LEVER | ||
| 287 | N 070616010004 | NUT |
| END PIECE TO SHIFTING ROD | ||
| 290 | N 006799007007 | LOCK PLATE |
| SHIFTING ROD TO LEVER | ||
| 293 | A 3092604537 | LEVER |
| Repalced by: A 6012603937 | ||
| 293 | A 6012603937 | LEVER |
| 2ND THRU 5TH SPEED | ||
| 293 | A 6012603937 | LEVER |
| 2ND THRU 5TH SPEED | ||
| 296 | A 6012604437 | LEVER |
| 1ST SPEED AND REVERSE | ||
| 302 | A 6112600337 | LEVER |
| Repalced by: A 6012063837 | ||
| 302 | A 6012603837 | LEVER |
| 1ST SPEED AND REVERSE | ||
| 305 | A 0009920510 | BUSHING |
| 1ST SPEED AND REVERSE | ||
| 308 | A 1159920210 | BUSHING |
| 308 | A 3099901940 | WASHER |
| SHIFTING ROD TO SHIFT LEVER | ||
| 311 | A 0009941060 | LOCK |
| Repalced by: A 0009942960 | ||
| 311 | A 0009942960 | LOCK |
| SHIFTING ROD TO SHIFT LEVER | ||
| 314 | N 000933006127 | SCREW |
| SHIFT LEVER TO DETENT | ||
| 314 | N 304017006026 | SCREW |
| Repalced by: N 304017006026 | ||
| 314 | N 304017006026 | SCREW |
| SHIFT LEVER TO DETENT | ||
| 317 | N 912004006102 | LOCK WASHER |
| SHIFT LEVER TO DETENT | ||
| 317 | N 000137006204 | SPRING WASHER |
| SHIFT LEVER TO DETENT | ||
| 320 | N 000934006007 | NUT |
| SHIFT LEVER TO DETENT | ||
| 323 | A 6012603039 | SHIFT LEVER |
| Repalced by: A 6012603839 | ||
| 323 | A 6012603839 | SHIFT LEVER |
| Repalced by: A 6012605239 | ||
| 323 | A 6012605239 | SHIFT LEVER |
| Repalced by: A 6012606039 | ||
| 323 | A 6012606039 | SHIFT LEVER |
| PARTS KIT | ||
| 326 | A 3092670096 | BOOT |
| Repalced by: A 6672670096 | ||
| 326 | A 6672670096 | BOOT |
| SHIFT LEVER LOWER PART | ||
| 329 | A 3222600040 | HANDLE |
| FIVE-SPEED TRANSMISSION | ||
| 332 | A 6202680042 | KNOB |
| FIVE-SPEED TRANSMISSION | ||
| 335 | A 6202680557 | COVER |
| FIVE-SPEED TRANSMISSION | ||
| 338 | N 000936010010 | NUT |
| GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER | ||
| 341 | N 000933006083 | SCREW |
| SHIFT LEVER UPPER PART TO SHIFT LEVER LOWER PART | ||
| 341 | N 000933008160 | SCREW |
| Repalced by: N 304017008040 | ||
| 341 | N 304017008040 | SCREW |
| Repalced by: N 910105008010 | ||
| 341 | N 910105008010 | SCREW |
| Repalced by: N 910143008005 | ||
| 341 | N 910143008005 | SCREW |
| SHIFT LEVER UPPER PART TO SHIFT LEVER LOWER PART | ||
| 344 | N 912004008102 | LOCK WASHER |
| SHIFT LEVER UPPER PART TO SHIFT LEVER LOWER PART | ||
| 347 | N 000125008443 | WASHER |
| SHIFT LEVER UPPER PART TO SHIFT LEVER LOWER PART | ||
| 347 | A 6672670076 | WASHER |
| SHIFT LEVER UPPER PART TO SHIFT LEVER LOWER PART | ||
| 350 | N 000557008003 | NUT |
| SHIFT LEVER UPPER PART TO SHIFT LEVER LOWER PART | ||
| 353 | A 6012670297 | BOOT |
| CAB SEALING | ||
| 353 | A 6012670697 | BOOT |
| CAB SEALING | ||
| 362 | N 000931008327 | SCREW |
| Repalced by: N 304017008043 | ||
| 362 | N 304017008043 | SCREW |
| GEARSHIFT,TRANSMISSION | ||
| M 8X55 | ||
| 362 | N 914007008061 | COMBINATION BOLT |
| GEARSHIFT,TRANSMISSION | ||
| M 8X60 | ||
| 365 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 365 | N 000137008212 | SPRING WASHER |
| GEARSHIFT,TRANSMISSION | ||
| 368 | A 6012670850 | BUSHING |
| GEARSHIFT,TRANSMISSION | ||
| 368 | A 6012670453 | SPACER TUBE |
| Repalced by: A 6012670653 | ||
| 368 | A 6012670653 | SPACER TUBE |
| GEARSHIFT,TRANSMISSION | ||
